Summary of Contents for Goblin GCV404W-21

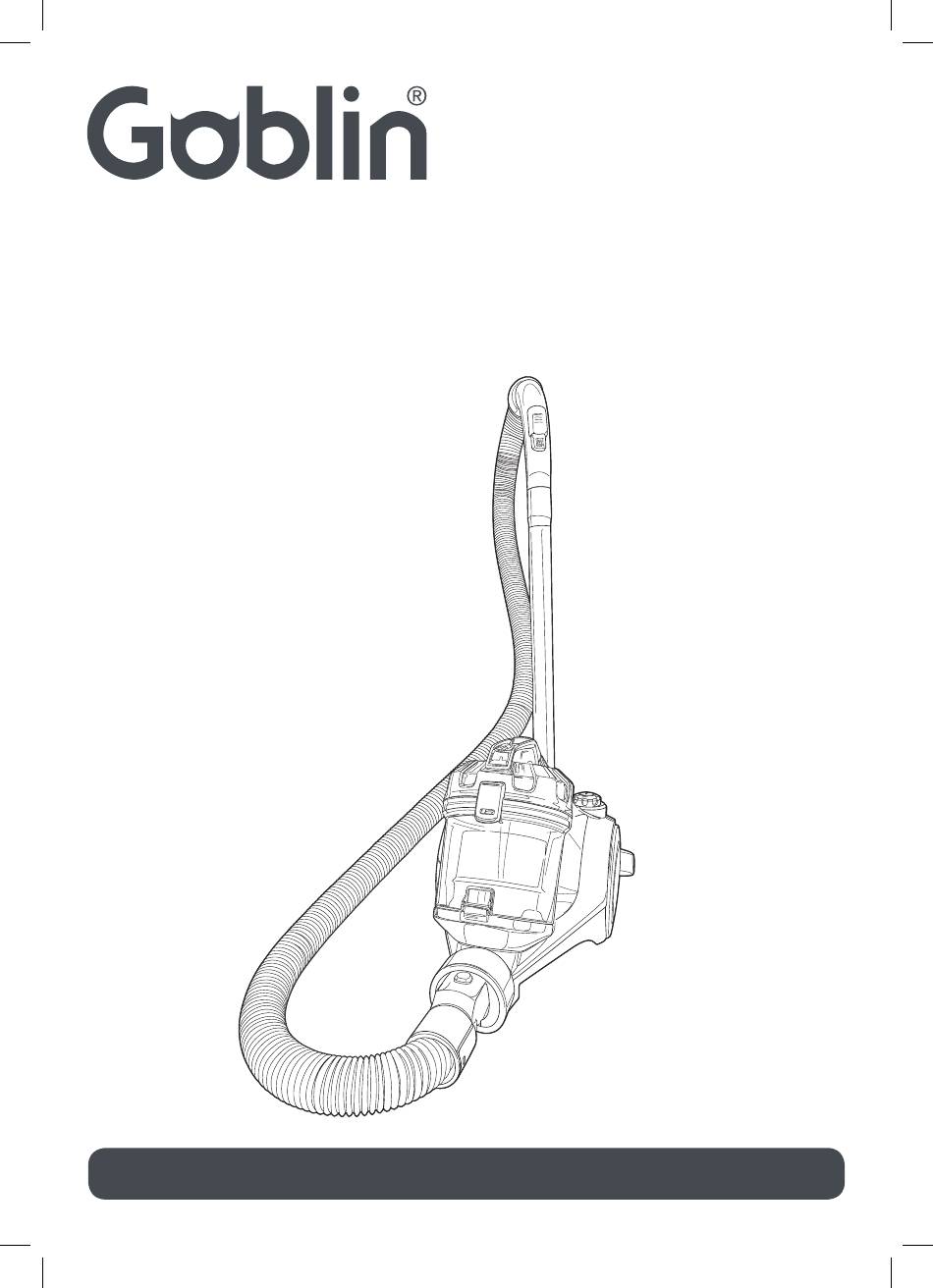

- Page 1 GCV404W-21 Vacuum User Guide 220-240V~ 50-60Hz 700W IMPORTANT: RETAIN FOR FUTURE REFERENCE...
-
Page 2: About This Guide
About this guide We’re here to help you get the most from your vacuum, so please keep hold of this manual for future use. WARNINGS: THIS PRODUCT WAS DESIGNED AND MANUFACTURED TO MEET STRICT QUALITY AND SAFETY STANDARDS. THERE ARE, HOWEVER, SOME OPERATIONAL PRECAUTIONS YOU SHOULD BE AWARE OF. - Page 3 To avoid electric shock or injury, never immerse the vacuum body, cord or plug in liquid or water. 10. Do not handle the appliance with wet hands. 11. Keep away from harsh or abrasive cleaning agents or solvents. 12. Ensure you assemble the vacuum correctly before use. 13.
- Page 4 anything else that may reduce air flow. 24. Avoid directing the vacuum near naked flames as the air discharged may extinguish gas fires and pilot lights or disturb ashes in an open fire. 25. DO NOT use the vacuum to suck up large objects or objects that are likely to damage the vacuum cleaner.
- Page 5 41. Environmental information: If at anytime in the future you should need to dispose of this product, please note that, in the UK, waste electrical products/batteries should not be disposed of with household waste. AUTOMATIC THERMAL CUT OUT A safety thermostat inside the cleaner protects the motor from overheating if the airways or filters are clogged.
- Page 6 You should have • Vacuum cylinder body with bin • Telescopic tube • Floor head • Crevice/brush multi tool • Hose How to… …recognise the parts of your vacuum Crevice/brush Circular Outlet MIF filter multi-tool sponge filter HEPA filter...
- Page 7 Hose Handle Telescopic tube Dust Cup Release Button On/O Button Cord Rewind Button Storage Hook Floor Air Outlet Nozzle Cover Rubber Wheel Hose Dust Cup Connector...
- Page 8 How to… …assemble your vacuum Please note Do not plug in your unit to the mains supply whilst assembling. 1. Align the hose with the air inlet opening in the main body. Insert the connector until you hear a click. 2.
- Page 9 3. Push the other end of the telescopic tube into the floor head. How to… …set the vacuum for di erent floor types Hard floor Carpet The floor type selector switch raises and lowers the height of the vacuum floor head to make types.
- Page 10 How to… …use your vacuum Ensure the vacuum is fully assembled before using. 1. Pull the power cable from the main unit by holding the plug. Do not exceed the red marker on the cable. 2. Pop the plug into an electrical socket and turn the power on.
- Page 11 How to… …attach and use the crevice/brush multi-tool Please note 1. Remove the floor head from the telescopic tube by twisting the pole in any direction (1) and pulling upwards (2). Next, remove the telescopic tube from the hose end. 2.
- Page 12 How to… …clean your stairs Always work with the vacuum at the bottom of the stairs so it is positioned below you and up against the bottom step. 1. Vacuum the stairs using the crevice/brush multi-tool or the hose. How to… …remove and empty the bin container Ensure the vacuum is not plugged into the mains supply...
- Page 13 2. Hold the bin assembly over a household bin and push the button at the bottom. The debris will fall out into the bin. Please note: Do not allow the bin container to overfill. Don’t exceed the MAX level marker. Empty regularly.
- Page 14 How to… …remove and clean the MIF filter, circular sponge filter and outlet HEPA filter 1. To access the circular sponge filter, remove the bin container as shown in the ‘How to...remove and empty the bin container section of this manual. 2.
- Page 15 4. Take out the cyclone unit from the dust bin. Cyclone Unit 5. Separate the cyclone unit by rotating either of the two parts counterclockwise. 6. Remove any excess debris/dust from the circular sponge filter. Rinse the two cyclone parts, circular MIF filter and circular sponge filter under running warm water until the water runs clear and leave to dry for 24 hours.
- Page 16 9. Remove any excess debris/dust from the HEPA fi lter over a household bin. Rinse it under warm water until the water runs clear and leave to dry for 24 hours. 10. Once all the parts are thoroughly dry, reassemble the parts in the correct places.
- Page 17 How to… …clear a blockage Ensure the vacuum is not plugged into the mains supply and is switched The vacuum would only become blocked if the bin has become too full, the filters are clogged up or a large object has been sucked up. 1.
- Page 18 4. Press the release button and pull the hose out. Lay the hose flat and look down it to see if there are any blockages. If there are, use the handle of a broom to clear the obstruction. Take care not to damage the hose in the process.
-
Page 19: Troubleshooting
Troubleshooting Problem Possible problem What to do Vacuum 1. The vacuum might 1. Ensure the plug is in the fails to turn not be plugged socket properly and switched in properly or the fuse has tripped. 2. Check the fuse on the mains board. - Page 20 ASDA,Leeds LS11 5AD. any problems, please contact customer services at the telephone number or address shown opposite. GCV404W-21 Vacuum Product name: N.B. When calling or writing please 15A.09.22.227 Product site code: quote the product site code.
- Page 24 Copyright Disposal © 2021 ASDA Stores Limited. This symbol on the product or in the instructions means that your electrical and All other trademarks appearing herein are the electronic equipment should be disposed at the property of their representative owners. end of its life separately from your household Specifications are subject to change waste.
