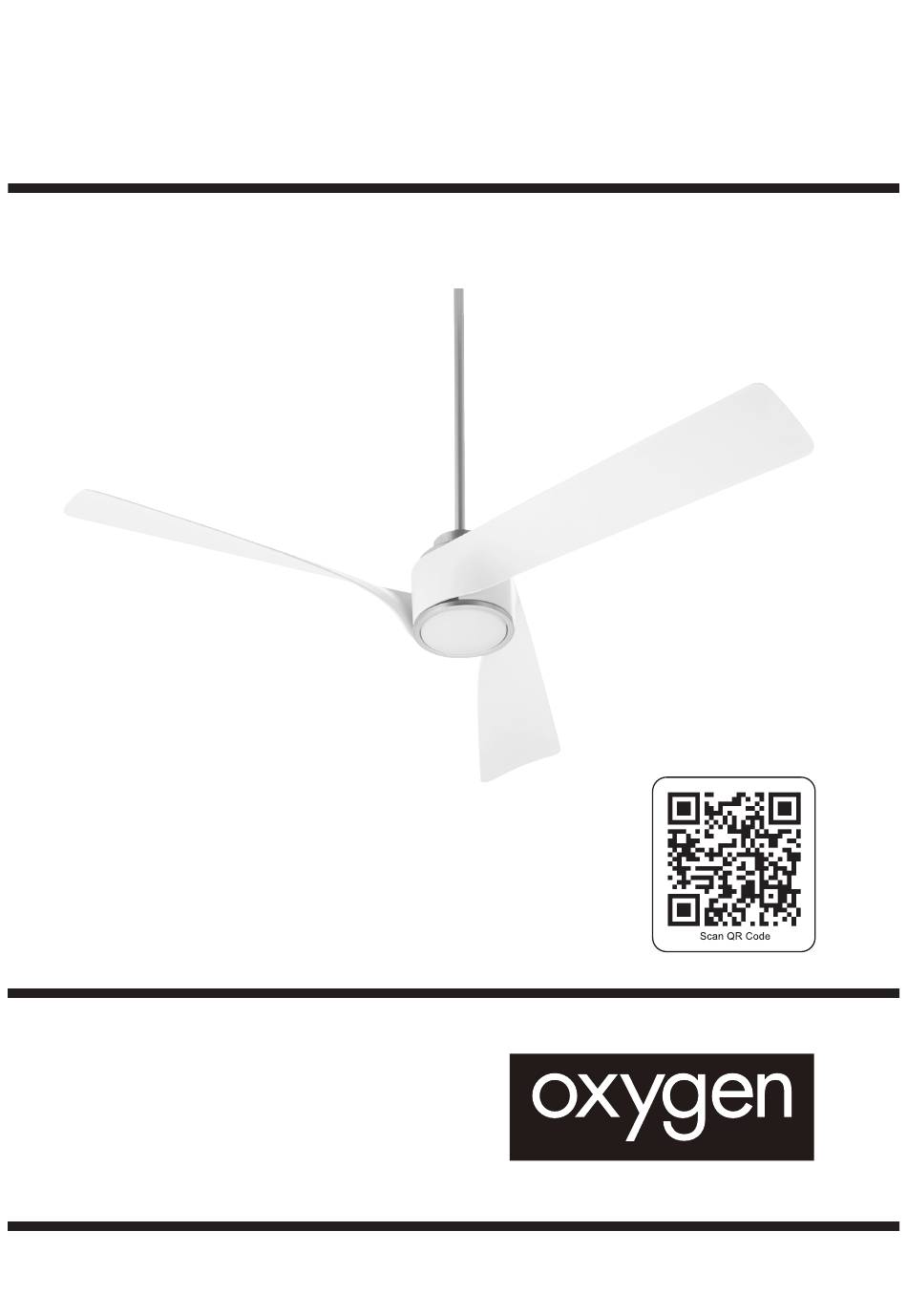

THE HEYDAY CEILING FAN
INSTALLATION INSTRUCTIONS
Please read and save these instructions
Scan QR code to download the BOND app
These instructions are to be used in
the installation of the following
OXYGEN fans...
The Heyday
© 2023 oxygen Lighting. All Rights Reserved.
201 Railhead Rd • Fort Worth, TX 76106 • (877) 607-0202 • FAX (877) 607-0203
IO364-01/23
Advertisement
Table of Contents
Related Manuals for Oxygen 3-125 Series
Summary of Contents for Oxygen 3-125 Series
- Page 1 Scan QR code to download the BOND app These instructions are to be used in the installation of the following OXYGEN fans... The Heyday © 2023 oxygen Lighting. All Rights Reserved. 201 Railhead Rd • Fort Worth, TX 76106 • (877) 607-0202 • FAX (877) 607-0203 IO364-01/23...
-
Page 2: Warranty & Service
(claims must be presented to fitness for a particular purpose to the 2. For everything else, except blades and the carrier). extent permitted by law. Oxygen shall not finish - one year from the date of be liable for incidental, consequential, or purchase. -
Page 3: Safety Rules
(n) 15. Battery (o) 16. Blade balancing kit (p) IF YOU FIND THAT PARTS ARE MISSING. CONTACT YOUR DEALER FOR REPLACEMENT, OR CALL OXYGEN DIRECTLY AND WE WILL MAIL REPLACEMENTS TO YOU IMMEDIATELY. -
Page 4: Mounting Options
3. MOUNTING OPTIONS 1. Disconnect the power by removing fuses WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, FIRE, OR PERSONAL INJURY, or turning off circuit breakers. MOUNT THE FAN ONLY TO AN OUTLET MARKED ACCEPTABLE FOR FAN SUPPORT AND USE MOUNTING SCREWS PROVIDED WITH THE OUTLET BOX. -
Page 5: Hanging Your Fan
4. HANGING YOUR FAN 4. HANGING YOUR FAN WARNING -Turn off the power! Fig. 5 Fig. 7 1. Remove ball from downrod by loosening set screw in the side of the ball. Slide ball Cross pin down and remove cross pin; remove ball. Cross pin (Fig.5) Hanger ball... -
Page 6: Electrical Connections
5. ELECTRICAL CONNECTIONS REMEMBER -Turn off the power! NOTE - Control must be installed within 30 feet of fan. REMEMBER -Turn off the power! NOTE: This remote control unit is equipped Connect the other BLACK wire Use ONLY wall controls approved by (labeled "TO POWER SUPPLY") with 32 code combinations to prevent from the transmitter to the remaining... - Page 7 6. COMPLETING INSTALLATION 1. Make sure the wiring is safely inside Fig. 11 Fig. 14 the outlet box as instructed in Step 5 - Electrical Connections. To install the canopy, remove one of the two screws Outlet box from the bottom of the mounting bracket and loosen the other screw one turn.
- Page 8 7. INSTALLING THE WALL CONTROL REMEMBER -Turn off the power! NOTE - Control must be installed within 30 feet of fan. Fig. 15 1. Remove the existing wall plate and 3. (Fig. 15) Carefully tuck the wire switch from the wall junction box. connections inside the junction box.
- Page 9 9. FAN OPERATION AND CARE 1. A ceiling fan is an environmentally 3. Clean you fan periodically using only Fig. 18 smart choice to cool as well as to help a cloth dampened with a mild detergent warm your home or office. Adjust your solution for all hardware - never use HVAC thermostat during fan use to save solvents.
-
Page 10: Troubleshooting
10. TROUBLESHOOTING FAN WILL NOT START 3. Use of a standard light rheostat or an EXCESSIVE WOBBLE 1. Check that the electricity has been unapproved fan wall control to control the Note: A small amount of wobble is turned on at the circuit breaker which had fan speed will always cause an annoying considered acceptable and should not be probably been turned off during... - Page 12 TROUBLESHOOTING TO PERFORM A FACTORY RESET: The Factory Reset will erase all fan settings, schedules, and disconnect from your Wi-Fi network. However, the fan will remain paired with the remote control. 1. Turn off the breaker or wall switch. 2. Turn the vreaker/switch back on. 3.
