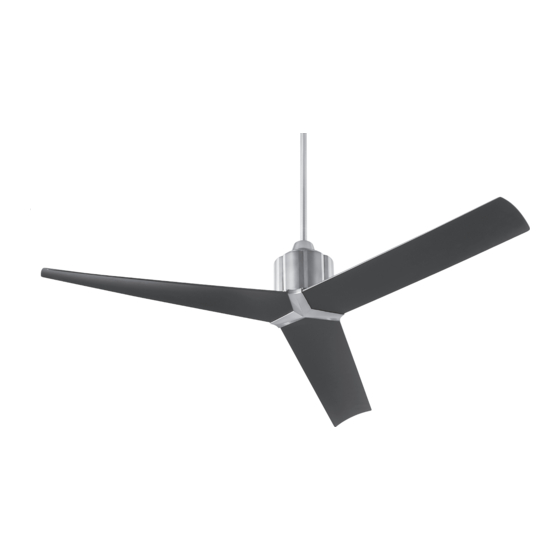

THE STRATO SMART CEILING FAN
INSTALLATION INSTRUCTIONS
Please read and save these instructions
Scan QR code to download the BOND app
These instructions are to be used in
the installation of the following
quorum fans...
The Strato
© 2022 oxygen Lighting. All Rights Reserved.
Smart Celiling Fan
201 Railhead Rd • Fort Worth, TX 76106 • (877) 607-0202 • FAX (877) 607-0203
I0351-11/22
Advertisement
Table of Contents
Related Manuals for Oxygen STRATO
Summary of Contents for Oxygen STRATO

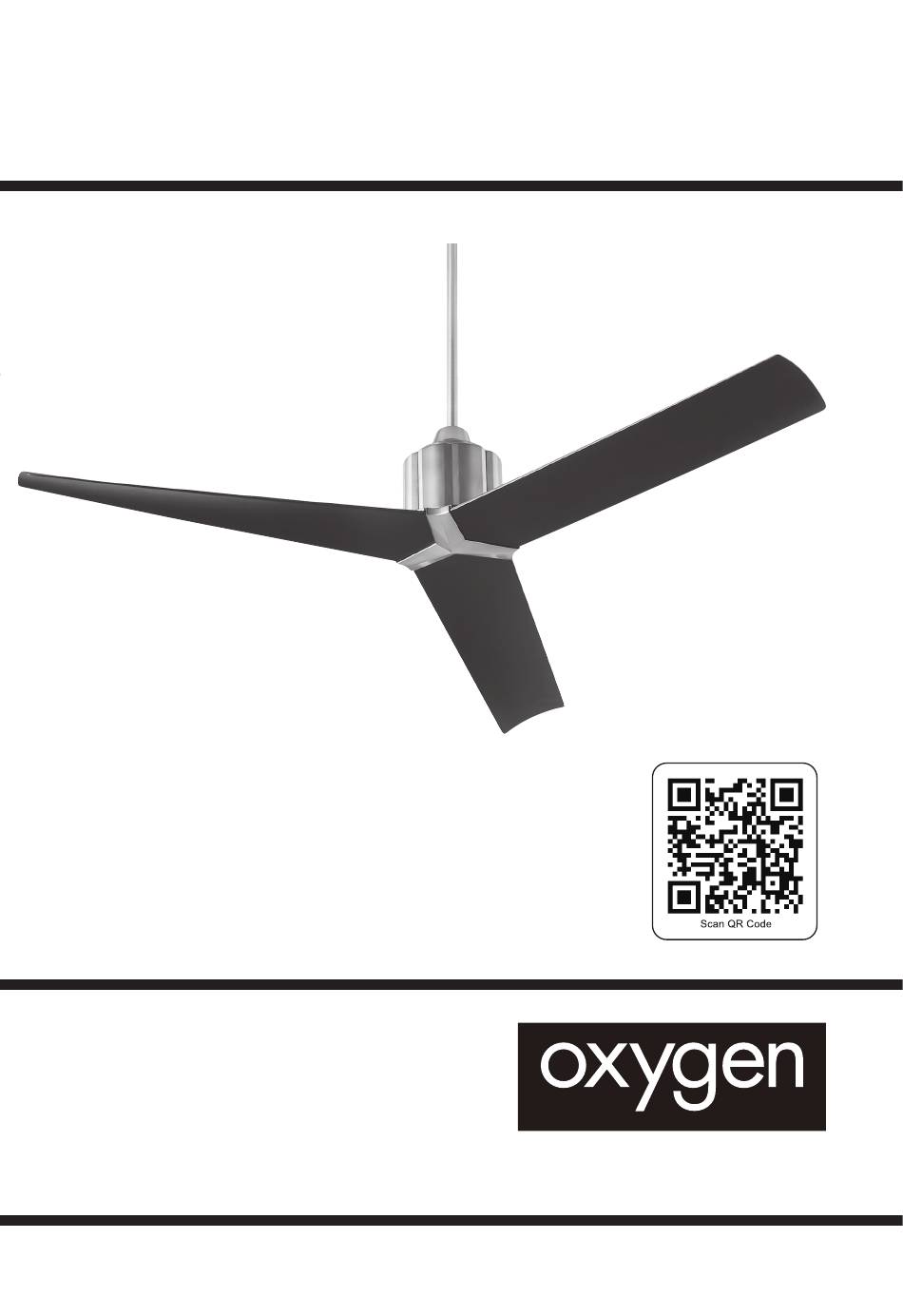

- Page 1 These instructions are to be used in the installation of the following quorum fans... The Strato © 2022 oxygen Lighting. All Rights Reserved. Smart Celiling Fan 201 Railhead Rd • Fort Worth, TX 76106 • (877) 607-0202 • FAX (877) 607-0203 I0351-11/22...
-
Page 2: Warranty & Service
(claims must be presented to fitness for a particular purpose to the 2. For everything else, except blades and the carrier). extent permitted by law. Oxygen shall not finish - one year from the date of be liable for incidental, consequential, or purchase. -
Page 3: Safety Rules
(7 Screws/washers) Mounting hardware (wire nuts, wood screws, machine screws, lock washers, spring washers, metal washers.) IF YOU FIND THAT PARTS ARE MISSING. CONTACT YOUR DEALER FOR REPLACEMENT, OR CALL OXYGEN DIRECTLY AND WE WILL MAIL REPLACEMENTS TO YOU IMMEDIATELY. -
Page 4: Mounting Options
3. MOUNTING OPTIONS 1. Disconnect the power by removing fuses WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, FIRE, OR PERSONAL INJURY, or turning off circuit breakers. MOUNT THE FAN ONLY TO AN OUTLET MARKED ACCEPTABLE FOR FAN SUPPORT AND USE MOUNTING SCREWS PROVIDED WITH THE OUTLET BOX. - Page 5 5. HANGING YOUR FAN (continued) WARNING -Turn off the power! Fig. 8 Fig. 11 4. Attach the blade holder assembly to the motor using the supplied screws. DO NOT bend the blade when installing the Safety cable blades. (Fig. 8) Downrod 5.
-
Page 6: Electrical Connections
6. ELECTRICAL CONNECTIONS REMEMBER - Turn off the power! NOTE - Control must be installed within 30 feet of fan. Use the wire nuts supplied with your fan Carefully tuck the connected wires inside Use ONLY wall controls approved by when making connections. - Page 7 7. COMPLETING INSTALLATION Fig. 15 1. Make sure the wiring is safely inside the outlet box as instructed in Step 6- Electrical Connections. To install the Outlet box canopy, remove one of the two screws from the bottom of the mounting bracket Hanger bracket and loosen the other one half turn.
- Page 8 9. OPERATING TRANSMITTER YOUR Your DC brushless motor is equipped Pairing Process Fig. 17 with an automatically learned type remote With the fan’s power off, restore power to control. There is no frequency switches the fan. Press and hold “SET” button for on the receiver or transmitter.
- Page 9 10. FAN OPERATION AND CARE 1. A ceiling fan is an environmentally 3. Clean you fan periodically using only Fig. 19 smart choice to cool as well as to help a cloth dampened with a mild detergent warm your home or office. Adjust your solution for all hardware - never use solvents.
-
Page 10: Troubleshooting
11. TROUBLESHOOTING FAN WILL NOT START 3. Use of a standard light rheostat or an EXCESSIVE WOBBLE 1. Check that the electricity has been unapproved fan wall control to control the NOTE: A small amount of wobble is turned on at the circuit breaker which had fan speed will always cause an annoying considered acceptable and should not be probably been turned off during installation. - Page 12 TROUBLESHOOTING TO PERFORM A FACTORY RESET: The Factory Reset will erase all fan settings, schedules, and disconnect from your Wi-Fi network. However, the fan will remain paired with the remote control. 1. Turn off the breaker or wall switch. 2. Turn the vreaker/switch back on. 3.
