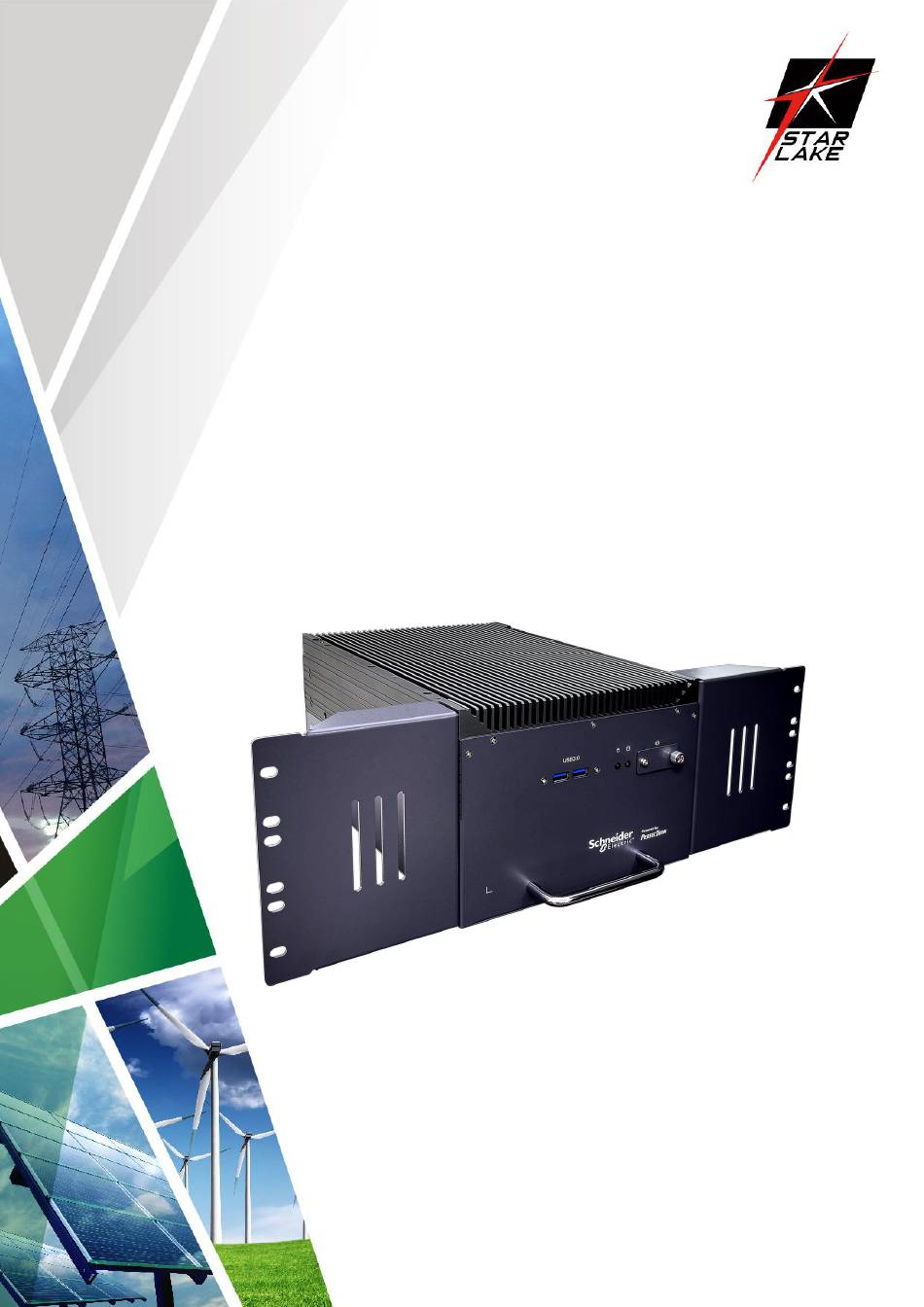

- Page 1 SCH4X2-AC SCH4X2-RAC SMART ENERGY 13 / 12TH PROCESSOR FANLESS COMPUTER User’s Manual Revision Date: Jul.2.2024...
-
Page 2: Safety Information
SCH4X2-AC / SCH4X2-RAC User’s Manual Revision Date: Jul.2.2024 Safety Information Electrical safety To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system. When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected. -
Page 3: Revision History
2024/7/2 Add Accessories Kit for option Packing List Q’ty Item Description SCH4X2-AC/RAC Smart Energy Intel 13/12th CPU Fanless Computer Driver CD SSD Tray Key (Option)Accessories Kit for SCH3X2/SCH4X2 Single Machine 1 set Rackmount Bracket (Option) Accessories Kit for SCH3X2/SCH4X2 Dual Machine... -
Page 4: Rohs Compliance
SCH4X2-AC / SCH4X2-RAC User’s Manual Revision Date: Jul.2.2024 RoHS Compliance Perfectron RoHS Environmental Policy and Status Update Perfectron is a global citizen for building the digital infrastructure. We are committed to providing green products and services, which are compliant with... -
Page 5: Table Of Contents
SCH4X2-AC / SCH4X2-RAC User’s Manual Revision Date: Jul.2.2024 Table of Contents Safety Information ........................1 Electrical safety ........................1 Operaton safety ......................... 1 Statement ........................... 1 Revision History ........................2 Packing list ..........................2 Ordering information ......................2 RoHS Compliance………………………………………………………………………………………………………….…..3 Chapter 1 : Product Introduction .................. - Page 6 SCH4X2-AC / SCH4X2-RAC User’s Manual Revision Date: Jul.2.2024 4.4.9 S5 RTC Wake Settings .................... 31 4.4.10 Network Stack Configuration ................32 4.4.11 NVMe Configuration ................... 33 4.5 Security Page ......................34 4.5.1 HDD Security configuation ................35 4.5.2 Secure Boot ....................36 4.5.3 Key Management ..................
-
Page 7: Chapter 1 : Production Introduction
SCH4X2-AC / SCH4X2-RAC User’s Manual Revision Date: Jul.2.2024 Chapter 1 : Production Introduction 1.1 Specifications System 13th/12th Gen Intel® Raptor Lake-S/Alder Lake-S LGA1700 Socket Processor / Core i9/i7/i5/i3 Processor up to TDP 65W Memory Capacity DDR4 SO-DIMM 3200 MHz up to 64G... - Page 8 SCH4X2-AC / SCH4X2-RAC User’s Manual Revision Date: Jul.2.2024 Power Input AC-IN 110~240V(With Redundant) OS support list Windows® 11 64bit, / Windows® 10 IoT LTSC 64bit (LTSC 2021) Ubuntu 22.04 / Linux (support by request) Mechanical and Environmental Dimension 220 x 315 x167 mm ( W x D x H ) Operating Temp.
-
Page 9: Sch3X2-D7 Front Panel I/O Placement
SCH4X2-AC / SCH4X2-RAC User’s Manual Revision Date: Jul.2.2024 1.2 SCH4X2-A9 Front Panel I/O Placement 1.3 SCH4X2-A9 Rear Panel I/O Placement... -
Page 10: Sch3X2-Rd7 Front Panel I/O Placement
SCH4X2-AC / SCH4X2-RAC User’s Manual Revision Date: Jul.2.2024 1.4 SCH3X2-RA9 Front Panel I/O Placement 1.5 SCH4X2-RA9 Rear Panel I/O Placement... -
Page 11: Sch3X2-D7 Mechanical Dimensions
SCH4X2-AC / SCH4X2-RAC User’s Manual Revision Date: Jul.2.2024 1.6 SCH4X2-A9 Mechanical Dimensions Single System : Dual System :... -
Page 12: Sch3X2-Rd7 Mechanical Dimensions
SCH4X2-AC / SCH4X2-RAC User’s Manual Revision Date: Jul.2.2024 1.7 SCH4X2-RA9 Mechanical Dimensions Single System : Dual System :... -
Page 13: Chapter 2 : Rear I/O Port
SCH4X2-AC / SCH4X2-RAC User’s Manual Revision Date: Jul.2.2024 Chapter 2 : Rear I/O Port 2.1 LAN port LED Indications 1G LAN :... -
Page 14: Chapter 3: System Setup
SCH4X2-AC / SCH4X2-RAC User’s Manual Revision Date: Jul.2.2024 Chapter 3: System Setup This chapter provides more detailed information and let you know how to install components into the SCH4X2-A9/RA9 series embedded system. Prior to removing the chassis cover, make sure the unit’s power is off and disconnected from the power sources to prevent electric shock or system damage. -
Page 15: Pcie Card Installation
SCH4X2-AC / SCH4X2-RAC User’s Manual Revision Date: Jul.2.2024 3.2 PCIe Card installation SCH4X2-A9/RA9 series supports two PCIe Gen3 x 8 slot : • Remove the back cover screws • Remove the BKT-1 screw of the cover... - Page 16 SCH4X2-AC / SCH4X2-RAC User’s Manual Revision Date: Jul.2.2024 • Remove the BKT-2 screws of the cover • 2*PCIe x8 Slot...
- Page 17 SCH4X2-AC / SCH4X2-RAC User’s Manual Revision Date: Jul.2.2024 • Install PCIe Card...
- Page 18 SCH4X2-AC / SCH4X2-RAC User’s Manual Revision Date: Jul.2.2024 • Lock BKT-2 screw • Lock BKT-1 screw...
- Page 19 SCH4X2-AC / SCH4X2-RAC User’s Manual Revision Date: Jul.2.2024 • Lock back cover screws...
-
Page 20: Chapter 4: Ami Bios Utility
SCH4X2-AC / SCH4X2-RAC User’s Manual Revision Date: Jul.2.2024 Chapter 4: AMI BIOS UTILITY This chapter provides users with detailed descriptions on how to set up a basic system configuration through the AMI BIOS setup utility. 4.1 Starting To enter the setup screens, perform the following steps: ... -
Page 21: Main Page
SCH4X2-AC / SCH4X2-RAC User’s Manual Revision Date: Jul.2.2024 4.3 Main Page BIOS Information It displays BIOS related information. ME FW Version ME Firmware Version. Processor Information Display the installed CPU brand. Memory Information This displays the installed memory size, installed memory size of Slot 1 &... -
Page 22: Advance Page
SCH4X2-AC / SCH4X2-RAC User’s Manual Revision Date: Jul.2.2024 System Date Set the Date. Use Tab to switch between Date elements. Default Ranges: Year: 1998-9999 Months: 1-12 Days: dependent on month. Range of Years may vary. System Time Set the Time. Use Tab to switch between Time elements. - Page 23 SCH4X2-AC / SCH4X2-RAC User’s Manual Revision Date: Jul.2.2024 VMD setup menu VMD Configuration setting Trusted Computing Trusted Computing Settings NCT6126D Super IO Configuration System Super IO Chip Parameters. HW Monitor Monitor hardware status S5 RTC Wake Settings Enable system to wake from S5 using RTC alarm.
-
Page 24: Onboard Device
SCH4X2-AC / SCH4X2-RAC User’s Manual Revision Date: Jul.2.2024 4.4.1 Onboard Device Turbo Mode Enable/Disable processor Turbo Mode (requires Intel Speed Step or Intel Speed Shift to be available and enabled. Disabled / Enabled State After G3 Specify what state to go to when power is re-applied after a power failure (G3 state). -
Page 25: Cpu Configuration
SCH4X2-AC / SCH4X2-RAC User’s Manual Revision Date: Jul.2.2024 Wake on LAN Enable Enable/Disable integrated LAN to wake the system. Disabled / Enabled HD Audio Control Detection of the HD-Audio device. Disabled: HDA will be unconditionally disabled. Enabled: HDA will be unconditionally enabled. -
Page 26: Vmd Setup Menu
SCH4X2-AC / SCH4X2-RAC User’s Manual Revision Date: Jul.2.2024 L3 Cache Size SMX/TXT SMX/TXT Supported or Not 4.4.3 VMD setup menu Enable VMD controller Enable/Disable to VMD controller. Disabled / Enabled... -
Page 27: Trusted Computing
SCH4X2-AC / SCH4X2-RAC User’s Manual Revision Date: Jul.2.2024 4.4.4 Trusted Computing Security Device Support Enables or Disables BIOS support for security device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available. Disabled / Enabled Pending operation Schedule an Operation for the ecurity Device. -
Page 28: Nct6126D Super Io Configuration
SCH4X2-AC / SCH4X2-RAC User’s Manual Revision Date: Jul.2.2024 4.4.5 NCT6126D Super IO Configuration Serial Port 1 Configuration Set Parameters of Serial Port 1 (COMA) Serial Port 2 Configuration Set Parameters of Serial Port 2 (COMB) -
Page 29: Serial Port 1 Configuration
SCH4X2-AC / SCH4X2-RAC User’s Manual Revision Date: Jul.2.2024 4.4.6 Serial Port 1 Configuration Serial Port Enable or Disable Serial Port (COM). Disabled / Enabled Device Settings Device Super IO COM1 Address and IRQ.Read only Change Settings Select an optimal setting for Super IO Device. -
Page 30: Serial Port 2 Configuration
SCH4X2-AC / SCH4X2-RAC User’s Manual Revision Date: Jul.2.2024 Mode Configuration Configure serial port as RS232/RS422/RS485. 1T/1R RS422 / 3T/5R RS232 / 1T/1R RS485 TX ENABLE Low Active / 1T/1R RS422 with termination resistor / 1T/1R RS485 with termination resistor TX ENABLE Low Active / Disabled 4.4.7 Serial Port 2 Configuration... -
Page 31: Hardware Monitor
SCH4X2-AC / SCH4X2-RAC User’s Manual Revision Date: Jul.2.2024 Change Settings Select an optimal setting for Super IO Device. Auto / IO=3E8h; IRQ=7; / IO=3E8h, IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12; / IO=2E8h; IRQ=3, 4, 5, 6, 7, 9, 10, 11, 12;... -
Page 32: S5 Rtc Wake Settings
SCH4X2-AC / SCH4X2-RAC User’s Manual Revision Date: Jul.2.2024 System Fan Enable (Suppressed if Hardware Monitor Alert is Disabled) If Enabled, POST monitors system fan status. If this value is out of range, BIOS display warning message and turn on beep sound. Disabled / Enabled 4.4.9 S5 RTC Wake Settings... -
Page 33: Network Stack Configuration
SCH4X2-AC / SCH4X2-RAC User’s Manual Revision Date: Jul.2.2024 Wake up second(Show when Wake system from S5 set to Fixed Time) Select 0-59. For example enter 3 for 3am and 15 for 3pm. Wake system from S5 (when set to [Dynamic time]) Wake up minute increase Select 1-5. -
Page 34: Nvme Configuration
SCH4X2-AC / SCH4X2-RAC User’s Manual Revision Date: Jul.2.2024 Ipv6 PXE Support (Available when Network stack Enabled) Enable/Disable Ipv6 PXE Boot Support. If disabled IPV6 PXE boot option will not be created. Disabled / Enabled 4.4.11 NVMe Configuration (Device) Here shows the Device Name you installed. A sample screenshot shows below. -
Page 35: Security Page
SCH4X2-AC / SCH4X2-RAC User’s Manual Revision Date: Jul.2.2024 4.5 Security Page Administrator Password Set Administrator Password User Password Set User Password. -
Page 36: Hdd Security Configuation
SCH4X2-AC / SCH4X2-RAC User’s Manual Revision Date: Jul.2.2024 HDD Security drive HDD Security Configuration for selected drive Press Enter when selected to go into the associated Sub-Menu. Secure Boot Set User Password. Press Enter when selected to go into the associated Sub-Menu. -
Page 37: Secure Boot
SCH4X2-AC / SCH4X2-RAC User’s Manual Revision Date: Jul.2.2024 4.5.2 Secure Boot Secure Boot Secure Boot feature is Active if Secure Boot is Enabled. Platform Key (PK) is enrolled and the System is in User mode. The mode change requires platform reset. -
Page 38: Key Management
SCH4X2-AC / SCH4X2-RAC User’s Manual Revision Date: Jul.2.2024 Reset to Setup Mode Delete all Secure Boot key databases from NVRAM. Key Management Enables expert users to modify Secure Boot Policy variables without full authentication 4.5.3 Key Management Factory Key Provision Install factory default Secure Boot keys after the platform reset and while the System is in Setup mode. - Page 39 SCH4X2-AC / SCH4X2-RAC User’s Manual Revision Date: Jul.2.2024 Reset to Setup Mode Delete all Secure Boot key databases from NVRAM Platform Key (PK) Enroll Factory Defaults or load certificates from a file: 1.Public Key Certificate: a)EFI_SIGNATURE_LIST b)EFI_CERT_X509 (DER) c)EFI_CERT_RSA2048 (bin) d)EFI_CERT_SHAXXX 2.Authenticated UEFI Variable...
- Page 40 SCH4X2-AC / SCH4X2-RAC User’s Manual Revision Date: Jul.2.2024 Authorized Signatures Enroll Factory Defaults or load certificates from a file: 1.Public Key Certificate: a)EFI_SIGNATURE_LIST b)EFI_CERT_X509 (DER) c)EFI_CERT_RSA2048 (bin) d)EFI_CERT_SHAXXX 2.Authenticated UEFI Variable 3.EFI PE/COFF Image(SHA256) Key Source: Factory,External,Mixed Forbidden Signatures Enroll Factory Defaults or load certificates from a file: 1.Public Key Certificate:...
- Page 41 SCH4X2-AC / SCH4X2-RAC User’s Manual Revision Date: Jul.2.2024 OsRecovery Signatures Enroll Factory Defaults or load certificates from a file: 1.Public Key Certificate: a)EFI_SIGNATURE_LIST b)EFI_CERT_X509 (DER) c)EFI_CERT_RSA2048 (bin) d)EFI_CERT_SHAXXX 2.Authenticated UEFI Variable 3.EFI PE/COFF Image(SHA256) Key Source: Factory,External,Mixed Export Secure Boot variables...
-
Page 42: Bios Update
SCH4X2-AC / SCH4X2-RAC User’s Manual Revision Date: Jul.2.2024 4.5.4 BIOS Update Path for ROM Image Enter the path to the BIOS update option. -
Page 43: Boot Page
SCH4X2-AC / SCH4X2-RAC User’s Manual Revision Date: Jul.2.2024 4.6 Boot Page Setup Prompt Timeout Number of seconds to wait for setup activation key. 65535 (0xFFFF) means indefinite waiting. Bootup NumLock State Select the keyboard NumLock state. On / Off Boot Option #1 ~ Boot Option #8... -
Page 44: List Boot Device Type) Drive Bbs Priorities
SCH4X2-AC / SCH4X2-RAC User’s Manual Revision Date: Jul.2.2024 (UEFI) Hard Disk Drive BBS Priorities Specifies the Boot Device Priority sequence from available Hard Disk Drives. (UEFI) USB KEY Drive BBS Priorities Specifies the Boot Device Priority sequence from available Hard Disk Drives. -
Page 45: Save & Exit Page
SCH4X2-AC / SCH4X2-RAC User’s Manual Revision Date: Jul.2.2024 4.7 Save & Exit Page Discard Changes and Exit Exit system setup without saving any changes. Save Changes and Reset Reset the system after saving the changes. Restore Defaults Restore/Load Default values for all the setup options. -
Page 46: Event Logs
SCH4X2-AC / SCH4X2-RAC User’s Manual Revision Date: Jul.2.2024 4.8 Event Logs Change Smbios Event Log Settings Press <Enter> to change the Smbios Event Log configuration. View Smbios Event Log Press <Enter> to change the Smbios Event Log records. -
Page 47: Change Smbios Event Log Setting
SCH4X2-AC / SCH4X2-RAC User’s Manual Revision Date: Jul.2.2024 4.8.1 Change Smbios Event Log Setting Smbios Event Log Change this to enable or disable all feature of Smbios Event Logging during boot. Disabled / Enabled Erase Event Log Choose options for erasing Smbios Event Log. Erasing is done prior to any logging activation during reset. -
Page 48: Viewsmbios Event Log
SCH4X2-AC / SCH4X2-RAC User’s Manual Revision Date: Jul.2.2024 4.8.2 ViewSmbios Event Log DATE / TIME / ERROR CODE / SEVERITY / COUNT Description: Log Area Reset and Count is applicable only for Multi-Events. By Events. MM/DD/YY HH:MM:SS Smbios 0x16 N/A N/A...
