INSTALLATION INSTRUCTIONS
CUBIC
LED Wall Light
LHT1230 - Black
LHT1231 - White
Thank you for purchasing this Simx Lighting CUBIC LED wall light.
It requires a 220V-240 AC power supply to operate and should be installed
by a registered electrician.
Please read this manual before installation and retain for future reference.
!
IMPORTANT
This product is suitable for use only with a supply voltage of 220-240V AC, 50Hz.
All electrical work must be carried out in accordance with local and national electrical codes as applicable. We strongly recommend that this light
fitting is installed by a registered electrician.
Always switch power off prior to installation. A means of mains power isolation must be installed in the circuit for the purpose of safe access for
any internal cleaning, recalibration, or maintenance.
This light fitting is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Young children should be supervised to ensure that they do not play with the appliance.
Any changes or modifications made or attempted to this product, without the prior written approval of the manufacturer, will void any and all
stated warranties.
TECHNICAL SPECIFICATIONS
Power Source
Wattage
LED Colour
Luminous Flux
Driver Output
IP Rating
Safety
Mounting
Dimensions (HxWxD)
Warranty
INSTALLATION
We strongly recommend this light fitting is installed by a registered electrician.
This light fitting is rated IP65, making it suitable for exposed outdoor locations.
1
Switch off the power supply before commencing any
electrical work.
220-240V AC 50Hz
2 x 5W, 0.19A
2700K, 4000K, 6500K
540 lm
300mA Constant Current
IP65
Class I
Wall
100mm x 100mm x 100mm
5 years

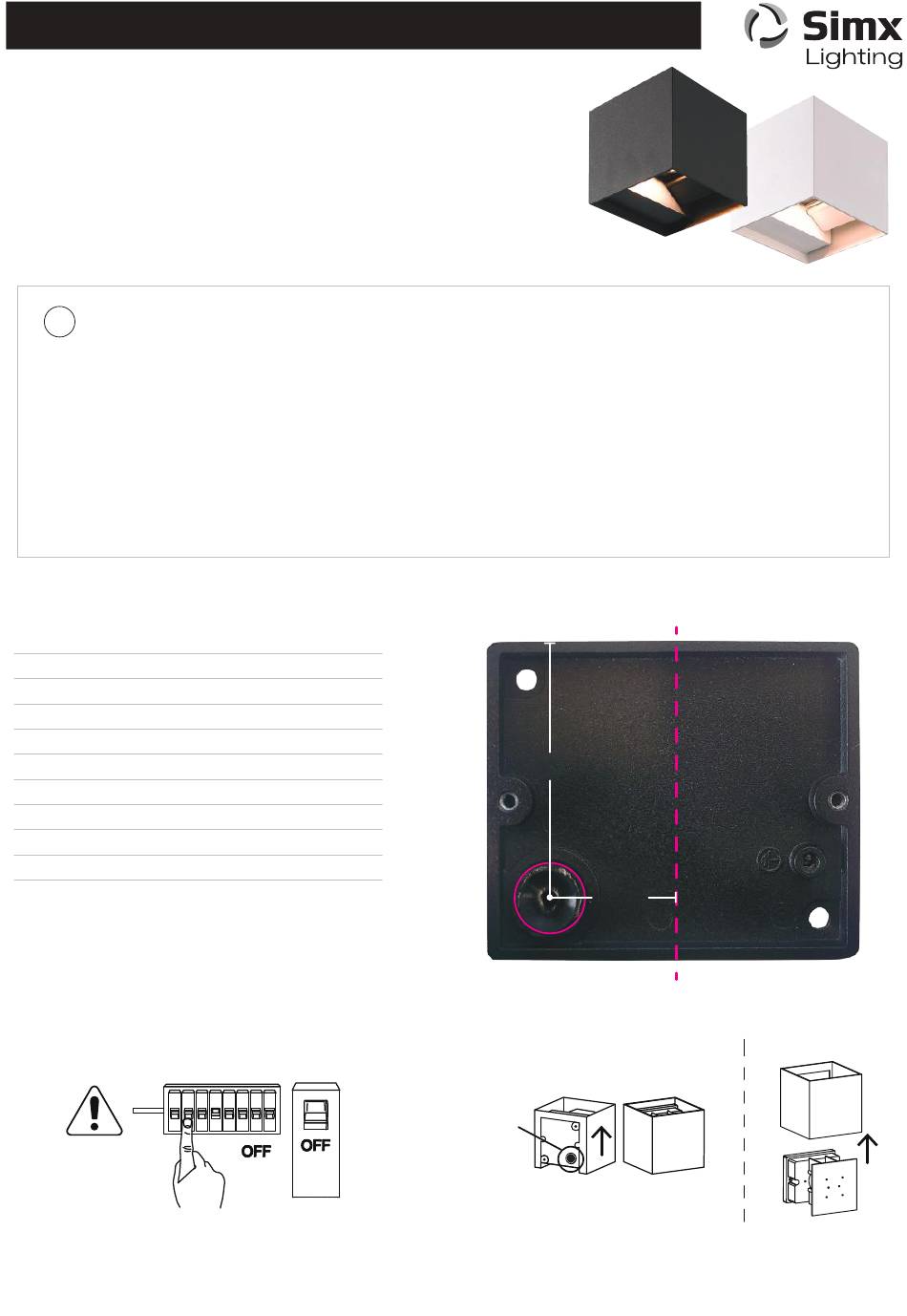

MOUNTING DIMENSIONS
60mm
29mm
Power
entry
gasket
Back
2
Check the orientation, the power entry gasket should always
be located at the bottom. Slide the cover upward to remove it.
(Mounting base from inside)
Front
