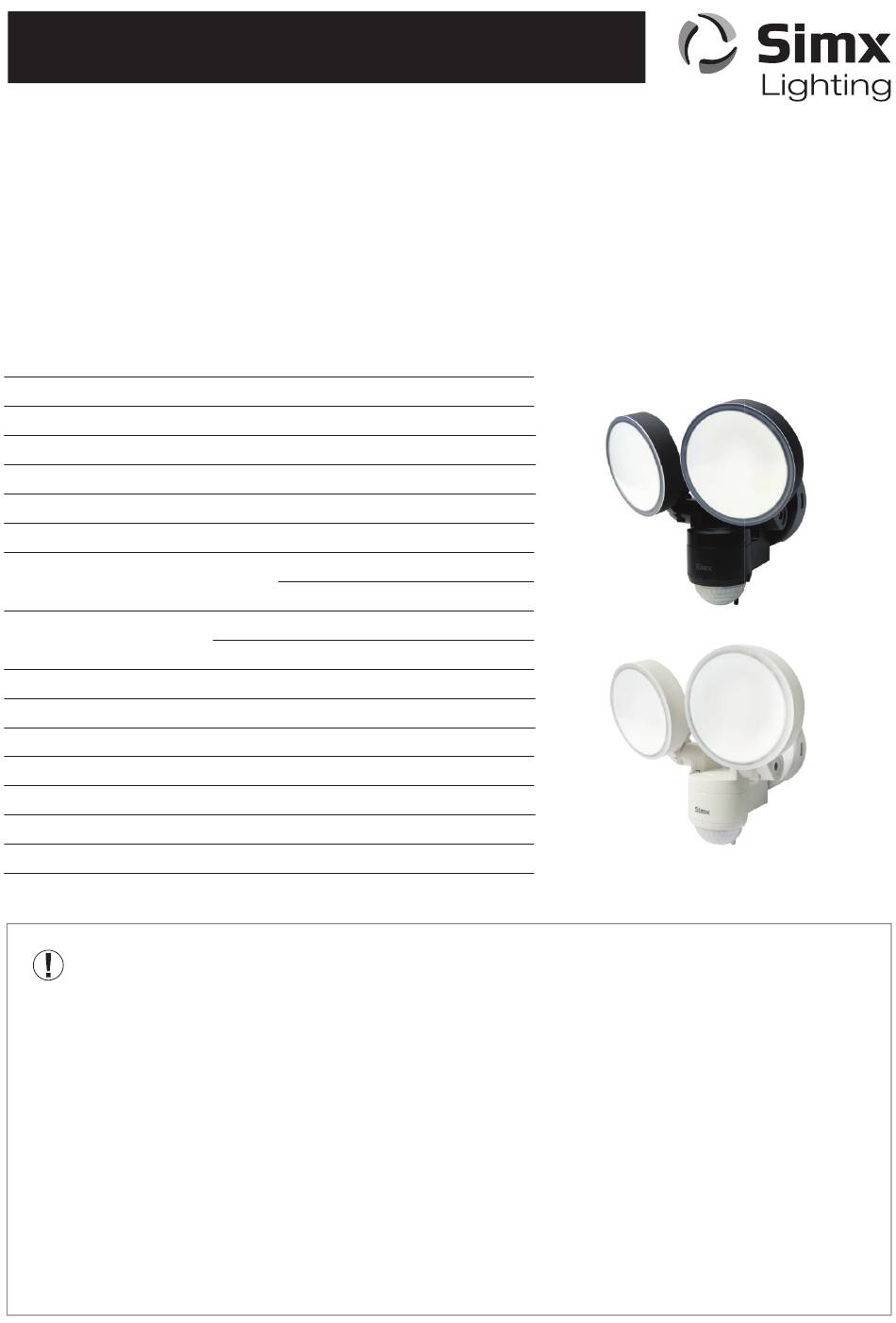

Installation INSTRUCTIONS
SENSOR LED MAX
TWIN 2 x 8W LED SENSOR LIGHT
LHT0269 BLACK / LHT0270 WHITE
Thank you for purchasing the Simx Lighting Sensor LED Max sensor light. This product is suitable for
sheltered exterior locations. It requires a 230V AC power supply to operate and should be installed by a
registered electrician. Please read this manual before installation and retain for future reference.
TECHNICAL SPECIFICATIONS
Power Source
Rated Load
Colour Temperature
Lumens (per lamp)
Light Beam Angle
Detection Range
Detection Angle
Time On Setting
Dusk Control
PIR Aiming Adjustment
Working Temperature
IP Rating
Safety
Mounting
Construction
IMPORTANT
This product is suitable for use only with a supply voltage of 220-240V AC 50Hz.
All electrical work must be carried out in accordance with local and national electrical codes as
applicable. We strongly recommend that this light fitting is installed by a registered electrician.
Always switch power off prior to installation. A means of mains power isolation must be installed in
the circuit for the purpose of safe access for any internal cleaning, recalibration, or maintenance.
This light fitting is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible for their safety. Young
children should be supervised to ensure that they do not play with the appliance.
Any changes or modifications made or attempted to this product, without the prior written approval
of the manufacturer, will void any and all stated warranties.
220-240V AC
17W max
3000K
600 lumens
95° to half-peak intensity
8m ± 2m
140° at 3m
90° at 8m
Min
2-5 secs
Max
4-6 mins
Day to night (adjustable)
Pan only, 90° left and right
-20°C - 40°C
IP55
Class II
Under eaves or wall mount
UV-stabilised polycarbonate
Advertisement
Table of Contents
Related Manuals for Simx Lighting LHT0269
Summary of Contents for Simx Lighting LHT0269
- Page 1 LHT0269 BLACK / LHT0270 WHITE Thank you for purchasing the Simx Lighting Sensor LED Max sensor light. This product is suitable for sheltered exterior locations. It requires a 230V AC power supply to operate and should be installed by a registered electrician.
- Page 2 PRODUCT COMPLIANCES AS/NZS60598.1:2003 AS/NZS60598.2.5 EN55015:2006 EN61000.3.2:2000 EN61000.3.3:1995 EN61547:1995 EN62031 EN 62471:2008 EN62471 EN60529 and relevant amendments MANUFACTURERS EXTENDED WARRANTY This product is guaranteed by SIMX Ltd and Ventair Pty Ltd for 3 years from the date of purchase against faulty materials or workmanship which affects its designed ability to operate. During this period if the product has a defect of this nature it will be repaired or replaced free of charge by SIMX with the same item, or a similar one of higher specification.
- Page 3 BEFORE YOU START Please read all the instructions prior to installation. This product should be wired to its own switch. Do not interconnect with other lamp or sensor types on the same switch. An earth connection must be used for electrical safety. Do not install during wet weather.
- Page 4 Fig. 4 Fig. 5 Minimum On Time Setting Maximum LUX Setting OPERATION AND TESTING WALK TESTING PROCEDURE Adjust the sensor to point in the desired direction. Set the adjustment controls underside of the unit to the following to enable daytime operation for walk testing: TIME - Fully anti-clockwise DUSK - Fully clockwise. The lamp will switch on for a "warm-up"...
