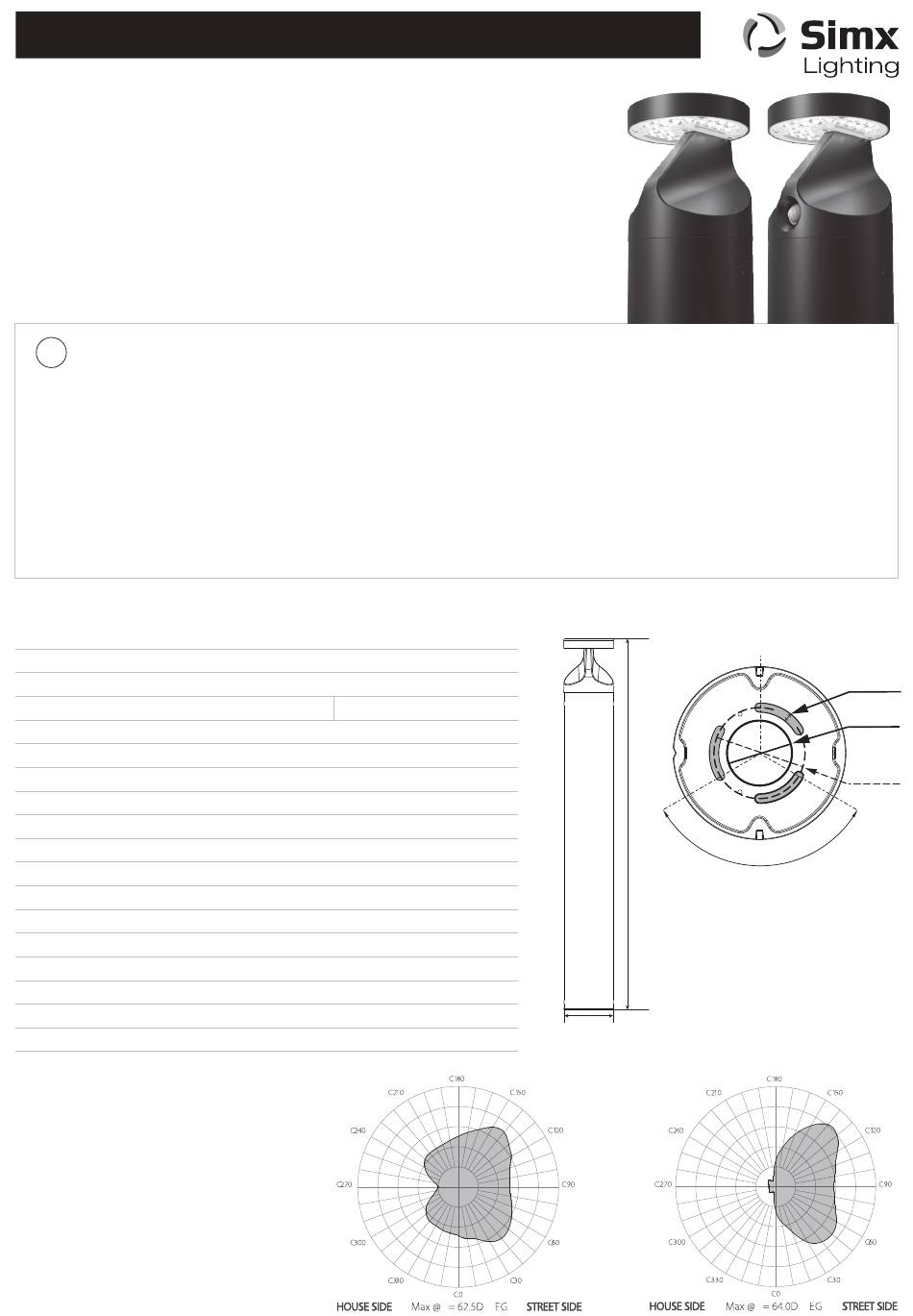

Simx Lighting BARON LHT1199 Installation Instructions

INSTALLATION INSTRUCTIONS
BARON LED BOLLARD
Bi-Symmetric 3000K
LHT1199 - Standard
LHT1201 - with PIR Sensor
Bi-Symmetric 4000K
LHT1200 - Standard
LHT1202 - with PIR Sensor
Thank you for purchasing the Simx Lighting Baron LED Bollard.
It requires a 220V-240 AC power supply to operate and should be installed by a registered electrician.
Please read this manual before installation and retain for future reference.
!
IMPORTANT
This product is suitable for use only with a supply voltage of 220-240V AC, 50Hz.
All electrical work must be carried out in accordance with local and national electrical codes as applicable. We strongly recommend that this light fitting
is installed by a registered electrician.
Always switch power off prior to installation. A means of mains power isolation must be installed in the circuit for the purpose of safe access for any
internal cleaning, recalibration, or maintenance.
This light fitting is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Young children should be supervised to ensure that they do not play with the appliance.
Any changes or modifications made or attempted to this product, without the prior written approval of the manufacturer, will void any and all
stated warranties.
TECHNICAL SPECIFICATIONS
Baron - Bi-symmetric
Power Source
Wattage
Luminous Flux
LED Colour
PIR Detection Angle
PIR Detection Range
PIR Time ON
CRI
IP Rating
IK Rating
Safety
Mounting
Construction
Net Weight
Gross Weight
Operating Temperature
Warranty
DISTRIBUTION CURVE
FIG.1 - Baron Bi-Symmetric Optics
FIG.2 - Baron Asymmetric Optics
Asymmetric 3000K
LHT1211 - Standard
LHT1213 - with PIR Sensor
Asymmetric 4000K
LHT1212 - Standard
LHT1214 - with PIR Sensor
Baron - Asymmetric
220-240V AC 50Hz
15W, 0.07A (running)
1500 lm
3000K or 4000K
Max 120deg
Max 3 mtrs radius
5 sec - 8 min adjustable
>80
IP66
IK10
Class I
Ground Mount
Die-cast Aluminium Body
4.8 Kg
5.85 Kg
-20°C to + 40°C
5 years
FIG.1
DIMENSIONS (mm)
1450 lm
Ø135mm
0
300
600
900
1200
1500
Baseplate Template
3x120º
1000mm
FIG.2
0
400
800
1200
1600
2000
Ø6mm
Ø50mm
Ø70mm
