Summary of Contents for ASROCK CL27FFA
-
Page 2: Table Of Contents
Contents Chapter 1 Introduction Package Contents Chapter 2 Setting up the Monitor Attaching the Stand Arm and Base Detaching the Stand Arm and Base Making Connections Adjusting the Viewing Angle Using the Security Slot Chapter 3 Monitor Overview Front View Back View Bottom View Chapter 4 Specifications... -
Page 3: Chapter 1 Introduction

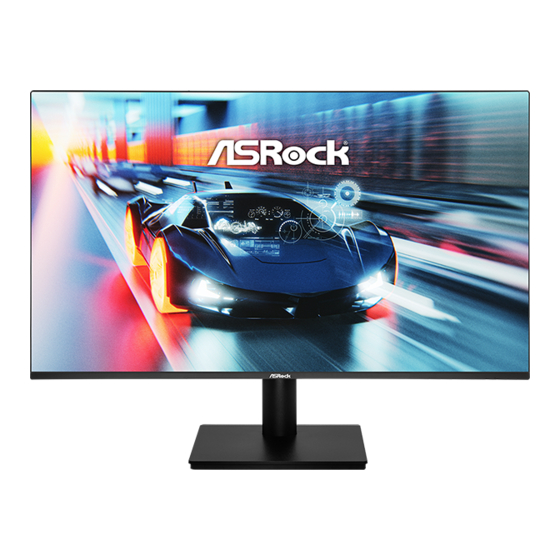

Chapter 1 Introduction Thank you for purchasing CL25FFA/CL27FFA, a reliable monitor produced under ASRock’s consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock’s commitment to quality and endurance. 1.1 Package Contents Your monitor ships with the components shown below. Please make sure that you have... -
Page 4: Chapter 2 Setting Up The Monitor
Chapter 2 Setting up the Monitor 2.1 Attaching the Stand Arm and Base Step 1. Installing the Stand Arm • Leave the monitor in its protective foam packaging. ⚠ Important Place the monitor in its protective foam packaging, or on a soft, protected surface to avoid scratching the display screen. - Page 5 Step 2. Installing the Stand Base Insert the stand base to the stand arm and make sure it is securely installed. Step 3. Placing the Monitor Upright Lift the monitor carefully out of the foam packaging and into its upright position on a flat, stable surface.
-
Page 6: Detaching The Stand Arm And Base
2.2 Detaching the Stand Arm and Base Before removing the stand, be sure to turn off the monitor and disconnect all cables. Press and hold the quick release tab at the bottom of the base and remove the stand base from the stand arm. Press and hold the stand release button and pull to disengage the tabs on the stand arm from the monitor. -
Page 7: Making Connections
2.3 Making Connections Connecting the Power Cord Connect the power cord to the monitor and to an electrical wall outlet. ⚠ Important Please make sure to make a grounding connection before connecting the power plug to the power source. Additionally, when disconnecting the grounding connection, be sure to discon- nect the power plug from the power source before proceeding. - Page 8 Connecting the Monitor to the PC / Laptop HDMI Connection Connect one end of the HDMI cable to the HDMI connector on the rear side of the monitor. Then connect the other end to the HDMI connector on the PC or laptop.
- Page 9 VGA Connection Connect one end of the VGA cable to the VGA input connector on the rear side of the monitor. Then connect the other end to the VGA output connector on the PC or laptop. VGA IN...
-
Page 10: Adjusting The Viewing Angle
2.4 Adjusting the Viewing Angle Tilt Angle Adjustment For optimal viewing, it is recommended to look at the full face of the monitor, and then adjust the monitor’s angle to your own preference. Hold the stand firmly with one hand while tilting the monitor forwards or backwards with the other hand so you do not topple the monitor when you adjust the monitor’s angle. -
Page 11: Using The Security Slot
2.5 Using the Security Slot This monitor supports a Kensington-type security slot. The Kensington lock can be used to secure the monitor and prevent it from being stolen in public locations. NOTE: Kensington lock is not included. You need to purchase an additional locking device. -
Page 12: Chapter 3 Monitor Overview
Chapter 3 Monitor Overview 3.1 Front View Item Display screen ⚠ Important Do not touch the display screen surface with sharp or hard objects. -
Page 13: Back View
3.2 Back View Item Description Press to turn the monitor on. Press and hold for 3 seconds to turn the monitor off. The color definition of the power indicator: Power On/Off button • Solid Blue - Power on mode • Flashing Blue - Standby mode •... -
Page 14: Bottom View
3.3 Bottom View VGA IN Item Description AC-IN port Connect the power cord. HDMI port Connect your computer with the HDMI cable. Connect your computer with the VGA cable (VGA VGA port cable not included). -
Page 15: Chapter 4 Specifications
Chap Chapter 4 Specifications 4.1 M 4.1 Monitor Specifications Model: Model: CL25FFA Panel Size 24.5" Viewing Area 552.392 (H) *313.44 (V) Aspect Ratio 16:9 Panel Type Viewing Angle 178°(H) / 178°(V) Resolution FHD (1,920x1,080) Pixel Pitch 0.2832(H)X0.2803(V) Curvature Flat Refresh Rate 120Hz 4ms (GtG) Display... - Page 16 Power Consumption (Max) Power Consumption (Typ.) Power Power Saving Mode ≦ 0.5 W Consumption Power Off Mode ≦ 0.3 W Voltage 100~240Vac, 50/60Hz, 1.2AMax Tilt Adjustment -5° ~ +20° Swivel Adjustment Mechanical Design Wifi Antenna 100x100 mm (4 screw holes) VESA Mount M4*12 mm Dimension with Stand...
- Page 17 Model: CL27FFA Panel Size 27" Viewing Area 606.888(H)*347.312(V) Aspect Ratio 16:9 Panel Type Viewing Angle 178°(H) / 178°(V) Resolution FHD (1,920x1,080) Pixel Pitch 0.3114 (H)* 0.3114 (V) Curvature Flat Refresh Rate 120Hz 4ms (GtG) Display Response Time 1ms (MPRT) Brightness (typ.)
- Page 18 Power Consumption (Max) Power Consumption (Typ.) Power Power Saving Mode ≦ 0.5 W Consumption Power Off Mode ≦ 0.3 W Voltage 100~240Vac, 50/60Hz, 1.2AMax Tilt Adjustment -5° ~ +20° Swivel Adjustment Mechanical Design Wifi Antenna 100x100 mm (4 screw holes) VESA Mount M4*12 mm Dimension with Stand...
-
Page 19: Supported Timing List
4.2 Supported Timing List Standard Mode HDMI 640x480 @60Hz 640x480 @72Hz 640x480 @75Hz 800x600 @56Hz 800x600 @60Hz SVGA 800x600 @72Hz 800x600 @75Hz 1024x768 @60Hz 1024x768 @70Hz 1024x768 @75Hz 1280x1024 @60Hz SXGA 1280x1024 @75Hz WXGA+ 1440x900 @60Hz WSXGA+ 1680x1050 @60Hz 1152x864 @75Hz ---- 1280x960 @60Hz 1280x720 @60Hz... -
Page 20: Chapter 5 Operating The Monitor
Chapter 5 Operating the Monitor 5.1 Powering On/Off the Monitor Press the Power button to turn on the monitor. The power indicator lights up in solid blue to show that the monitor is ON. To turn the monitor off, press and hold the Power button about 3 seconds until the LED light on the Power button turns OFF. -
Page 21: Using The Joystick Control
5.2 Using the Joystick Control Use the joystick on the rear side of the monitor to navigate the OSD menu and adjust the settings. To access the OSD menu, press the joystick button to launch the OSD main menu. Use the joystick to toggle between options. Press the joystick button again to confirm the settings and exit. - Page 22 Action Description When the OSD menu is ON, press to confirm Press the selection (Enter) or save the settings (OK). Toggles left to select menu items (Move), go back to the previous menu (Back) or exit the Toggle Left OSD menu (Exit) Decreases the parameters of the selected menu item (Adjust).
-
Page 23: Chapter 6 Troubleshooting
Chapter 6 Troubleshooting Problem and Question Possible Solution • Check if the Power button is pressed and the Power LED is not on monitor is power on. • Power Cord should be connected. • Check that the video cable is properly connected. If the connector is loose, tighten the connector’s No signal screws. -
Page 24: Chapter 7 Safety Instructions
• Place the power cord in a way that people are unlikely to step on it. Do not place anything on the power cord. • If this device comes with an adapter, use only the ASRock provided AC adapter approved for use with this device. - Page 25 Environment • To reduce the possibility of heat-related injuries or of overheating the device, do not place the device on a soft, unsteady surface or obstruct its air ventilators. • Use this device only on a hard, flat and steady surface. •...
-
Page 26: Technical Support
(2011/65/EU). This product has been tested and found to comply with the harmonized standards for Information Technology Equipment published under Directives of Official Journal of the European Union. ASRock Contact Information ASRock EUROPE B.V. Address : Bijsterhuizen 11-11, 6546 AR Nijmegen,The Netherlands... -
Page 27: Fcc-B Radio Frequency Interference Statement
FCC-B Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 28 ASRock Contact Information ASRock America, Inc. Address : 13848 Magnolia Ave, Chino, CA91710, U.S.A. Phone: +1-909-590-8308 Technical Support Phone: +1-909-590-8308 Online Support https://event.asrock.com/tsd.asp...
-
Page 29: Weee Statement
Chemical Substances Information In compliance with chemical substances regulations, such as the EU REACH Regulation (Regulation EC No. 1907/2006 of the European Parliament and the Council), ASRock provides the relevant information at: https://asrock.com/general/about.asp?cat=Responsibility RoHS Statement Japan JIS C 0950 Material Declaration... -
Page 30: Copyright And Trademarks Notice
Copyright and Trademarks Notice Copyright © ASRock Inc. All rights reserved. The ASRock logo used is a registered trademark of ASRock Inc. All other marks and names mentioned may be trademarks of their respective owners. No warranty as to accuracy or completeness is expressed or implied. -
Page 31: Copyright Notice
ASRock’s website without further notice. If you require technical support related to this motherboard, please visit our website for specific information about the model you are using. You may find the latest monitor support list on ASRock’s website as well.
