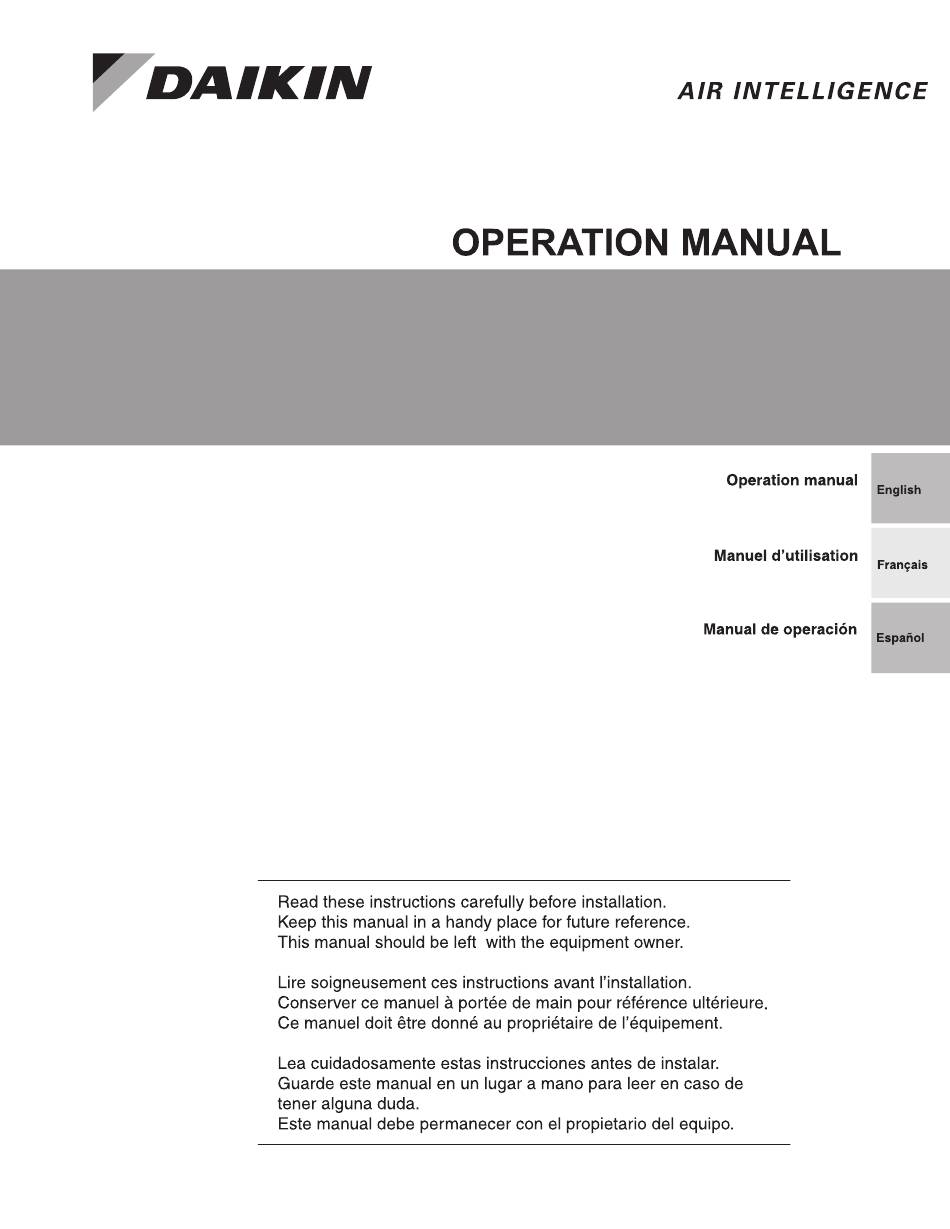

- Page 1 Residential VRV System air conditioner MODEL Residential VRV System air conditioner RXSQ24TBVJUA RXSQ36TBVJUA RXSQ48TBVJUA Conditionneur d’air VRV résidentiel System RXSQ60TBVJUA Sistema de acondicionador de aire Residencial VRV...
-
Page 3: Safety Considerations
Safety Considerations Read these Safety Considerations for Operations carefully WARNING before installing air conditioner or heat pump. Make sure that • Contact your dealer for repair and maintenance. the unit operates properly during the startup operation. Improper repair and maintenance could result in water Instruct the customer on how to operate and maintain the unit. - Page 4 Safety Considerations • Although this is a recognized measure for additional • Do not expose the controller to direct sunlight. The protection, with the grounding system in North LCD display can become discolored and may result in America, a dedicated GFCI may not be necessary. fail to display the data.
- Page 5 Safety Considerations [Place of Installation] • Make sure that the air conditioner is located in a obstacles. • Do not use the air conditioner in the following places. a. Places with a mist of mineral oil, such as cutting oil. b.
-
Page 6: Table Of Contents
Residential VRV System air conditioner Operation manual Contents Safety Considerations ..........[i] [ii] [iii] Specifications ............... 2 What to do before Operation ..........3 Operation Range ..............3 Operation Procedure ............4 Name and Function of Each Switch and Display ....4 Maintenance ................. -
Page 7: Safety Considerations
Model name RXSQ24TBVJUA RXSQ36TBVJUA RXSQ48TBVJUA RXSQ60TBVJUA Power supply — Phase SINGLE SINGLE SINGLE SINGLE Frequency Voltage 208/230 208/230 208/230 208/230 Cooling Maximum Btu/h 23,000 34,200 45,500 57,500 capacity Heating Maximum Btu/h 26,000 37,000 49,500 57,000 capacity Dimensions 39×37×12-5/8 52-15/16×35-7/16×12-5/8 inch H×W×D... -
Page 8: What To Do Before Operation
What to do before Operation This operation manual is for the following system with standard control. Before initiating operation, contact your local dealer for the operation that corresponds to your system type. If your installation has a customized control system, ask your local dealer for the operation that corresponds to your system. Cool/heat changeover remote controller Operation Range... -
Page 9: Operation Procedure
Remote controller • For more information, see the operation manual that came with the remote controller. Operation Procedure • Operation procedure varies according to the combination of outdoor unit and remote controller. Read the chapter “What to do before Operation”. •... - Page 10 Dry Mode Preparation • For equipment protection purposes, apply power to the outdoor units at least 6 hours before starting the operation of the system. • The dry mode may not be selected if the remote controller is master controlled and the system is not already in the cooling mode of operation (see the following section).
-
Page 11: Maintenance
Maintenance Reset Filter Indicator Operation • When it is time to clean or replace the filter, one of the following messages will appear on the bottom of the basic screen. Cool Set to Cool “Time to clean filter” “Time to clean filter & element” Time to clean filter “Time to clean element”... -
Page 12: Reference Information
Reference Information Error Code Display „ Contact your local dealer in the following cases Operation • If an error occurs, either one of the following items will flash in the basic screen. Cool “Error: Press Menu button” Set to Cool * The operation lamp will flash. -
Page 13: Optimum Operation
Optimum Operation Observe the following precautions to ensure the system operates properly. • Prevent direct sunlight from entering a room during cooling operation by using curtains or blinds. • Do not leave doors and windows open. If the doors and windows remain open, air will flow out of your room causing a decrease in the cooling or heating effect. -
Page 14: Following Issues Do Not Mean System Malfunction
Following Issues Do Not Mean System Malfunction „The system does not operate • The air conditioner does not start immediately when restarting or changing the operation mode. If the operation lamp lights, the system is in normal condition. To prevent overloading of the compressor motor, the air conditioner starts 5 minutes after it is turned ON again in case it was turned OFF just before. - Page 15 Following Issues Do Not Mean System Malfunction „White mist comes out of the unit Indoor unit • When humidity is high during cooling operation. If the interior of indoor unit is extremely contaminated, the temperature distribution inside a room becomes uneven. It is necessary to clean the interior of the indoor unit.
-
Page 16: Trouble Shooting
Following Issues Do Not Mean System Malfunction „Hot air is emitted even though the unit is stopped • Hot air can be felt when the unit is stopped. Several different indoor units are being run on the same system, so if another unit is running, some refrigerant will still flow through the unit. „Does not cool very well •... -
Page 17: After-Sales Service And Warranty
Trouble Shooting • Check the fan speed setting on your remote controller. Refer to “Operation Procedure”. • Check for open doors or windows. Shut doors and windows to prevent wind from coming in. • Check if there are too many occupants in the room during cooling operation. •... - Page 18 After-Sales Service and Warranty Shortening of “maintenance cycle” and “replacement cycle” needs to be considered in the following cases. 1. When used in hot, humid locations or locations where temperature and humidity fluctuate greatly. 2. When used in locations where power fluctuation (voltage, frequency, wave distortion, etc.) is high. (Cannot be used if it is outside the allowable range.) 3.
- Page 19 Daikin Texas Technology Park, 19001 Kermier Road, Waller, TX, 77484, U.S.A. 3P591322-4A EM22A008 (2208)
