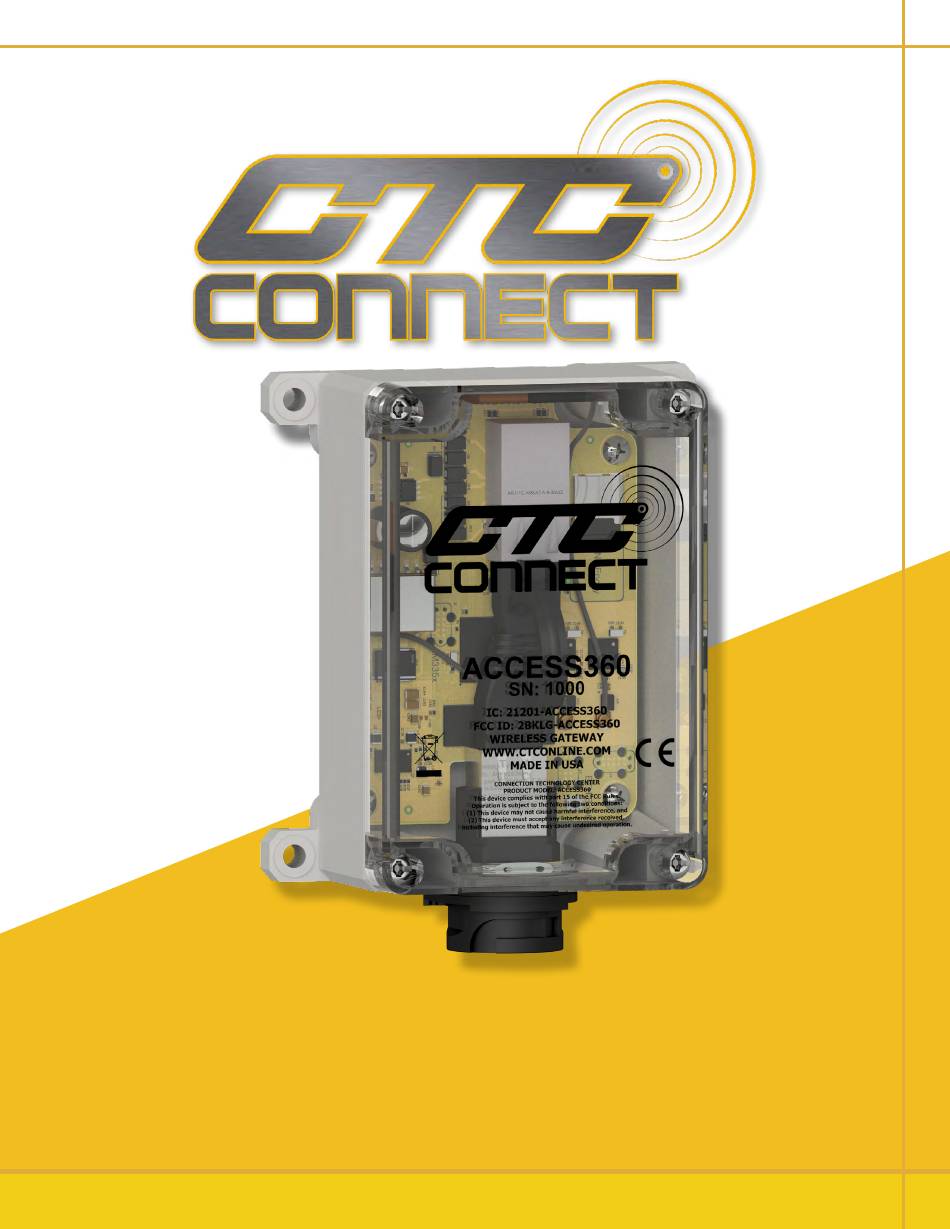

  • Page 1 ACCESS360 ACCESS360 ConnectBridge™ Gateway ConnectBridge™ Gateway Operational Guide Operational Guide...

  • Page 2: Table Of Contents

    Table of Contents • Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 •...

  • Page 3: Introduction

    Introduction The ACCESS360 functions as a network controller and Bluetooth® gateway that facilitates bi-directional data transfer with CTC Connect Wireless Sensors within range . ACCESS360 can accept an unlimited number of sensor inputs with 20 concurrent Bluetooth® connections at one time . Rated IP67, the ACCESS360 can withstand harsh environments including temperatures ranging from -4 °F to 158 °F (-20 °C to 70 °C) .

  • Page 4: Product Dimensions

    Product Dimensions Side View Front View Figure 1. Dimensions Ethernet Connection Figure 2. Diagram...

  • Page 5: Mounting Instructions

    Mounting Instructions Molded mounting brackets are included on the enclosure . Wall anchoring screws are not included . Mounting Holes 0 .22 in ./5 .59 mm Figure 3. Gateway Rear View Mount the gateway to a solid surface using mounting bolts as shown in Figure 4 below . Figure 4.

  • Page 6: Ethernet Connection

    Ethernet Connection Every ACCESS360 ships with a separate Ethernet cable backshell, which requires on site assembly . This backshell is mandatory to achieve the enclosure’s IP67 rating . To prevent build up of condensation, ensure the ethernet cable entry point is facing downward . Plug Shell Plug Seal Split Seal...
  • Page 7 Attach the split seal around the cable . Attach the plug seal around the cable . Slide the plug shell over the ethernet connector until the RJ45 plug latch is fixed in place .
  • Page 8 Slide the assembly together and thread the nut onto the plug shell Tighten the nut to 2 .2 lb-ft (3 N-m) . Insert the Ethernet cable into the port on the ACCESS360 . Slide the dust protector up onto the mating collar and twist clockwise to lock into place .

  • Page 9: Device Setup

    Device Setup Connecting to a Network Establish a physical connection between the gateway and the local network using the ethernet port and a Category 5 or higher ethernet cable . The gateway will power on automatically and two indicator LEDs will begin to blink, one orange and one green . Wait until the orange LED remains solidly lit .
  • Page 10 Creating a New Account From the login screen, click the Create button on the bottom of the window . Enter the required user information: first and last name, email address, and password . Click the Details button to view any additional information, if desired . Click the Register button .
  • Page 11 Modifying User Accounts While logged into an account with Admin privileges, click the Accounts button on the left side of the dashboard . Select the user account you wish to edit . Click the pencil icon . Modify account information as desired . Click the Save button to complete .
  • Page 12 Resetting User Password Ensure that the gateway is connected to a network with internet access . From the login screen, select the Forgot Password? option . Enter the user’s email address . Create a new password, and enter the verification code sent via email . Click Submit . The user will be returned to the login screen, where they will be able to log in with the new credentials .
  • Page 13 Performing a Software Update Ensure that the gateway is connected to a network with internet access . While logged into an account with Admin privileges, click the Settings button on the left side of the dashboard . Select the Software Update option . If an update is available, it will be shown on this page .

  • Page 14: Executing Functionality

    Executing Functionality Note: Proceeding with any of the following requires the user to have either Analyst or Admin privileges . Connecting a Sensor Unscrew the sensor cap and plug in the battery . From the dashboard, click the Devices dropdown on the left then click on Wireless Sensors . The sensor will automatically connect, and will show in the list of available sensors .
  • Page 15 Modify any sensor setting by using the 3-dot button located in its field . Note: WS100 Series sensors are not field reprogrammable . Taking a Reading From the dashboard, click the Devices dropdown on the left then click on Wireless Sensors . Find the desired dynamic sensor among the list of connected devices and click on it .
  • Page 16 Viewing Process Control Sensors From the dashboard, click the Devices dropdown on the left then click on Wireless Sensors . Find the desired sensor among the list of connected devices and click on it . The resulting screen will display all available information about the sensor .
  • Page 17 Create a Machine Group From the dashboard, click the Machine Groups button on the left . Click the New Machine button . Enter machine information: name, description, and location . Click the Save button to complete .
  • Page 18 Add Sensor to a Machine Group From the dashboard, click the Machine Groups button on the left . Select the desired machine from the available list . Press the Add Sensor button . From the drop-down menu, select any desired sensor from the list of available options . Press the Submit button to complete .

  • Page 19: Fcc Compliance Statement

    FCC Compliance Statement This device complies with part 15 of the FCC Rules . Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation . CAUTION: The grantee is not responsible for any changes or modifications not expressly approved by the party responsible for compliance .

  • Page 20: Canadian Compliance Statement

    Canadian Compliance Statement This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada license-exempt RSS(s) . Operation is subject to the following two conditions: This device may not cause interference . This device must accept any interference, including interference that may cause undesired operation of the device .

  • Page 21: Maintenance

    Maintenance Once the system has been installed, it requires minimal maintenance . Basic checks to ensure system integrity should be made periodically . Visual inspection should include examinations for the following: No visible electrical burns or smoke inside the enclosure . No moisture or condensation is present inside the enclosure .
