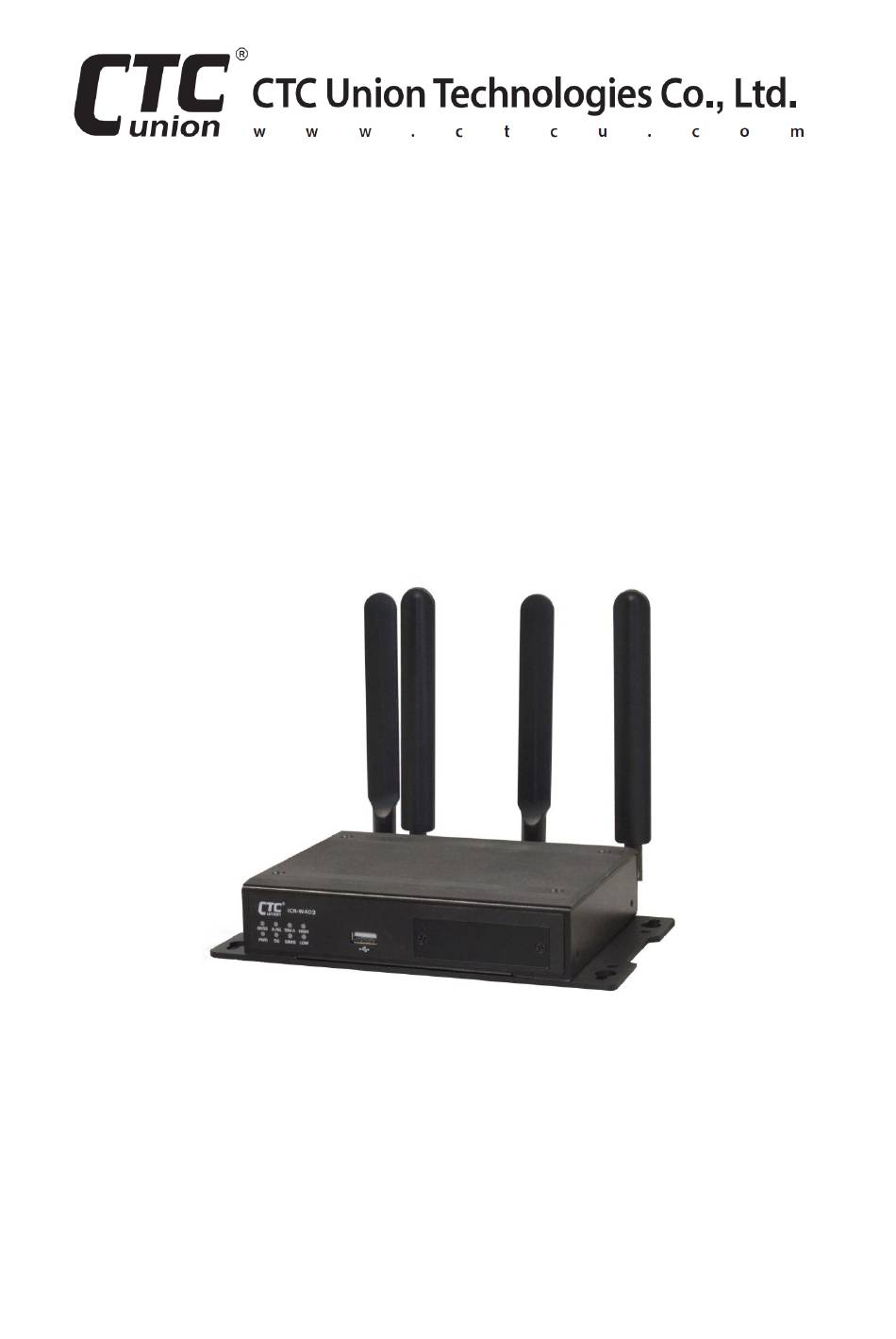

- Page 1 Quick Installation Guide ICR-W403 4G LTE, GPS, IEEE 802.11ac/b/g/n 2T2R, 2x SIM, 3x GbE + DI/DO, RS232 sales@ctcu.com...
- Page 2 8F, No. 60 Zhouzi St., Neihu, Taipei 114, Taiwan T +886-2-26591021 F +886-2-26590237 E sales@ctcu.com H www.ctcu.com 2020 CTC Union Technologies Co., LTD. All trademarks are the property of their respective owners. Technical information in this document is subject to change without notice.
-
Page 3: Table Of Contents
Table of Contents Introduction .................. 4 Package List ................. 4 Features ..................4 Specifications ................5 ..................... 5 ELLULAR TANDARDS ..................... 5 NTERFACE ......................5 NTERFACES ....................5 THER NTERFACES ........................ 5 OWER ................... 5 NTENNA ONNECTORS ........................ 6 OWER ...................... -
Page 4: Introduction
It combines both IEEE802.11b/g/n/ac WLAN and 4G LTE cellular technologies to provide flexible cellular or wireless network connectivity for industrial applications. ICR-W403’s Ethernet ports can allow up to 3 Ethernet devices link and provide dual SIM cards for failover redundancy to ensure uninterrupted connectivity. -
Page 5: Specifications
Specifications Cellular Standards 4G LTE: FDD-LTE, TDD-LTE 3G: WCDMA 2G: GSM/EDGE GPS:GNSS WiFi Interface Standards: IEEE 802.11ac 2T2R (5GHz), IEEE 802.11b/g/n 2T2R (2.4GHz) Frequency: 2.4GHz and 5GHz Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions Interfaces ... -
Page 6: Power
Power Support removable terminal block Power input: 12/24/48VDC (9.6~60VDC) Power consumption: 7W (Max.) Mechanical Rugged metal IP30 grade protection Fanless design Dimensions: 120 mm (D) x 200 mm (W) x 39.5 mm (H) ... -
Page 7: Panel
Panel Figure 2. Front Panel without Figure 1. Front Panel SIM Card Protective Cover Figure 3. Rear Panel without Antennas Figure 4. Rear Panel with Antennas Index No. Description LED indicators USB port SIM card protective cover SIM card sockets Reset push button 3G/4G main antenna connector 2.4G/5GHz WiFi antenna connector... -
Page 8: Power Installation And Ignition Sense Feature In Vehicle Applications
Power Installation and Ignition Sense Feature in Vehicle Applications ICR-W403 supports 9V to 36V DC power input and can be powered by connecting a power source (ex. car battery) to the terminal block. With Ignition Sense feature enabled, the power of ICR-W403 is turned on while the vehicle is being started or turned off after a period of delay when the vehicle is turned off. -
Page 9: Cli & Web Basic Operation
CLI & Web Basic Operation ICR-W403 provides RJ-45 ports connect 10/100/1000Mbps Ethernet. It can detect the transmission speed on the network and configure itself automatically. To access WEB GUI, connect one Ethernet cable to the RJ-45 LAN port of the device and plug another end of the Ethernet cable into your computer’s network port. -
Page 10: Installation
Installation The gateway can be placed in desktop or be mounted on the wall or ceiling using the attached and rugged mounting hardware bracket so as to achieve the best wireless coverage. It can be installed in a variety of ways including in horizontal or vertical orientation depending on your actual environmental or wiring needs. -
Page 11: Led Indicators
LED Indicators Color Status Description Steady On Location is fixed. Green Fast Blinking Location is fixing. GNSS function is disabled. Steady On Device is powered ON. Blink once a Device is at “Delay OFF” mode. second Green Firmware is upgrading or Device is Fast Blinking recovery mode. -
Page 12: Regional Code And Band Information
Regional Code and Band Information Band 4G LTE Regions GNSS Region Countries GSM/ FDD LTE TDD LTE WCDMA Code EDGE B1(2100), B3(1800), B1(2100), B3(1800), Europe, B7(2600), B8(900), B8(900) B8(900) Africa, B20(800) Middle East, Korea, India Thailand B2(1900), B4(1700), B2(1900), USA (AT&T, T- B12(700) B4(1700), Mobile) - Page 13 Version Date Description 2020/12/25 Use A4 new document format...
