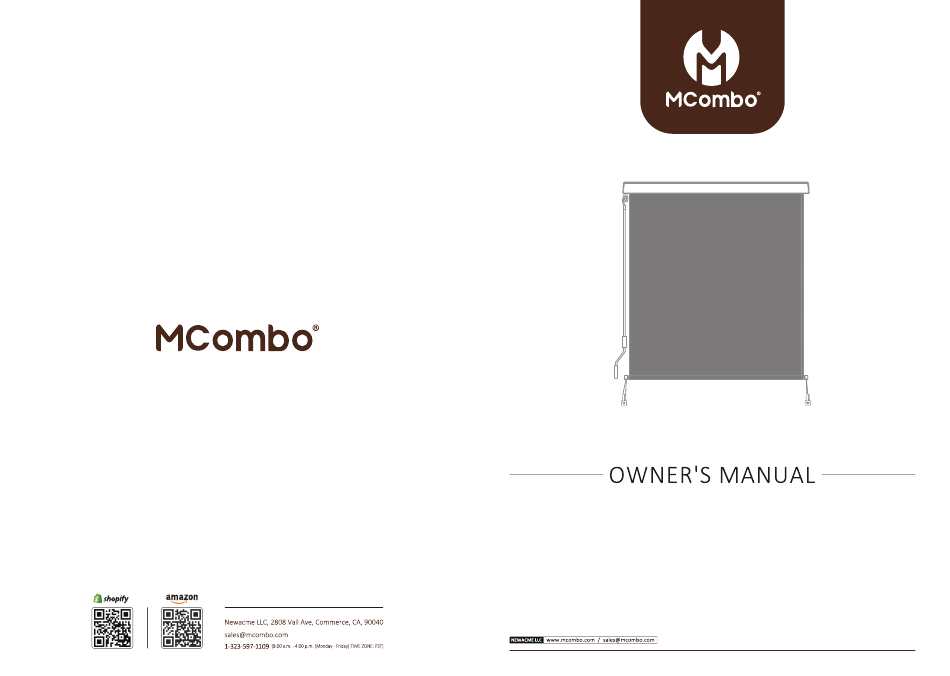

- Page 1 DROP DOWN AWNING 6055-4209&4254 Mcombo.com Amazon.com/mcombo...
- Page 2 Ring & Bolt x1 Brackets (4209 x2 / 4254 x3) Nut Gasket (4209 x4 / 4254 x6) This user manual is for 6055-4209 and 6055-4254. MCombo reserves the right to change, update any content contained herein without prior notice. Please read, understand, and follow this user manual before assembling and using.
-
Page 3: Parts Exploded View
II. Parts Exploded View III. Assembly Steps Part List Part List Install Ring&Bolt (#C) on Awning (#A). (1). When the bracket is fixed on the back side of the awning, the bracket should 1.18" be at least (30mm) away from the top wall. (2). - Page 4 Fix the Brackets (#D). Fix the Awning (#A) on (#D). Note: 4209 series has two wall brackets, 4254 series has three wall brackets. (1). Place (#D) on the wall and mark the location of the small holes. (2). Drill a 1.8"...
- Page 5 (1). Pull rope down by hook (#F) to a suitable position, mark the position and Fix the Hand Crank (#B). drill a 1.97'' long hole there. (2). Insert (#H) and fix (#F) with Screws (#G). Pg / 07 Pg / 08...
-
Page 6: Warranty Disclaimer
Return Process the Warranty Period. During the Warranty Period, MCombo will repair or replace, at no charge, products or parts You have 30 days from the date of purchase to return any item purchased from our store. of a product that proves defective because of improper material or workmanship,under normal Please securely pack the item in its original packaging, including any accessories or manuals that came with the product.
