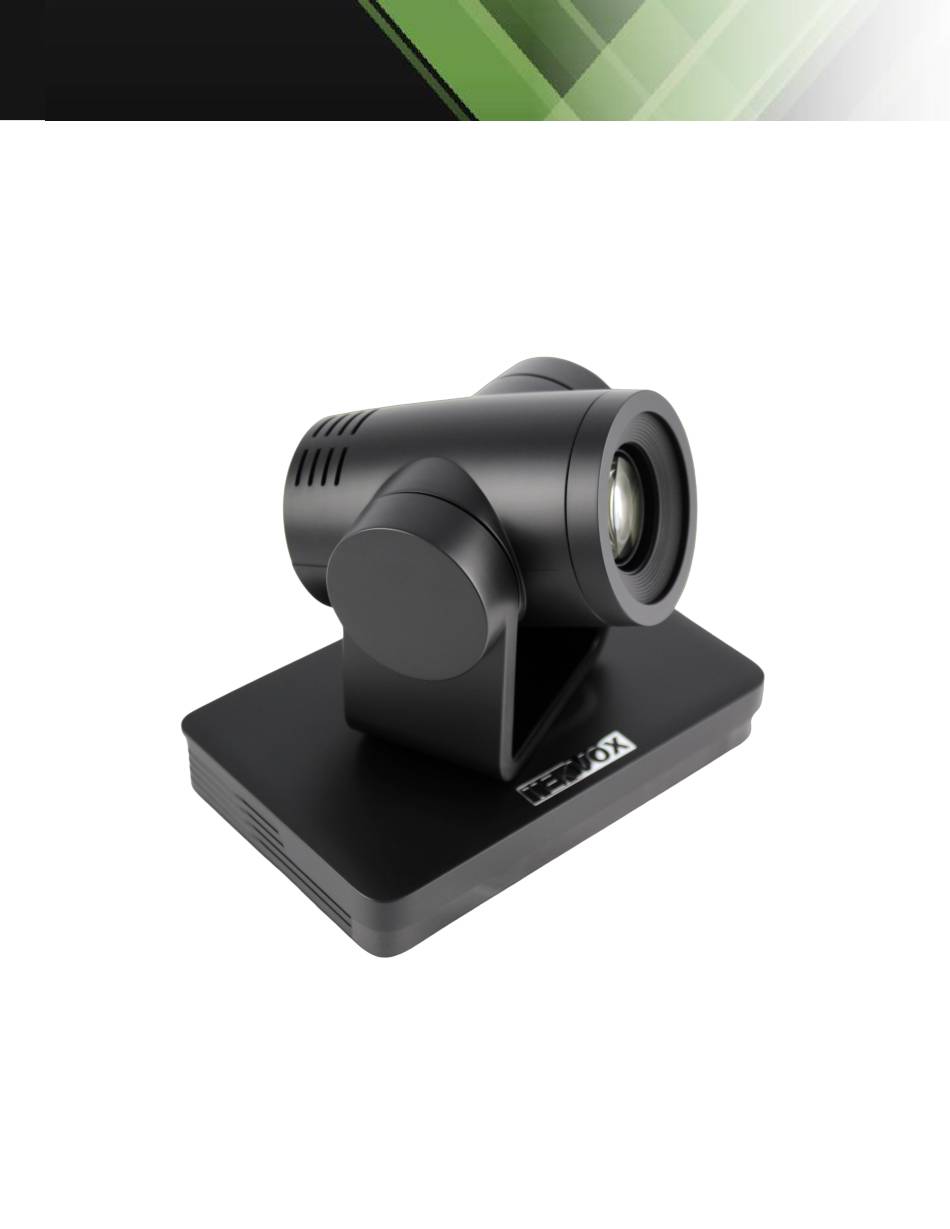

  • Page 1 UV570 79068-A20_G2 User Manual UV570 PTZ Auto-Tracking Camera – 20x Zoom All Rights Reserved Version: 79068-A20_G2_2025V1.0 www.tekvox.com...

  • Page 2: Fcc Statement

    UV570 79068-A20_G2 User Manual Preface Read this user manual carefully before using the product. The pictures shown in this manual are for reference only. Different product model specifications may vary. This manual is only for operation instruction, please contact the local distributor for maintenance assistance.

  • Page 3: Safety Precautions

    UV570 79068-A20_G2 User Manual Safety Precautions To ensure the best performance from the product, please read all instructions carefully before using the device. Save this manual for further reference.  Unpack the equipment carefully, and save the original box and packing material for possible future shipment.
  • Page 4 UV570 79068-A20_G2 User Manual Attention  Improper operations may damage the product structure and result in mechanical failure. Please note the following tips: Do not move the camera by grabbing the head. Move the camera by holding the bottom with one or both hands.

  • Page 5: Electrical Safety

    UV570 79068-A20_G2 User Manual Cautions  Avoid damage to the product caused by heavy pressure, strong vibration, or immersion during transportation, storage, and installation.  Do not use the product beyond the specified temperature, humidity, or power supply specifications.  Wipe it with a soft, dry cloth when cleaning the camera lens. Wipe it gently with a mild detergent if needed.

  • Page 6: Table Of Contents

    UV570 79068-A20_G2 User Manual Table of Contents 1. Product Introduction ....................7 1.1. Features....................................7 1.2. Package List ................................... 7 2. Specifications ......................8 3. Camera Installation ....................11 3.1. Camera Introduction ............................... 11 3.2. Interfaces and Connection............................12 3.3. Mounting Brackets ................................12 3.3.1.
  • Page 7 UV570 79068-A20_G2 User Manual 5.2.6. Pan/Tilt Control ..............................25 5.2.7. Menu Setting ................................25 5.2.8. Camera Remote Control Address Setting ..................26 5.2.9. Key Combinations.............................26 5.2.10. Shortcut Keys of AI Functions........................27 5.3. Menu Introduction ................................27 5.3.1. Menu Control ............................... 27 5.3.2.

  • Page 8: Product Introduction

    Product Introduction TEKVOX’s UV570 is a professional-grade PTZ auto-tracking camera. With 20x optical zoom and support for full HD (1080p @ 60Hz) resolution, the UV570 delivers stunning video quality in any space. Advanced AI-driven auto-tracking keeps presenters in view at all times, without requiring any on-site configuration.

  • Page 9: Specifications

    UV570 79068-A20_G2 User Manual Specifications Camera Parameter Parameter/Model Focus 3.9 -- 46.8mm 5.2 -- 98mm 4.3 -- 129mm 6.3º (N) 3.2º (N) 2.34º (N) 72.5º (W) 56º (W) 65º (W) Aperture Value F1.8 -- F2.4 F1.5 -- F3.0 F1.6 -- F4.7 Effective Pixels 2.07, 1/2.8-inch high-quality CMOS sensor...
  • Page 10 UV570 79068-A20_G2 User Manual ≥50dB AI Function & Performance Real-Time Tracking Maximum Tracking Range: 6-7 meters. Support speakers to walk at a speed of 3-4 meters Regional Tracking Maximum Tracking Region: 4. Support set the region within horizontal -170°~+170° and vertical -30°~+90°...
  • Page 11 UV570 79068-A20_G2 User Manual Pan rotation -170° -- +170° Tilt rotation -30° -- +90° Pan speed 0.1°/s -- 100°/s Tilt speed 0.1°/s -- 45°/s Preset speed Pan：100°/s Tilt：45°/s Preset quantity Maximum 255 preset positions can be set (10 via remote...

  • Page 12: Camera Installation

    UV570 79068-A20_G2 User Manual Camera Installation 3.1. Camera Introduction Interface of SU (standard) Model ① Camera Lens ⑩ Audio Input Interface(LINE-IN) ② Camera Base ⑪ Rotary Dial Switch ③ Remote Control Receiving Indicator ⑫ RS232 Input Interface (input ) ④ Infrared Receiver ⑬...

  • Page 13: Interfaces And Connection

    UV570 79068-A20_G2 User Manual 3.2. Interfaces and Connection Wiring Diagram 1) After powering on and self-check, the camera will automatically return to the preset 0 position if it’s pre-set. 2) The default address for the IR remote control is 1#.

  • Page 14: Wall Mounting

    UV570 79068-A20_G2 User Manual 3.3.1. Wall Mounting Limited post ¼-20UNC bolt M6 nut M6 swelling bolt Wall mount bracket Camera and shim STEP 2 STEP 1 Wall Wall Limited post M6 Swelling bolt Wall mount www.tekvox.com Page 13...
  • Page 15 UV570 79068-A20_G2 User Manual STEP 3 STEP 4 Camera Wall Wall mount Wall Wall mount M6 Nut and shim ¼-20UNC bolt STEP 5 Wall www.tekvox.com Page 14...

  • Page 16: Ceiling Mounting

    UV570 79068-A20_G2 User Manual 3.3.2. Ceiling Mounting Upper cover plate PA3X30 Self PM3x6 bolt tapping screw Camera Lower cover plate Screw stopper ¼-20UNC bolt Upper cover plate STEP 1 STEP 2 Ceiling Ceiling Screw stopper PA3X30 Self tapping screw ¼-20UNC bolt...

  • Page 17: Product Overview

    UV570 79068-A20_G2 User Manual STEP 5 Ceiling PM3x6 bolt Camera Product Overview 4.1. Product Model Model No. —XX—XX IR---Infrared Remote Control WR---Wireless Remote Control 12---12X Optical Zoom Lens 20---20X Optical Zoom Lens 30---30X Optical Zoom Lens Users are requested to confirm the model number before referring to product functions accordingly.

  • Page 18: Product Dimensions

    UV570 79068-A20_G2 User Manual 4.2. Product Dimensions www.tekvox.com Page 17...

  • Page 19: Rs232 Interface

    UV570 79068-A20_G2 User Manual 4.3. RS-232 Interface 4.3.1. RS-232 Interface Definition Connection to PC or Camera Controller Camera Windows DB-9 ――――▶ ◀―――― ――――▶ ――――▶ ◀―――― IR OUT DB9F MD8M PC/Camera Camera Controller RS232 in RS232 interface www.tekvox.com Page 18...

  • Page 20: Rs232 Mini-Din 8-Pin: Port Definition

    UV570 79068-A20_G2 User Manual 4.3.2. RS232 Mini-DIN 8-pin: Port Definition Pin No. Port Definition Data Terminal Ready Data Set Ready Transmit Data Signal Ground Receive Data Signal Ground IR OUT IR Commander Signal No Connection 4.3.3. RS232 (DB9) Port Definition Pin No.

  • Page 21: Visca Networking

    UV570 79068-A20_G2 User Manual 4.3.4. VISCA networking Camera cascade connection Camera 1 Camera 2 ――――▶ ◀―――― ――――▶ ――――▶ ◀―――― IR OUT OPEN OPEN www.tekvox.com Page 20...

  • Page 22: Rotary Dial Switch

    UV570 79068-A20_G2 User Manual 4.4. Rotary Dial Switch Position Definition Format 1080P60 Format 1080P50 Format 1080P30 Format 1080P25 Format 720P60 Format 720P50 Format 1080P59.94 Format 1080P29.97 Format 720P59.94 ---- ---- ---- ---- ---- ---- ---- Note: After turning the dial to modify the video format, power off and restart to take effect.
  • Page 23 UV570 79068-A20_G2 User Manual  Low Noise and High SNR: A super high SNR image is achieved with low noise CMOS. Advanced 2D/3D noise reduction technology further reduces the noise while ensuring high image clarity.  Multiple video output interfaces: HDMI, SDI, CVBS, LAN.

  • Page 24: Remote Control

    UV570 79068-A20_G2 User Manual Remote Control 5.1. Match Code for Wireless Remote Control One-to-One Code Matching: Press the "SET" and "*" keys combined for 3 seconds, and the LED indicator starts flashing. The camera receives the signal and turns on.

  • Page 25: Standby Key

    UV570 79068-A20_G2 User Manual 5.2.1. Standby Key The camera enters standby mode if the standby key is long-pressed for 3 seconds. Long-press the standby key for 3 seconds again, and the camera will perform a self- check and return to the HOME position (If the preset 0 position is set, the camera will return to the preset 0 position).

  • Page 26: Set And Clear Presets

    UV570 79068-A20_G2 User Manual 5.2.5. Set and Clear Presets SET PRESET: press the [ SET PRESET ] button, and then press the number key 0-9 to set preset positions. Note: 10 presets via remote control. Call a preset: Press a number key 0-9 directly to call a preset position.

  • Page 27: Camera Remote Control Address Setting

    UV570 79068-A20_G2 User Manual 5.2.8. Camera Remote Control Address Setting [ * ] + [ # ] + [ F1 ]: Camera Address No. 1 [ * ] + [ # ] + [ F2 ]: Camera Address No. 2 [ * ] + [ # ] + [ F3 ]: Camera Address No.

  • Page 28: Shortcut Keys Of Ai Functions

    UV570 79068-A20_G2 User Manual 5.2.10. Shortcut Keys of AI Functions [ F1 ]: Turn off AI Human Detection [ F2 ]: Turn on AI Human Detection [ F3 ]: Switch Human Detection Mode [ F4 ]: Switch Real-time Tracking into Human Detection 5.3.

  • Page 29: Network Configuration

    UV570 79068-A20_G2 User Manual Network Configuration 6.1. Network Connection Direct connection: Connect the camera and computer by network connecting cable. Internet connection mode: Connect the camera to the Internet by Router or Switcher and the user can log in to the device by a browser web page.
  • Page 30 UV570 79068-A20_G2 User Manual To verify whether the network segment has been successfully added, click the “Start” and select “Operation” to input cmd, then click CONFIRM and open the DOS command window, ping 192.168.5.26 and press the Enter key to display information as shown below: After the camera is powered on and self-check, follow the steps above to verify the network connection.

  • Page 31: Ie Login

    UV570 79068-A20_G2 User Manual 6.2. IE Login 6.2.1. Client Login Input the default IP address 192.168.5.163 in the browser and click the Enter button to enter into the Web Client login page. Users can log in as administrators and normal users.

  • Page 32: Streaming

    UV570 79068-A20_G2 User Manual 6.3. Streaming 6.3.1. Video Stream Capture Configurations  Video Configure  Video Encode Configure the parameters according to the network environment. Note: stream name live/av0 (live/ XXX) For example: The default IP address of the camera is 192.168.5.163. The way to obtain the RTSP video stream is as below: rtsp://192.168.5.163:554/live/av0 (av0 main stream) rtsp://192.168.5.163:554/live/av1...

  • Page 33: Push Video Stream

    UV570 79068-A20_G2 User Manual 6.3.2. Push Video Stream Configurations  Video Configure  Stream Publish Push the RTMP stream to the public network server. The stream camera must be on the public network, otherwise, it will fail to connect to the server.

  • Page 34: Software Upgrading

    UV570 79068-A20_G2 User Manual 6.4. Software Upgrading Log in to the web page and manage camera settings. The default page is the preview interface, where users can PTZ control, record video, preset camera positions, etc. 2) Configurations  System Configure  Update 3) Click "browse"...

  • Page 35: Webpage Configuration For Human Detection

    UV570 79068-A20_G2 User Manual 6.5. Webpage Configuration for Human Detection After login, enter into the management interface and turn on Tracking below “Monocular Tracking” 2) On the right top is the PTZ control area, in which you can set the preset region of Regional Tracking.
  • Page 36 UV570 79068-A20_G2 User Manual Real-time tracking: the camera will follow the movement from all angles that the camera supports in real-time. Here is the video demo shows: Here is how it works: If a man walks into zone-2, the lens will be triggered to track the man.

  • Page 37: Serial Communication Control

    UV570 79068-A20_G2 User Manual Serial Communication Control Under normal working conditions, the device can be controlled through the RS232/RS485 interface. The RS232 serial port parameters are as follows: Baud rate: 2400/4800/9600/38400/115200 bit/sec Start bit: 1 bit Data bit: 8 bits...

  • Page 38: Visca Protocol Control Command

    UV570 79068-A20_G2 User Manual 7.2. VISCA Protocol Control Command Command Function Command Packet Note AddressSet Broadcast 88 30 0p FF p: Address setting IF_Clear Broadcast 88 01 00 01 FF I/F Clear 8x 01 04 00 02 FF CAM_Power Power ON/OFF...
  • Page 39 UV570 79068-A20_G2 User Manual Command Function Command Packet Note One Push mode 8x 01 04 35 03 FF One Push WB CAM_WB One Push Trigger 8x 01 04 10 05 FF Trigger(Enabled during One Push WB mode) CAM_WB Mode 8x 01 04 35 pq FF...
  • Page 40 UV570 79068-A20_G2 User Manual Command Function Command Packet Note 8x 01 04 3E 02 FF Exposure Compensation ON/OFF 8x 01 04 3E 03 FF Reset 8x 01 04 0E 00 FF CAM_ExpComp Exposure Compensation 8x 01 04 0E 02 FF...
  • Page 41 UV570 79068-A20_G2 User Manual Command Function Command Packet Note 8x 01 04 66 02 FF Image Flip Vertical CAM_PictureFlip ON/OFF 8x 01 04 66 03 FF p = 0~7 q = 0~f or CAM_ColorSaturation Direct 8x 01 04 49 00 00 0p 0q FF...

  • Page 42: Visca Protocol Inquiry Command

    UV570 79068-A20_G2 User Manual Command Function Command Packet Note 8x 01 06 01 VV WW 03 01 FF Down 8x 01 06 01 VV WW 03 02 FF Left 8x 01 06 01 VV WW 01 03 FF Right 8x 01 06 01 VV WW 02 03 FF...
  • Page 43 UV570 79068-A20_G2 User Manual Command Command Return Packet Note Packet y0 50 00 FF CAM_AWBSensitivityInq 8x 09 04 A9 FF y0 50 01 FF Normal y0 50 02 FF High CAM_RGainInq 8x 09 04 43 FF y0 50 00 00 0p 0q FF...
  • Page 44 UV570 79068-A20_G2 User Manual Command Command Return Packet Note Packet CAM_IDInq 8x 09 04 22 FF y0 50 0p FF p: Gamma ID IR_ReceiveInq 8x 09 06 08 FF y0 50 02 FF y0 50 03 FF CAM_BrightnessInq 8x 09 04 A1 FF...

  • Page 45: Pelco-D Protocol Command List

    UV570 79068-A20_G2 User Manual 7.4. PELCO-D Protocol Command List Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 0xFF Address 0x00 0x08 Pan Speed Tilt Speed Down 0xFF Address 0x00 0x10 Pan Speed Tilt Speed Left 0xFF Address 0x00 0x04 Pan Speed...

  • Page 46: Pelco-P Protocol Command List

    UV570 79068-A20_G2 User Manual 7.5. PELCO-P Protocol Command List Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Byte8 Tilt 0xA0 Address 0x00 0x08 0xAF Speed Speed Tilt Down 0xA0 Address 0x00 0x10 0xAF Speed Speed Tilt Left 0xA0 Address 0x00...

  • Page 47: Maintenance And Troubleshooting

    UV570 79068-A20_G2 User Manual Maintenance and Troubleshooting 8.1. Maintenance Please power off the camera and disconnect the power adapter and socket, if it’s not used for a long time. 2) Use a soft cloth or tissue to clean the camera cover.
  • Page 48 UV570 79068-A20_G2 User Manual 5) The serial port does not work a. Check whether the camera serial device protocol, baud rate, and address are consistent. b. Check whether the control cable is connected properly. c. Check whether the camera's working mode is the normal operating mode.

  • Page 49: Copyright Statement

    UV570 79068-A20_G2 User Manual Copyright Statement All the contents in this manual and its copyright are owned by the company. No one is allowed to imitate, copy, or translate this manual without the company’s permission. This manual contains no guarantee, standpoint expression or other implies in any form.
