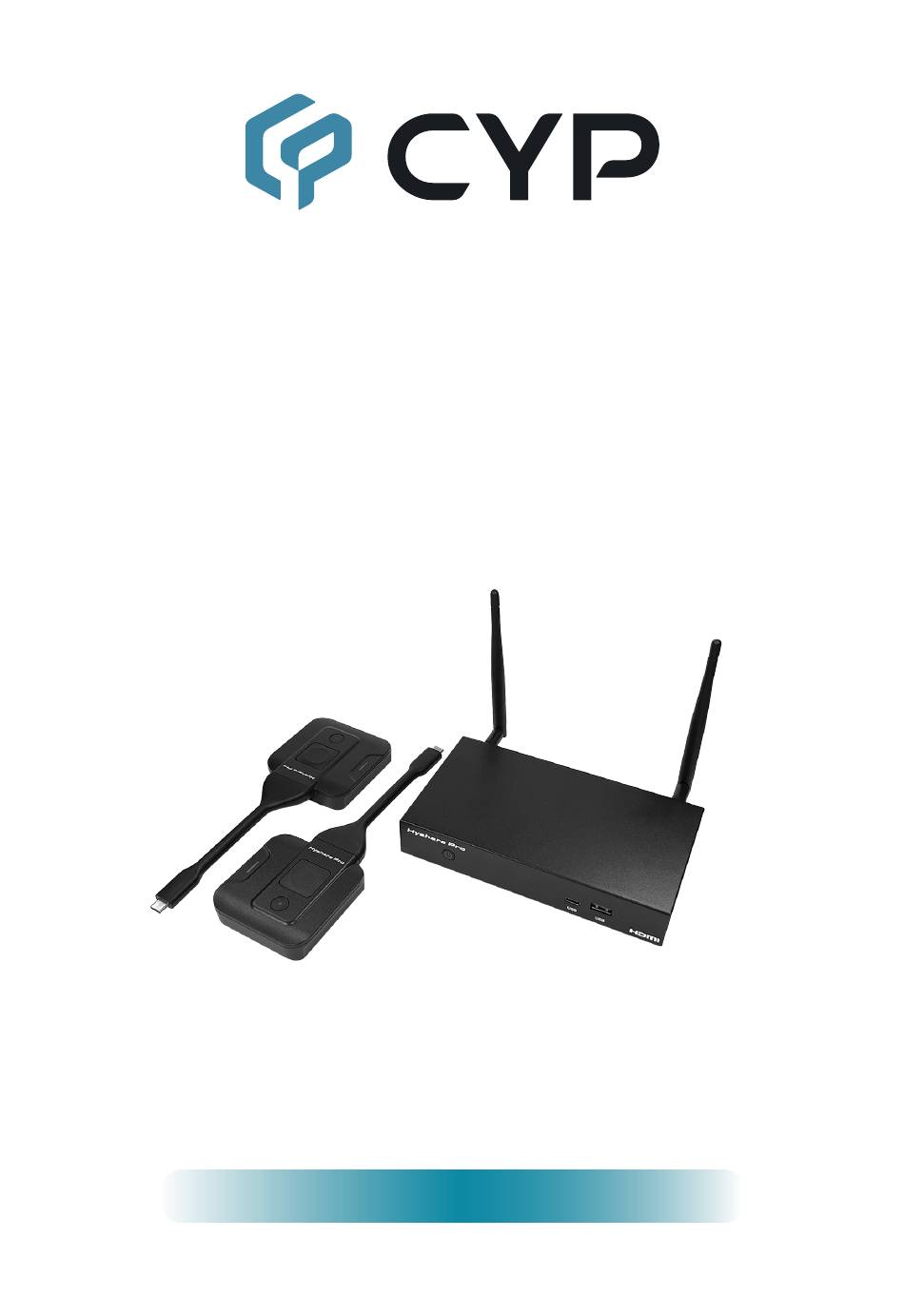

- Page 1 Hyshare Pro A Wireless Presentation System WPS-HP201/ WPS-HP201T/ WPS-HP201KIT Operation Manual Operation Manual Ver 1.10...
-
Page 3: Copyright Notice
DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Version History
VERSION HISTORY REV. DATE SUMMARY OF CHANGE RDV1 2022/07/11 Preliminary release Ver 1.10 2024/12/28 Add Daily reboot feature in 8.3.3 Add description and feature support for Hyshare Pro Pod in chapter 1, 5, 6.3, 9.5, 12.2, 12.3, 12.4, 12.5 Updated 3.Package Contents, 11.Connection Diagram for shared manual... -
Page 6: Table Of Contents
CONTENTS 1. Introduction ............1 2. Applications ............. 1 3. Package Contents ........... 1 3.1 WPS-HP201 ..........1 3.2 WPS-HP201T ..........1 3.3 WPS-HP201KIT ........... 2 4. System Requirements ........2 5. Features............3 6. Operation Controls and Functions ....4 6.1 Hyshare Pro Station’s Front Panel .... - Page 7 9.3 Web Browser Sharing ........ 25 9.4 AirPlay and Google Cast ......26 9.4.1 AirPlay ..........26 9.4.2 Google Cast ........26 9.5 Operation of the Hyshare Pro Pod .... 27 9.5.1 Hyshare Pro Pod Utility App ..... 27 9.5.2 Hyshare Pro Pod Sharing....29 9.5.3 Video Conference ......
-
Page 8: Introduction
1. INTRODUCTION The Hyshare Pro is a high-performance Wireless Presentation System, which provides a smooth wireless screen-casting experience, letting the users free themselves from messy cables and complicated systems. With its simple installation and setup, users can easily share their presentations and screens in meetings or classrooms. -
Page 9: Wps-Hp201Kit
3.3 WPS-HP201KIT • 1× Hyshare Pro wireless presentation station • 2× Hyshare Pro Pod wireless transmitter • 1× 12V/2A DC Power Adapter • 2× Antenna • 1× Quick Start Guide 4. SYSTEM REQUIREMENTS • Desktop computer or mobile phone/tablet source device. •... -
Page 10: Features
5. FEATURES • Supports up to 4K@30Hz video output. • Entire desktop/screen or specific window sharing via browser (Chrome or Edge) or dedicated app. • Multiview output can display up to 4 sources simultaneously with manual user control over layout placement. •... -
Page 11: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Hyshare Pro Station’s Front Panel Power Button: Press this button to power the unit on (blue) or place it into stand-by mode (red). If the unit has been placed into suspend mode, via the WebGUI, the LED will be off. Note: To factory reset the unit, press and hold the power button for 6~7 seconds (a reset warning message will show on the video output after 3 seconds). -
Page 12: Hyshare Pro Station's Rear Panel
6.2 Hyshare Pro Station’s Rear Panel LINE OUT HDMI OUT VGA OUT DC 12V Antenna Connections: Connect to the provided antennas by carefully screwing them onto these 2 ports. Note: The antennas should be oriented so as to be perpendicular to the preferred Wi-Fi broadcast plane. -
Page 13: Hyshare Pro Pod's Top Panel
6.3 Hyshare Pro Pod’s Top Panel Status LED: This LED will flashes to indicate paring mode is active and stays illuminate when paring is complete. Function Button: Press this button to connect the Station’s USB device for the PC detection. Note: See section 9.5.3 for additional information about detection steps. -
Page 14: Installation
7. INSTALLATION 7.1 Wall Mounting Step 1) Drill two screw starter holes into the mounting wall with 140mm space between them, as shown in the image below. Use screw anchors if needed. 140 mm Ø 6 mm 3.3 mm Step 2) Drive a screw into each hole, leaving a small gap between the wall and the screw head. -
Page 15: System Configuration
8. SYSTEM CONFIGURATION 8.1 Web Access Step 1) Make sure your computer and the Hyshare Pro are both connected to the same network, either through a wired Ethernet connection (via a local network switch), or through the unit’s Wi-Fi network. Note: The Hyshare Pro’s default SSID is “WPS-HP210-xxxx”... - Page 16 2) Browser Sharing: Click on the “Start” button in the middle of the screen to connect to begin sharing your desktop to the currently connected unit. Note: Browser sharing is not available if the unit is in “Moderation Mode”. 3) Download App: Download the app for the preferred operating system. Note: Operational details for the app are provided in Section 9.
-
Page 17: General Settings
8.3 General Settings 8.3.1 Basic Tab The Basic tab provides control over outward facing aspects of the unit, such as the unit’s name, login code, OSD background, etc. Changes to this page will only take effect after pressing the “Apply” button and some changes may require the unit to reboot. -
Page 18: Resolution Tab
3) Background Image: Select the background image to use on the output’s OSD. The first 2 options are built in (and un-removable). Custom backgrounds can be uploaded or deleted by clicking on any of the remaining 4 image blocks. Note: The image format must be PNG or JPEG. A width/height ratio between 1.5~2.0:1 with a resolution below 3840x2160 is recommended. -
Page 19: Date & Time Tab
2) Resolution: Use the dropdown to select the preferred output resolution. This is set to “Auto” by default. Note: The available resolutions depend on the EDID of the connected monitor. When Video Output is set to “HDMI and VGA”, both outputs will use the same resolution. -
Page 20: Network Settings
6) Time: Manually set the time when “Set Time Automatically” is disabled. Note: When “Set Time Automatically” is enabled, editing is disabled and this field will only display the currently assigned time. 7) Daily Reboot: Enable this to have the module reboot daily automatically, using the dropdown to manually set the time. - Page 21 – Security: Enable or disable WPA2 connection security. It is strongly recommended to always use WPA2 and it is enabled by default. The current password can be revealed by clicking on the “eye” icon. The default password is “00000000”. Note: WPA2 passwords should be 8 to 16 characters long. –...
-
Page 22: Ethernet Tab
8.4.2 Ethernet Tab The Ethernet tab provides control over how the unit integrates into the local wired networking environment; specifically, how the unit defines the IP address used when accessing the WebGUI. Changes to this page will only take effect after pressing the “Apply” button and some changes may require the unit to reboot. -
Page 23: Typical Configurations
8.4.3 Typical Configurations 1) Hyshare Pro Standalone Wi-Fi Network (Default): In this configuration the Hyshare Pro will operate as a wholly independent wireless access point with no access to a local network or the internet. Step 1) Ensure the unit is connected to the same internal network as your computer via Ethernet cable and connect to the configuration page using a web browser. - Page 24 3) Hyshare Pro Uses the Organization’s Wired LAN: In this configuration the Hyshare Pro’s Wi-Fi is completely disabled and uses the organization’s wired network as the connection point. Step 1) Ensure the unit is connected to the same internal network as your computer via Ethernet cable and connect to the configuration page using a web browser.
-
Page 25: Administration Settings
8.5 Administration Settings 8.5.1 Update Tab 1) Model Name: Shows the model name of the unit. 2) Hyshare Pro Information: Shows the current firmware version and provides links to the current firmware release notes as well as a link to check for new firmware updates. -
Page 26: Password & Configuration Tab
8.5.2 Password & Configuration Tab 1) Admin Password: Provides a way to change the administrator password (up to 16 characters long). The current password can be revealed by clicking on the “eye” icon. The default password is “admin”. Note: It is strongly suggested to change the administrator password the first time you configure the unit. -
Page 27: Power Settings
8.6 Power Settings 1) Power Button Behavior: ■ Sleep Mode: In this mode the unit only turns off video and audio output. Users can still discover and connect the unit via the network. – Enter Sleep Mode automatically: Click this checkbox to enable automatic sleep mode. -
Page 28: App And Web Browser Sharing
9. APP AND WEB BROWSER SHARING 9.1 Download the Hyshare Pro App 1) Windows and macOS: Downloadable from the unit’s own web interface landing page. (Please see Section 8.2 for more details) 2) Android and iOS: Available directly from the Google Play and App Store. Search for “Hyshare Pro”... - Page 29 1) App Configuration: Click the “Gear” icon ( ) to change your display name, configure startup options, check the current App version, and update the software. On the mobile version of the app, these functions are accessed by clicking on the upper-left corner hamburger icon ( Note: This app will automatically check for updates every time it is launched.
- Page 30 3) Station List: All currently detected Hyshare Pro units (stations) within the local network will be displayed here. Clicking on the slider to the right of a station name will connect to that station and prepare for sharing. Once connected, the icons displayed will change and there will be a note saying “Connected”.
- Page 31 9) Remote View (Windows/macOS): Click the “Remote View” icon ( to view the shared output in a window on your local computer. Note: Availability of this function can be disabled within each unit’s web configuration page. (Please see Section 8.3.1) 10) Multi-sharing (Windows/macOS): The app can connect and share to up to 4 stations simultaneously.
-
Page 32: Web Browser Sharing
9.3 Web Browser Sharing Sharing a computer’s desktop, window, or browser tab can also be accomplished directly from the unit’s WebGUI. Note: Web browser sharing is only available in Chrome and Edge browsers on Windows systems. Touch Back and audio functionality are not supported. This type of sharing is not available if “Moderation Mode”... -
Page 33: Airplay And Google Cast
9.4 AirPlay and Google Cast 9.4.1 AirPlay Make sure the AirPlay supporting source device and Hyshare Pro unit are connected to the same local network. Open device’s Control Center, click on the Screen Mirroring icon, and then select the unit from the displayed list of targets. -
Page 34: Operation Of The Hyshare Pro Pod
9.5 Operation of the Hyshare Pro Pod Hyshare Pro Pod is an USB-C transmitter to Hyshare Pro station. It can transmit video and audio signals wirelessly, which enables users to join a meeting instantly. Plug in a Pod and everyone can share content wirelessly without installing any App. - Page 35 Step 3) Click “Pair” button and pair the Pod with the Hyshare Pro Station. 2) Firmware update: Hyshare Pro Pod firmware can be updated via two methods. The Pod’s firmware will be updated automatically when it’s plugged to the Hyshare Pro station that is connected to an external network.
-
Page 36: Hyshare Pro Pod Sharing
9.5.2 Hyshare Pro Pod Sharing Sharing a computer’s desktop, window, or browser tab can also be accomplished directly using the Hyshare Pro Pod. Typical Sharing Procedure: Step 1) Check Hyshare Pro firmware version at standby screen and ensure it is v1.0.0.36 or newer. Step 2) Connect the Pod to Hyshare Pro's USB-C port. -
Page 37: Osd Menu Operation
10. OSD MENU OPERATION 10.1 Information Panel Information Panel is the first screen you will see over the HDMI output when the unit is powered on. The left side of the screen contains unit information such as: Station name, Station IP address, and the login code, if any has been configured. -
Page 38: Control Panel
10.3 Control Panel Clicking on the upward arrow icon (^) at the bottom middle of the screen (using a touch panel, or connected mouse) will open up the Control Panel. This provides access to a number of system configuration and connection management functions. - Page 39 5) Floating Menu: Enables or disables Floating Menu allowing control when a touch panel display or mouse is connected to the unit. (Please see Section 10.4.1) 6) Stop All: Clicking this button will immediately stop all screen sharing. Note: Only available in “Moderation Mode”. 7) Mute All: Click on the “All Audio”...
-
Page 40: Collaboration Features
10.4 Collaboration Features 10.4.1 Floating Menu This floating menu appears in the lower left corner of the video output OSD any time the unit is connected to a mouse, or a touch screen enabled display. It allows users to quickly access the unit’s interactive Whiteboard, Annotation, and Screen Capture features. -
Page 41: Save Screenshots
10.4.2 Save Screenshots When using Screen Capture, Annotation or Whiteboard, there are a few different ways you can store your current video output for use later, or for distribution to your users. Once you click on the save icon in a menu wheel, you will get a popup showing your save options. -
Page 42: Connection Diagram
11. CONNECTION DIAGRAM Mobile/Laptop Devices Power Supply LINE OUT HDMI OUT VGA OUT DC 12V Output HDMI Output Monitor Projector... -
Page 43: Specifications
12. SPECIFICATIONS 12.1 Technical Specifications(Station) HDMI Bandwidth 10.2Gbps VGA Bandwidth 165MHz Output Ports 1×HDMI (Type-A) 1×VGA (DE-15) 1×Stereo Audio (3.5mm) Bi-directional/Control Port 1×LAN (RJ-45) Control Ports 1×USB 2.0 (Type-A) 1×USB 3.0 (Type-A) 1×USB 3.0 (Type-C) Wi-Fi Support IEEE 802.11ac 2.4/5GHz Power Supply 12V/2A DC (US/EU standards, CE/FCC/UL certified) or... -
Page 44: Technical Specifications(Pod)
12.2 Technical Specifications(Pod) HDMI Bandwidth 10.2Gbps Input Port 1×USB 3.2 (Type-C) Wi-Fi Support IEEE 802.11ac 2.4/5GHz Power Supply 5V/900mA via USB Port ESD Protection (HBM) ±8kV (Air Discharge) ±4kV (Contact Discharge) Dimensions (W×H×D) 193mm×68mm×17.6mm [All Inclusive] Weight Chassis Material Plastic Chassis Color Black Operating Temperature... -
Page 45: Video Specifications
12.3 VIDEO SPECIFICATIONS Single Input Output Dual Output Supported Resolutions (Hz) USB-C HDMI HDMI 720×400p@70/85 640×480p@60/72/75/85 720×480i@60 720×480p@60 720×576i@50 720×576p@50 ... - Page 46 Single Input Output Dual Output Supported Resolutions (Hz) USB-C HDMI HDMI 1920×1080p@24/25/30 1920×1080p@50/60 1920×1200p@60RB 2560×1440p@60RB 2560×1600p@60RB 2048×1080p@24/25/30 2048×1080p@50/60 ...
-
Page 47: Audio Specifications
12.4 Audio Specifications 12.4.1 Digital Audio Network Input / HDMI Output / USB-C Input LPCM Max Channels 2 Channels Sampling Rate (kHz) 44.1 Bitstream Supported Formats None 12.4.2 Analog Audio Analog Output Max Audio Level 0.75Vrms THD+N < −84dB@0dBFS 1kHz (A-wt) >... -
Page 48: Cable Specifications
12.5 Cable Specifications 1080p 4K30 4K60 (4:4:4) (4:4:4) Cable Length 8-bit 12-bit 8-bit 8-bit High Speed HDMI Cable HDMI Output VGA Cable USB-C Input VGA Output Bandwidth Category Examples: • 1080p (FHD Video) - Up to 1080p@60Hz, 12-bit color - Data rates lower than 5.3Gbps or below 225MHz TMDS clock •... -
Page 49: Acronyms
13. ACRONYMS ACRONYM COMPLETE TERM 4K UHD 4K Ultra-High-Definition (10.2Gbps max) 4K UHD 4K Ultra-High-Definition (18Gbps max) ASCII American Standard Code for Information Interchange Cat.5e Enhanced Category 5 cable Cat.6 Category 6 cable Cat.6A Augmented Category 6 cable Cat.7 Category 7 cable Command-Line Interface Digital-to-Analog Converter Decibel... - Page 50 ACRONYM COMPLETE TERM Megahertz On-Screen Display Powered Device Power over Ethernet Signal-to-Noise Ratio SSID Service Set Identifier Transmission Control Protocol THD+N Total Harmonic Distortion plus Noise TMDS Transition-Minimized Differential Signaling Universal Serial Bus Video Graphics Array WUXGA (RB) Widescreen Ultra Extended Graphics Array (Reduced Blanking) Extended Graphics Array Ω...
-
Page 51: Compliance Statements
14. COMPLIANCE STATEMENTS 14.1 FCC Statement This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 52: Fcc Rf Radiation Exposure Statement
14.2 FCC RF Radiation Exposure Statement 1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. (For only one antenna) 2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. -
Page 53: General Warnings
14.5 General Warnings • When Hyshare Pro (WPS-HP201) is running in PoE mode and connected to USB devices such as touch panel, mouse or USB drive, please note all USB ports are not allowed to be connected. • About the RTC battery inside Hyshare Pro: - The RTC battery is forbidden to charge, decompose, heat, or throw into fire. -
Page 54: Warranty Policy
CYP Repair Service Department. For those products which are not DOA, the return fee to an authorized CYP repair facility will be at the customers’ expense. After repaired, the sending... -
Page 55: Exclusions From Warranty
CYP is not responsible whether by accident or other cause. Such conditions will be determined by CYP at its sole unfettered discretion. - Page 56 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
