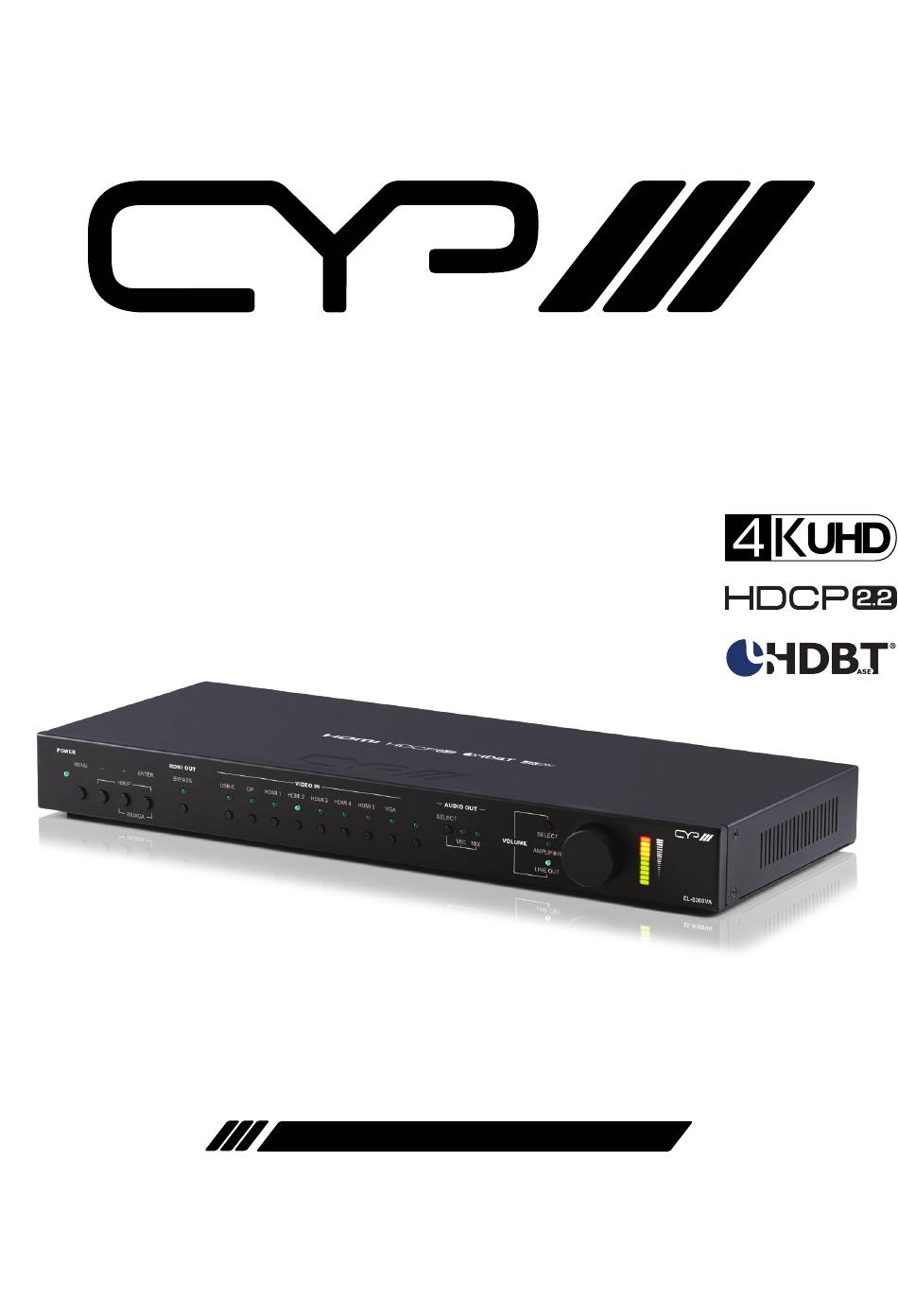

EL-8300VA
Advanced 4K HDMI, USB Type C, Display Port, VGA and
HDBaseT Presentation Switch
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EL-8300VA and is the answer not in the manual?

Questions and answers

Summary of Contents for CYP EL-8300VA

  • Page 1 EL-8300VA Advanced 4K HDMI, USB Type C, Display Port, VGA and HDBaseT Presentation Switch OPERATION MANUAL...
  • Page 2 ® registered trademarks of HDMI licensing Administrator, Inc.
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ..........1 2. Applications ..........1 3. Package Contents ........2 4. System Requirements ........ 2 5. Features ............3 6. Operation Controls and Functions .... 4 6.1 Front Panel ............4 6.2 Rear Panel .............5 6.3 IR Cable Pinouts ..........8 6.4 RS-232 Pinout and Defaults ......8 6.5 OSD Menu ............9 6.6 WebGUI Control ..........
  • Page 6 8.3.2 Analogue Audio ........73 8.4 Cable Specifications ........74 8.5 HDBaseT Features ........... 75 9. Acronyms ........... 76...
  • Page 7: Introduction

    1. INTRODUCTION This 8 by 2 multi-format scaling switcher provides HDMI, USB-C, DisplayPort, and VGA inputs which can be freely selected for output at a scaled resolution of the user’s choosing over the mirrored HDMI and HDBaseT outputs. The HDMI, DisplayPort, and USB-C inputs and HDMI output support resolutions up to 4K@60 (4:4:4, 8-bit) while the VGA input supports resolutions up to WUXGA.
  • Page 8: Package Contents

    3. PACKAGE CONTENTS  1× UHD 8x2 Multi-Format to HDMI/HDBaseT Switcher with Scaler  1× 24V/6.25A DC Power Adapter  1× Rackmount Ears (Set of 2)  1× Shockproof Feet (Set of 4)  1× Operation Manual 4. SYSTEM REQUIREMENTS  HDMI/DisplayPort/USB-C source equipment such as media players, video game consoles or set-top boxes.
  • Page 9: Features

    5. FEATURES  HDMI 2.0 and DVI 1.0 compliant  HDCP 1.x and 2.2 compliant  8 video inputs (1×USB-C, 1×DisplayPort, 5×HDMI, 1×VGA)  2 mirrored video outputs (1×HDMI, 1×HDBaseT)  Supports switching and scaling of all AV inputs for display over the mirrored HDMI and HDBaseT outputs  Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) digital video input (HDMI, USB-C, DP) and output (HDMI)
  • Page 10: Operation Controls And Functions

    1080P VOLUME AMPLIFIER LINE OUT WUXGA EL-8300VA POWER LED: This LED will illuminate to indicate the unit is on and receiving power. MENU Button: Press to enter the OSD menu, or to back out from menu items. MINUS (-) Button: Press to move down or adjust selections within OSD menus.
  • Page 11: Rear Panel

    VOL. Rotary Knob & LEDs: Rotating the knob increases or decreases the currently selected audio output’s volume level. The LED bar will change according to the current level. Pressing in on the knob toggles the audio mute function. 6.2 Rear Panel MIC IN ANALOGUE AUDIO RELAY...
  • Page 12 IR OUT Port: Connect to an IR Blaster to transmit IR signals from the other end of the HDBaseT connection to devices within direct line-of- sight of the IR Blaster. Note: IR can only be routed across a single HDBaseT connection at a time. The HDBaseT connection to use is defined within the WebGUI or OSD menu.
  • Page 13 PC/laptop to control the unit via Telnet/WebGUI and to extend the network across the HDBaseT connection. DC24V 4-pin DIN Port: Plug the 24V DC power adapter into this port and connect it to an AC wall outlet for power.
  • Page 14: Ir Cable Pinouts

    6.3 IR Cable Pinouts IR Blaster IR Extender Cable Cable Power Infrared Infrared Power Not Used Ground 6.4 RS-232 Pinout and Defaults Serial Port Default Settings Baud Rate 19200 Data Bits Parity Bits None Stop Bits Flow Control None RS-232 Port 1 (Unit control) RS-232 Port 2 (HDBaseT extension) 4-pin Terminal Block...
  • Page 15: Osd Menu

    6.5 OSD Menu All functions of this unit can be controlled by using the OSD (On Screen Display) which is activated by pressing the MENU button on the front of the unit. Use the + (PLUS), − (MINUS), and ENTER buttons to navigate the OSD menu.
  • Page 16 VIDEO 2ND LEVEL 3RD LEVEL 4TH LEVEL HDMI Out Bypass Output Route USB-C HDMI 1 HDMI 2 HDMI 3 HDMI 4 HDMI 5 NATIVE HDMI Output Resolution Native HDBT 640x480@60 800x600@60 1024x768@60 1280x768@60 1360x768@60 1280x720@60 1280x800@60 1280x1024@60 1440x900@60 1400x1050@60 1680x1050@60 1600x1200@60 1920x1080@60...
  • Page 17 VIDEO 2ND LEVEL 3RD LEVEL 4TH LEVEL Output Resolution 1920x1200@60RB (Cont.) 2560x1600@60RB 720x480p 720x576p 1280x720p50 1280x720p60 1920x1080p24 1920x1080p25 1920x1080p30 1920x1080p50 1920x1080p60 3840x2160p24 3840x2160p25 3840x2160p30 3840x2160p50 3840x2160p60 3840x2160p50(420) 3840x2160p60(420) 4096x2160p24 4096x2160p25 4096x2160p30 4096x2160p50 4096x2160p60 4096x2160p50(420) 4096x2160p60(420)
  • Page 18 VIDEO 2ND LEVEL 3RD LEVEL 4TH LEVEL BEST FIT Aspect Pan Scan Letterbox Under 1 Under 2 Follow In Overscan Full BLACK No Signal Colour White Blue Green Blank Freeze Auto Setting Auto Sync Off Auto Route Auto Switch HDCP Setting HDCP On USB-C Refer to Source REFER TO DISPLAY...
  • Page 19 VIDEO 2ND LEVEL 3RD LEVEL 4TH LEVEL HDCP Setting (Cont.) HDCP On DP Refer to Source REFER TO DISPLAY Support Off HDCP On HDMI 1 Refer to Source REFER TO DISPLAY Support Off HDCP On HDMI 2 Refer to Source REFER TO DISPLAY Support Off HDCP On HDMI 3...
  • Page 20 unit automatically select an output resolution based on the detected EDID of the connected display. Note: Not active when HDMI bypass mode is enabled. 4) Aspect: Select the aspect ratio to use when outputting the source. “Full” stretches the source to fill the output resolution, regardless of the original aspect ratio, while “Best Fit”...
  • Page 21 PICTURE 2ND LEVEL 3RD LEVEL 4TH LEVEL 0~1023 (512) Colour Gain R 0~1023 (512) Colour Gain G 0~1023 (512) Colour Gain B 0~1023 (512) Colour Offset R 0~1023 (512) Colour Offset G 0~1023 (512) Colour Offset B 0~60 (30) Brightness 0~60 (30) Contrast Fine Tune HDMI...
  • Page 22 1) Colour Gain R/G/B: Set the red, green, and blue colour gain level of the scaled output. 2) Colour Offset R/G/B: Set the red, green, and blue colour offset level of the scaled output. 3) Brightness/Contrast: Set the overall brightness and contrast of the scaled output image.
  • Page 23 AUDIO 2ND LEVEL 3RD LEVEL 4TH LEVEL HDMI Out Bypass Audio Routing Follow User FOLLOW VIDEO Fixed Analogue 1 Fixed Analogue 2 Fixed Analogue 3 Fixed Analogue 4 Fixed Analogue 5 Fixed Analogue 6 EMBEDDED Follow User Setting Audio On USB-C Analogue 1 Analogue 2 Analogue 3...
  • Page 24 AUDIO 2ND LEVEL 3RD LEVEL 4TH LEVEL Analogue 1 Follow User Setting Audio On VGA Analogue 2 Analogue 3 Analogue 4 Analogue 5 Analogue 6 MIXER OFF Output Mixer Mixer On Mic Only 0~100 (0) Mic Gain HDMI/HDBT Out Volume 0~100 (85) 0~100 (85) Analogue Out Volume 0~100 (85)
  • Page 25 mode and bitstream audio can be supported. Note: This bypass setting affects audio only. 2) Audio Routing: Select the audio routing behavior of the unit. „ Follow User: Audio routing will follow the selections made in the “Follow User Setting” section. „...
  • Page 26 2ND LEVEL 3RD LEVEL 0~100 (50) H Position 0~100 (50) V Position 1~8 (1) Transparency OSD Menu Timeout INFO Display 1) H/V Position: Controls the position of the OSD menu. 2) Transparency: Set the transparency level of the OSD menu’s background.
  • Page 27 4) Display: Set the behavior of the OSD informational display. Selecting “Info” will show the information display for a short time after a source or display change. Selecting “Off” will disable the info display. Selecting “On” will always show the info display. ETHERNET 2ND LEVEL 3RD LEVEL...
  • Page 28 address and use the “+” and “-” buttons to adjust each value. Press the “Enter” button to store the current number segment and move to the next segment. Note: The unit’s default static IP address is 192.168.1.50. 3) IP/MAC: Displays the unit’s MAC address and current IP address.
  • Page 29 EDID 2ND LEVEL 3RD LEVEL DEFAULT FHD 2CH EDID On USB-C Default FHD MCh Default UHD 2Ch Default UHD MCh Default UHD+ 2Ch Default UHD+ MCh Default VGA User 1 User 2 Sink HDMI Sink HDBT EDID On DP [Same options as for USB-C] EDID On HDMI 1 [Same options as for USB-C] EDID On HDMI 2...
  • Page 30 EDID 2ND LEVEL 3RD LEVEL EDID On VGA 1 (Cont.) DEFAULT VGA User 1 User 2 Sink HDMI Sink HDBT 1) EDID Selection: Select the EDID to use with each input. Note: In most cases, assigning a new EDID to an input will cause the affected input to briefly blink out while the source adapts to the new information.
  • Page 31 SYSTEM 2ND LEVEL 3RD LEVEL Relay 1 Relay 2 Trigger In 1~8 HDMI 1 HDMI 2 HDMI 3 HDMI 4 HDMI 5 Button Lock Video Audio 1) Relay 1~2: Manually open or close Relay 1 and Relay 2. Selecting “ON” closes the relay, selecting “OFF”...
  • Page 32 FACTORY 2ND LEVEL 3RD LEVEL Reset All Execute FW Update From USB Execute 1) Reset All: Selecting “Execute” will reset all of the unit’s settings back to their factory defaults. 2) FW Update From USB: Provides a way to update the unit’s firmware. Insert a USB thumb drive, with a valid firmware file (*.bin format) in the root directory, into the unit’s USB service port then select this option.
  • Page 33: Webgui Control

    6.6 WebGUI Control Device Discovery Please obtain the “Device Discovery” software from your authorised dealer and save it in a directory where you can easily find it. Connect the unit and your PC/Laptop to the same active network and execute the “Device Discovery” software. Click on “Find Devices on Network”...
  • Page 34 WebGUI Overview After connecting to the WebGUI’s address in a web browser, the login screen will appear. Please enter the appropriate user name and password then click “Submit” to log in. Note: The default user name and password is “admin”. On the left side of the browser you will see the following menu tabs where all primary functions of the unit are controllable via the built in WebGUI.
  • Page 35: Video Tab

    6.6.1 Video Tab This page provides video routing settings, I/O renaming options and control over the video output signal’s format and behavior. To begin assigning a new video route, please click an output button and then click on the button of the preferred input port. As you select each button they will change their colour to orange.
  • Page 36 3) Additional Settings: „ HDMI Out Bypass: Enable or disable the video output bypass mode. When bypass is enabled, HDR video and bitstream audio can be supported, however it will disable the unit’s scaling and video adjustment functions. Note: This setting affects both the HDMI and HDBaseT outputs. This setting does not enable audio bypass.
  • Page 37: Hdcp Tab

    „ Output Freeze: Enable or disable freezing the video output. Note: Not available when HDMI bypass mode is enabled. „ Output Auto Sync Off: Sets the amount of time to continue outputting sync with the free run colour if there is no live source and no operations have been executed on the unit.
  • Page 38: Picture Tab

    6.6.3 Picture Tab This tab provides controls over the scaled video output’s colour, brightness, contrast. When a digital source is selected hue, saturation, sharpness and noise reduction are also controllable. When a VGA input is selected, the available controls will change and auto set, H/V position, clock and phase will become adjustable instead.
  • Page 39 2) Picture Settings (Digital Sources): „ Hue: Provides control over the hue shift of the scaled output image. „ Saturation: Provides control over the colour saturation level of the scaled output image. „ Sharpness: Provides control over the amount of sharpness processing to apply to the scaled output image.
  • Page 40: Audio Tab

    6.6.4 Audio Tab This tab provides control over how audio is routed within the unit as well as control over audio mixing, individual output volume and the microphone’s gain level. 1) Audio Settings: „ HDMI Volume & Mute: Set the volume level, or mute the audio, for the HDMI and HDBaseT audio outputs.
  • Page 41 „ Output Mixer: Set the microphone mixing mode of the unit. - Mixer Off: Disable the audio mixer. - Mixer On: Enable the audio mixer. Audio from the current source and the microphone will be mixed together. - MIC Only: Output only the microphone audio source. This mode will override all other audio selections.
  • Page 42: Osd Tab

    6.6.5 OSD Tab This tab provides controls over the appearance of the unit’s informational OSD and OSD menu. 1) H/V Position: Controls the position of the OSD menu. 2) Transparency: Controls the transparency level of the OSD menu’s background. The available range is from Level 0 (fully opaque) to Level 8 (fully transparent).
  • Page 43: Edid Tab

    6.6.6 EDID Tab This tab provides control over the EDID settings of all inputs. This unit provides the option of seven standard EDIDs, two sink sourced EDIDs and two user uploaded EDIDs that can be assigned to each input port individually.
  • Page 44 change. An EDID Upload window will appear, allowing you to locate and upload the preferred EDID file (*.bin format) from a local PC. Once the correct file has been selected, please click the “Upload” button in the window, and the file will be transferred to the unit. „...
  • Page 45: System Tab

    6.6.7 SYSTEM TAB Click on the “System” tab to make changes to various system settings. From this tab you can change the WebGUI login username and password as well as configure the relay settings. Finally, this tab provides buttons to reset the unit to factory defaults and to update the firmware.
  • Page 46 3) Control Route Setting: These settings control the unit’s 2 relay ports. „ Relay 1 & 2: Manually open or close Relay 1 and Relay 2. Selecting “ON” closes the relay, selecting “OFF” opens it. 4) Trigger In 1~8: Use each dropdown to set the input to be selected, if any, when each trigger is activated.
  • Page 47: Telnet Control

    6.7 Telnet Control Before attempting to use Telnet control, please ensure that both the unit and the PC are connected to the same active networks. To Access the Command Line Interface (CLI) Click Start, type “cmd” in the search field, and press Windows 7 Enter Windows XP...
  • Page 48: Serial And Telnet Commands

    6.8 Serial and Telnet Commands COMMAND Description and Parameters help  Show the full command list. ?  Show the full command list. help N1  Show details about the specified command. N1 = {Command name} get fw ver  Show the unit’s current firmware version.
  • Page 49 COMMAND Description and Parameters set ip mode static  Set the IP address assignment mode to static. set ip mode dhcp  Set the IP address assignment mode to DHCP. set ip mode N1  Set the IP address assignment mode. Available values for N1: [Static IP Mode] [DHCP Mode]...
  • Page 50 COMMAND Description and Parameters set static gateway N1  Set the unit’s static gateway address. N1 = X.X.X.X [X = 0 ~ 255, Gateway address] get static gateway  Show the unit’s current static gateway address. set webgui username N1  Set the WebGUI login username.
  • Page 51 COMMAND Description and Parameters get out A route  Show the current input routed to both outputs. set out auto mode N1  Set the auto switching behavior of the unit. Available values for N1: [Off ] [Auto switch] get out auto mode  Show the current auto switching mode of the unit.
  • Page 52 COMMAND Description and Parameters get in N1 timing string  Show the index number and description of the current resolution detected on the specified input. Available values for N1: [USB-C input] [DisplayPort input] [HDMI input 1] [HDMI input 2] [HDMI input 3] [HDMI input 4] [HDMI input 5] [VGA input]...
  • Page 53 COMMAND Description and Parameters [1680x1050@60] [1600x1200@60] [1920x1080@60] [1920x1200@60RB] [2560x1600@60RB] [720x480p] [720x576p] [1280x720p50] [1280x720p60] [1920x1080p24] [1920x1080p25] [1920x1080p30] [1920x1080p50] [1920x1080p60] [3840x2160p24] [3840x2160p25] [3840x2160p30] [3840x2160p50] [3840x2160p60] [3840x2160p50(4:2:0)] [3840x2160p60(4:2:0)] [4096x2160p24] [4096x2160p25] [4096x2160p30] [4096x2160p50] [4096x2160p60] [4096x2160p50(4:2:0)] [4096x2160p60(4:2:0)] get out A timing  Show the index number of the current resolution used by both outputs.
  • Page 54 COMMAND Description and Parameters get in source list  List the port type of all inputs on the unit. get out timing list  List all available output resolutions with their local index numbers. set out A contrast N1  Set the scaled output’s contrast level.
  • Page 55 COMMAND Description and Parameters get out A hue  Show the hue value when the output is scaled. set out A sharpness N1  Set the scaled output’s sharpness level. N1 = 0~63 [Sharpness level] get out A sharpness  Show the sharpness level when the output is scaled.
  • Page 56 COMMAND Description and Parameters get out A aspect ratio  Show the currently set aspect ratio for the video shown when the output is scaled. get out aspect ratio list  List all available aspect ratio options. set out A auto sync off N1  Enable or disable the Auto Sync Off function and set the timeout length.
  • Page 57 COMMAND Description and Parameters set out A b gain N1  Set the scaled output’s blue gain level. N1 = 0~1023 [Blue gain level] get out A b gain  Show the scaled output’s current blue gain level. set out A r offset N1  Set the scaled output’s red offset.
  • Page 58 COMMAND Description and Parameters get in 8 phase  Show the current PC phase value for the VGA input. set in 8 clock N1  Set the PC clock value for the VGA input. N1 = 0~250 [PC clock] get in 8 clock  Show the current PC clock value for the VGA input.
  • Page 59 COMMAND Description and Parameters set factory vga default  Reset the VGA input settings to the factory defaults. set vga auto adjust mode  Activate the auto detection of the current VGA source’s parameters. set out A blank N1  Enable or disable blanking the video output Available values for N1: [Video output normal]...
  • Page 60 COMMAND Description and Parameters set out A osd timer N1  Set the OSD menu’s timeout value. Available values for N1: [Timeout disabled] [5 seconds] [10 seconds] [15 seconds] [20 seconds] [25 seconds] [30 seconds] [35 seconds] [40 seconds] [45 seconds] [50 seconds] [55 seconds] [60 seconds]...
  • Page 61 COMMAND Description and Parameters set out A osd transparency level N1  Set the transparency level of the OSD menu. N1 = 1~8 [Transparency level] get out A osd transparency level  Show the current transparency level of the OSD menu. set out A osd info display N1 ...
  • Page 62 COMMAND Description and Parameters set audio out N1 mute N2  Enable or disable muting the specified audio output. Available values for N1: [HDMI audio output] [HDBaseT audio output] [Standard analogue audio output] [Amplified analogue audio output] Available values for N2: [Mute disabled] [Mute enabled] Note: The HDMI and HDBaseT outputs share their settings.
  • Page 63 COMMAND Description and Parameters set audio out A route N1  Set the audio source selection behavior of the unit. Available values for N1: [Follow user mode] [Follow video mode] [Analogue audio input 1] [Analogue audio input 2] [Analogue audio input 3] [Analogue audio input 4] [Analogue audio input 5] [Analogue audio input 6]...
  • Page 64 COMMAND Description and Parameters get audio in type list  List all available audio input sources. get audio out type list  List all available audio output destinations. set audio mixer N1  Set the state of the unit’s audio mixer function. Available values for N1: [Mixer disabled] [Mixer enabled]...
  • Page 65 COMMAND Description and Parameters set audio out N1 delay N2  Set the audio delay for the specified output's audio. Available values for N1: [HDMI audio output] [HDBaseT audio output] [Standard analogue audio output] [Amplified analogue audio output] Available values for N2: [Off ] [40ms] [110ms]...
  • Page 66 COMMAND Description and Parameters set video in N1 audio route N2  Set the audio source to use with the specified video input when Follow User Mode is enabled. Available values for N1: [USB-C input] [DisplayPort input] [HDMI input 1] [HDMI input 2] [HDMI input 3] [HDMI input 4]...
  • Page 67 COMMAND Description and Parameters set audio mixer in 1 volume N1  Set the mixer’s gain level for the microphone input. N1 = 0~100 [Microphone gain] get audio mixer in 1 volume  Show the current microphone input mixer gain level. set in N1 edid N2 ...
  • Page 68 COMMAND Description and Parameters get in N1 edid  Show the EDID currently being used on the specified input. Available values for N1: [USB-C input] [DisplayPort input] [HDMI input 1] [HDMI input 2] [HDMI input 3] [HDMI input 4] [HDMI input 5] [VGA input] get in edid list ...
  • Page 69 COMMAND Description and Parameters get in N1 hdcp mode  Show the current HDCP behavior used by the specified input. Available values for N1: [USB-C input] [DisplayPort input] [HDMI input 1] [HDMI input 2] [HDMI input 3] [HDMI input 4] [HDMI input 5] get in N1 hdcp status ...
  • Page 70 COMMAND Description and Parameters get out N1 hdcp status  Show the current HDCP status of the specified output. Available values for N1: [HDMI output] [HDBaseT output] Possible response values: [No HDCP] [HDCP 1.x] [HDCP 2.2] [HDCP 1.x failed] [HDCP 2.x failed] set relay N1 N2 ...
  • Page 71: Connection Diagram

    7. CONNECTION DIAGRAM Display Display Source Source Screen Volume Screen Volume Down Down 1.5m CD Player Powered 60° 60° Speakers Microphone IR Input Input IR Output Router RS-232 Power Supply MIC IN ANALOGUE AUDIO AUDIO OUT RELAY L+ L- R+ R- INPUT RS-232 L- G R+ R-...
  • Page 72: Specifications

    8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 18Gbps DisplayPort Bandwidth 21.6Gbps USB-C Bandwidth 21.6Gbps VGA Bandwidth 165MHz HDBaseT Bandwidth 10.2Gbps Input Ports 1×USB (Type-C) 1×DisplayPort 5×HDMI (Type-A) 1×VGA (HD-15) 6×Stereo Audio (3.5mm) 1×Microphone (6.35mm) Output Ports 1×HDMI (Type-A) 1×HDBaseT (RJ-45) 1×Stereo Audio (5-pin Terminal Block) 1×Stereo Audio (2×2-pin Term.
  • Page 73 Power Supply 24V/6.25A DC (US/EU standards, CE/FCC/UL certified) ESD Protection (HBM) ±8kV (Air Discharge) ±4kV (Contact Discharge) Dimensions (W×H×D) 432mm×43mm×164mm [Case Only] 432mm×43mm×174mm [All Inclusive] Weight 2488g Chassis Material Metal (Steel) Chassis Colour Black Operating Temperature 0˚C – 40˚C/32˚F – 104˚F Storage Temperature -20˚C –...
  • Page 74: Video Specifications

    8.2 Video Specifications 8.2.1 Bypass Output Bypass Input Output Supported Resolutions (Hz) HDMI DP USBC VGA HDMI HDBT 720×400p@70/85       640×480p@60/72/75/85       720×480i@60       720×480p@60 ...
  • Page 75 Bypass Input Output Supported Resolutions (Hz) HDMI DP USBC VGA HDMI HDBT 1920×1080i@50/60       1920×1080p@24/25/30       1920×1080p@50/60       1920×1200p@60RB       2560×1440p@60RB ...
  • Page 76: Scaled Output

    8.2.2 Scaled Output Scaled Output Supported Resolutions (Hz) HDMI HDBT 720×400p@70/85   640×480p@60/72/75/85 720×480i@60   720×480p@60   720×576i@50   720×576p@50   800×600p@56/60/72/75/85 848×480p@60   1024×768p@60/70/75/85 1152×864p@75   1280×720p@50/60   1280×768p@60/75/85 1280×800p@60/75/85 1280×960p@60/85 ...
  • Page 77 Scaled Output Supported Resolutions (Hz) HDMI HDBT 1920×1080p@24/25/30   1920×1080p@50/60   1920×1200p@60RB   2560×1440p@60RB   2560×1600p@60RB   2048×1080p@24/25/30   2048×1080p@50/60   3840×2160p@24/25/30   3840×2160p@50/60 (4:2:0)   3840×2160p@24, HDR10   3840×2160p@50/60 (4:2:0),HDR10 ...
  • Page 78: Audio Specifications

    8.3 Audio Specifications 8.3.1 Digital Audio HDMI Input / Output LPCM Max Channels 2 Channels (8 Channels in bypass) Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192 Bitstream (Bypass Only) Supported Formats Standard & High-Definition DisplayPort Input LPCM Max Channels 2 Channels (8 Channels in bypass) Sampling Rate (kHz)
  • Page 79: Analogue Audio

    8.3.2 Analogue Audio Analogue Input (3.5mm) Max Audio Level 1Vrms Impedance 10kΩ Type Unbalanced Mic Input Max Audio Level 50Vrms Impedance 6.8kΩ Type Unbalanced Analogue Output (5-pin Terminal Block) Max Audio Level 4Vrms THD+N < −84dB@0dBFS 1kHz (A-wt) > 104dB@0dBFS Frequency Response <...
  • Page 80: Cable Specifications

    8.4 Cable Specifications 1080p 4K30 4K60 (4:4:4) (4:4:4) Cable Length 8-bit 12-bit 8-bit 8-bit High Speed HDMI Cable HDMI Input HDMI Output VGA Cable VGA Input  Ethernet Cable Cat.5e/6 100m  Cat.6a/7 100m  Bandwidth Category Examples: 1080p (FHD Video) - Up to 1080p@60Hz, 12-bit colour - Data rates lower than 5.3Gbps or below 225MHz TMDS clock 4K30 (4K UHD Video)
  • Page 81: Hdbaset Features

    8.5 HDBaseT Features HDBaseT Feature Set Transmitter Video & Audio Extension Supported LAN Extension Supported Send power to Receiver Supported (PoH) Accept power from Receiver Unsupported IR Extension Supported RS-232 Extension Supported USB 2.0 Extension Unsupported...
  • Page 82: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM Analogue-to-Digital Converter ASCII American Standard Code for Information Interchange Cat.5e Enhanced Category 5 cable Cat.6 Category 6 cable Cat.6A Augmented Category 6 cable Cat.7 Category 7 cable Command-Line Interface Digital-to-Analogue Converter Decibel DHCP Dynamic Host Configuration Protocol DisplayPort Digital Visual Interface EDID...
  • Page 83 ACRONYM COMPLETE TERM Local Area Network Liquid-Crystal Display Light-Emitting Diode LPCM Linear Pulse-Code Modulation Media Access Control Megahertz On-Screen Display Powered Device Power over HDBaseT Power Sourcing Equipment Signal-to-Noise Ratio Transmission Control Protocol THD+N Total Harmonic Distortion plus Noise TMDS Transition-Minimised Differential Signaling 4K UHD 4K Ultra-High-Definition (10.2Gbps max)
  • Page 86 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com RDV2...
  • Page 87 EL-8300VA Advanced 4K HDMI, USB Type C, Display Port, VGA and HDBaseT Presentation Switch Driver User Guide...
  • Page 88 ® registered trademarks of HDMI licensing Administrator, Inc.
  • Page 89 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 90 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
  • Page 91 CONTENTS 1. Introduction ...........6 2. DRIVER PROPERTIES ......6 3. IP NETWORK CONNECTION ....6 4. DEVICE SPECIFIC COMMAND ....7 4.1 Set Power Reboot ........7 4.2 Set Out Video Mode ......... 7 4.3 Set Auto Switching Mode ....... 7 4.4 Set Timing ............ 7 4.5 Set Audio Out Route .........
  • Page 92: Introduction

    1. INTRODUCTION This driver has been designed to provide two-way control of the CYP 9x2 Multi-format Presentation Scaler, via RS232 or TCP/IP. 2. DRIVER PROPERTIES The property of this driver is shown below. Figure 1: Driver Properties  Driver Version Driver version number...
  • Page 93: Device Specific Command

    4. DEVICE SPECIFIC COMMAND In addition to the usual A/V Scaler functionality supported by Control4, there are a number of device specific commands for the A/V Scaler switching. 4.1 Set Power Reboot  Power Status Reboot 4.2 Set Out Video Mode  Video Mode Bypass or Scale 4.3 Set Auto Switching Mode  Switching Mode OFF or Auto switch...
  • Page 94: Set Audio Out Route

    [1600x1200@60] [4096x2160p25] [1920x1080@60] [4096x2160p30] [1920x1200@60RB] [4096x2160p50] [2560x1600@60RB] [4096x2160p60] [720x480p] [4096x2160p50(4:2:0)] [720x576p] [4096x2160p60(4:2:0)] [1280x720p50] [1280x720p60] 4.5 Set Audio Out Route  Audio Out Route [Follow user mode] [Follow video mode] [Analogue audio input 1] [Analogue audio input 2] [Analogue audio input 3] [Analogue audio input 4] [Analogue audio input 5] [Analogue audio input 6]...
  • Page 95: Set Video In Audio Route

    4.6 Set Video In Audio Route  Video Input [USB-C input] [DP input] [HDMI input 1] [HDMI input 2] [HDMI input 3] [HDMI input 4] [HDMI input 5] [VGA input 1]  Audio Output [Analogue audio input 1] [Analogue audio input 2] [Analogue audio input 3] [Analogue audio input 4] [Analogue audio input 5]...
  • Page 96: Set Audio Out Mute

    4.7 Set Audio Out Mute  Audio Output Channel [All audio outputs] [HDMI audio output] [HDBaseT audio output] [Standard analogue audio output] [Amplified analogue audio output]  Audio Mute Status OFF or ON 4.8 Set Audio Out Volume  Audio Output Channel [HDMI audio output] [HDBaseT audio output] [Standard analogue audio output]...
  • Page 98 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v1.00...
