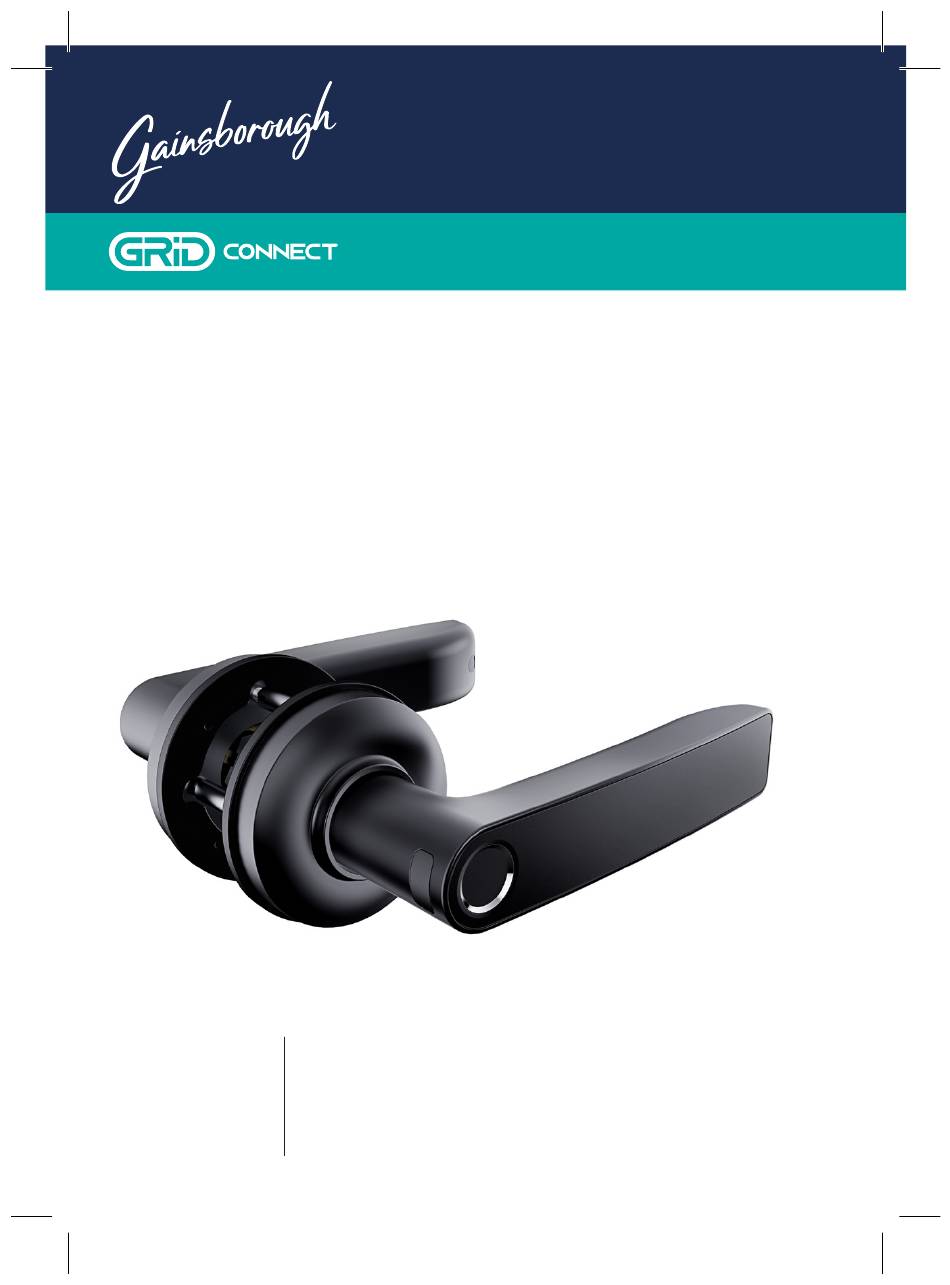

- Page 1 L I B E R T Y SM ART TOUCH LEVER LOCK QUICK IMPORTANT! START PLEASE READ THESE INSTRUCTIONS CAREFULLY GUIDE GLIBLEVBL...
- Page 2 20 pages 105mm x 148mm (A6) 160gsm Gloss Art Stock 4 colour process double sided - CPIN007526 1 INTRODUCTION 3 IDENTIFICATION This Smart Touch Lever Lock is designed to use a standard 54mm cutout. With a fingerprint sensor and Bluetooth connectivity, being locked out can become a thing Fingerprint sensor of the past.
- Page 3 20 pages 105mm x 148mm (A6) 160gsm Gloss Art Stock 4 colour process double sided - CPIN007526 4.0 INSTALLATION - Contents PLEASE READ THESE INSTRUCTIONS CAREFULLY. Failure to follow these instructions Drill Template 4 x AAA batteries could affect the product's function or result in damage to the product. •...
-
Page 4: Installation
20 pages 105mm x 148mm (A6) 160gsm Gloss Art Stock 4 colour process double sided - CPIN007526 4.1 INSTALLATION... - Page 5 4.2 INSTALLATION - Door preparation OPTION B: PREPARATION - NEW DOORS Additional material including installation videos are available on the Gainsborough website: gainsboroughhardware.com.au IMPORTANT: Professional installation is recommended for new doors. OPTION A: PREPARATION - REPLACING 1. Your door must have a thickness of between 32mm and 50mm.
- Page 6 20 pages 105mm x 148mm (A6) 160gsm Gloss Art Stock 4 colour process double sided - CPIN007526 4.3 INSTALLATION - Locking lever INSTALLATION - BOTH NEW AND Backset EXISTING DOORS 2.a. Fit the two screw standoffs 60mm/70mm into the locking lever. 1.
- Page 7 20 pages 105mm x 148mm (A6) 160gsm Gloss Art Stock 4 colour process double sided - CPIN007526 4.4 INSTALLATION - Exit lever 3.a. Hold the locking lever against 4 Install 4 AAA batteries and the outside of your door, aligning replace the battery cover.
- Page 8 20 pages 105mm x 148mm (A6) 160gsm Gloss Art Stock 4 colour process double sided - CPIN007526 4.5 INSTALLATION REAR (exit lever) FRONT (locking lever)
- Page 9 24 pages 105mm x 148mm (A6) 160gsm Gloss Art Stock 4 colour process double sided - CPIN007525 5 APP PAIRING NEW ACCOUNT LOG IN SETUP Download and install the GRID Connect App from Play Store (Android) or App Store (iOS), Then follow the prompts to create a new account login...
- Page 10 20 pages 105mm x 148mm (A6) 160gsm Gloss Art Stock 4 colour process double sided - CPIN007526 • WARRANTY • NOTES Allegion Australia PTY Ltd guarantees to repair or replace this product if within two (2) years from the proven date of purchase if it tarnishes, discolours or corrodes;...
- Page 11 L I B E R T Y PDGA0110 CPIN007526...
