Gainsborough TRILOCK G1 Series Installation Instructions

Installation Instructions for Trilock Eclipse Dummy
Step 1
• Fold template where indicated.
• Position template on door edge at
desired height, align with operating
Eclipse on opposite door.
• Firmly hold template and mark 4 off
10mm holes centres & 1 off 54mm
hole centre.
Note: it is important to drill these
holes squarely.
• Drill pilot holes [suggested size
3mm (1/8")]. Then enlarge holes as
per template, drilling from both sides
of the door.
Step 3
To rehand external lever & set lever
operation (if required).
• To rehand, remove the stop screw
and rotate the lever 180˚ and refit
the stop screw.
NOTE: • carefully follow these instructions when installing.
• do not overtighten screws.
• use of power driver is not recommended.
• fully remove the Trilock prior to painting the door
to avoid harming the product's finish.
PAIT 171
NOV '12
Suits 35mm to 45mm door thickness
Please note: Ensure the template
position and orientation is as shown,
incorrect installation voids warranty.
Stop
Screw

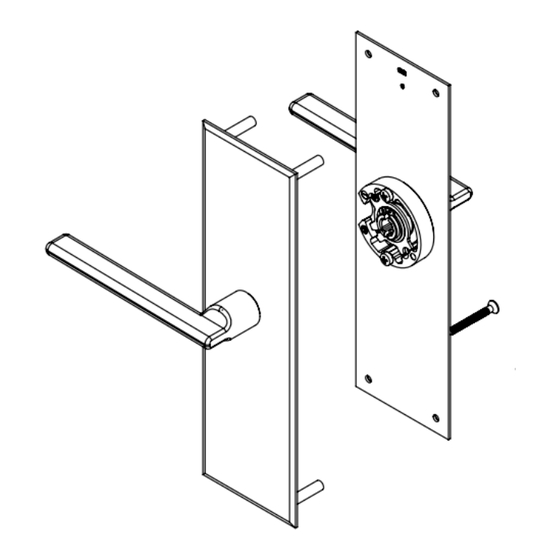

Step 2
• Install 4 off M4 threaded posts to
Eclipse external faceplate
Step 4
• Fit 4 off mounting screws from inside
into threaded posts.
• Align both face plates to door edge
& each other and tighten screws.
Patent Pending
