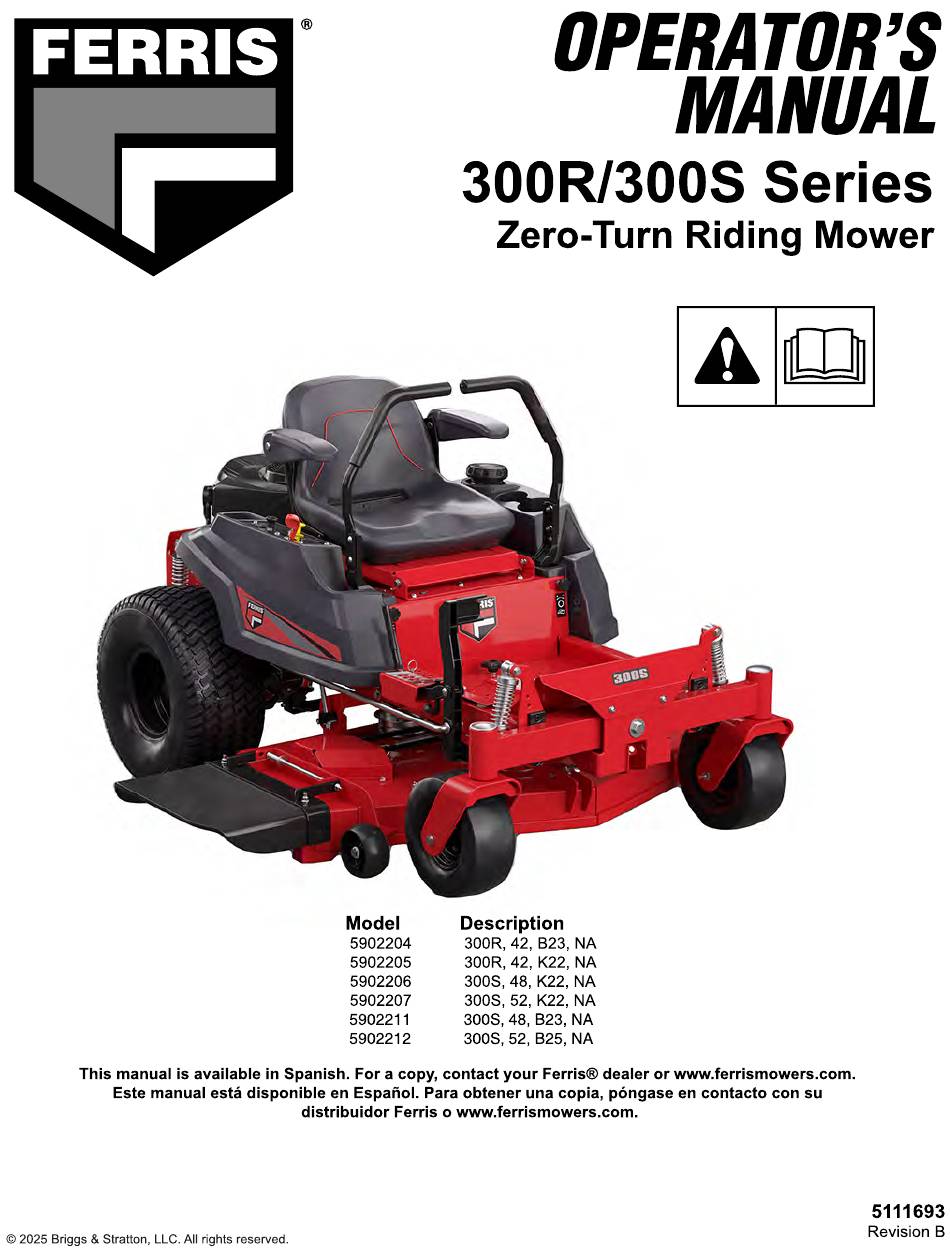

Summary of Contents for Ferris 300R Series
-
Page 2: Table Of Contents
Table of Contents: Cutting Height Adjustment..........30 Floor Pan Removal and Installation....... 31 General Information.............. 3 Neutral Adjustment............31 Identifying Your Unit............3 Suspension Adjustment (if equipped)......31 Operator Safety..............4 Parking Brake Adjustment..........31 Safety Alert Symbol and Signal Words......4 Mower Deck Removal and Installation......32 California Proposition 65.......... -
Page 3: General Information
Date Purchased: displayed. LEFT and RIGHT are as seen from the operator's ENGINE REFERENCE DATA position. Engine Make: Ferris® is a registered trademark of Briggs & Stratton. Engine Model: Engine Type / Specification: Identifying Your Unit Engine Code / Serial Number: The following products are covered by this manual: The Illustrated Parts Lists for this machine can be 5902204, 5902205, 5902206, 5902207, 5902211 &... -
Page 4: Operator Safety
Operator Safety Remember, you are responsible for your safety and that of those around you. Use common sense, and think through what you are doing. Safety Alert Symbol and Signal Words If you are not sure that the task you are about to perform can be safely done with the equipment you have chosen, ask a The safety alert symbol identifies safety information... -
Page 5: Slope Operation
Reverse This equipment has many moving parts that can injure you or someone else. However, if you are seated in the seat properly, and follow all the rules in this book, the unit is safe to operate. The mower deck has spinning mower blades that can amputate hands and feet. -
Page 6: Slope Identification Guide
Slope Identification Guide Gasoline should be stored only in sealed containers approved for fuel. Proper maintenance is critical to the safety and performance of your unit. Keep the unit free of grass, leaves, and excess oil. Be sure to perform the maintenance procedures listed in this manual, especially periodically testing the safety system. ... -
Page 7: General Operation
General Operation 22. Always wear substantial footwear and trousers. Never operate when barefoot or wearing sandals. 1. Read, understand, and follow all instructions in the 23. Before using, always visually check that the blades and manual and on the unit before starting. blade hardware are present, intact, and secure. - Page 8 the edge of a cliff or ditch, or if an edge caves in. Give yourself a minimum of two mower widths of clearance WARNING around these hazards. Unsafe Operation Hazard 11. Do not use grass catchers on steep slopes. Do not load this zero-turn rider on a trailer or truck using 12.
-
Page 9: Service And Maintenance
Emissions 6. Never make adjustments or repairs with the engine running. 1. Engine exhaust from this product contains chemicals 7. Check grass catcher components and the discharge known, in certain quantities, to cause cancer, birth guard frequently and replace with manufacturer’s defects, or other reproductive harm. -
Page 10: Safety Decals And Symbols (North American Models)
WARNING If any safety decals become worn or damaged and cannot be read, order replacement decals from your local authorized Ferris® servicing dealer. DANGER Amputation hazard. Rotating blades cut off arms and legs. • Stop the mower when children or others are near. -
Page 11: Safety Interlock System
WARNING DO NOT operate unit if any safety interlock or safety device is not in place and functioning properly. Contact your authorized Ferris® servicing dealer immediately for assistance. DO NOT attempt to defeat, modify, or remove any safety device. Operational SAFETY Checks Test 1 - Engine MUST NOT crank if: •... - Page 12 (or operator rises off the seat). If mower drive belt does not stop within five (5) seconds, see your authorized Ferris® servicing dealer. Note: Once the engine is stopped, the PTO switch must be turned off and the ground speed control levers must be locked in their START/PARK positions in order to start the engine.
-
Page 13: Features And Controls
Features and Controls Deck Lift Pedal, Cutting Height Adjustment Pin, and Deck Lift Lock Lever: These controls are used to adjust the cutting height of the mower deck. Control Functions and Locations Depress the deck lift pedal (A, Figure 5) until the deck lift lock The information below briefly describes the function of lever (B) locks the mower deck into the 4-1/2"... - Page 14 Note: The further a lever is moved away from the neutral Symbol Control Name position, the faster the drive wheel will turn. Transmission Release Levers See the Zero-Turn Riding Mower Driving Practice section for (Models with 48" / 52" Mower steering instructions. Deck) Instrument Control Panel - Models with Kawasaki Engines Each transmission is equipped with a transmission release...
- Page 15 OFF: Stops the RUN: Allows the START: Cranks engine and shuts engine to run the engine for off the electrical and powers the starting. system. electrical system. Note: Never leave the ignition switch in the RUN position with the engine stopped—this drains the battery. Throttle Control: The throttle controls engine speed.
-
Page 16: Operation
Operation manual for instructions, engine oil dipstick location and oil recommendations. • Make sure all nuts, bolts, screws and pins are in place Before First Time Operation and tight. • Be sure to read all information in the OPERATOR • Adjust the seat position, and make certain you can reach SAFETY and OPERATION sections before attempting to all the controls from operator’s position. -
Page 17: Stopping The Zero-Turn Riding Mower
We suggest you begin with the Smooth Travel procedure, 1. While sitting in the operator's seat, make sure that the and then advance through the forward, reverse, and turning PTO switch is disengaged and the ground speed control maneuvers. levers are locked in the START/PARK position. Smooth Travel Note: The parking brake is automatically engaged when the The ground speed control levers of the zero-turn riding mower... -
Page 18: Advanced Driving
While traveling forward allow one ground speed control lever to gradually return back toward neutral. Repeat several times. Gradually move both ground speed control levers — evenly Note: To prevent pivoting directly on the tire tread, it is best to FORWARD from neutral. Slow down and repeat. keep both wheels going at least slightly forward. -
Page 19: Mowing
Height of Grass Often cutting height is a matter of personal preference. Typically, you should mow the grass when it is between three and five inches high. The proper cutting height range for a specific lawn will depend upon several factors, including the type of grass, the amount of rainfall, the prevailing temperature, and the lawn’s overall condition. -
Page 20: When And How Often To Mow
When and How Often to Mow Where possible, make one or two passes around the outside of the area discharging the grass INTO the lawn to keep the The time of day and condition of the grass greatly affect the cut grass off fences and walks. results you’ll get when mowing. -
Page 21: Pushing The Unit By Hand
Mulching 2. Locate the transmission release levers on the rear of the unit. Mulching consists of a mower deck which cuts and re-cuts • Models with 42" Mower Deck: The transmission clippings into tiny particles and which then blows them down INTO the lawn. -
Page 22: Attaching A Trailer
Storage Attaching a Trailer Secure the trailer with an appropriately sized clevis pin WARNING (A, Figure 19) and clip (B). See OPERATOR SAFETY for Fuel and Explosion Hazard additional safety information regarding towed equipment and Never store the unit (with fuel) in a closed structure without towing. -
Page 23: Maintenance Procedures
Every 400 Hours or Annually.* Change transaxle oil and filter. Fire or explosion can cause severe burns or death. See your Authorized Ferris® Servicing Dealer Annually to: When Adding Fuel Lubricate the unit. • Turn engine off and let engine cool at least 3 minutes Check / Adjust belt tensions. -
Page 24: Replacing The Fuel Filter
Replacing the Fuel Filter cap (B) is removed the oil can be drained into a suitable container (C). WARNING Fuel and its vapors are extremely flammable and explosive. Fire or explosion can cause severe burns or death. Do NOT remove the fuel filter when the engine is hot, as spilled gasoline may ignite. -
Page 25: Clean The Engine Compartment With Air And Water
leakproof containers before opening or disassembling any component containing fluids. Do not pour waste onto the ground, down a drain, or into any source of water. Improper disposal of waste can threaten the environment. Dispose of all fluids according to local regulations and mandates. -
Page 26: Transmission Oil Filter Change
Hydraulic System procedure. If the unit is not driving Lubricate the unit at the location shown in the following properly, see your authorized Ferris® servicing dealer. figures as well as the lubrication points listed below. Transmission Oil Filter Change... -
Page 27: Servicing The Mower Blades
• Deck lift linkage pivots (A, Figures 28 and 29). • Mower deck idler arm (B, Figures 28 and 29). Generally, all moving metal parts should be oiled where contact is made with other parts. Keep oil and grease off belts and pulleys. - Page 28 • More than .5" (12,7 mm) of the mower blade metal has been removed from previous sharpening or wear (A). • The air lifts are excessively eroded (B) and the notch (C) is .25" (6,35 mm) deep or greater. • The mower blade is broken or bent. 2.
-
Page 29: Seat And Ground Speed Control Lever Adjustments
7. The mower blade should have a maximum of 1/64" (0,40 mm) cutting edge (B) or less. CAUTION Thrown objects hazard. An unbalanced mower blade can create excessive vibration and damage the unit, or cause mower blade failure resulting in thrown debris. Be sure blade is balanced before installing. -
Page 30: Ground Speed Control Lever Adjustment
1. Tighten the knob (A, Figure 37) of the faster wheel by 1/2- turn (clockwise) increments until the unit travels (tracks) straight. WARNING DO NOT adjust the unit for a faster overall speed forward or reverse than it was designed. Ground Speed Control Lever Adjustment 1. -
Page 31: Floor Pan Removal And Installation
2. Without touching the ground speed control levers disengage the parking brake. If the unit moves, the neutral systems on the transaxles are not correctly adjusted. See your authorized Ferris® servicing dealer. Suspension Adjustment (if equipped) The shock assemblies (A, Figure 41 - front shown, rear similar) can be adjusted to vary the amount of pre-load applied to the springs. -
Page 32: Mower Deck Removal And Installation
See your authorized Ferris® servicing dealer to have the 9. Check the mower deck leveling as described in Deck parking brake serviced. Leveling Adjustment. Mower Deck Removal and Installation Deck Leveling Adjustment Removing the mower deck makes deck maintenance items easier to perform. - Page 33 • 42" Mower Decks: Position the right side blade so it is pointing front-to-back. • 48" / 52" Mower Decks: Position the right side and center blades so they point front-to-back. 11. Measure the distance between the outside tips of the blades and the ground (A and B, Figure 45).
-
Page 34: Mower Deck Drive Belt Replacement
Mower Deck Drive Belt Replacement NOTICE To avoid damaging belt, do not pry over pulleys. 1. Drive the unit to a flat, level surface and return the ground speed control levers to the middle (NEUTRAL) position to stop the unit's movement. Pivot the levers outward to lock them in the START/PARK position. -
Page 35: Washing The Mower Deck
the face of the adjustable idler pulley (G) and the front and rear stationary idler pulleys (H and I). Carefully rotate the idler arm so that it stretches the tensioning spring and install the mower deck drive belt so that V-side of the belt goes into the grooves of the center spindle pulley. -
Page 36: Transmission Drive Belt Replacement
4. Turn the mower on and place in the highest cutting transmission drive belt be performed by an authorized position. Ferris® servicing dealer. 5. Turn the mower off. Battery Maintenance 6. Remove the garden hose and quick disconnect from the washout port when completed. -
Page 37: Charging The Battery
If there is any doubt about the cause of the problem, see your authorized Ferris® servicing dealer. If you need to replace the battery, follow the steps under Cleaning the Battery and Cables. Charging the Battery WARNING Keep open flames and sparks away from the battery; the gasses coming from it are highly explosive. -
Page 38: Troubleshooting
Problem: Mower will not raise. Troubleshooting the Zero-Turn Riding Cause Remedy Mower Mower deck is not properly installed. See your authorized Ferris® servicing dealer. Problem: Engine will not turn over and start. Problem with deck lift linkages. See your authorized Ferris®... - Page 39 Problem: Streaking Problem: Uneven Cutting Cause Remedy Cause Remedy Blades are not sharp. Sharpen your blades. Deck is not leveled correctly. Level the deck correctly. Blades are worn down too far. Replace your blades. Blades are dull or worn. Sharpen or replace the blades. Engine speed is too slow.
-
Page 40: Specifications
Specifications Tire Size (Models with 52" Mower 20 X 10 - 10 Decks) Specifications are correct at time of printing and are subject to Inflation Pressure 12 psi (0,83 bar) change without notice. Front Tires ENGINE Tire Size (All Models) 11 X 6 - 5 Inflation Pressure 22 psi (1,72 bar) -
Page 41: Warranty
Unless required under Australian Consumer Law, Ferris® shall not be liable under this Warranty to the Customer or any other person in connection with this Warranty, for consequential, direct or indirect damages, loss or costs incurred or suffered by the Customer or any other person;... -
Page 42: Evaporative Emissions Warranty
80085753 Revision A Evaporative Emissions Warranty For details on the Evaporative Emissions Control System Warranty, contact your Ferris® Authorized Service Dealer to start Evaporative Emissions Warranty service or refer to the Evaporative Emissions Control System Warranty statement located at ferrismowers.com. The warranty can be located by typing “Emissions Warranty” in the FAQ or by calling 1-800-444-7774. For Exhaust Emissions Control System Warranty related to the engine refer to the engine operator’s manual. - Page 43 Notes...
