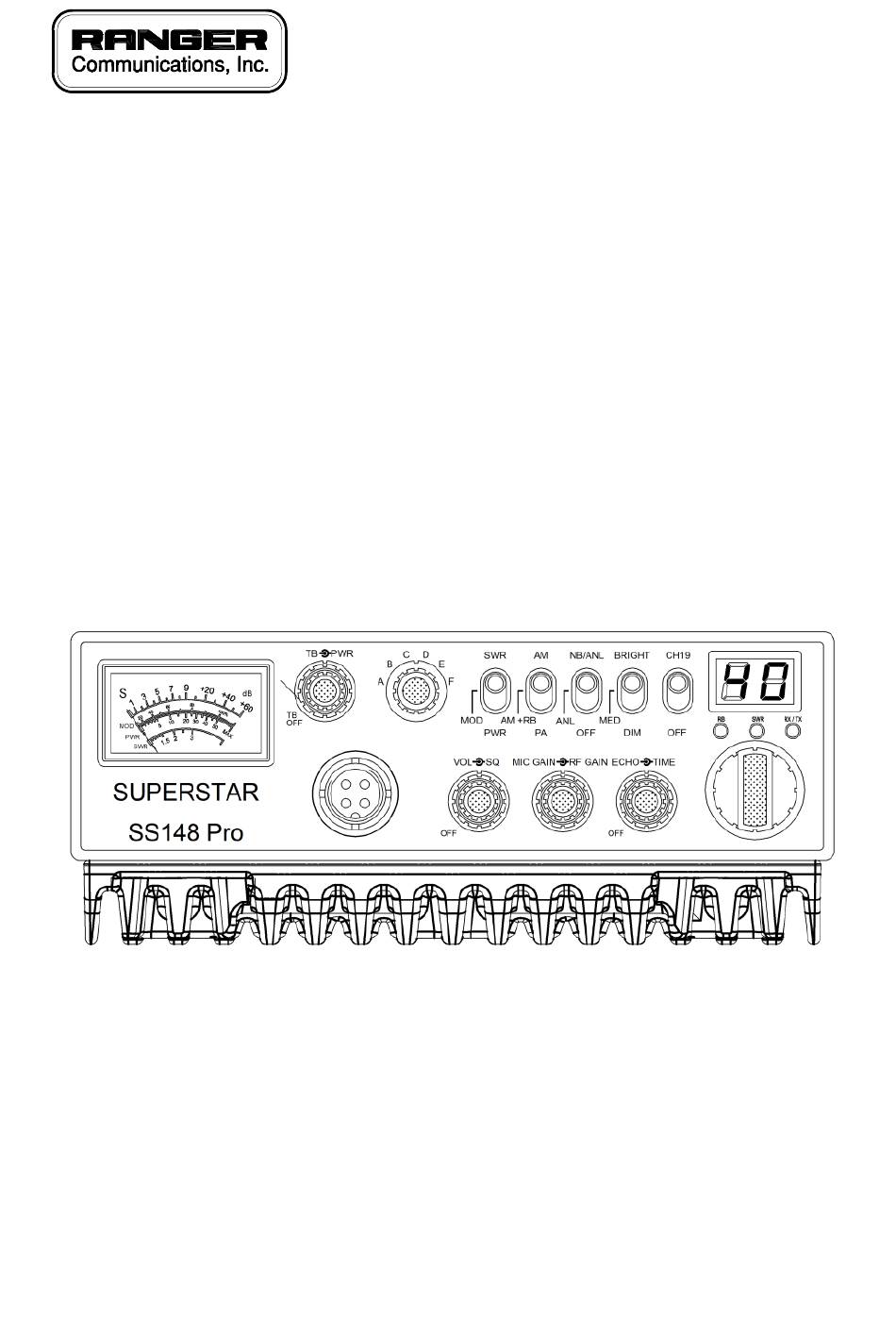

- Page 1 SUPERSTAR SS-148 Pro Amateur Transceiver AM Mobile User’s Manual...
-
Page 2: Table Of Contents
Table of Contents PAGE Chapter 1 Specifications ..…..........Chapter 2 Installation ..…..........Installing the Radio..............Ignition Noise Interference ............Antenna …................External Speaker ..............Public Address ............... Chapter 3 Operation ..…............Controls and Indicators ............Front Panel ................Rear Panel ................Operation …................ -
Page 3: Chapter 1 Specifications
Chapter 1 Specifications GENERAL Model SUPERSTAR SS-148 Pro Frequency Range : 28.765 ~ 29.205 Modes Frequency Control Phase-Lock-Loop Synthesizer Frequency Stability 0.001% Temperature Range -30 C to +50 Input Voltage DC 13.8 V Antenna Impedance 50 ohms Size 7 7/8" (W) x 11 1/8" (D) x 3 1/4" (H) Weight 8 lb. -
Page 4: Chapter 2 Installation
Chapter 2 Installation Installing the Radio Choose a convenient location for operation that does not interfere with driver or passenger. This radio is supplied with a universal mounting bracket. When mounting the bracket and radio to your car, make sure it is mechanically strong. -
Page 5: Ignition Noise Interference
Installation (Continued) 4. Mount the microphone bracket near the radio in an easily accessible spot using the two screws provided. Ignition Noise Interference With weak signals, you may experience interference of the signal by background noise. This radio has NB and ANL controls which will help reduce background noise from sources such as your ignition system. -
Page 6: Chapter 3 Operation
Chapter 3 Operation Control and Indicators Front Panel 1. MICROPHONE JACK: Used to connect microphone for voice source. 2. SQUELCH CONTROL: This control is used to control or eliminate receiver background noise in the absence of an incoming signal. For maximum receiver sensitivity, it is necessary that the control be adjusted only to the point where the receiver background noise is eliminated. - Page 7 Operation (Continued) 4. RF GAIN CONTROL: This control is used to reduce the gain of the RF amplifier under strong signal conditions. 5. MIC GAIN CONTROL: Adjust the microphone gain in the transmit mode. This control is used to set the audio level of the microphone for maximum performance and clarity.
- Page 8 Operation (Continued) position, the green scale on the meter indicates your percentage of modulation. The operates in AM only, not in SSB. 13. PA/AM/AM+RB: Select the mode of operation. In the PA position, the radio acts as public address amplifier. Your voice will come out of the speaker that is plugged into the PA.
-
Page 9: Rear Panel
Operation (Continued) Rear Panel 1. POWER: This accepts 13.8 VDC power cable with built-in fuse. The power cord provided with the radio has a black and red wire. The black goes to negative and the red goes to positive. 2. ANTENNA: This jack accepts a 50 ohms coaxial cable with a PL-259 style plug. -
Page 10: Operation
Operation (Continued) Operation A. Microphone The receiver and transmitter are controlled by the push-to-talk switch on the microphone. Press the switch and the transmitter is activated, release switch to receive. When transmitting hold the microphone two inches from the mouth and speak clearly in a normal “voice”. The transceiver comes complete with low-impedance dynamic microphone. -
Page 11: Procedure To Receive
Operation (Continued) B. Procedure to Receive 1. Be sure that power source, microphone and antenna are connected to the proper connectors before going to the next step. 2. Turn unit on by turning VOL knob clockwise. 3. Set the VOL for a comfortable listening level. 4. -
Page 12: Memo
Memo - 11 -... - Page 13 Memo - 12 -...
- Page 14 Memo - 13 -...
- Page 15 Memo - 14 -...
- Page 16 PRINTED IN MALAYSIA P/N: A382516099 - 15 -...
