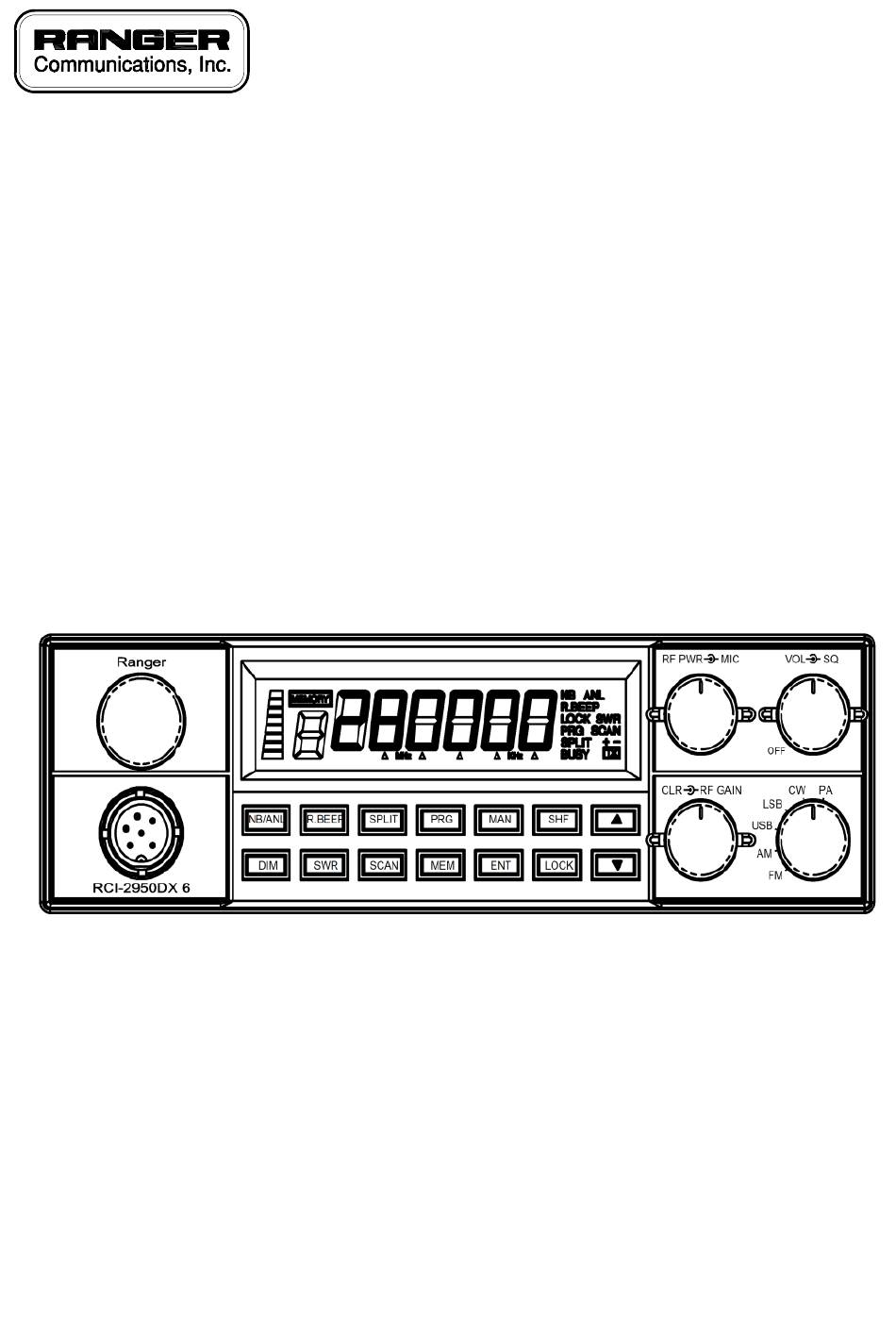

  • Page 1 RCI-2950DX 6 AM/FM/SSB/CW Dual Band Amateur Mobile Transceiver User’s Manual...
  • Page 2: Table Of Contents

    Table of Contents PAGE Chapter 1 Specifications ............Chapter 2 Introduction ............Unpacking ................Chapter 3 Installation ............Transceiver Mounting ............Power Connection ............... Chapter 4 Operation .............. Front Panel ................Rear Panel ................Microphone ................. Frequency Selection ............. Mode Selection ..............RF Power Control ..............
  • Page 3: Chapter 1 Specifications

    Chapter 1 Specifications GENERAL Model RCI-2950DX 6 Frequency Range 12meter: 24.8900-24.9900 MHz 10meter :28.0000-29.6999 MHz 100 Hz, 1 KHz, 10 KHz, Tuning Steps 100 KHz, 1 MHz Emission USB, LSB, CW, AM, FM Frequency Control Phase-Lock-Loop Synthesizer Frequency Tolerance 0.005% Frequency Stability 0.001%...
  • Page 4: Chapter 2 Introduction

    Chapter 2 Introduction Congratulations on your purchase of an RCI-2950DX 6 10 and 12 meter dual band amateur radio. Your RCI-2950DX 6 is designed to provide trouble-free service and state-of-the-art communications, incorporating many useful features and functions in the 10 and 12 meter dual band radio.
  • Page 5: Chapter 3 Installation

    Chapter 3 Installation The RCI-2950DX 6 is easy to install. All necessary parts (less the antenna and coax cable) have been included to facilitate installation. Transceiver Mounting Choose a suitable location for the transceiver that will allow easy access to the front panel as well as proper air circulation to the back of the unit.
  • Page 6: Chapter 4 Operation

    Chapter 4 Operation Front Panel 1. FREQUENCY SELECTOR: Used to set the desired transmit and receive frequency. The frequency is digitally displayed in the Display window next to the selector. The FREQUENCY SELECTOR knob next to the display, allows changing each digit on the frequency display by first placing the frequency display cursor (using SHF button) below the desired digit and then turning the selector knob.
  • Page 7 Operation (Continued) 5. SQUELCH CONTROL: This control is used to control or eliminate receiver background noise in the absence of an incoming signal. For maximum receiver sensitivity, it is necessary that the control be adjusted only to the point where the receiver background noise is eliminated.
  • Page 8 Operation (Continued) be having trouble receiving will know that you have finished transmitting. This feature is sometimes used in weak signal conditions or other special circumstances. We discourage use of this feature in normal operation, as it can be annoying to other operators. 11.
  • Page 9 Operation (Continued) 20. LOCK BUTTON (LOCK): Disables the Frequency Selector Control, UP/DOWN buttons on the front control panel and remote UP/DOWN buttons on the microphone. Pressing this switch again will re-enable the frequency selectors. 21. UP/DOWN SELECTOR: These buttons are used to increase or decrease the frequency digit above the SHF cursor on the display.
  • Page 10: Rear Panel

    Operation (Continued) Rear Panel 1. ANTENNA: This jack accepts a 50 ohms coaxial cable with a PL-259 style plug. 2. CW KEY: The CW key is used for Morse Code operation. To operate connect a CW key to this jack, and place the mode switch in the CW position. 3.
  • Page 11: Microphone

    Operation (Continued) Microphone The receiver and transmitter are controlled by the push-to-talk switch on the microphone. Press the switch and the transmitter is activated, release switch to receive. When transmitting hold the microphone two inches from the mouth and speak clearly in a normal “voice”. This transceiver comes complete with a low- impedance dynamic microphone.
  • Page 12: Frequency Selection

    Operation (Continued) Frequency Selection Frequency selection in the RCI-2950DX 6 can be accomplished using any one of the following three methods: 1. The first method of frequency selection uses the SHF (Shift) button and the ▲ (UP)/▼(DOWN) buttons located on the front panel. To accomplish this, press the SHF button until the display cursor on the frequency display is positioned under the frequency digit that is to be changed.
  • Page 13: Mode Selection

    Operation (Continued) Mode Selection To select an operating mode, rotate the MODE selector, and place it in the desired operating mode position. RF Power Control This feature allows the adjustment of the RF output power continuously over the range of 1W through 25W. - 12 -...
  • Page 14: Chapter 5 Programming

    "SCAN+" or "SCAN-" will be displayed on the LCD display. The scan will stop on any active frequency for the duration of the transmission. When the transmission stops, the RCI-2950DX 6 will wait approximately 2 seconds before it resumes scanning. To deactivate the Scan mode, press the MAN (manual) button or turn the Squelch control counterclockwise until you hear receiver noise.
  • Page 15: Metering

    Programming (Continued) 5. To program other memory channels, press MAN button and repeat step 1 thru NOTE If all memory channels are programmed, the display will show “FULL” B) To clear a memory channel or to erase all programmed frequencies, follow the procedures below: 1) To clear a particular memory location, locate the memory channel you wish to clear using the MEM button, press and hold the PRG button for...
  • Page 16: Chapter 6 Frequency Scanning

    Chapter 6 Frequency Scanning Frequency scanning can be achieved by either of two methods: the first method involves scanning of all frequencies between a pre-set upper and lower scan frequency. The second method permits the scanning of frequencies previously programmed in the memory locations 0 thru F. All-Frequency scanning To allow All-Frequency scanning, the user must first program the upper and lower scan limit frequencies as follows:...
  • Page 17: Memory Scanning

    Frequency Scanning (Continued) Memory Scanning The RCI-2950DX 6 has 16 non-volatile memory locations which can be programmed with any frequency within the operating range of the radio. The scan function of the unit can scan the frequencies in the 16 memory locations.
  • Page 18: Chapter 7 Offset Frequency Operation

    MAN button. NOTE: FM repeaters may require that a sub-audible CTCSS tone be transmitted to gain access to the repeater. The RCI-2950DX 6 can be equipped with an optional CTCSS encoder. TO PROGRAM TX OFFSET: 1.
  • Page 19: Memo

    Memo - 18 -...
  • Page 20 Memo - 19 -...
  • Page 21 Memo - 20 -...
  • Page 22 Memo - 21 -...
  • Page 23 Memo - 22 -...
  • Page 24 867 Bowsprit Road Chula Vista, CA 91914 Email:sales@rangerusa.com http://www.rangerusa.com PRINTED IN MALAYSIA A423318BAN - 23 -...
