Summary of Contents for Xylem FLYGT Concertor FPG 414

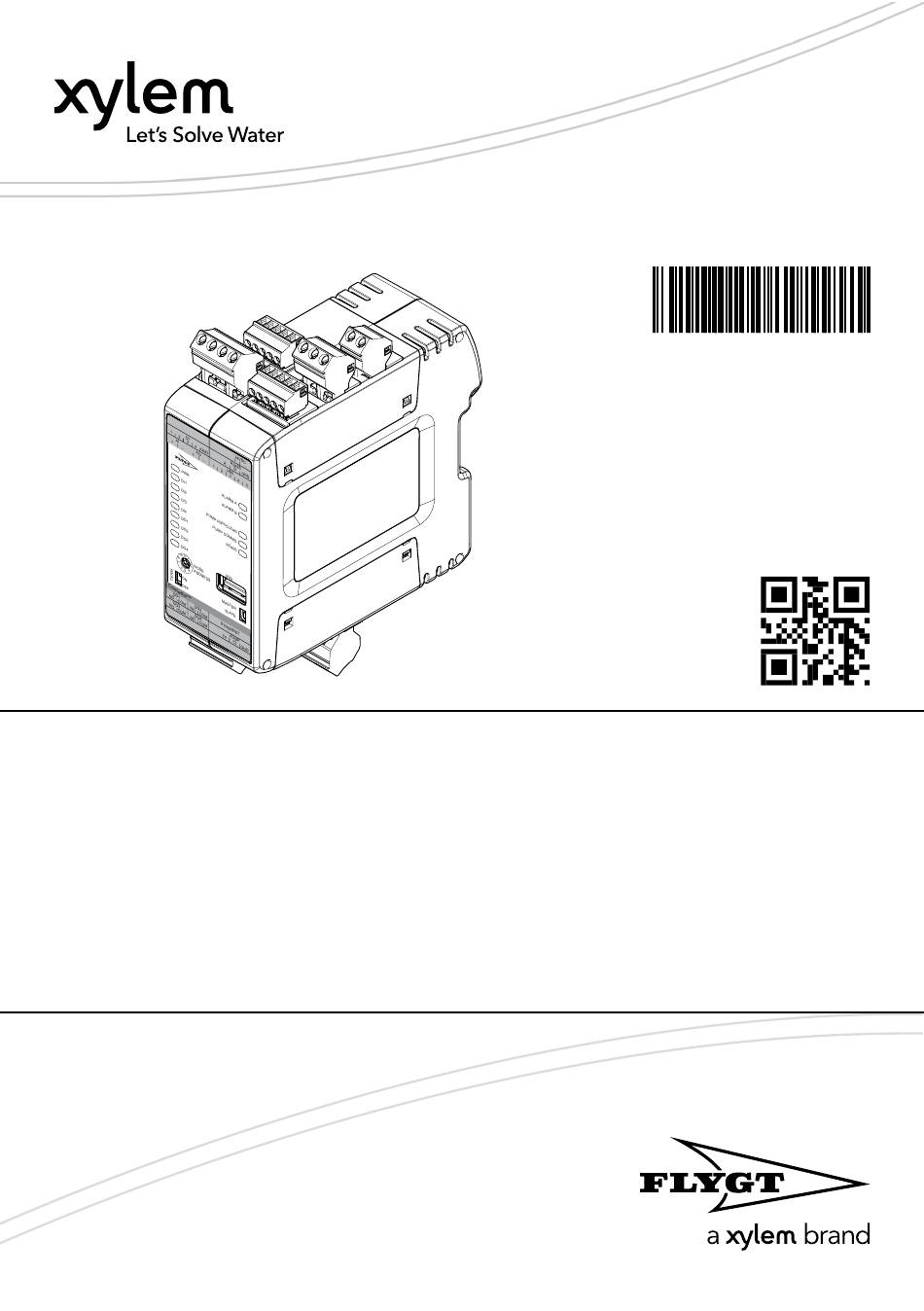

- Page 1 Installation, Operation, and Maintenance Manual 887955_6.0 FPG 414 ™ Concertor...
-
Page 3: Table Of Contents
Table of Contents Table of Contents 1 Introduction and Safety.................... 3 1.1 Introduction......................3 1.2 Safety terminology and symbols..............3 1.3 User safety......................4 1.3.1 Power lock-out................... 5 1.3.2 Qualification of personnel................ 5 1.4 End-of-life product disposal................5 1.5 Spare parts......................6 1.6 Warranty......................6 1.7 Support....................... - Page 4 Table of Contents 7 Maintenance......................24 7.1 Preventive maintenance................. 24 7.2 Change the battery..................24 8 Troubleshooting......................26 8.1 The unit does not work................... 26 9 Technical Reference....................27 9.1 Dimensions.......................27 9.2 Environmental requirements................. 27 9.3 IP rating......................27 9.4 Electrical data....................28 9.5 RTC battery.......................28 9.6 Terminals......................
-
Page 5: Introduction And Safety
This includes any modification to the equipment or use of parts not provided by Xylem. If there is a question regarding the intended use of the equipment, please contact a Xylem representative before proceeding. -
Page 6: Electrical Hazard
1 Introduction and Safety Hazard level Indication A hazardous situation which, if not avoided, could WARNING: result in death or serious injury A hazardous situation which, if not avoided, could CAUTION: result in minor or moderate injury Notices are used when there is a risk of equipment NOTICE: damage or decreased performance, but not personal injury. -
Page 7: Power Lock-Out
Risk of electrical shock or burn. A certified electrician must supervise all electrical work. Comply with all local codes and regulations. All work on the product must be carried out by certified electricians or Xylem authorized mechanics. Xylem disclaims all responsibility for work done by untrained, unauthorized personnel. -
Page 8: Spare Parts
1.6 Warranty For information about warranty, see the sales contract. 1.7 Support Xylem only supports products that have been tested and approved. Xylem does not support unapproved equipment. FPG 414 Installation, Operation, and Maintenance Manual... -
Page 9: System Description
2 System Description 2 System Description 2.1 System overview ™ Concertor is a wastewater pumping system with integrated intelligent technology. ™ 2.2 Concertor Parts Part Product name Description Pump 6020 A Concertor ™ pump. FPG 414 Installation, Operation, and Maintenance Manual... - Page 10 2 System Description Part Product name Description Gateway FPG 414 • A gateway with an embedded web server. – Digital input signal – Analog input signal – Modbus – High level switch • All the alarms are sent back to the external control system. •...
-
Page 11: Concertor Xpc
2 System Description ™ 2.3 Concertor Parts No. Part Product name Description Pump 6020 A Concertor ™ pump. Controller APP 411 • The controller starts and stops the pump based on input signals from, for example, level sensors and high-level switches. •... - Page 12 2 System Description No. Part Product name Description FOP 315 HMI - Alternative 2 • A basic HMI with a jog wheel that is used for navigation and selection in the menus. Computer – HMI - Alternative 3 • The computer gives access to the same menu system as the touchscreen HMI.
-
Page 13: Product Description
3 Product Description 3 Product Description 3.1 Product design ™ FPG 414 is a gateway that is part of the Concertor system. The gateway is connected to Flygt pumps 6020.180/090 or 6020.181/091. The gateway starts and stops the pump based on the input signal from the APP 411 controller, or from the external control system. -
Page 14: The Data Plate
3 Product Description 3.4 The data plate 8xxxxxx 1. Brand 2. MAC address 3. Country of origin. Manufacturer. 4. Product 5. Rated supply 6. Approvals 7. Waste disposal symbol 8. Serial number 9. Part number FPG 414 Installation, Operation, and Maintenance Manual... -
Page 15: Mechanical Installation
4 Mechanical Installation 4 Mechanical Installation 4.1 Do not install in an explosive zone NOTICE: Do not use this unit in environments that may contain flammable/explosive or chemically aggressive gases or powders. ™ 4.2 Install the gateway, Concertor Snap the unit onto the DIN rail. ™... - Page 16 4 Mechanical Installation 3. Snap the unit or units onto the DIN rail. FPG 414 Installation, Operation, and Maintenance Manual...
-
Page 17: Electrical Installation
5 Electrical Installation 5 Electrical Installation 5.1 Precautions Before starting work, make sure that the safety instructions have been read and understood. DANGER: Electrical Hazard Before starting work on the unit, make sure that the unit and the control panel are isolated from the power supply and cannot be energized. -
Page 18: Cables
5 Electrical Installation Requirements These requirements apply for electrical installation: • All fuses and circuit breakers must have the proper rating, and comply with local regulations. • The cables must be in accordance with the local rules and regulations. 5.2 Cables These requirements apply for power and Ethernet cable installation: •... - Page 19 5 Electrical Installation 2. Connect the Ethernet cable to the Ethernet terminal. It is possible to use the Ethernet terminal for multiple communication options: – Communication with FOP 402 – Communication with SCADA systems through Modbus TCP If the Ethernet terminal is used for multiple communication options, then use an Ethernet switch.
- Page 20 5 Electrical Installation 1 - 4 1 - 4 1. Open 2. Closed Digital outputs 7. Connect the digital output cables to the digital output terminals. The digital outputs are potential free relay outputs. Connect a power supply unit maximum 250 VAC, or 30 VDC, 5 A. The digital outputs are configurable to be normally open or normally closed.
-
Page 21: Connect Multiple Units
5 Electrical Installation 5.3.2 Connect multiple units When multiple units are installed in the same application, cables are connected in parallel or separately. The backplane connectors are not used when the installation includes gateways only. Connect only one HMI. 1. Connect the FOP 315 HMI cables in parallel. Terminate with a 120 ohm resistor between terminals 2 and 4 at the end that is farthest from the HMI. -
Page 22: Concertor Xpc
5 Electrical Installation NODE ADDRESS 24VDC RS485 ALARM A ALARM B RUN/CLEAN COMMS RS485 NODE ADDRESS MASTER SLAVE ETHERNET NO COM NO COM ™ 5.4 Concertor ™ In a Concertor XPC system, the gateway is installed with the APP 411 controller. -
Page 23: Set The Switches
5 Electrical Installation 1. Make sure that the backplanes are connected. 2. Connect the cables for the applicable equipment to all units. 3. Connect the power cables to the + 24 VDC terminal of each gateway or controller. 5.4.2 Set the switches Set the switches. -
Page 24: Operation
6 Operation 6 Operation 6.1 Startup and operation For instructions about the system operation, see the System Installation and Operation manual. 6.2 LED indicators ALARM A ALARM B PUMP RUN/CLEAN PUMP COMMS RS485 NODE ADDRESS Table 1: Normal operation Description Color Indication Power... - Page 25 6 Operation Description Color Indication Constant red The alarm condition is present. The alarm is acknowledged, or no acknowledgement is required. – There is no alarm. ALARM B Alarm, Class B Flashing red The alarm is not acknowledged. The alarm condition is either present or has ceased.
-
Page 26: Maintenance
7 Maintenance 7 Maintenance 7.1 Preventive maintenance DANGER: Crush Hazard Moving parts can entangle or crush. Always disconnect and lock out power before servicing to prevent unexpected startup. Failure to do so could result in death or serious injury. Make sure that the unit is clean from dust and dirt. Use a wet cloth and soapy water for cleaning. - Page 27 7 Maintenance 7. Turn on the power to the system. 8. Make sure that the real-time clock (RTC) shows the correct time. FPG 414 Installation, Operation, and Maintenance Manual...
-
Page 28: Troubleshooting
8 Troubleshooting 8 Troubleshooting 8.1 The unit does not work Make sure that all wires are correctly connected according to the cable chart. Cause Remedy The PWR LED is not lit. • Make sure that the unit receives voltage. • Restart the unit. The unit does not communicate with the pump. -
Page 29: Technical Reference
9 Technical Reference 9 Technical Reference 9.1 Dimensions 24VDC RS485 ALARM A ALARM B PUMP RUN/CLEAN PUMP COMMS RS485 NODE ADDRESS MASTER SLAVE Concertor™ ETHERNET NO COM PUMP NO COM 1. 112 mm (4.4 in) 2. 45 mm (1.8 in) 3. -
Page 30: Electrical Data
9 Technical Reference Degree of protection, IP20 Code Description The enclosure is protected against: • Fingers or objects that are less than 80 mm (3.15 in) in length • Objects that are larger than 12.5 mm (0.49 in) in diameter The enclosure is not protected against water. - Page 31 9 Technical Reference Section Terminal Description TERM Backplane termination switch Standard type A USB socket MASTER, SLAVE MASTER/SLAVE switch Isolated analog input, 4–20 mA Maximum 24 VDC – Scaling: 0–100% Offset: 0–16 mA with 0.1 mA resolution Analog output, 4–20 mA Maximum 24 VDC –...
- Page 32 9 Technical Reference Section Terminal Description Ethernet • Modbus TCP • Web server Backplane The Flygt controller communicates with the Flygt gateways through the backplane. FPG 414 Installation, Operation, and Maintenance Manual...
- Page 36 For more information on how Xylem can help you, go to www.xylem.com Xylem Water Solutions Global Visit our Web site for the latest...
