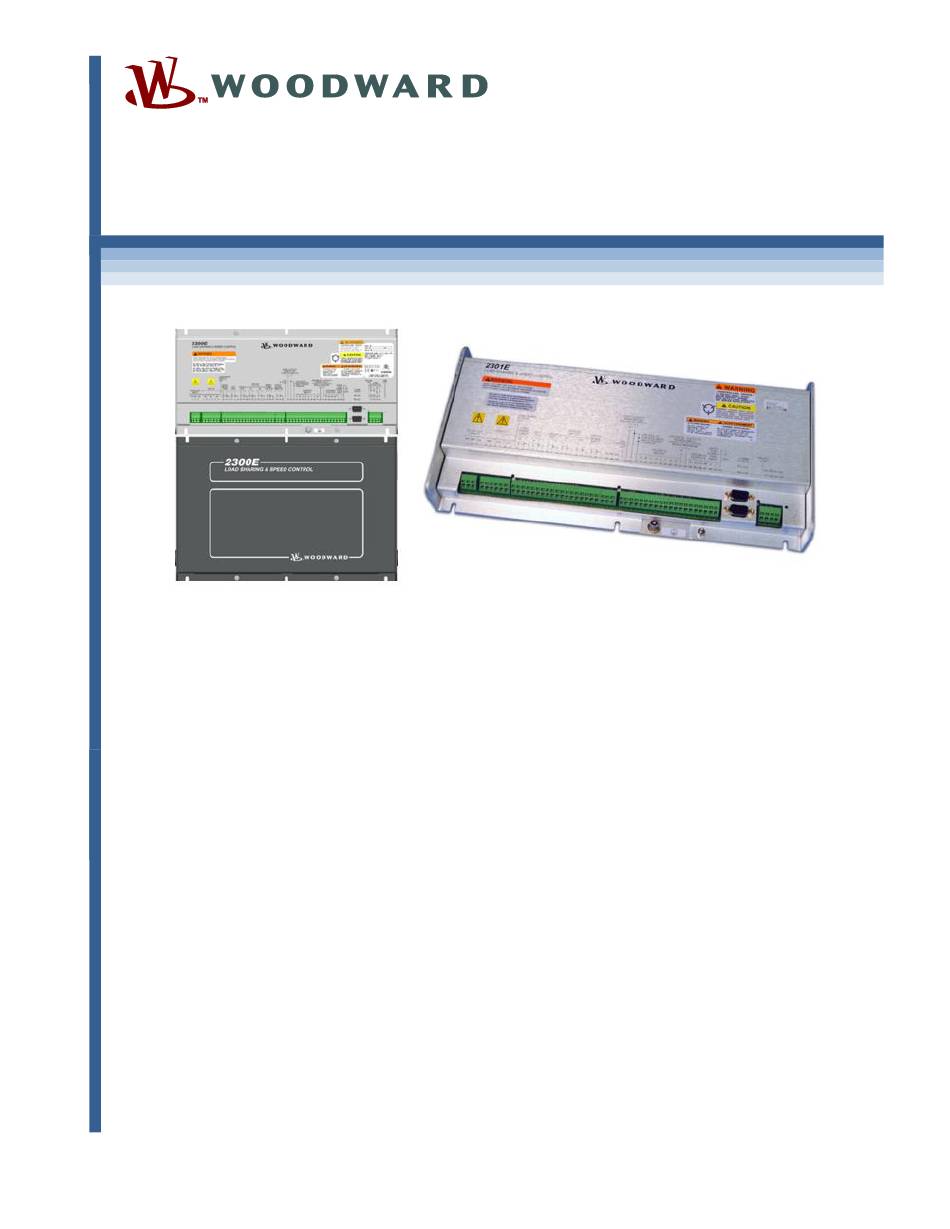

- Page 1 Released Product Manual 35243 (Revision -, 1/2025) Original Instructions 2300E/2301E Digital Load Sharing and Speed Control Security Manual Security Manual...
- Page 2 Revisions— A bold, black line alongside the text identifies changes in this publication since the last revision. Woodward reserves the right to update any portion of this publication at any time. Information provided by Woodward is believed to be correct and reliable. However, no responsibility is assumed by Woodward unless otherwise expressly undertaken.
-
Page 3: Table Of Contents
EFERENCES How are Users Notified if a Security Issue has Been Discovered? ............15 How Can Users Ask Questions About Security or Report Security Issues to Woodward? ......15 How are Users Notified About New Releases? ..................15 Firmware Upgrade ............................15 6. - Page 4 Released Manual 35243 2300E/2301E Security Manual Illustrations Figure 2-1. Purdue Model ..........................9 Figure 3-1. Defense in Depth Diagram ....................... 10 Figure 4-1. Potential Attack Vectors ......................14 Woodward...
-
Page 5: Warnings And Notices
Be prepared to make an emergency shutdown when starting the engine, turbine, or other type of prime mover, to protect against runaway or overspeed with possible personal injury, loss of life, or property damage. Start-up Woodward... - Page 6 Released Manual 35243 2300E/2301E Security Manual On- and Off-highway Mobile Applications: Unless Woodward's control functions as the supervisory control, customer should install a system totally independent of the prime mover control system that monitors for supervisory control of engine (and takes appropriate...
-
Page 7: Electrostatic Discharge Awareness
Do not touch the components or conductors on a printed circuit board with your hands or with conductive devices. To prevent damage to electronic components caused by improper handling, read and observe the precautions in Woodward manual 82715 , Guide for Handling and Protection of Electronic Controls, Printed Circuit Boards, and Modules. -
Page 8: Regulatory And Standards Compliance
2301E-J Digital Speed and Load Control (Japanese) 35092 2301E-HT Hydro (Francis Turbines) Additional manuals may be available at www.woodward.com. Navigate to Support > Industrial Support > Manuals, Software, and License Keys. Special Condition for Safe Use The 2300E and 2301E controls were developed without a secure development life cycle process prior to the realization of current cybersecurity standards, and as such, shall not be considered a cybersecure product. -
Page 9: Purpose
Scope This manual covers the 2300E series of controls (2300E and 2301E). Both the 2300E and 2301E may sometimes be referred to as the 2300E. Unless stated otherwise, all information in this manual applies to both control versions. -
Page 10: Chapter 2. Industrial Cyber Security Basics
Following the defense-in-depth guidelines in this manual and configuring the 2300E series of controls appropriately will aid in establishing a security hardened system and a stable and secure operating environment. -
Page 11: Where Does The 2300E Series Exist In An Ot Network
The 2300E Series lives at Level 1 of the Purdue model illustrated in Figure 1-1. Operators at Level 2 can communicate with the control and devices at Level 0 are accessed by the control as inputs and outputs. -
Page 12: Chapter 3. Defense-In-Depth (Did)
However, due to the lack of routable protocols on the 2300E Series, a more secure installation is possible by following the Defense in Depth strategies in this manual. -
Page 13: Service Tools
2300E series of controls more secure. Control Assistant – Woodward’s Control Assistant is a tool for service access to a control. It provides a means of shutting down and placing the control in the I/O Lock mode for Configuration, saving values in the control EEPROM, and resetting the control. -
Page 14: Configuring Your External Pc
While Woodward does not typically release upgrades for standard controls like the 2300E Series, every effort must be made to ensure that any software or firmware loaded to the 2300E Series is authentic Woodward or application developer software. While the 2300E Series software can be field updated, it requires specialized software tools and must be performed by authorized personnel. -
Page 15: Serial Interfaces
For a standard control like the 2300E Series, Woodward does not typically provide firmware releases for field upgrading. However, it is still possible for a firmware patch to be released so the 2300E Series can be re-flashed in the field using object files generated for the 2300E Series hardware platform. A misconfigured firmware update will cause the 2300E Series and the processes it controls to behave unpredictably. -
Page 16: Chapter 4. Attack Scenarios
2300E/2301E Security Manual Chapter 4. Attack Scenarios Figure 4-1 illustrates attack vectors that could impact the availability and integrity of the 2300E series of controls. Figure 4-1. Potential Attack Vectors Bypassing physical security and being able to physically interact with the 2300E/2301E is the main attack vector on the control. -
Page 17: Chapter 5. Security References
The Woodward Product Security Incident Response Team (PSIRT) is notified of security incidents related to Woodward secure products. The PSIRT analyzes the incident report and decides how best to deal with the issue. Depending on the severity of the issue, the PSIRT may: •... -
Page 18: Chapter 6. Product Support And Service Options
Service Distributor or the OEM or Packager of the equipment system, based on the standard Woodward Product and Service Warranty (Woodward North American Terms and Conditions of Sale 5-09-0690) that is in effect at the time the product is originally shipped from Woodward or a service is performed: •... -
Page 19: Returning Equipment For Repair
All repair work carries the standard Woodward service warranty (Woodward North American Terms and Conditions of Sale 5-09-0690) on replaced parts and labor. -
Page 20: Replacement Parts
• The unit serial number, which is also on the nameplate Engineering Services Woodward offers various Engineering Services for our products. For these services, you can contact us by telephone, by email, or through the Woodward website. • Technical Support •... -
Page 21: Technical Assistance
2300E/2301E Security Manual Technical Assistance If you need to contact technical assistance, you will need to provide the following information. Please write it down here before contacting the Engine OEM, the Packager, a Woodward Business Partner, or the Woodward factory: General... -
Page 22: Revision History
Released Manual 35243 2300E/2301E Security Manual Revision History Changes in Revision — • New manual Woodward... - Page 23 Email and Website—www.woodward.com Woodward has company-owned plants, subsidiaries, and branches, as well as authorized distributors and other authorized service and sales facilities throughout the world. Complete address / phone / fax / email information for all locations is available on our website.
