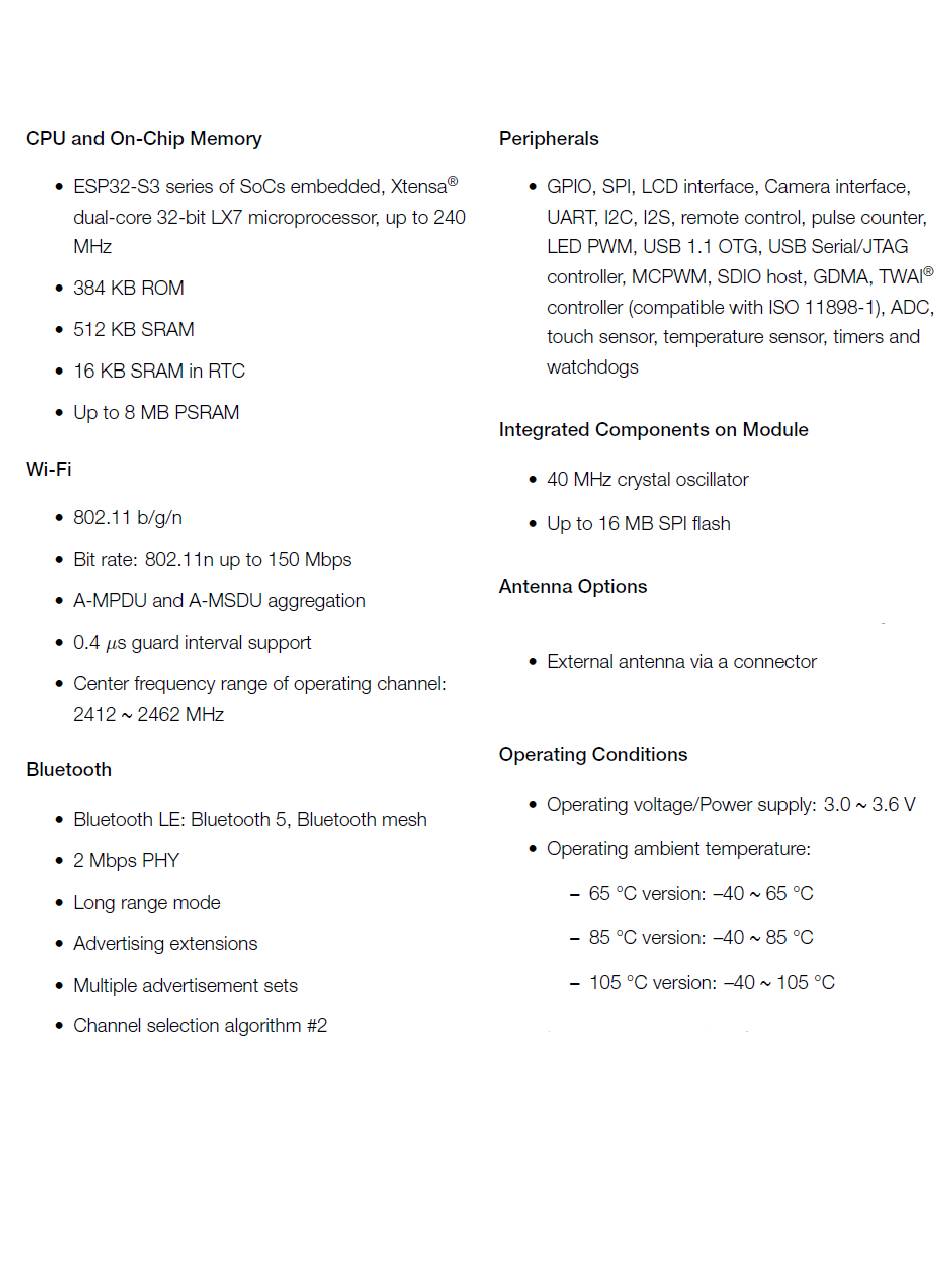

1. Features
2. Description
WT1000R is a powerful, generic Wi-Fi + Bluetooth LE MCU modules. On top of a rich set of peripherals, the
acceleration for neural network computing and signal processing workloads provided by the SoC make the
modules an ideal choice for a wide variety of application scenarios related to Al and Artificial Intelligence of
Things (AloT), such as wake word detection, speech commands recognition, face detection and recognition,
smart home, smart appliances, smart control panel, smart speaker, etc.
