XHDATA D-328 Manual

FEATURES

This unit use the latest generation full band radio free tuning technology in United States. To ensure radio has high sensitivity, good selectivity and stability, greatly improve S/N ratio and anti-interference ability
This unit adopt simple mechanical switch to change function and band. Traditional pointed type indicator frequency could reduce the electromagnetic which brought by MCU(microcomputer) change function, to ensure it has more higher S/N ratio, sensitivity and better value for money.
Adopt recycle Lithium battery supply power mode, economy and environment.
3.5mm earphone jack
MP3 play breakpoint memory
MP3 play LED digital tube display
Use high quality PU edge big size magnetic steel speaker, high power efficient Class AB power amplifier.

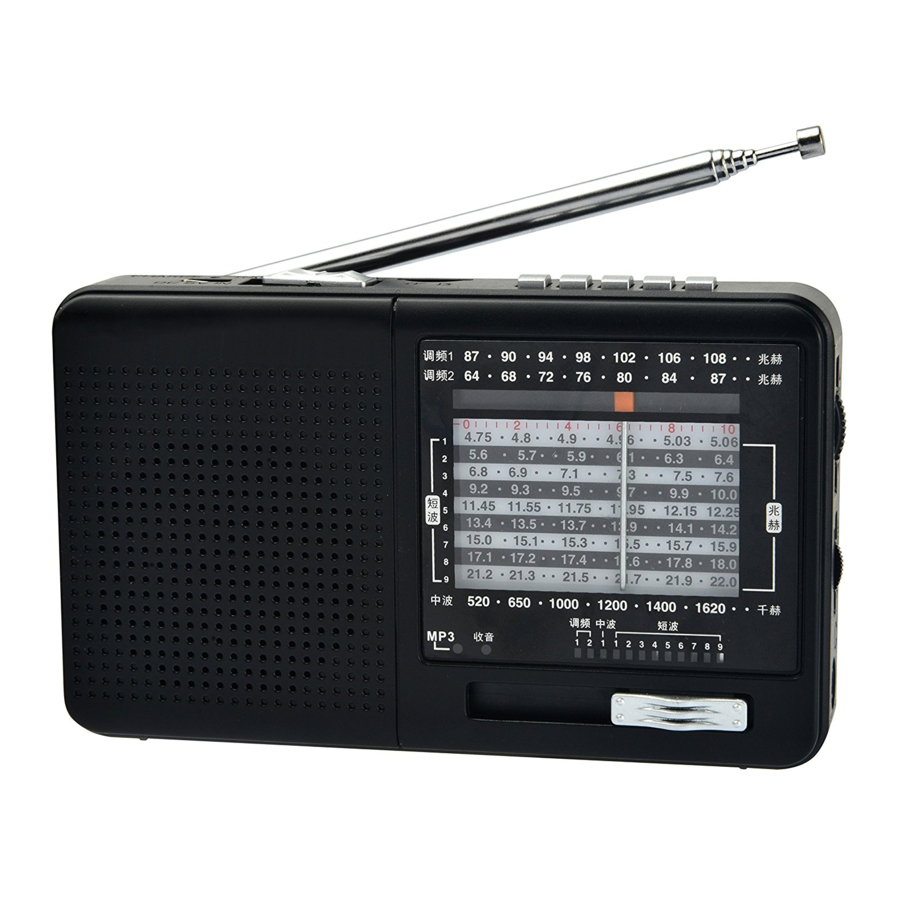

DEVICE OVERVIEW

Accessories: USB charging cable, hand strap, user manual

RADIO FUNCTION

Move the function switch to the "RADIO" position.
Turn the band selector knob to your favorite band, then adjust the volume knob to the appropriate volume. Slowly rotate the selection button to your preferred station, when station signal is strong enough, the radio broadcast sound is very clear.
While listening FM or SW broadcast, pull out the telescopic antenna and rotate its direction to gain best reception performance; While listening MW broadcast, rotate radio body's angle to obtain best reception effect.

RADIO FUNCTION

CHARGING THE BATTERY

When you are using this unit, if the sound is much quieter or audibly distorted, MP3 playback restart again and again, or the unit turns off automatically, it proves the battery runs low, then you should charge the device immediately. (If the unit is not used for a long time, remove the 18650 lithium battery from the battery compartment, store it at other place and recharge it at least once every two months to ensure the lifetime of the battery. )

For a safe and quick charging, please use the original Radio Charger (5V / at least 500mA or 1 A). A charger with a stronger power charges the battery faster. A full charging will take 6 to 8 hours.

Ensure that the battery is not inserted reversely to avoid damage to the battery and to extend its service life.

Charging indicator: When the battery is charging, the charge indicator lights up when it is fully charged, the indicator turns off (switched off radio).
