FM STEREO/ BLUETOOTH /RADIO/ RECORDER
FUNCTIONS & FEATURES
Support TF Card/MP3/WAV/WMA/FLAC/APE
Support wireless phone calls
With radio recording / external recording / Bluetooth recording / AUX recording
With AUX external audio input interface
With stereo earphone output interface
A -B Repeat
Recording & Station deletion
Select stations by FM automatically search & Direct digital input to select station.
Direct digital input calls out the storage station.
LED digital display
Power supply: BL-5C lithium battery
LITHIUM BATTERY POWER SUPPLY
Installing the lithium battery:
1. Turn off the radio and open the battery cover.
2. Install the provided lithium battery according to the correct battery polarity direction.
Lithium battery specification: BL-5C 3.7V

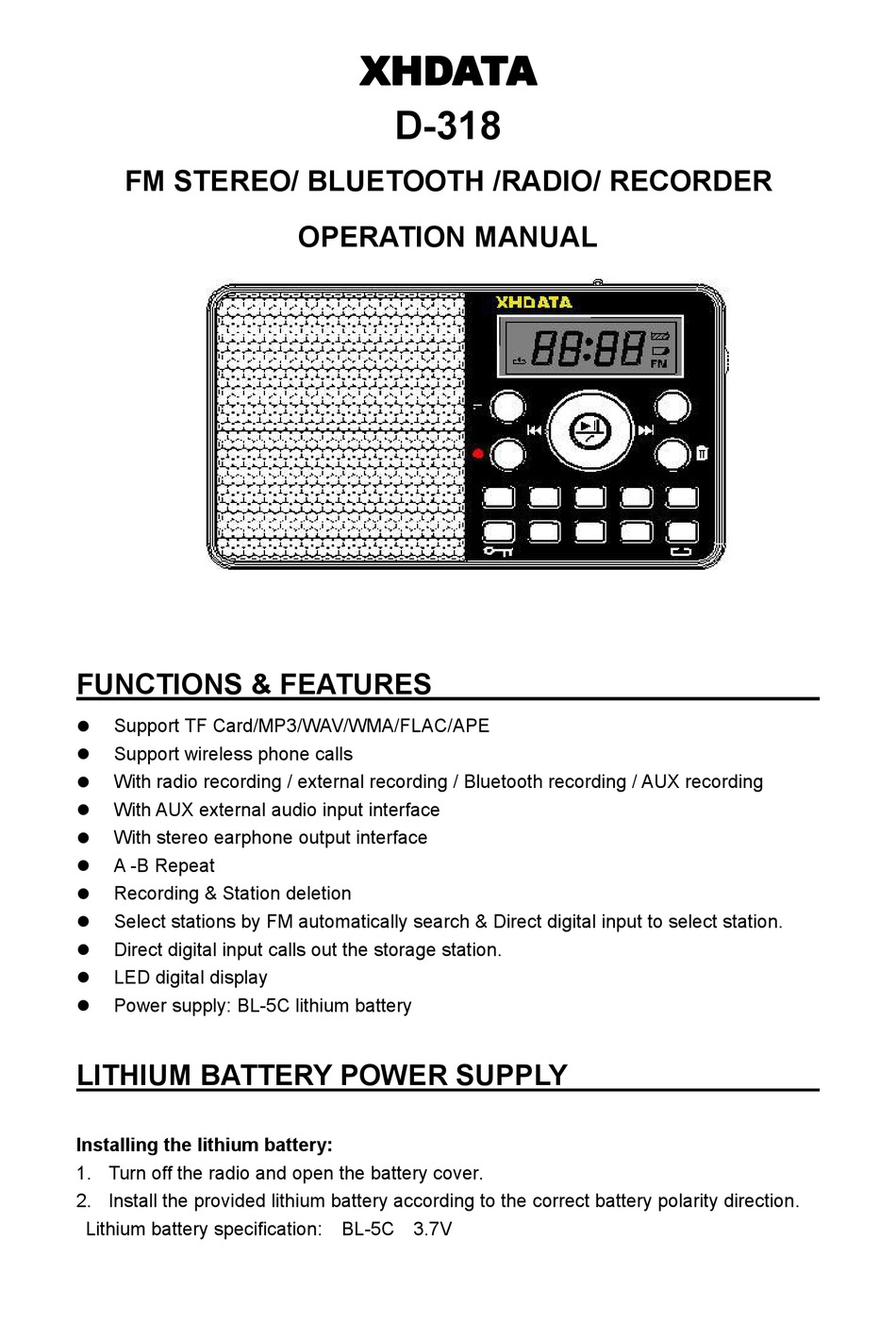

XHDATA
D-318
OPERATION MANUAL
Advertisement
Table of Contents
Related Manuals for XHDATA D-318
Summary of Contents for XHDATA D-318
- Page 1 XHDATA D-318 FM STEREO/ BLUETOOTH /RADIO/ RECORDER OPERATION MANUAL FUNCTIONS & FEATURES Support TF Card/MP3/WAV/WMA/FLAC/APE Support wireless phone calls With radio recording / external recording / Bluetooth recording / AUX recording With AUX external audio input interface ...
- Page 2 Charging the lithium battery: 1.When the battery voltage is low, the radio will be automatically shut down. When the battery is about to run out, the radio will be automatically turned off. And the low battery voltage symbol will flash to remind you to charging the battery in time. When the radio is not used for a long time (please charge at least once every two months) to avoid affecting battery life.
- Page 3 TF CARD MODE PLAYBACK Push the power button to the "ON" location to turn on the radio. Please insert the TF card containing MP3 and other audio files suitable for the decompression format of the radio into the card slot in the direction of the icon to play it automatically. Short press the “M” button to switch the function to the TF card playback mode.
- Page 4 BLUETOOTH MODE 1. Push the power button to the "ON" location to turn on the radio, then you can enter the Bluetooth function mode. The default is Bluetooth function priority mode after the unit is turned on. Short press the [M] button to switch the function to Bluetooth mode.
