Summary of Contents for XHDATA D-109

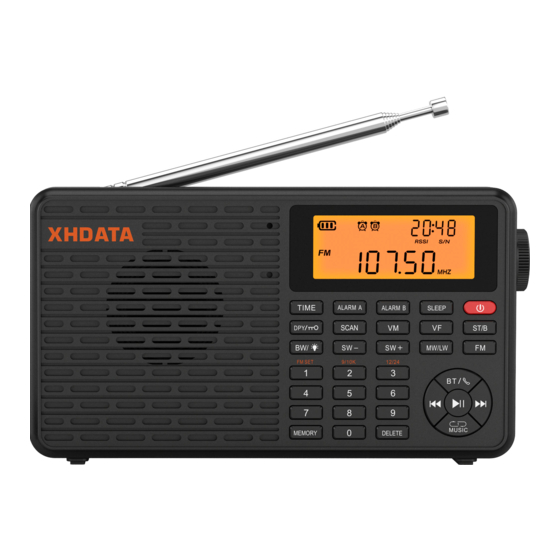

- Page 1 D-109 OPERATION MANUAL FM ST/LW/MW/SW GLOBAL BAND RADIO WITH STEREO WIRELESS BT PLAYER German.French.Spanish.Italian Operation manual https://xhdata.com.cn/pages/d-109-manual...
- Page 2 Function indication :Key lock/display switch POWER: Power : switch SCAN:Radio auto browsing function/MP3 SLEEP: Sleep shutdown time setting A/B point repeat function. VM:Store radio frequency selection button. ALARM B:ALARM(B) setting/Alarm switch VF:Manual tuning frequency of tuning knob ALARM A:ALARM(A) setting/Alarm switch STB:FM stereo switch button / Beep tone switch Time: Time setting/display time AM bandwidth switching/LCD backlight...
- Page 3 Function indication System reset TF card DISPLAY Radio signal field strength Battery level displa AM/PM time display Low power Full power SW meter wave display Sleep Scheduled Shutdown Start Alarm A time display icon Alarm B time display icon Alarm A start icon Memory station number display icon Temperature display Alarm B start icon...
-
Page 4: Operation Introduction
Operation introduction POWER Please correctly install the positive and negative electrodes of 3.7V(18650)lithium battery into the battery box External 5VType-c charging socket power supply POWER ON/OFF Power on: short press power button,display screen shows "ON" Power off: short press power button,display screen shows"OFF" Radio operation SET THE FREQUENCY COVERAGE (It needs to be set in the power off state) - Page 5 2.When it shows 10 :the medium wave frequency will step to 10KHz. Frequency coverage range:520-1710KHz(suitable for North and South America) South America) In this state, the temperature displays Fahrenheit(°F) Long press the(MW/LW)button,and the display(ON)indicates the open (LW)band. Long press again Display(OFF) off open (LW)band.
- Page 6 Search for memory stations 1. Manual memory station(VF) Select the preferred band Select radio frequency to memory Short press (MEMORY) key, radio station code flashes in the upper right corner Press the (MEMORY) key again to remember 2. Fully automatic scanning memory Select band Long press the corresponding band key to automatically scan and memorize the radio frequency...
- Page 7 Auto scan memory radio frequency(VM) 1.Select band, short press(VM) key, press and hold the(SCAN) key for 3 seconds to enter the automatic browse mode 2.Scan each memory radio station number for 5seconds,and short press the SCAN key briefly to select listening. No action, continue to scan the address number of the next radio station Delete memory station method Select Delete Memory Station...
- Page 8 Switch AM bandwidth Continuous short press (BW/ ) can switch AM bandwidth circularly FM stereo switch FM is mono radio mode when horn is used for radio reception In the headset receiving FM state, short press the (ST/B) key, stereo symbol( )display.
- Page 9 Music playing 1.Short press( )key to enter Bluetooth playing status 2.Open the Bluetooth connection interface of the mobile phone, search the Bluetooth connection name ( D-109 ) and connect, and the successful connection is displayed 3.Short press( ) or (...
-
Page 10: Set Clock
Display backlight switch Automatic backlight on Press any button in any state to light up for 5 seconds and then turn off Long bright mode Press and hold the(BW/ )key for a long time to keep the backlight on, and then press and hold again to turn it off Sleep timed shutdown mode Press the (POWER) key to (ON) Short press the(SLEEP)key briefly, the (... - Page 11 Set the alarm to start on time 1.Press (ALARM A) or (ALARM B) key for a long time, and the time in the sub display area at the upper right corner flashes 2.Directly input the number to set the hour and minute, or rotate the[TUNING]key to adjust the time, and then press(ALARM A) or (ALARM B) briefly to confirm.
-
Page 12: Keyboard Lock
3.(beep) Wake up with an alarm Power on, press (BT) key briefly to switch to Bluetooth mode Making the Bluetooth off When Bluetooth is disconnected , briefly press the (MEMOR) key , the ( ) icon will flash , then briefly press (ALARM A) or (ALARM B) once, and the icon ) or ( ) will flash for 3 seconds , then stop flashing... - Page 13 Connect one end of the USB charging cable to the DC5V USB output adapter, and plug the other end into the local (TYPE-C) jack [ the adapter output is DC5V( 1A) to charge the machine. The display shows ( )charging symbol flashes When the icon ( ) is displayed, the charging symbol...
-
Page 14: Specification
SPECIFICATION Radio frequency range FM: 64-108 MHz/76-108MHz 87-108 MHz/87.5-108MHz LW: 153-513KHz(9K) MW: 522-1620KHz(9K)/520-1710 KHz(10k) SW: 1711-29999KHz(5K) Radio noise limiting sensitivity μ FM:(S/N=30dB): LW:(S/N=26dB): 10mV/m MW:(S/N=26dB): 1mV/m μ SW:(S/N=26dB): Radio Selectivity 60dB 60dB 60dB 60dB Memory radio frequency 100 pcs 100 pcs 100 pcs 100 pcs Maximum output power: 2.0W... - Page 15 Headphone impedance: 16-32 Ω Speaker specification: 40mm (dual NdFeB 16 core) 4Ω/5W TF card :support : 32G (Not include) Audio playback format: MP3 / WMA / WAV /FLAC Bluetooth transmission distance: 10M DC: 3.7V (18650 2000mAh DC5V IN:DC5V / 1000mA...
