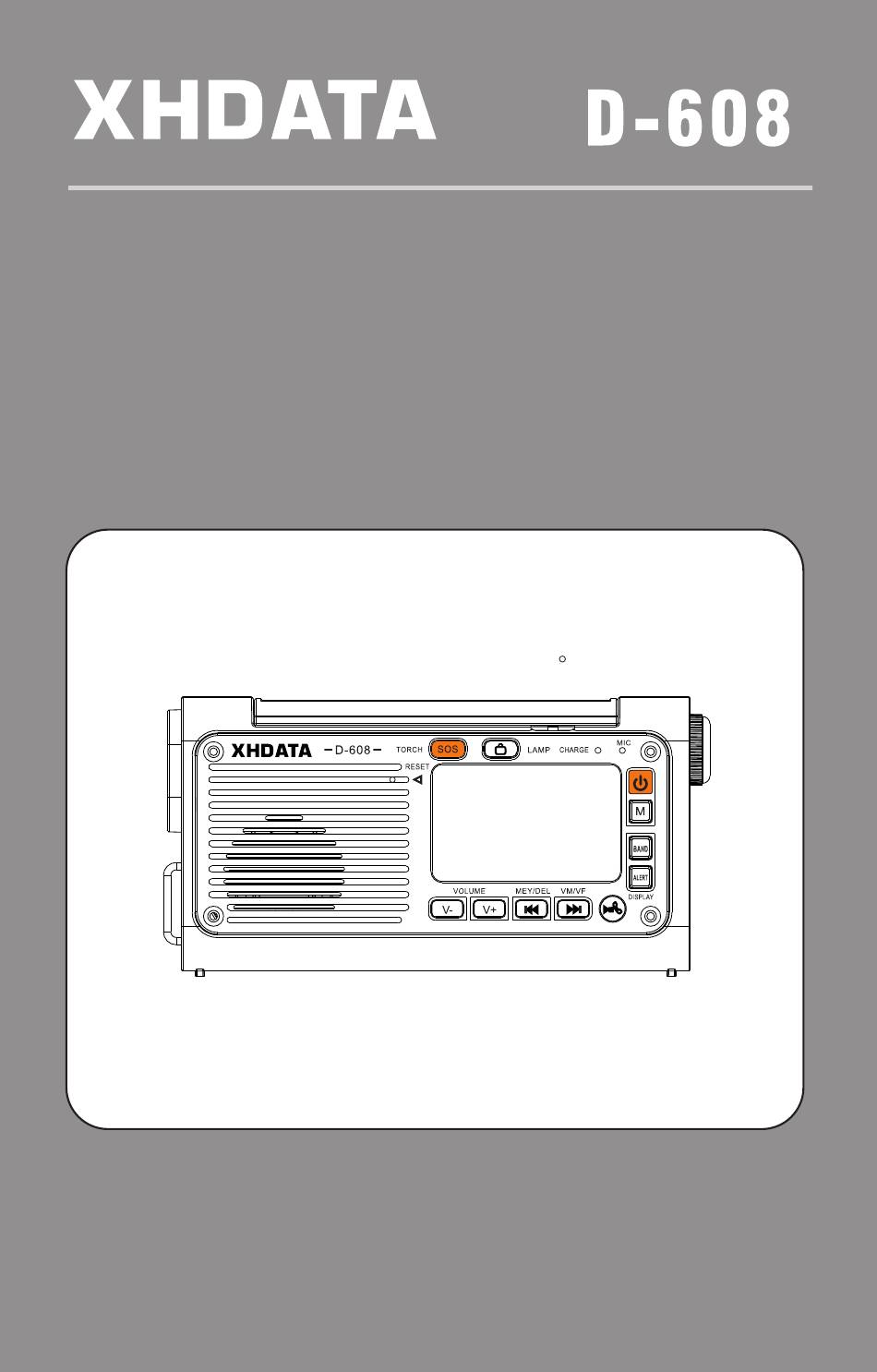

- Page 1 User Manual Hand Cranked Emergency Power Generation Global Band Radio WB/NOAA Weather Warning Radio 3000mAH power battery strongly guarantees emergency use of mobile phone charging Wireless BT music playback and wireless calling functions...

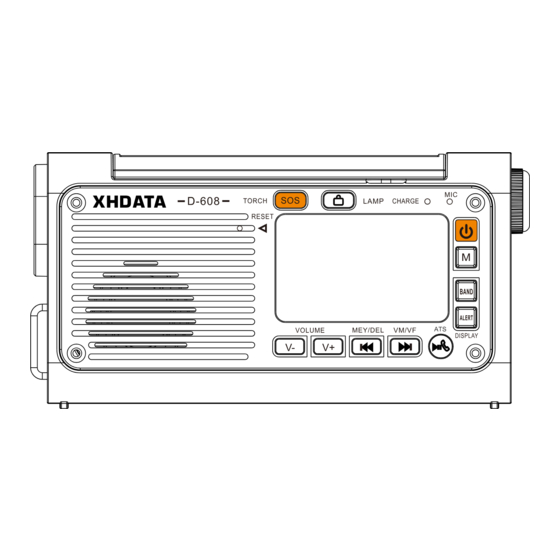

- Page 2 Function Operation RESET: Reset switch hole Power/short press memory to turn on/long press to turn on and adjust sleep switch mode TORCH/SOS: Flashlight/Danger Signal Switch Bluetooth playback/TF card playback mode and save LOCK/LAMP: Keyboard lock/lighting and other alarm mode. Turn the alarm on and off when powered off/long switches press to adjust the alarm time and duration CHARGE: Charging indicator...
- Page 3 FM Antenna Solar Panels Hand Crank Generator Rocker Arm Bass Vibration Plate Air Outlet Lighting LuminousPanel...
- Page 4 Function Operation DISPLAY Power Display Radio signal field strength volume Low battery Full battery SW short wave meter wave display Alarm time display icon WB band standby Sleep shutdown automatic scanning Memory station number display icon Radio signal strength Lock keyboard icon Alarm clock icon Radio signal-to-noise ratio scale value Mobile phone call...
- Page 5 Operation Introduction Power Supply Please install the positive and negative terminals of the 3.7V (18650) lithium battery correctly into the battery and battery compartment. DC'5V IN Type-C charging socket power supply Power on/off Power on: Short press the power button, the display shows "ON" Power off: Short press the power button, the display shows "OFF"...
- Page 6 Enter Radio Mode Select band Short press the (power) button to (ON) Short press the (BAND) key to switch bands (FM/MW/SW/WB) Switch to short wave meter band: Press and hold the (BAND) button in the short wave band, the meter band icon flashes, and turn the shuttle to switch to each meter band.
- Page 7 Fully automatic scanning and storage of radio stations Select band Long press the ( ATS ) key to automatically scan and store the entire band radio stations Shortwave single meter band automatic search mode Quickly double-click the ( ATS ) key in the shortwave receiving state to enter the current meter band scanning memory mode.
- Page 8 How to delete stored radio stations Select the stored station to be deleted Short press the (VM) key to enter the memory radio mode. Select the band Turn the (tuning) button to select the digital station frequency you want to delete Press and hold the (DELETE) key for 3 seconds to display [DEL].
- Page 10 Use of WB / NOAA / ALERT WB/NOAA channel reception range There are 7 channels in total: channels 1-7 (162.400-162.550MHz) Manually search for WB/NOAA radio channels Short press (power) button to (ON) to turn on Select the band: short press the (BAND) button to WB, turn the (TUNING) shuttle to adjust the receiving frequency (162.400-162.550MHz) Automatically scan WB/NOAA radio channels and warn of reception methods...
- Page 11 Use of Flashlights and Lights In any state, short press (TORCH) to turn on the flashlight, there are 3 brightness levels to choose from, short press (TORCH) repeatedly to adjust the brightness and turn off the flashlight. In any state, short press the (LAMP) button to turn on the lighting. There are 3 brightness levels to choose from.
- Page 12 Bluetooth function operation Music playback Short press the ( ) key to enter the Bluetooth playback state Open the Bluetooth connection interface of the mobile phone, search for the Bluetooth connection name (D-608WB) and connect, it will display successful connection ( Short press the ( ) or ( ) key or turn the (tuning) button to select...
- Page 13 Sleep timer shutdown mode Long press the ( ) key to turn on the phone, then the sleep icon ( ) flashes Turn the (TUNING) key to select the startup time [01-120] and it will flash for 3 seconds to confirm automatically. Memory sleep timer shutdown mode Short press the ( ) key to enter the memory power-on state...
-
Page 14: System Reset
Set how the alarm turns on Radio alarm mode Turn on the power, select the radio frequency you want to use as the alarm, and adjust the appropriate volume Press and hold the (M) key, the alarm icon ( ) will flash for 3 seconds to confirm automatically, and the setting is completed. - Page 15 How to Use the Charging Function Normal charging operation When the machine's power display ( ) is low or the battery is exhausted ( ), please charge it immediately Connect one end of the USB charging cable to the DC5V_USB output adapter, and plug the other end into the local (TYPE-C) jack [the adapter output is DC5V (≥...
- Page 16 Mobile Phone Emergency Charging In any state, plug in the USB 5V output power port to charge the mobile phone in an emergency. Please do not use the radio function when using your mobile phone for emergency charging. The operation of the boost circuit will cause serious interference to the radio.
- Page 17 Performance Parameters Radio frequency range FM: 64-108 MHz / 76-108 MHz 87-108 MHz / 87.5-108 MHz MW:522-1620khZ(9K) / 520-1710 KHz(10K) SW: 1711-29999 KHz (5K) Radio noise limit sensitivity Radio selectivity Maximum number of memory stations Maximum output power: 2.0 W...
- Page 18 Headphone impedance: 16-32 Speaker specifications: 40mm (double iron boron 16 cores) 4 /5W TF card: support 32G Audio playback format: Mp3/ WMA/ WAV/ FLAC Bluetooth transmission distance: 10M DC: 3.7V (18650) power battery 3000mAh DC 5V input: DC5V/1000mA...
