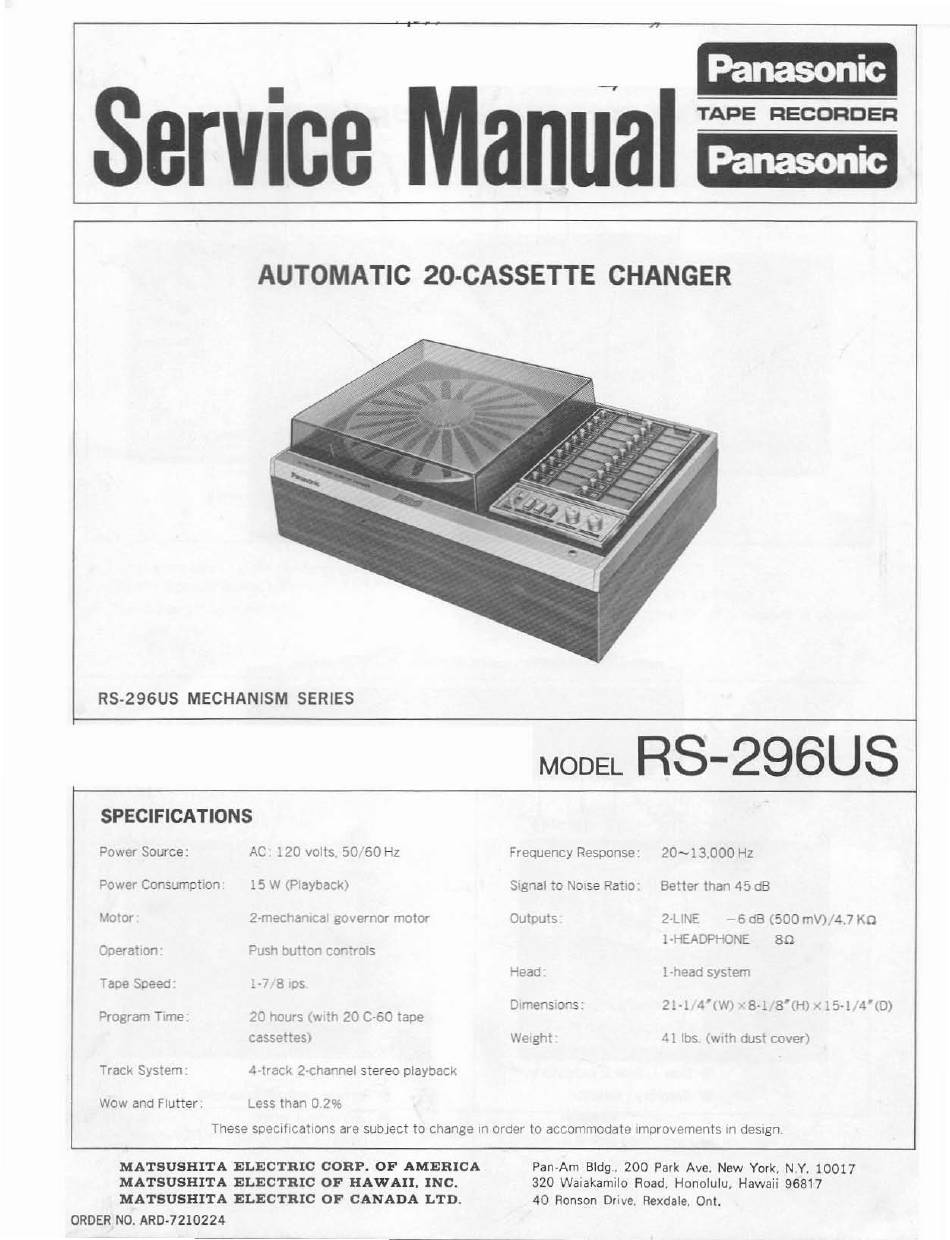

Panasonic RS-296US Manual

•
ervlce anua
AUTOMATIC 20·CASSETTE CHANGER
RS·296US MECHANISM SERIES
MODEL
RS-296US
SPECIFICATIONS
Power Source:
Power Consumption
Motor
()pe(atl0n:
Tape Speed
AC' 120 volts. 50/60 Hz
15 W (Playback)
Push
button controls
1·7 Blps
freQuency Response: 20-13.000 Hz
Signal to NOise Ratio' Better than 45 dB
Outputs 2·lINE -6dB (500 mV)/4.7 KO
I-HEADPHONE 80
I-head system
Program Tlf1le:
Track System.
Wow and flutter:
20 hours (with 20 C-60 tape
cassettes)
4-track 2·channel stereo playback
Less th.!ln 02%
21·14'(W) 8·18"(H)xI5·L'4'(D)
41 Ibs (wIth dust cover)
These specifications are subject to change In order to accommodate Improvements in design
MATSUSHITA ELECTRIC CORP. OF AMERICA
MATSUSHITA ELECTRIC OF HAWAII. INC.
MATSUSHITA ELECTRIC OF CANADA LTD.
ORDER NO. ARD·7210224
Pan·Am Bldg" 200 Park Ave. New York, N.Y. 10017
320 Waiakamilo Road. Honolulu, Hawaii 96817
40 Ronson Drive, Rexdale. Ont.
