MultiTox Detector
MultiTox DGi-TT7-E
DGi-TT7-O
DG-TT7-S
OPERATING MANUAL
NOSP 16452-Revision 08

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DGi-TT7-E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TELEDYNE OLDHAM SIMTRONICS DGi-TT7-E

Summary of Contents for TELEDYNE OLDHAM SIMTRONICS DGi-TT7-E

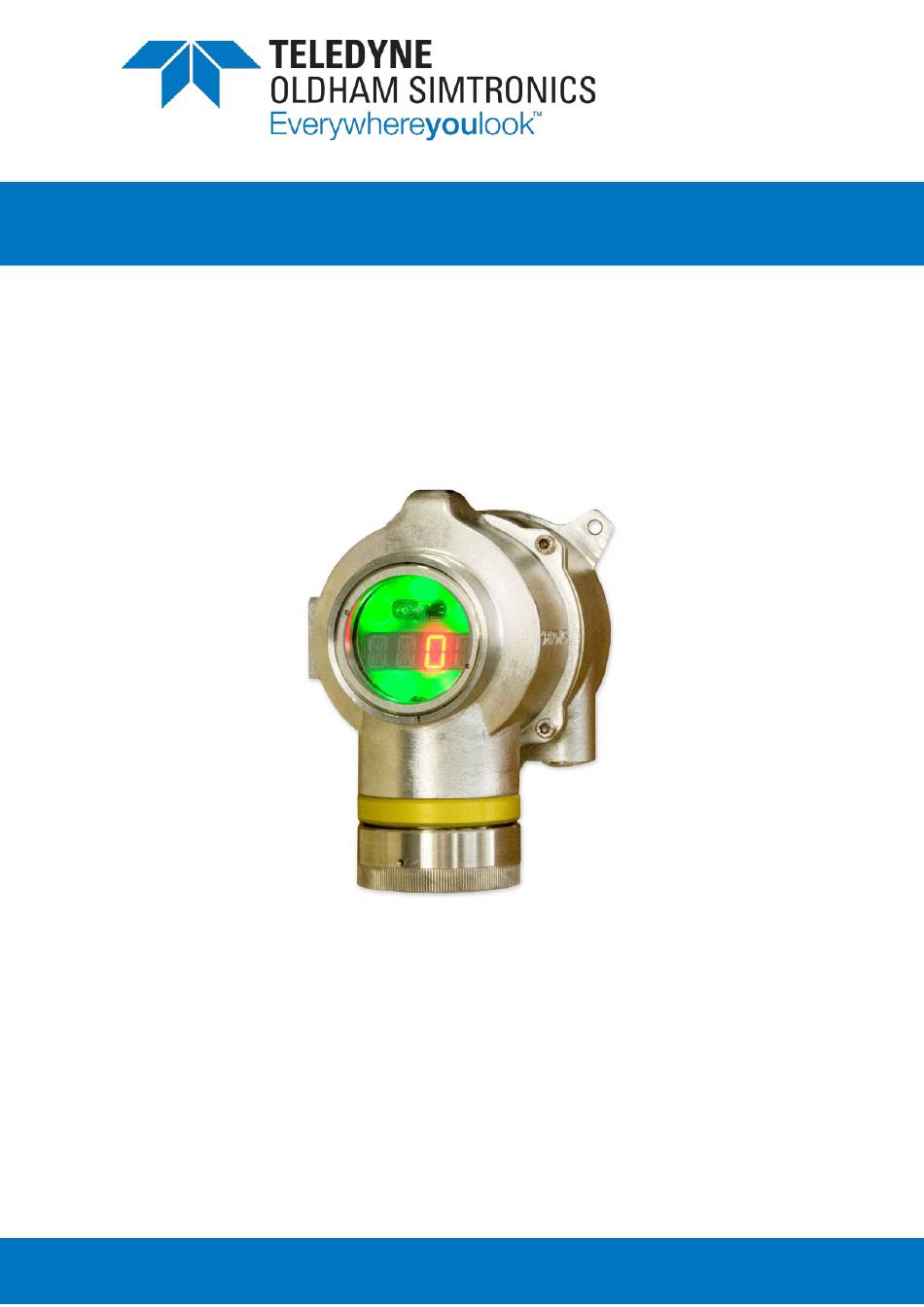

  • Page 1 OPERATING MANUAL MultiTox Detector MultiTox DGi-TT7-E DGi-TT7-O DG-TT7-S NOSP 16452-Revision 08...
  • Page 2 Operating manuals in other languages are available on Website https://teledynegasandflamedetection.com Copyright  October 2022 by TELEDYNE OLDHAM SIMTRONICS S.A.S. All rights reserved. No reproduction of all or part of this document, in any form, is permitted without the written consent of TELEDYNE OLDHAM SIMTRONICS S.A.S.

  • Page 3: Limitation Of Liability

    OLDHAM SIMTRONICS, even though they may be involved in the sale of TELEDYNE OLDHAM SIMTRONICS products. TELEDYNE OLDHAM SIMTRONICS shall not be responsible for any direct or indirect damage, or any direct or indirect consequence, resulting from the sale and use of any of its products UNLESS SUCH PRODUCTS HAVE BEEN SELECTED BY TELEDYNE OLDHAM SIMTRONICS ACCORDING TO THE APPLICATION.

  • Page 4: Warranty

    The use of the unit has been projected for the applications specified in the technical characteristics. Exceeding the indicated values cannot in any case be authorized. TELEDYNE OLDHAM SIMTRONICS recommends regular testing of fixed gas detection installations (read Chapter 7.2).

  • Page 5: Table Of Contents

    MultiTox Detector OPERATING MANUAL Table of Contents Product description ................ 1 Application ......................1 DGi-TT7-E ....................... 2 DGi-TT7-O ......................2 DG-TT7-S......................... 2 Heating (DGi version) ..................2 Technical specifications ................. 3 Detection cartridge ..................4 Communication Interface ................4 Product Code ..................... 6 Techical features ................
  • Page 6 MultiTox Detector OPERATING MANUAL Information menu [INFO] ................34 Adjustment menu [ADJT] ................35 Maintenance menu [MAIN] ................41 Maintenance ................... 43 Power off / opening of housing ..............43 Periodic maintenance ..................43 List of main faults ....................44 Replacing the cartridge .................

  • Page 7: Product Description

    OPERATING MANUAL Product description The DGi-TT7-E is designed to monitor poisoning risk induced by the presence of toxic gases or vapours (hydrogen sulphide, carbon monoxide, ammonia...). The DGi-TT7-O is designed to monitor the oxygen concentration in %vol either for inerting (scales 1 or 5%vol.) or in breathable atmosphere control (Scale 0-25%vol).

  • Page 8: Dgi-Tt7-E

    MultiTox Detector OPERATING MANUAL DGi-TT7-E The DGi-TT7-E is a MultiTox detector based on a transducer with electrochemical cell, which requires oxygen to function properly. The measuring principle is based on a redox reaction. In the event of a long period without oxygen, the measurement will not be representative of gases or vapours concentration.

  • Page 9: Technical Specifications

    • A colour coded cartridge with a label located in the lower part of the detector, a green one for the toxic gas detectors with electrochemical cell (DGi-TT7-E), a blue one for the oxygen deficiency gas detectors with electrochemical cell (DGi-TT7-O) and an orange one for semi-conductor toxic gas detectors (DG-TT7-S) The cartridge is connected to the detector’s body by an open ring leaving the label visible.

  • Page 10: Detection Cartridge

    OPERATING MANUAL Detection cartridge Detection cartridges are: • Intrinsic safety “ia” for the DGi-TT7-E- and DGi-TT7-O versions. They can be removed when the detector is powered. • Explosion proof “d” for the DG-TT7-S versions. They cannot be removed when the detector is powered.

  • Page 11: Hart Communication

    MultiTox Detector OPERATING MANUAL 1.8.2 HART communication The HART communication authorizes an addressing of devices, allowing the communication in read/write mode. It consists in getting connection on the current loop on which the numerical data are superimposed. Most of the HART terminal can read these information and send commands The use of a DD (Device Descriptor) facilitates the interface Man-Device.

  • Page 12: Product Code

    Refer to gas matrix Measurement range Refer to gas matrix Type UVIR2 Detection range Standard range Long range Input Type Not used or flame DGi-TT7-E/O & DMi-TT6-E/O Electrochemical DG-TT7-S / DM-TT6-S Semi-conductor Catharometer Catalytic MECH TOR input Current input 0/22 mA Infrared ½...
  • Page 13 No cartridge or not specified or flame Electrochemical type M DGi-TT7-O / Dmi-TT6-O Electrochemical type G Electrochemical type Y Dgi-TT7-E / Dmi-TT6-E / DGi-TT7-O / Dmi-TT6-O Electrochemical type N DG-TT7-X / DM-TT6-X Catalytic Semi-conductor (general designation for semiconductor type G)
  • Page 14 MultiTox Detector OPERATING MANUAL Language Fr / GB French English Portuguese Chinese Hardware version Type 63 Type 65 Type 67 (HART) Type 69 (magnet) Software version Standard NOSP 16452 Revision 08...

  • Page 15: Techical Features

    MultiTox Detector OPERATING MANUAL Techical features GENERAL Type Gas detector DGi-TT7-E MultiTox (electrochemical for toxic components) DGi-TT7-O MultiTox (electrochemical for measurement of oxygen) DG-TT7-S MultiTox (semi-conductor for toxic components) DGi-RT7 / DG-RT7 Network detector Calibration Factory set. A test is recommended every 3-4 months on DGi -TT7-E and DGi-TT7 and every 6 months on DG-TT7-S.
  • Page 16 Network : 3.2 W Maximum Wiring 0,5mm² (20AWG)-1,5mm² (16AWG) MTBF 100 000 h (Version DGi-TT7-E/O out of the EC cell) 136 100 h (Version DG-TT7-S including the cell, SIL2 cetified) ENVIRONMENT Storage temperature See Operating (without cartridges) 5°C / 20°C with the cartridges type -E or –O Please refer to comments on storage conditions - §1.7...
  • Page 17 MultiTox Detector OPERATING MANUAL Stabilization time stabilization time 1st implementation or up to 24h after being powered off: • DGi-TT7-E : 2 hours • DGi-TT7-O : 10 min • DG-TT7-S : 16 to 24 hours EXPLOSION PROOF HOUSING Material Stainless steel 316 L Weight 4.0 kg...
  • Page 18 MultiTox Detector OPERATING MANUAL FUNCTIONAL SAFETY (DG-TT7-S) SIL certified based on IEC/EN 61508 part 1 to 7 (2011) standards Certification delivered by LCIE Bureau Véritas • The safety function is either integrating the 4/20 mA current loop, as an output, or the relays one •...

  • Page 19: Scales And Technical Data

    MultiTox Detector OPERATING MANUAL Scales and technical data DGi-TT7-O DGi-TT7-E DG-TT7-S DGi-TT7-E 0-20 0-50 0-100 0-2000 0-10 0-20 Measurement %vol 0-50 0-100 0-200 0-50 0-100 0-20 0-20 0-50 0-50 range  0-100 0-25 0-100 0-500 0-1000 0-50 %vol 0-200 0-1000...
  • Page 20 MultiTox Detector OPERATING MANUAL DG-TT7-S detectors: The silicone compounds are known to have poisoning effects on the semi-conductor element. DG-TT7-O detectors : High CO concentration (several %vol.) is known to have poisoning effect on the cell. In a similar way, solvents higher than 1000 ppm will gradually damage the cell.

  • Page 21: Installation

    MultiTox Detector OPERATING MANUAL Installation The detectors described in this manual are safety instruments intended to be installed in explosive atmospheres and have been designed in compliance with standards EN60079-0, EN60079-1, EN 60079-11, CEI 60079-0, CEI 60079-1 and CEI 60079-11. Intervention in some sites may be subject to restrictions that we invite you to follow for your own safety and those of others.

  • Page 22: Detector Assembly

    MultiTox Detector OPERATING MANUAL Drilling dimensions for support fixing. 4.2.1 Detector assembly Check the presence and the good condition of the O-ring on explosion proof seal (no cracks, no cuts, good elasticity), make sure the flamproof joint is correctly greased and has no visible damage.

  • Page 23: Electric Connection

    MultiTox Detector OPERATING MANUAL 4.2.3 Communication using the TLU 600 Communication elements are located above the display. The orientation enables a communication with an ½ horizontal angle about 35°, an ½ vertical- up angle about 30° and a vertical-down angle about 50°. The maximum communication distance is between 7 to 9 m.
  • Page 24 MultiTox Detector OPERATING MANUAL 1000 Supply voltage 24VDC / 2W < consumption power ≤ 3.5W (1080) (1900) (3280) Supply voltage 24VDC -10% / 2W < consumption power ≤ 3.5W (650) (1110) (1960) Supply voltage 24VDC / 3.5W < consumption power ≤ 5W (750) (1310) (2320)
  • Page 25 MultiTox Detector OPERATING MANUAL NB :The power potentials are isolated fromthe electric ground of the housing. Total loop resistance: Whatever the power supply type (3 wires source ou sink, 4 wires), the total loop resistance (resistor + cable) should not exceed the following value: −...
  • Page 26 MultiTox Detector OPERATING MANUAL 4.3.3.2 3-wires connection (Sink) Control or fire system Detector SINK Version JP11 0V return +24VDC +24VDC Source 20 mA loop Max 700 Ω Shielding to be connected to the enclosure In this case, the output current is not isolated from power supply, consumed by the detector. For a standard 3-wires connection in sink mode, the 20mA current loop must be supplied with a PLC.
  • Page 27 MultiTox Detector OPERATING MANUAL Point JP12 & JP13 Description Relay 2 Relay 2 Relay 1 Relay 1 Only the common and working contacts of the 2 relays are output on the terminal blocks JP12 and JP13. To facilitate wiring, the same contacts are output on both JP12 and JP13: the contacts are connected together, terminal to terminal.
  • Page 28 MultiTox Detector OPERATING MANUAL 4.3.6 Syntel connection In this network version, an electronic board is inserted in the detector body and is used for electric connection. Connecting the ground terminal should be performed thanks to 3-wire shielded cables. The connection of power supply wires (4 on side A and 4 on side B). •...

  • Page 29: Detection Cartridge

    (at the bottom of the receiver). • Take care to not damage the cartridge connector when tightening the two parts. • On DGi-TT7-E and DGi-TT7-O versions, these operations can be performed when powered. On DG-TT7-S version, these operations imperatively require power to be off Loosen the locking screw on the side of the nut (see Figure 1), then unscrew the nut, along the first part of the thread.
  • Page 30 MultiTox Detector OPERATING MANUAL NOSP 16452 Revision 08...

  • Page 31: Commissioning

    MultiTox Detector OPERATING MANUAL Commissioning Visual inspection Make certain that all the operations of the “Installation” chapter have been achieved correctly. Pay particular attention on installation conformity, check the cables entry, the presence of O- rings, and the connection of the cartridge. •...
  • Page 32 MultiTox Detector OPERATING MANUAL NOSP 16452 Revision 08...

  • Page 33: Operation

    MultiTox Detector OPERATING MANUAL Operation Environmental conditions The lifetime of the electrochemical cartridges for toxic gas detector depends on the operating environment related to temperature, humidity and high exposures. One will take care to avoid long exposures to a hot and dry atmosphere (T°> 30°C and RH<10%), and gas exposures 4 times higher to the scale.

  • Page 34: Inhibition

    MultiTox Detector OPERATING MANUAL Inhibition Maintenance Inhibition is temporary. It appears during power up and maintenance. Inhibition stops automatically when the operator gets out of the maintenance menus or after 10 minutes if communication with the TLU has been interrupted. Maintenance inhibition can be configured in "frozen"...

  • Page 35: Alarm Indication

    MultiTox Detector OPERATING MANUAL “4-20” “0-22” TLU state State Display [mA] [mA] 12.0 12.0 AL1 or AL2 if Alarm if level 50% of full scale reached exceeded 16.0 16.0 AL1 or AL2 if Alarm if level 75% of full scale reached exceeded 20.0...

  • Page 36: Display Indication

    MultiTox Detector OPERATING MANUAL Display indication The 4 Digits display provides several information, depending on the state of the device: Starting: • Display cycle : concentration and measuring scale (meas then % or ppm then gas) • Alternately indicates the inhibition mode and the remaining warming up time Normal operating mode: The digital readout provides the following information: •...

  • Page 37: Wireless Communication Tool Tlu600

    MultiTox Detector OPERATING MANUAL Wireless communication tool TLU600 All settings and tests of detectors can be done by the wireless communication tool TLU600. This communication tool and its software are compatible with all Oldham Simtronics detectors: MultiFlame, MultiTox and MultiXplo. Communication is made via infrared link (IrDA), similar but more efficient than infrared links for computers.

  • Page 38: General Operation

    MultiTox Detector OPERATING MANUAL 6.6.2 General operation The user can navigate through the menu with the F1 to F4 keys, whose functions change depending on the fields displayed above each key. Standard functions: • >>>>Scroll function / next screen. • ESCExit the current menu and return to the previous one. •...
  • Page 39 MultiTox Detector OPERATING MANUAL NOSP 16452 Revision 08...

  • Page 40: Information Menu [Info]

    MultiTox Detector OPERATING MANUAL Information menu [INFO] The information menu contains all information concerning the identity and settings of the detector. The first screen gives the detector’s reference and its serial number. 6.7.1 [IDEN]tity submenu Presentation of: • The serial number •...

  • Page 41: Adjustment Menu [Adjt]

    MultiTox Detector OPERATING MANUAL Mode screen The first line shows the operating mode of the sensor in the network (logic link test / out of order / emulation). The second line shows if the network part of the detector is “operating” or “out of order”. For any further details, please refer to the Syntel system operating manuals.

  • Page 42: Calibration Sub-Menu

    MultiTox Detector OPERATING MANUAL 6.8.2 CALIBRATION sub-menu 6.8.2.1 Zero point setting The operator can set the zero point with the wireless communication tool TLU600. The detector is in maintenance inhibition mode for 10 minutes after it goes back to main screen. Use the setting menu and validate the INH command for acknowledgement.
  • Page 43 MultiTox Detector OPERATING MANUAL 6.8.2.2 Calibration Calibration must be made with the gas the detector is set to detect, with the SET menu (F2 key) of the wireless communication tool TLU600 and a calibration kit. The calibration gas should be injected at a flow rate between 30 l/h and 60 l/h. For the DGi- TT7-O version, on a 25%vol scale, ambient air at 21%vol O generally fits.
  • Page 44 MultiTox Detector OPERATING MANUAL NOSP 16452 Revision 08...

  • Page 45: Alarm Sub-Menu

    MultiTox Detector OPERATING MANUAL 6.8.3 [DISP]LAY sub-menu This menu gives access to the light intensity setting of the backlight and display: • AUTO : Automatic adjustment depending on the lighting environment • Level 0 : Backlight is switched off, minimum display •...
  • Page 46 MultiTox Detector OPERATING MANUAL 6.8.6 [SORT] Output configuration sub-menu 6.8.6.1 Relays configuration This menu gives access to the configuration of the relay operating mode and to conditions of activations. State of the relays: Each relay can be configured: • Normally open (not energized) •...

  • Page 47: Maintenance Menu [Main]

    MultiTox Detector OPERATING MANUAL 6.8.7 [INH]ibition submenu Maintenance inhibition can be configured in « frozen » mode (Factory setting) or « free » mode. • In « frozen» mode, the outputs (current and relay) remain in their previous state. For example, if the device displays a fault (2.0 mA), it will remain in this mode during the inhibition •...
  • Page 48 MultiTox Detector OPERATING MANUAL NOSP 16452 Revision 08...

  • Page 49: Maintenance

    7.2.1 Preventive maintenance A test is recommended every four months for the DGi-TT7-E or DGi-TT7-O versions, and every six months for the DG-TT7-S version. Run a calibration if necessary. A zero point calibration with clean air (nitrogen for the DGi-TT7- O versions) has to be done first.

  • Page 50: Corrective Maintenance

    MultiTox Detector OPERATING MANUAL 7.2.2 Corrective maintenance If the detection unit or the PLC signals a detector fault, the detector must be tested directly with the wireless communication tool to determine the type of fault. If the detector is configured in 0-22 mA output, it is possible to have a pre-diagnostic of the fault.

  • Page 51: Replacing The Cartridge

    MultiTox Detector OPERATING MANUAL FAULTS CAUSES SOLUTIONS sensor needs to be replaced). SELFTEST_FAULT Material trouble Non-memorized fault. (electronic part failure) Automatic acknowledgement SENSOR_FAULT on the sensor or on the when the detector is back to (Fault material) electronic board of the normal operation conditions.
  • Page 52 MultiTox Detector OPERATING MANUAL No intervention should be performed while power is ON. NOSP 16452 Revision 08...

  • Page 53: Certifications And Standards

    12 months. ATEX / IECEx Marking The detector identification label is placed on the main housing, according to directives ATEX 2014/34/UE • Manufacturer TELEDYNE OLDHAM SIMTRONICS • Model DGi-TT7… DG-TT7… • Serial Number S/N: xxxxxxxxx (xxxxaamm) DGi-TT7 •...
  • Page 54 MultiTox Detector OPERATING MANUAL • Ingress rate IP66* • Maximum power supply voltage 30 Vdc • Maximum consumption 15 w DG-TT7 • Type of certification CE0080 II2G / Ex db IIC T6 Gb CE0080 II2G / Ex db IIB T6 Gb (2 mm >...

  • Page 55: Accessories And Spare Parts

    MultiTox Detector OPERATING MANUAL Accessories and spare parts Accessories Accessories Designation Description Part Number IRDA Remote control unit Required for adjustments and TLU 600 maintenance TLU 600 Remote control unit HART Avalaible for adjustments and TLH 700 maintenance Adapting Plate Used to adapt old detector AS049 (BT05-BT606) attachments to fit...
  • Page 56 MultiTox Detector OPERATING MANUAL Accessories Designation Description Part Number AS016  Remote calibration Accessory enabling connection supply tube to be attached near the cartridge. AS011-2X  Stainless steel sample flow For use with gas circuit systems. with 2 ways AS02x  Duct mounting A series of accessories for installing detectors on different...

  • Page 57: Spare Parts

    MultiTox Detector OPERATING MANUAL  Detector sensitivity is not modified, response time depend on the flow rate used for injection. A flow rate between 0.5 L/min and 1 L/min should comply with “standard” response time.  Detector sensitivity is not modified; response time can increase depending on the molecular filter used.

  • Page 58: Gas Table Codes & Range Table Codes

    MultiTox Detector OPERATING MANUAL Gas table codes & range table codes According to the new references: DGi-TT7-F1F2-X----- DG-TT7-F1F2-X----- Range Formula Gas name Comment Arsine Acetylene 1 ppm Ethylene 2 ppm Ethylene oxide 5 ppm Ethanol 10 ppm Dimethylene 20 ppm Propene 50 ppm Acetone...
  • Page 59 MultiTox Detector OPERATING MANUAL Range Formula Gas name Comment Nitric oxide 5 LELm Nitrogen dioxide 1 ppm*m Oxygen 2 ppm*m Ozone 5 ppm*m PFBA PFBA 10 ppm*m Chlorodifluoromethane 20 ppm*m Trifluoromethane 50 ppm*m Sulphur dioxide 100 ppm*m Cyclopentane 200 ppm*m 500 ppm*m White Spirit 1000 ppm*m...
  • Page 60 MultiTox Detector OPERATING MANUAL Range Formula Gas name Comment Ethylene (special : low interf.C2H6) Propane (special: low interf. CH4) Methane (special : low interf.C3H8) Octane -CFH R134a Kerosene Tetrachloroethene Ethylene Special customer (EG) HC lourd F1850 Special customer MTBE H2S + Hydrogen sulfide + Methane Special combustible gas App SA...

  • Page 61: Declaration Of Conformity

    MultiTox Detector OPERATING MANUAL Declaration of conformity NOSP 16452 Revision 08...
  • Page 62 MultiTox Detector OPERATING MANUAL NOSP 16452 Revision 08...
