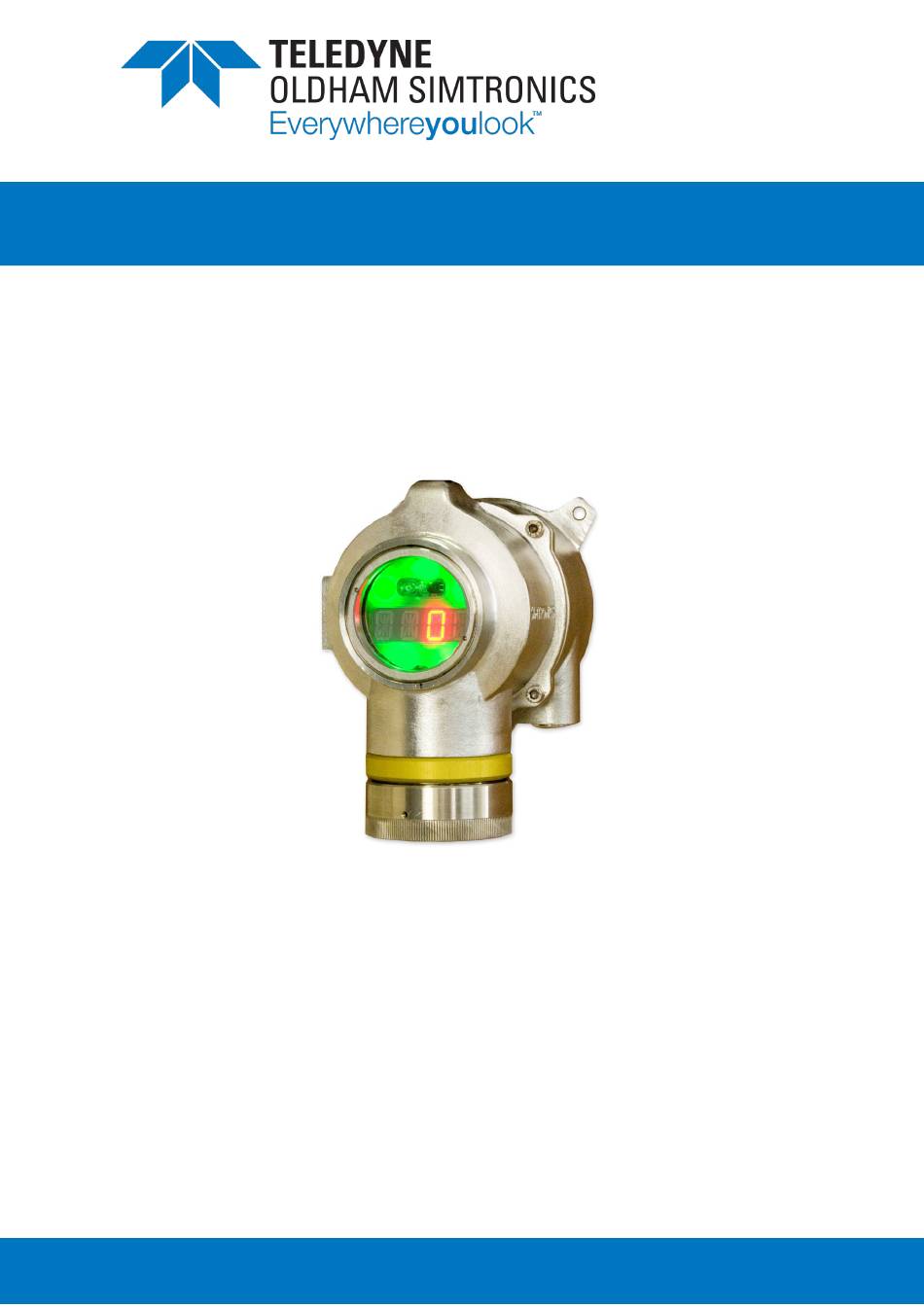

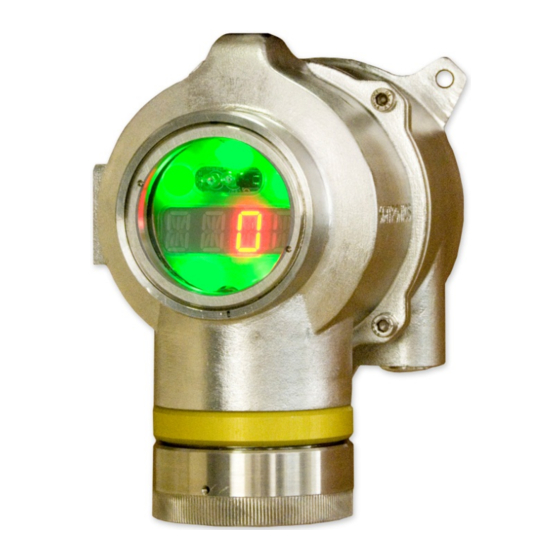

MULTITOX DETECTOR
MultiToxDGi-TT7-E
DGi-TT7-O
DG-TT7-S
(with Magnetic interface)
OPERATING MANUAL
NOSP17668-Revision 03a

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Everywhereyoulook MultiToxDGi-TT7-E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TELEDYNE OLDHAM SIMTRONICS Everywhereyoulook MultiToxDGi-TT7-E

Summary of Contents for TELEDYNE OLDHAM SIMTRONICS Everywhereyoulook MultiToxDGi-TT7-E

  • Page 1 OPERATING MANUAL MULTITOX DETECTOR MultiToxDGi-TT7-E DGi-TT7-O DG-TT7-S (with Magnetic interface) NOSP17668-Revision 03a...
  • Page 2 User manuals in other languages are available on Website https://teledynegasandflamedetection.com Copyright  February 2021 by TELEDYNE OLDHAM SIMTRONICS S.A.S. All rights reserved. No reproduction of all or part of this document, in any form, is permitted without the written consent of TELEDYNE OLDHAM SIMTRONICS S.A.S.
  • Page 3 SIMTRONICS, even though they may be involved in the sale of TELEDYNE OLDHAM SIMTRONICS products. TELEDYNE OLDHAM SIMTRONICS shall not be responsible for any direct or indirect damage, or any direct or indirect consequence, resulting from the sale and use of any of its products UNLESS SUCH PRODUCTS HAVE BEEN SELECTED BY TELEDYNE OLDHAM SIMTRONICS ACCORDING TO THE APPLICATION.
  • Page 4 The use of the unit has been projected for the applications specified in the technical characteristics. Exceeding the indicated values cannot in any case be authorized. TELEDYNE OLDHAM SIMTRONICS recommends regular testing of fixed gas detection installations (read Chapter 7.2).

  • Page 5: Table Of Contents

    MULTITOX DETECTOR OPERATING MANUAL Table of Contents 1 Product description ................1 Application ......................1 DGi-TT7-E ....................... 2 DGi-TT7-O ......................2 DG-TT7-S......................... 2 Heating (DGi version only) ................3 Technical specifications ................. 3 Detection cartridge ..................4 Commnication Interface................4 Product Code .....................
  • Page 6 MULTITOX DETECTOR OPERATING MANUAL Information menu [INFO] ................37 Adjustment menu [ADJT] ................38 Maintenance menu [MAIN] ................45 6.10 Magnets operation ................... 46 7 Maintenance ..................49 Open enclosure before Power off .............. 49 Periodic maintenance ..................49 List of main faults ....................50 Replacing the cartridge .................

  • Page 7: Product Description

    MULTITOX DETECTOR OPERATING MANUAL Product description The DGi-TT7-E is designed to monitor poisoning risk induced by the presence of toxic gases or vapours (hydrogen sulphide, carbon monoxide, ammonia...). The DGi-TT7-O is designed to monitor the oxygen concentration in %vol either for inerting (scales 1 or 5%vol.) or in breathable atmosphere control (Scale 0-25%vol).

  • Page 8: Dgi-Tt7-E

    MULTITOX DETECTOR OPERATING MANUAL DGi-TT7-E The DGi-TT7-E is a MultiTox detector based on a transducer with electrochemical cell, which requires oxygen to function properly. The measuring principle is based on a redox reaction. In the event of a long period without oxygen, the measurement will not be representative of gases or vapours concentration.

  • Page 9: Heating (Dgi Version Only)

    MULTITOX DETECTOR OPERATING MANUAL Heating (DGi version only) In hard environmental conditions, with condensation or frost, gases and vapours may not reach the sensor. The device takes into account this difficulty and keeps its temperature slightly above that of the ambient atmosphere. Technical specifications Each detector is constructed as follows: •...

  • Page 10: Detection Cartridge

    • Explosion proof “d” for the DG-TT7-S versions. They cannot be removed when the detector is powered. They are common to all TELEDYNE OLDHAM SIMTRONICS MultiTox products in order to reduce the number of spares parts. • DGi-RT7-E / DGi-RT7-O et DG-RT7-S: Network versions for Syntel loop, •...
  • Page 11 The HART output is an option. It is available only on the devices equipped with an electronic type C, in HART configuration (H): DGi-**7-****-**H-**-***-*-C- TELEDYNE OLDHAM SIMTRONICS devices under HART protocol enable the use of all the functions available with the...

  • Page 12: Product Code

    MULTITOX DETECTOR OPERATING MANUAL Product Code Product codes are created from functional codes defined as below: DGi-*T7-****-***-**-***-*-*-* et DG-*T7-****-***-**-***-*-*-* Detector type -00J Compact Sensor Télécaptor Network version Replacement cell Accessories Families Toxic Flame Flammable gas None Version BT606 housing BT10 housing Gas type Refer to gas matrix Measurement range...
  • Page 13 MULTITOX DETECTOR OPERATING MANUAL -00J Cartridges No cartridge or not specified or flame Electrochemical type M DGi-TT7-O / Dmi-TT6-O Electrochemical type G Electrochemical type Y Dgi-TT7-E / Dmi-TT6-E / DGi-TT7-O / Dmi-TT6-O Electrochemical type N DG-TT7-X / DM-TT6-X Catalytic Semi-conductor (general designation for semiconductor type G) DG-TT7-S / DM-TT6-S Semi-conductor type 30 (previously SF) since 2015 Semi-conductor type 31 since 2015...
  • Page 14 MULTITOX DETECTOR OPERATING MANUAL -00J Language Fr / GB French English Portuguese Chinese Hardware version Type 63 Type 65 Type 67 (HART) Type 69 (magnet) Software version Standard NOSP17668 Revision 03...

  • Page 15: Techical Features

    MULTITOX DETECTOR OPERATING MANUAL Techical features GENERAL Type Gas detector DGi-TT7-E MultiTox (electrochemical for toxic components) DGi-TT7-O MultiTox (electrochemical for measurement of oxygen) DG-TT7-S MultiTox (semi-conductor for toxic components) DGi-RT7 / DG-RT7 Network detector Calibration A test is recommended every 3-4 months on DGi -TT7-E and DGi-TT7 and every 6 months on DG-TT7-S.
  • Page 16 MULTITOX DETECTOR OPERATING MANUAL 24VDC,(18 – 35 V DC on versions DGi-TT7 or DG-TT7-S) POWER SUPPLY (18 – 30 V DC on versions DGi-RT7 or DG-RT7-S) Consumption DGi-TT7 DG-TT7-S Typical 1.4 W 1.6 W Network : 2.8 W Network : 3.1 W Maximum Wiring 0,5mm²...
  • Page 17 MULTITOX DETECTOR OPERATING MANUAL Stabilization time stabilization time 1st implementation or up to 24h after being powered off: DGi-TT7-E : 2 hours DGi-TT7-O (type M): 10 min DGi-TT7-O (type Y): 1h30 DG-TT7-S : 16 to 24 hours EXPLOSION PROOF HOUSING Material Stainless steel 316 L Weight...
  • Page 18 MULTITOX DETECTOR OPERATING MANUAL FUNCTIONAL SAFETY (DG-TT7-S) SIL certified based on IEC/EN 61508 part 1 to 7 (2011) standards Certification delivered by LCIE Bureau Véritas • The safety function is either integrating the 4/20 mA current loop, as an output, or the relays •...

  • Page 19: Scales And Technical Data

    MULTITOX DETECTOR OPERATING MANUAL Scales and technical data DGi-TT7-O DGi-TT7-O DGi-TT7-E DG-TT7-S DGi-TT7-E DGi-TT7-E DGi-TT7-E DGi-TT7-E DGi-TT7-E DGi-TT7-E DGi-TT7-E DGi-TT7-E DGi-TT7-E Type M Type Y 0-20 0-50 0-100 0-2000 0-10 %vol 0-50 0-100 0-200 Measurement 0-50 0-20 0-100 0-20 0-20 0-50 0-100 0-50...
  • Page 20 MULTITOX DETECTOR OPERATING MANUAL DG-TT7-S detectors: The silicone compounds are known to have poisoning effects on the semi-conductor element. DGi-TT7-O detectors (type M): High CO concentration (several %vol.) is known to have poisoning effect on the cell. In a similar way, solvents higher than 1000 ppm will gradually damage the cell.

  • Page 21: Installation

    MULTITOX DETECTOR OPERATING MANUAL Installation The detectors described in this manual are safety instruments intended to be installed in explosive atmospheres and have been designed in compliance with standards EN60079-0, EN60079-1, EN 60079-11, CEI 60079-0, CEI 60079-1 and CEI 60079-11. Intervention in some sites may be subject to restrictions that we invite you to follow for your own safety and those of others.
  • Page 22 MULTITOX DETECTOR OPERATING MANUAL Figure 3 : Drilling dimensions for support fixing (mm). 4.2.1 Detector assembly Check the presence and the good condition of the O-ring on explosion proof seal (no cracks, no cuts, good elasticity), make sure the flameproof joint is correctly greased and has no visible damage.
  • Page 23 MULTITOX DETECTOR OPERATING MANUAL 4.2.2 Cable‘s inputs (as an option) Connection cables must pass through a cable gland (Explosion Proof certified) For installation details, refer to the instructions provided by the manufacturer of the cable gland used. The unassigned cable glands entries must be blanked with explosion proof certified plugs (M20).They are glued with Loctite (type tubétanche 577) or equivalent compound.

  • Page 24: Electric Connection

    MULTITOX DETECTOR OPERATING MANUAL 4.2.4 Magnets identification The magnets are identified by the “PG1” and “PG2” symbols on the housing. Electric Connection Never adjust electric connections when detectors are powered. Maintenance must be undertaken by qualified staff. Observe safety site rules. MultiTox are sensors with standard current output 4-20mA or 0-22mA.
  • Page 25 MULTITOX DETECTOR OPERATING MANUAL 4.3.1 Connection of the electrical ground braid Use a shield connection clamp (not supplied) to connect the shielding of the cable to the electric ground of the housing (see § below). 4.3.2 Grounding A M4 screw passes through the body of the enclosure, enabling the electronic ground of the housing to be connected to the local ground.
  • Page 26 MULTITOX DETECTOR OPERATING MANUAL Terminal blocks : Point JP11 Description 0 V retour +24VDC power supply +24VDC power supply loop (connected to point 2) 0 V, connected to point 1 20mA current loop : entry 20mA current loop : output 4.3.3.1 3-wires connection(source) Detector...
  • Page 27 MULTITOX DETECTOR OPERATING MANUAL In this case, the output current is not isolated from power supply, consumed by the detector. The 20mA current loop must be supplied with a PLC. The current return must be connected to the 0V at the level of the L- terminal. To proceed, please connect the 4 (V-) and 6 (L-) terminals at the terminal block level of the device.
  • Page 28 MULTITOX DETECTOR OPERATING MANUAL Relay card, terminal block (option): Point Description Relay1 common Relay 1 de-energized Relay 1 energized Relay 1 energized Relay 2 common Relay 2 common Relay 2 de-energized Relay 2 energized Relay 2 energized Relay 3 common Relay 3 de-energized Relay 3 energized Relay terminal blocks: 2 terminal blocks and 1misleading...
  • Page 29 MULTITOX DETECTOR OPERATING MANUAL Maintain a 10mm minimum gap between the resistor and the terminal block or any other neighboring parts. The R1 value is given as an indication. It must comply with the following conditions: • Minimum consumption = 5 Watts •...

  • Page 30: Detection Cartridge

    MULTITOX DETECTOR OPERATING MANUAL Connection of the media wires (2 on side A and 2 on side B) • A red wire on one of the N • A white wire on the other N (no specific edge) Figure 4 :Connecting drawing of the network versions On board relays are not available on the digital version of the detectors For more detail, thanks to refer to the operating manual NOSP 15251 Detection cartridge...
  • Page 31 MULTITOX DETECTOR OPERATING MANUAL Loosen the locking screw on the side of the nut (see Figure 1), then unscrew the nut, along the first part of the thread. With the nut, pull on the cartridge to remove it and then unscrew the cartridge from the nut.
  • Page 32 MULTITOX DETECTOR OPERATING MANUAL NOSP17668 Revision 03...

  • Page 33: Commissioning

    MULTITOX DETECTOR OPERATING MANUAL Commissioning Visual inspection Make certain that all the operations of the “Installation” chapter have been achieved correctly. Pay particular attention on installation conformity, check the cables entry, the presence of O- rings, and the connection of the cartridge. •...
  • Page 34 MULTITOX DETECTOR OPERATING MANUAL NOSP17668 Revision 03...

  • Page 35: Operation

    MULTITOX DETECTOR OPERATING MANUAL Operation Environmental conditions The lifetime of the electrochemical cartridges for toxic gas detector depends on the operating environment related to temperature, humidity and high exposures. One will take care to avoid long exposures to a hot and dry atmosphere (T°> 30°C and RH<10%), and gas exposures 4 times higher to the scale.

  • Page 36: Inhibition

    MULTITOX DETECTOR OPERATING MANUAL Inhibition Maintenance Inhibition is temporary. It appears during power up and maintenance. Inhibition stops automatically when the operator gets out of the “maintenance” menus or after 10 minutes if communication with the TLU has been interrupted. Maintenance inhibition can be configured in "frozen"...

  • Page 37: Signal Current Loop

    MULTITOX DETECTOR OPERATING MANUAL Signal current loop “4-20” “0-22” TLU state State Display [mA] [mA] Line fault yellow Backlight Configuration fault yellow Backlight Detector fault (electronic) yellow Backlight Measure fault yellow Backlight Warming-up Start inhibition violet Backlight remaining time including power up Permanent inhibition violet Backlight Previous value/...

  • Page 38: Alarm Indication

    MULTITOX DETECTOR OPERATING MANUAL Display time: The detector displays concentration or status. Depending on events, the detector displays cyclically important information according to the context: unit, gas, label, fault, alarms, inhibition and the time remaining inhibition…. Output current (4-20mA ou 0-22mA) : It can be modified by the user.
  • Page 39 MULTITOX DETECTOR OPERATING MANUAL Normal operating mode: The digital readout provides the following information: • Concentration • Measuring scale • Abbreviation of the gas used • Label of the device In case of alarm: • the display of concentration flashes •...

  • Page 40: Wireless Communication Tool Tlu600

    All settings and tests of detectors can be done by the wireless communication tool TLU600. This communication tool and its software are compatible with all TELEDYNE OLDHAM SIMTRONICS detectors: MultiFlame, MultiTox and MultiXplo. Communication is made via infrared link (IrDA), similar but more efficient than infrared links for computers.
  • Page 41 MULTITOX DETECTOR OPERATING MANUAL Main screen displays identity and state of the detector. 6.6.2 General operation The user can navigate through the menu with the F1 to F4 keys, whose functions change depending on the fields displayed above each key. Standard functions: •...
  • Page 42 MULTITOX DETECTOR OPERATING MANUAL Menus displayed without access code Menus displayed with relay board Menus displayed with Syntel board Menus not displayed with Syntel board NOSP17668 Revision 03...

  • Page 43: Information Menu [Info]

    MULTITOX DETECTOR OPERATING MANUAL Information menu [INFO] The information menu contains all information concerning the identity and settings of the detector. The first screen gives the detector’s reference and its serial number. 6.7.1 [IDEN]tity submenu Presentation of: • The serial number •...

  • Page 44: Adjustment Menu [Adjt]

    MULTITOX DETECTOR OPERATING MANUAL Mode screen The first line shows the operating mode of the sensor in the network (logic link test / out of order / emulation). The second line shows if the network part of the detector is “operating” or “out of order”. For any further details, please refer to the Syntel system operating manuals.
  • Page 45 MULTITOX DETECTOR OPERATING MANUAL 6.8.2 CALIBRATION sub-menu 6.8.2.1 Zero point setting The operator can set the zero point with the wireless communication tool TLU600. The detector is in maintenance inhibition mode for 10 minutes after it goes back to main screen. Use the setting menu and validate the INH command for acknowledgement.
  • Page 46 MULTITOX DETECTOR OPERATING MANUAL 6.8.2.2 Calibration Calibration must be made with the gas the detector is set to detect, with the SET menu (F2 key) of the wireless communication tool TLU600 and a calibration kit. The calibration gas should be injected at a flow rate between 30 l/h and 60 l/h. For the DGi- TT7-O version, on a 25%vol scale, ambient air at 21%vol O generally fits.
  • Page 47 MULTITOX DETECTOR OPERATING MANUAL NOSP17668 Revision 03...
  • Page 48 MULTITOX DETECTOR OPERATING MANUAL 6.8.3 [DISP]LAY sub-menu This menu gives access to the light intensity setting of the backlight and display: • AUTO : Automatic adjustment depending on the lighting environment • Level 0 : Backlight is switched off, minimum display •...
  • Page 49 MULTITOX DETECTOR OPERATING MANUAL The label or zone modification must be confirmed by pressing the key VALID, otherwise the modification is not taken into account For a network detector, the configuration data’s (label, zone and alarms) cannot be modified. 6.8.6 [SORT] Output configuration sub-menu 6.8.6.1 Relays configuration...
  • Page 50 MULTITOX DETECTOR OPERATING MANUAL Contacts are then described as below: Relay 1 Relay 2 Relay 3 Detector status “Fault” “Alarm” “Alarm” Normal C1-T1 closed C2-T2 open C3-T3 open (no alarm, no fault, no inhibition C1-R1 open C2-R2 closed C3-R3 closed and detector powered) C1-T1 closed C2-T2 closed...

  • Page 51: Maintenance Menu [Main]

    MULTITOX DETECTOR OPERATING MANUAL 6.8.8 Sous-menu [NEG] Concentration négative The detector can display the negative concentration. There is no sense from a point of physical view but it allows to prevent a zero drift and to have a preventive maintenance before the zero drift fault.

  • Page 52: Magnets Operation

    MULTITOX DETECTOR OPERATING MANUAL 6.10 Magnets operation The digital display gives access to different menus. To enter in these menus, the wand must put in place on the “PG1” or “PG2” magnet. The user must maintain the wand on the magnets with time longer or shorter depending on the desired function.
  • Page 53 MULTITOX DETECTOR OPERATING MANUAL Menus not available with Syntel card Menus available with relay card Menus available without access code NOSP17668 Revision 03...
  • Page 54 MULTITOX DETECTOR OPERATING MANUAL NOSP17668 Revision 03...

  • Page 55: Maintenance

    MULTITOX DETECTOR OPERATING MANUAL Maintenance The interventions described in this chapter must be performed by competent and qualified staff. Device performances may be affected if the present instructions are not respected. Cartridge replacement (DG-TT7-S only) and any other operation, imperatively require power to be off.

  • Page 56: List Of Main Faults

    MULTITOX DETECTOR OPERATING MANUAL We recommend to use a mixture of the target gas with a 50% of the measuring range concentration. The complement of the mixture should, preferably, be Air (this is imperative for the DM-TT6-S version). For any other operation, please contact your supplier or our technical services. 7.2.2 Corrective maintenance If the detection unit or the PLC signals a detector fault, the detector must be tested directly with the...

  • Page 57: Replacing The Cartridge

    MULTITOX DETECTOR OPERATING MANUAL FAULTS CAUSES SOLUTIONS general, the sensor needs to be replaced). Non-memorized fault. Automatic DRIFT_FAULT Sensor drift: acknowledgement when the measure measure is below -10% goes back above -10%. Resetting the (Zero point drift) zero point is necessary. Memorized fault, even on a power supply shut down.
  • Page 58 MULTITOX DETECTOR OPERATING MANUAL NOSP17668 Revision 03...

  • Page 59: Replacing The Complete Detector

    MULTITOX DETECTOR OPERATING MANUAL Replacing the complete detector If the operator needs to replace the complete detector, the easiest way is to take off the main housing from the base of the detector (for more details, refer to § 4.2.1). As the base of the detector remains in place, cable glands do not need to be dismantled.
  • Page 60 MULTITOX DETECTOR OPERATING MANUAL NOSP17668 Revision 03...

  • Page 61: Certifications And Standards

    In order to maintain the SIL level, the output current 4-20 mA or the output relay (if it is used) must be check every 12 months. ATEX / IECEx Marking The detector identification label is placed on the main housing, according to directives ATEX 2014/34/UE • Manufacturer TELEDYNE OLDHAM SIMTRONICS • Model DGi-TT7… DG-TT7… • Serial Number S/N: xxxxxxxxx (xxxxaamm) DGi-TT7 •...
  • Page 62 It is also recommended to use the device with the following accessories: AS056-250, AS019, AS015. TELEDYNE OLDHAM SIMTRONICS does not allow any repairs of the flameproof joints and shall not be responsible for any modification of material. NOSP17668...

  • Page 63: Accessories And Spare Parts

    MULTITOX DETECTOR OPERATING MANUAL ACCESSORIES AND SPARE PARTS Accessories Accessories Designation Description Part Number IRDA Remote control Required adjustments TLU 600 unit maintenance TLU 600 Remote control unit Avalaible adjustments TLH 700 HART maintenance Adapting Plate Used to adapt old detector (BT05- AS049 BT606) attachments...
  • Page 64 MULTITOX DETECTOR OPERATING MANUAL Accessories Designation Description Part Number Remote calibration Accessory enabling a gas supply tube AS016  connection to be attached near the cartridge. Stainless steel sample For use with gas circuit systems. AS011-2X  flow with 2 ways Duct mounting A series of accessories for installing AS02x ...

  • Page 65: Spare Parts

    MULTITOX DETECTOR OPERATING MANUAL Accessories Designation Description Part Number Magnetic wand Required adjustments AS055 maintenance  Detector sensitivity is not modified, response time depend on the flow rate used for injection. A flow rate between 0.5 L/min and 1 L/min should comply with “standard” response time. ...

  • Page 66: Gas Table Codes & Range Table Codes

    MULTITOX DETECTOR OPERATING MANUAL Gas table codes & range table codes According to the new references: DGi-TT7-F1F2-X----- DG-TT7-F1F2-X----- Range Formula Gas name Comment Arsine Acetylene 1 ppm Ethylene 2 ppm Ethylene oxide 5 ppm Ethanol 10 ppm Dimethylene 20 ppm Propene 50 ppm Acetone...
  • Page 67 MULTITOX DETECTOR OPERATING MANUAL Range Formula Gas name Comment Ammonia 100 %LIE (2) Nitric oxide 5 LELm Nitrogen dioxide 1 ppm*m Oxygen 2 ppm*m Ozone 5 ppm*m PFBA PFBA 10 ppm*m Chlorodifluoromethane 20 ppm*m Trifluoromethane 50 ppm*m Sulphur dioxide 100 ppm*m Cyclopentane 200 ppm*m 500 ppm*m...
  • Page 68 MULTITOX DETECTOR OPERATING MANUAL Range Formula Gas name Comment Ethylene (special : low interf.C2H6) Propane (special: low interf. CH4) Methane (special : low interf.C3H8) Octane -CFH R134a Kerosene Tetrachloroethene Ethylene Special customer (EG) HC lourd F1850 Special customer COCH MTBE H2S + CH4 Hydrogen sulfide + Methane...

  • Page 69: Declaration Of Conformity

    MULTITOX DETECTOR OPERATING MANUAL Declaration of conformity NOSP17668 Revision 03...
  • Page 70 MULTITOX DETECTOR OPERATING MANUAL NOSP17668 Revision 03...
  • Page 71 MULTITOX DETECTOR OPERATING MANUAL NOSP17668 Revision 03...
  • Page 72 No. 51 Jinzang Road, TX 77429, 62027 ARRAS Cedex, SHANGHAI Free Trade Zone, FRANCE CHINA Tel.: +1-713-559-9200 Tel.: +33 (0)3 21 60 80 80 Tel.: +86-134-8229-5057 www.teledynegasandflamedetection.com © 2021 TELEDYNE OLDHAM SIMTRONICS. All right reserved. NOSP17668 Revision 03a / February 2021...
