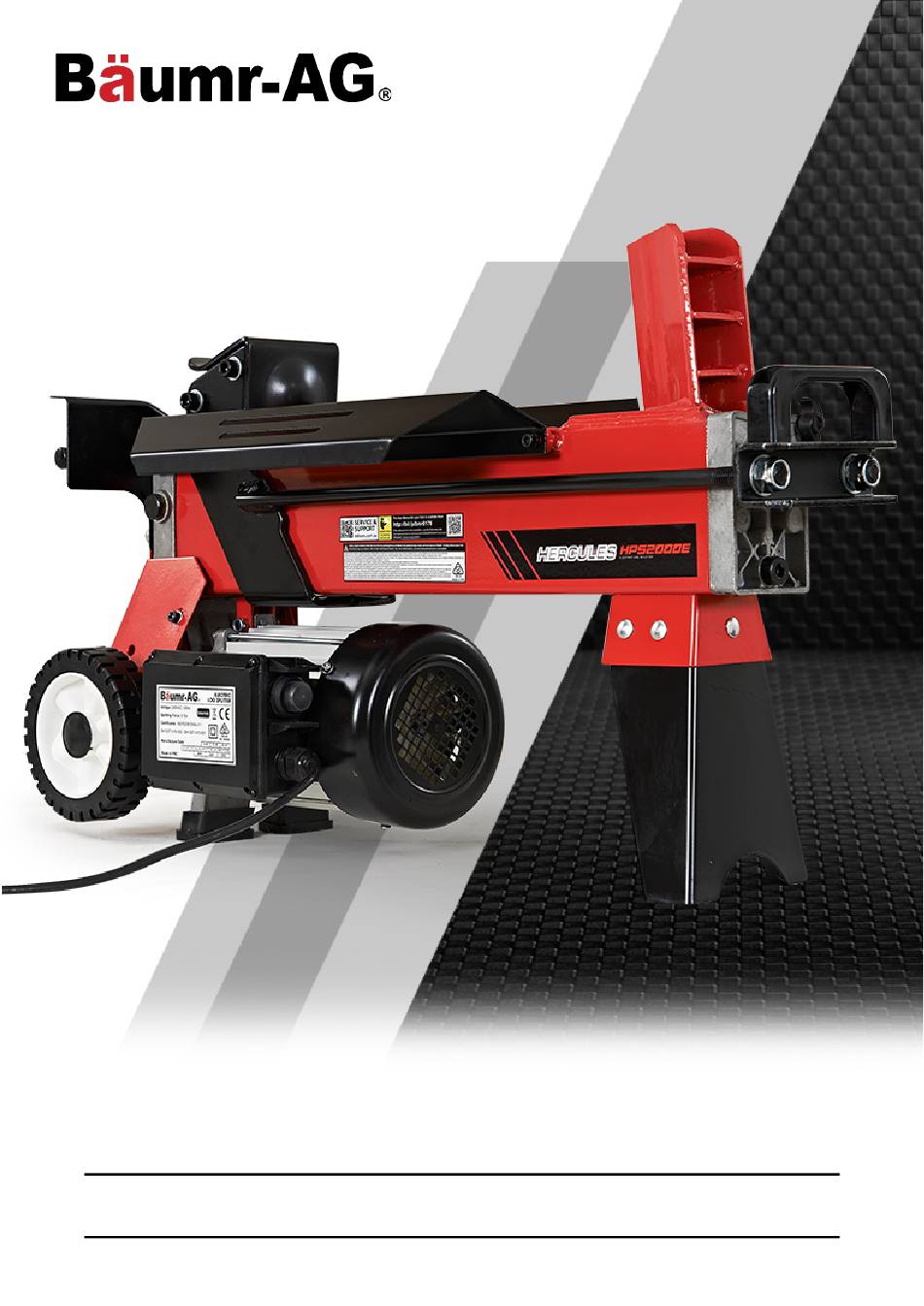

Electric Log Splitter
HPS2000E
User Manual
[Revision 1.0 May 2020]
READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY
DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by
this manual may vary in appearance, assembly, inclusions, specifications, description and packaging.
E&OE
© 2020 Baumr-AG
1
Advertisement
Table of Contents
Related Manuals for Baumr-AG HPS2000E
Summary of Contents for Baumr-AG HPS2000E
- Page 1 READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance, assembly, inclusions, specifications, description and packaging. E&OE © 2020 Baumr-AG...
-
Page 2: Safety
Electric Log Splitter - HPS2000E Safety Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or equipment or property damage if not understood or followed. Safety messages have the following symbols: You WILL be KILLED or... - Page 3 Electric Log Splitter - HPS2000E General Electrical Safety General Electrical Safety General Service Information • Inspect electrical equipment, extension • Electrically grounded equipment must have • The equipment must be serviced or cords, power bars, and electrical fittings for an approved cord and plug and be repaired at authorised service centres by damage or wear before each use.
- Page 4 Electric Log Splitter - HPS2000E PROTECT THE ENVIRONMENT. Take used oil to an authorized collection point or follow the stipulations in the country where the log splitter is used. Do not discharge into drains, soil or water. MAINTAIN YOUR LOG SPLITTER WITH CARE. Keep the log splitter clean for best and safest performance.
-
Page 5: Safety Symbols
Electric Log Splitter - HPS2000E Safety Symbols The product may have safety warning labels attached to it, explained below. Understand the symbols on your product and their meanings. If any stickers become unreadable, unattached etc., replace them. Flammable Material Hazard... - Page 6 Electric Log Splitter - HPS2000E Carbon-Monoxide Hazard Pull Hazard Slope / Fall Injury Hazard "Slam Dunk" Warning Do not use the product in Be aware that the product Be aware that using the product Do NOT attempt "slam dunk" confined areas or without...
-
Page 7: Table Of Contents
Electric Log Splitter - HPS2000E Table of Contents Safety ................................2 Safety Symbols ................................5 Parts Identification ............................8 Controls and Features ..............................8 Parts Drawing and Parts List ............................9 Assembly ..............................11 Operation ..............................12 General Operation ..............................12 Freeing a Jammed Log ............................. -
Page 8: Parts Identification
Electric Log Splitter - HPS2000E Parts Identification Controls and Features Name Name Name Log pusher Log-retaining plates Hydraulic control lever Worktable Switch Control lever guard Wedge Motor Bleed screw Lift handle Push button control box Oil drain bolt w/ dipstick... -
Page 9: Parts Drawing And Parts List
Electric Log Splitter - HPS2000E Parts Drawing and Parts List NO. NAME NO. NAME Lever Mount Nut Flat Washer Nut Cap Screw Lever Wheel cover Lever Knob Block turn Guard Plate Wheel Washer Copper Gasket Wheel shelf Screw Bolt O-ring... - Page 10 Electric Log Splitter - HPS2000E NO. NAME NO. NAME Sliding Pressure Sensor Sleeve Spring Gear Shaft Aluminium Cover (Rear) Steel Ball O-ring Gear Piston Piston Ring Washer O-ring Bolt Spring Motor Cover Stud Seal Hydraulic Cylinder Aluminium Cover (Front) Screw...
-
Page 11: Assembly
Electric Log Splitter - HPS2000E NO. NAME NO. NAME Plastic Insert 2 Sliding Sleeve Log Pusher Bolt Assembly 1. Bolt the Support Leg to the Log Splitter, lift the log splitter by the handles at both ends and place it on a 60 - 75cm high, stable, flat and level work surface. -
Page 12: Operation
Electric Log Splitter - HPS2000E Operation NOTE: This log splitter is a home use model. It is designed for operating under ambient temperatures between +5°C and 40°C and for installation at altitudes no more than 1000m above M.S.L. The surrounding humidity should less than 50% at 40°C. It can be stored or transported under ambient temperatures between -25°C and 55°C. -
Page 13: Freeing A Jammed Log
Electric Log Splitter - HPS2000E Freeing a Jammed Log 1. Release both controls. 2. After the log pusher moves back and completely stops at its starting position, insert a wedge wood under the jammed log. 3. Start the log splitter to push the wedge wood to go completely under the jammed one. - Page 14 Electric Log Splitter - HPS2000E DO NOT ATTEMPT TO KNOCK THE JAMMED LOG OFF. ATTEMPTING TO KNOCK IT OFF WILL DAMAGE THE MACHINE OR MAY LAUNCH THE LOG AND CAUSE AN ACCIDENT. E&OE © 2020 Baumr-AG...
-
Page 15: Maintenance
Electric Log Splitter - HPS2000E Maintenance Replacing the Hydraulic Oil Replace the Hydraulic oil in the log splitter after every 150 hours of use. Follow these steps to replace it. 1. Make sure all moving parts come to a complete stop and the log splitter is unplugged from the main power source. -
Page 16: Troubleshooting
Electric Log Splitter - HPS2000E Troubleshooting PROBLEM PROBABLE CAUSE REMEDY SUGGESTED Refer to Operation section for Log is improperly positioned. proper log loading. The size or hardness of the log exceeds the Reduce the log’s size before capacity of the machine. -
Page 17: Specifications
Electric Log Splitter - HPS2000E Specifications Max. Splitting Force 6 Tonnes Max. Splitting Log Length 370mm* Log Diameter 50-250mm* (species dependent - view Buying Guide) Wedge Hardened steel Cycle Time 12 sec Hydraulic Oil Capacity 2.4L Hydraulic Oil Type ISO 22 Grade... - Page 18 ©2020 Baumr-AG. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning or recording, or any information storage and retrieval system,...
