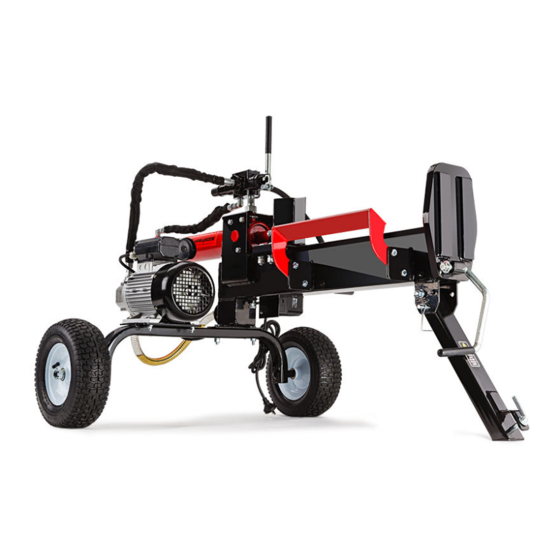

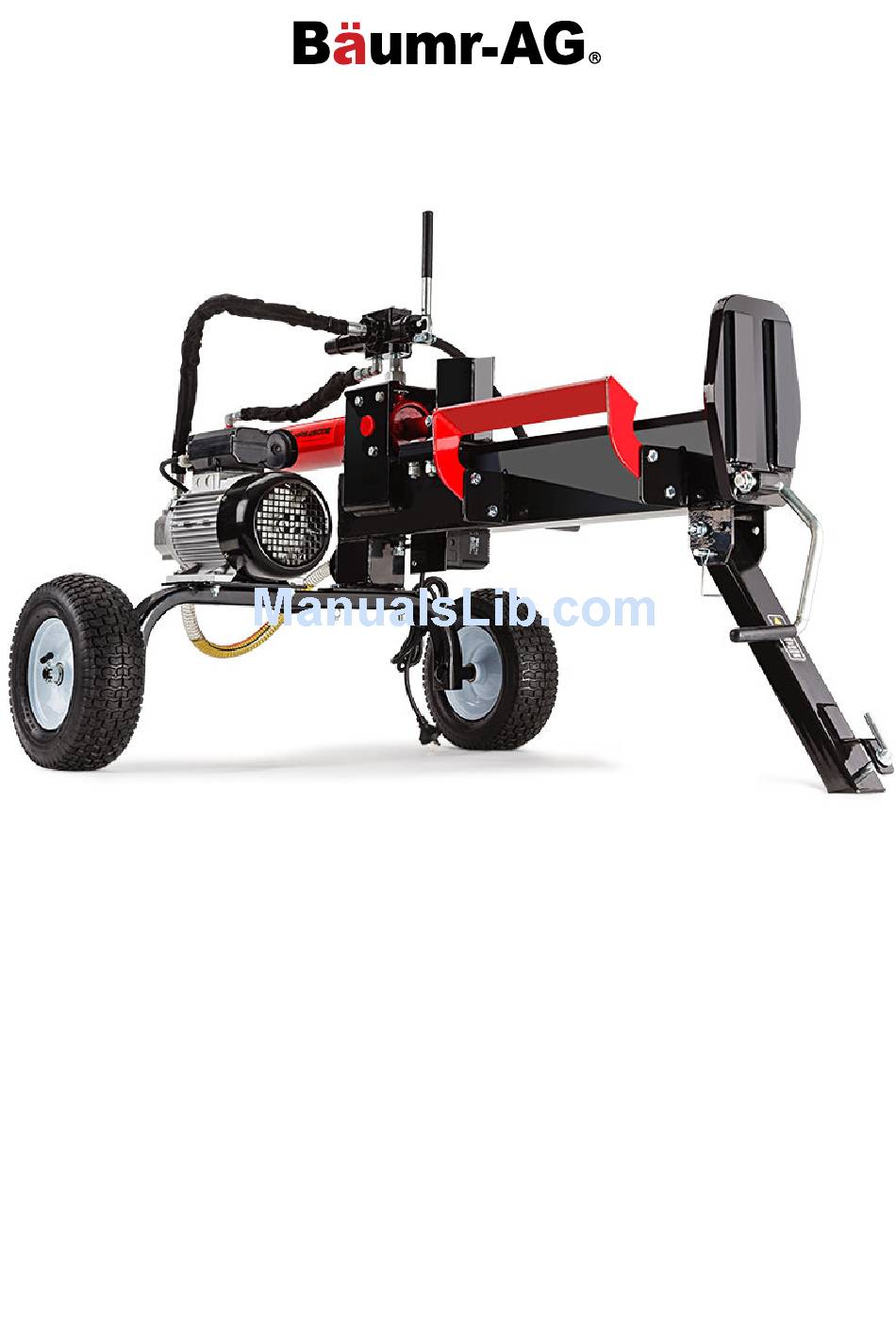

- Page 1 Electric Log Splitter - 20 Ton User Manual RETAIN THIS MANUAL FOR FUTURE REFERENCE PLEASE READ THIS MANUAL CAREFULLY BEFORE USE...
-
Page 2: Table Of Contents
Electric Log Splitter - 20 Ton Table of Contents Safety ..................................1 Controls and Features Identification ........................ 2 Set-Up ..................................3 Step 1: Cylinder Cover Assembly ........................4 Step 2: Double Handle Assembly ........................4 Step 3: Wheel Assembly ..........................5 Step 4: Attach Beam to the Wheel Stand ....................... -
Page 3: Safety
Electric Log Splitter - 20 Ton Safety READ and UNDERSTAND this manual completely before using the 20 Ton Log Splitter. • Operator must read and understand all safety and warning information, operating instructions, maintenance and storage instructions before operating this equipment. Failure to properly operate and maintain the log splitter could result in serious injury to the operator or bystanders. -
Page 4: Controls And Features Identification
Electric Log Splitter - 20 Ton Controls and Features Identification Read this owner’s manual before operating the equipment. Familiarize yourself with the location and function of the controls and features. Save this manual for future reference. 1. Beam – 4.7” 2. -
Page 5: Set-Up
Electric Log Splitter - 20 Ton Set-Up CAUTION! Read and follow all instructions for assembly and operation. Failure to properly assemble this equipment could result in serious injury to the user or bystanders, or cause equipment damage. Hydraulic Oil Tank is shipped without Oil. •... -
Page 6: Step 1: Cylinder Cover Assembly
Electric Log Splitter - 20 Ton Step 1: Cylinder Cover Assembly 1. Take off the cylinder cover (#21) from beam, then put the cylinder cover (#21) between cylinder (#72) and wedge (#2) 2. Pull the cylinder (#72) back to the beam, screw with hex bolt M8x20 (#18), flat washer Ø8 (#23) and lock washer Ø8 (#22). -
Page 7: Step 3: Wheel Assembly
Electric Log Splitter - 20 Ton Step 3: Wheel Assembly 1. Attach the wheels (#74) to the wheel stand (#73) secure using flat washer Ø16 (#64), thin hex slotted nut M16 (#63) and cotter pin Ø4x30 (#75). Step 4: Attach Beam to the Wheel Stand 1. -
Page 8: Step 5: Attach Front Support Leg And Handle Bar To The Beam
Electric Log Splitter - 20 Ton Step 5: Attach Front Support Leg and Handle Bar to the Beam 1. Attach the front support leg (#12) to the beam (#1) secure using hex bolt M10x90 (#14), flat washer Ø10 (#15), lock washer Ø10 (#16) and nylon lock nut M10 (#17). Then fix the lock pin (#13). 2. -
Page 9: Step 7: Attach The Switch
Electric Log Splitter - 20 Ton Step 7: Attach the Switch 1. Attach switch (#48) to the mounting plate using Screw M6x12 (#55), lock washer Ø6 (#32) and flat washer Ø6 (#33). Step 8: Attach the Pipe 1. Connect the oil inlet pipe (#26) to the connector Z 1/2"-M14*1.5(#60). 2. -
Page 10: Step 9: Attach The Log Cradle
Electric Log Splitter - 20 Ton Step 9: Attach the Log Cradle 1. Attach the log cradle (#11) to the beam using hex bolt M10x25 (#49) and nylon lock nut M10 (#17). -
Page 11: Step 10: Add Hydraulic Oil
Electric Log Splitter - 20 Ton Step 1O: Add Hydraulic Oil 1. The log splitter needs to be on a flat, level surface before adding the hydraulic oil. 2. Remove the oil cap from the hydraulic oil tank. 3. Add approximately 1.37 gallons of hydraulic oil, 10W-AW, AW-32, ASLE H-150, ISO 32 Universal Hydraulic Fluid or Dexron III Transmission Fluid. -
Page 12: Operation
Electric Log Splitter - 20 Ton Operation WARNING! Before operating or using the log splitter, review the instructions below and all safety information. Failure to follow these instructions may result in property damage or injury to the operator or bystanders. •... - Page 13 Electric Log Splitter - 20 Ton 6. The log splitter must have at least seven feet of clearance from combustible material. It needs to be on a dry and level surface with good footing. Do not work on mud, ice, brush or snow. When using the log splitter the work zone must be maintained at all times.
- Page 14 Electric Log Splitter - 20 Ton 12. Make sure hands are clear from the wedge and crush hazard areas. CRUSH WARNING! − Wedge can cut through skin and break bones. Keep both hands away from wedge and beam slide. − Serious accidents can happen when other people are allowed inside the work zone.
-
Page 15: Maintenance
Electric Log Splitter - 20 Ton Maintenance WARNING! Improper maintenance and storage of the log splitter may void your warranty. • Before performing maintenance, the log splitter must be placed in maintenance mode. Turn off the engine and move the control lever forward and backwards to relieve the hydraulic pressure. •... -
Page 16: Troubleshooting
Electric Log Splitter - 20 Ton Troubleshooting Problem Cylinder rod will not move SOLUTION: A,D,E,H,J Slow cylinder rod speed when extending SOLUTION: A,B,C,H,I,K or retracting Wood will not split or splits extremely SOLUTION: A,B,C,F,I,K slowly Motor bogs down during splitting SOLUTION: G Engine stalls under low load condition SOLUTION: D,E... -
Page 17: Technical Specifications
Hydraulic Oil Capacity 5.2L 10W-AW, AW-32, ASLE H-150, ISO 32, Universal Hydraulic Oil Type Hydraulic Fluid, Dexron III Transmission Fluid Hydraulic Seal Patented Baumr-AG Sure-Seal™ system. Safety System Dual Redundancy Tyres 12 Inch Pneumatic Runs off a 10 Amp plug. - Page 18 Some experts believe the incorrect or prolonged use of almost any product could cause serious injury or death. For information that may reduce your risk of serious injury or death consult thepoints below and additionall y , the information available at www.datastreamserver.com/safety - Consult all documentation, packaging and - The product has been supplied by a general merchandise...
