Wästberg w242 Pastille alu Instructions

w242 Pastille alu
Instructions
1.
4.
Page 1 / 2
2.
5.
Ø20mm Ø20mm
Wästberg
Box 5085
200 71 Malmö
Sweden
wastberg.com
3.
15-50mm
6.

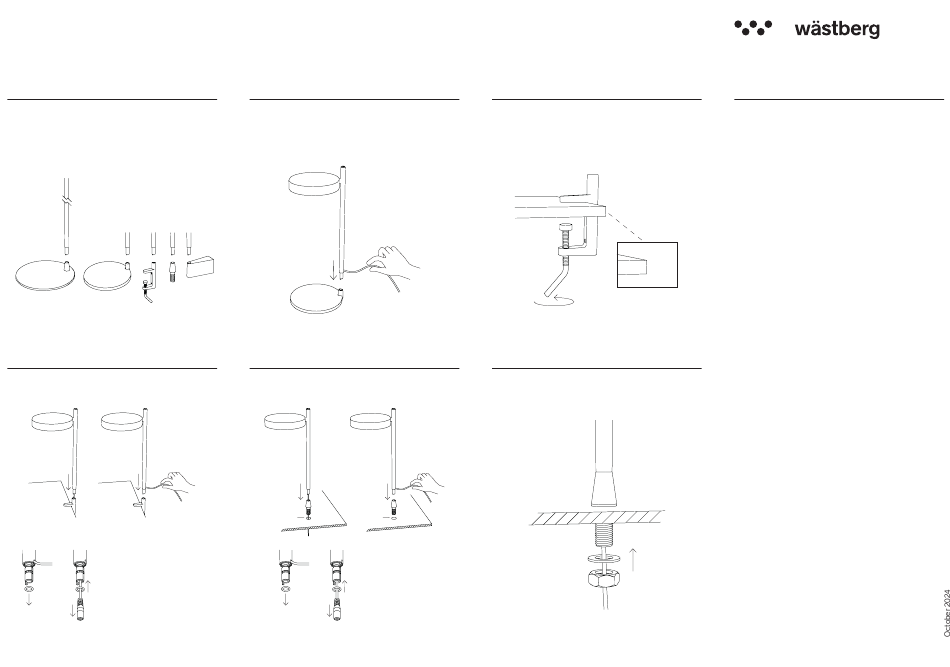

Mounting instructions
1.
There are five different mounting accessories to
attach the lamp to.
2. Floor / Table
Attach the lamp to the base.
3. Clamp
Secure the clamp by turning the screw.
4.
Attach the lamp to the clamp.
Pull the cord through the clamp or the hole in the pole.
For the pull through variant remove the rubber ring,
put the cable through it and place the rubber ring
again.
5. Pin
Pull the cord through the pin or the hole in the pole.
For the pull through variant remove the rubber ring,
put the cable through it and place the rubber ring
again.
Place the pin in the hole, Ø20 mm hole size.
6.
Secure with the washer & nut under the table.
