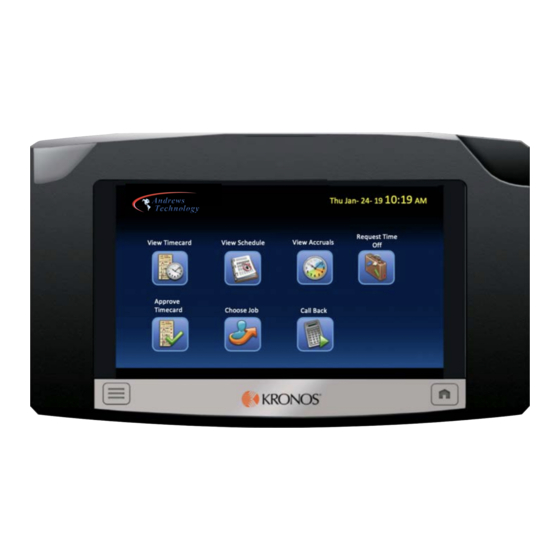

MicroSD Card Replacement Guide
for the InTouch 9100 Timeclock
Overview
This document describes how to replace the microSD card in the InTouch 9100 timeclock. Exercise care when handling the
microSD card to prevent damaging it or its holder.

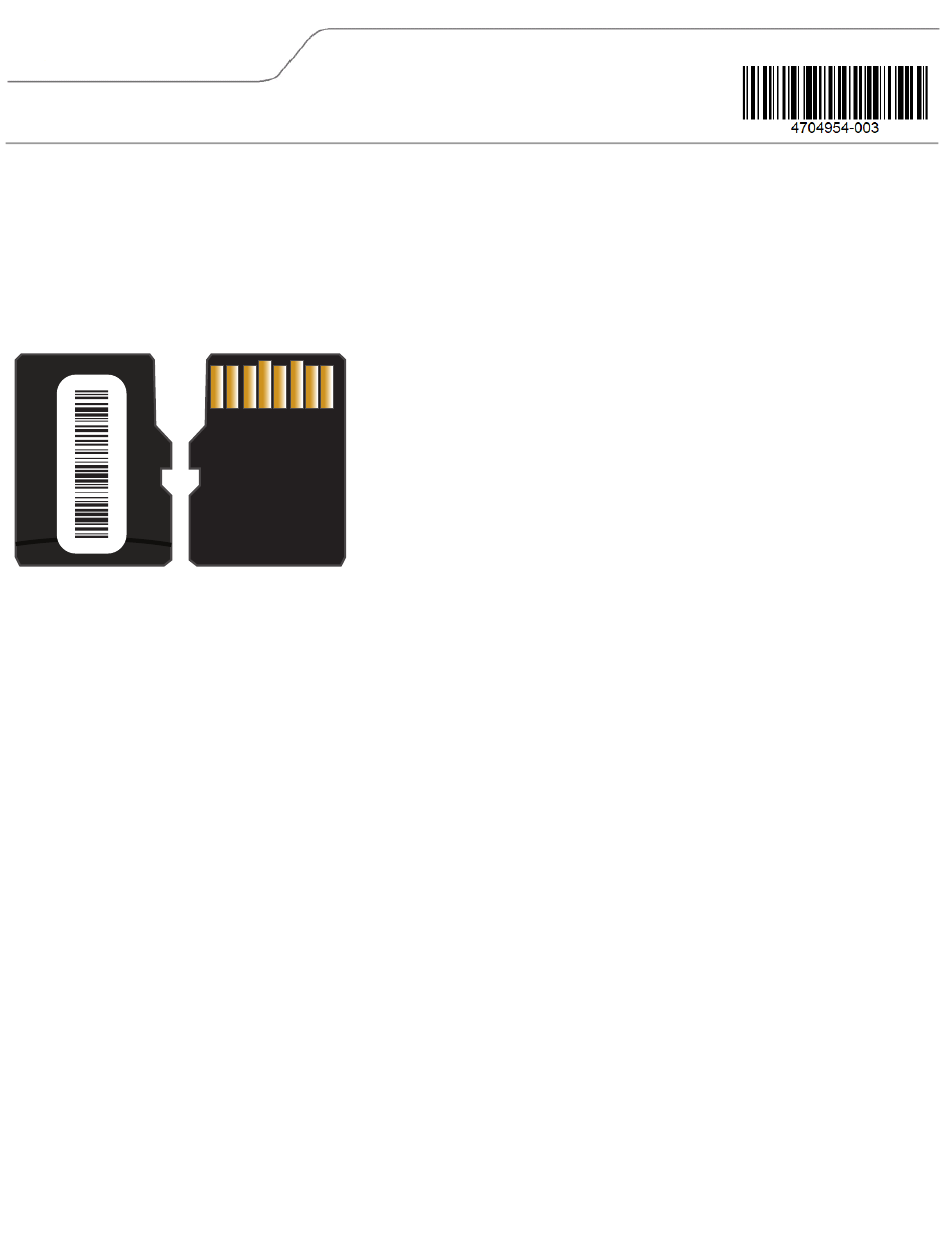

Contents of kit
front
Required tool
L-shaped security wrench that was supplied with the InTouch 9100 timeclock.
Before you begin: The InTouch 9100 timeclock
must be fully powered down before performing this
operation.
back (showing contacts)
Revision C
