BOTTOM FREEZER
MODEL: ER-J4032BF(SV)
Owner's Manual
Please read this manual carefully before
operating your set.
Retain it for future reference.
Record model number and serial number
of the set.
See the label attached on the set and
quote this information to your dealer
when you require service.
For The Warranty Terms & Conditions, Please Refer To Warranty Certificate
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Elba ER-J4032BF(SV)
Summary of Contents for Elba ER-J4032BF(SV)

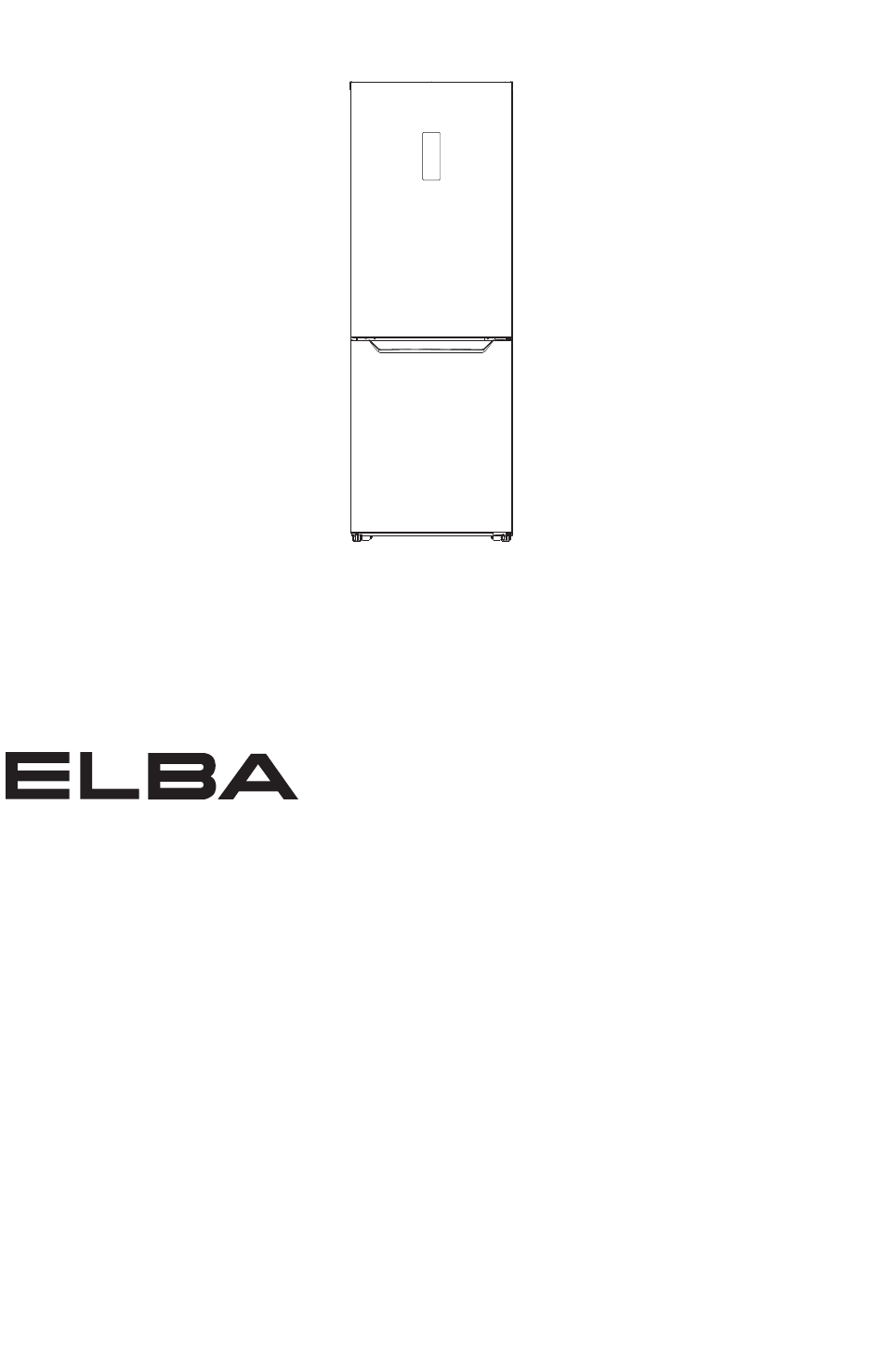

- Page 1 BOTTOM FREEZER MODEL: ER-J4032BF(SV) Owner’s Manual Please read this manual carefully before operating your set. Retain it for future reference. Record model number and serial number of the set. See the label attached on the set and quote this information to your dealer when you require service.
-
Page 3: Table Of Contents
CONTENTS 1. SAFETY PRECAUTIONS……………………………………………………………………………….1 2. INSTALLATION…………………..……………………………………………………………………….2-3 3. PRODUCT DESCRIPTION…………………………………………………………………………………4 3.1 OVERVIEW………………………………………………………………………………………………4 3.2 CONTROL PANEL……………………………………………………………………………………5 3.3 OPERATING THE CONTROL PANEL………………………………………………………………6 3.4 MEAT & VEGETABLES CONVERSION CONTROL ………………………………………………7 3.5 MODE DESCRIPTION ………………………………………………………………………………7-8 3.6 COMPARTMENTS OVERVIEW……………………………………………………………………8-9 4. DAILY TIPS …………………… …………………………………………………………………………10 4.1 FREEZING FRESH FOOD ………… ………………………………………………………………10 4.2 RECOMMENDATIONS FOR PRESERVATION OF FROZEN FOOD …………………………10 4.3 DEFROSTING ………………………………………………………………………………………10 5. -
Page 4: Safety Precautions
REMOVE ALL PACKING MATERIALS FROM THIS APPLIANCE BEFORE USING IT. THIS APPLIANCE MUST BE INSTALLED ON A FLAT SURFACE. PLEASE ENSURE THE ELECTRICITY SUPPLY TO THIS APPLIANCE IS DISCONNECTED BEFORE INSTALLING. Please read this instruction carefully. It is advisable to keep this instruction manual in a safe place for future reference. -
Page 5: Installation
2. INSTALLATION 1. This appliance is heavy. Care should be taken when moving it. 2. When you transport the appliance, the angle between the compartment body and the ground should not be less than 45º. WARNING: Never put the appliance upside down. 3. - Page 6 6. Allow the side of the appliance keep at least 50mm distance when installing and allow the door be open 135 1071 1007 7. Please make sure the appliance levelling feet according to the installation condition, please adjust the feet to the suitable level. If the appliance not level, the doors and magnetic seal alignments will not be covered properly.
-
Page 7: Product Description
3. PRODUCT DESCRIPTION 3.1 Overview 1. Tempered glass shelves 2. Conversion room control panel 3. Moist fresh zone 4. Conversion room 5. Freezer Drawer 6. Balcony / Rack 7. Level feet * The above image is for reference purpose only. The actual appliance maybe slightly different. -
Page 8: Control Panel
3.2 Control Panel 1. Fridge Compartment Temperature Display 2. Freezer Compartment Temperature Display 3. ECO Mode 4. Holiday Mode 5. Quick Cooling Mode 6. Child Lock 7. Temperature Control for Fridge Compartment 8. Temperature Control for Freezer Compartment 9. Mode / Lock / Unlock 3.2.1 Display The control panel display will be lit up for 2 minutes once the door is opened. -
Page 9: Operating The Control Panel
3.3 Operating the Control Panel 3.3.1 Temperature Control of Fridge Compartment The freezer control panel situated in the appliance regulates the temperature setting. The internal temperature is controlled by a control panel. Temperature setting can choose from 2°C, 3°C, 4°C, 5°C, 6°C, 7°C, 8°C according to each temperature setting by touching the panel. -
Page 10: Meat & Vegetables Conversion Control
3.4 Meat & Vegetables Conversion Control This individual conversion room can be switch according to user needs and temperature will be adjusted accordingly. 1. When the button turn to “Fresh Meat” position, the temperature will be turn to a lower temperature and this zone will become a place to storage a short-term of fish or other fresh food. -
Page 11: Holiday Mode
Holiday Mode Press “Mode” button to enter the Holiday mode program. When the Holiday mode is selected, the Holiday mode icon will flash for 5 seconds and the selected mode has been set. System will automatically turn the fridge temperature to 17°C and freezer temperature remain unchanged. - Page 12 Other Compartment The below chart is the suggested foods to be stored in each compartment. Compartment Suggested Foods to place Freezer Compartment Various frozen food such as meat, fish, ice cream, prawn Drawers and etc. Egg Tray Fridge Compartment Food in pans, covered plates and closed containers Shelves Fridge Compartment Small and packaged food or drinks (such as milk, fruit...
-
Page 13: Daily Tips
4. DAILY TIPS 4.1 Freezing fresh food It is recommended to wrap or cover the food before placing them in the refrigerator. Hot food must cool down to the room temperature before putting them in the refrigerator. The food that you want to freeze must be fresh and in good quality. Food must be divided into portions according to the family’s daily or meal based consumption needs. -
Page 14: Cleaning And Maintenance
5. CLEANING AND MAINTENANCE 1. Always ensure that the electrical main is turned off and unplugged before cleaning the appliance. 2. Remove the tempered glass shelf by lifting up and pull out slowly. 3. Remove each balcony / rack by lifting up and pull out slowly. 4. -
Page 15: Troubleshooting
6. TROUBLESHOOTING Failure Failure Reason Possible Solution The plug is not plugged or is Plug in and turn on the power. loose. Appliance does not work The fuse on the plug has blown. Change the fuse. Turn the temperature regulator Appliance freezes or too Temperature is set too cold.
