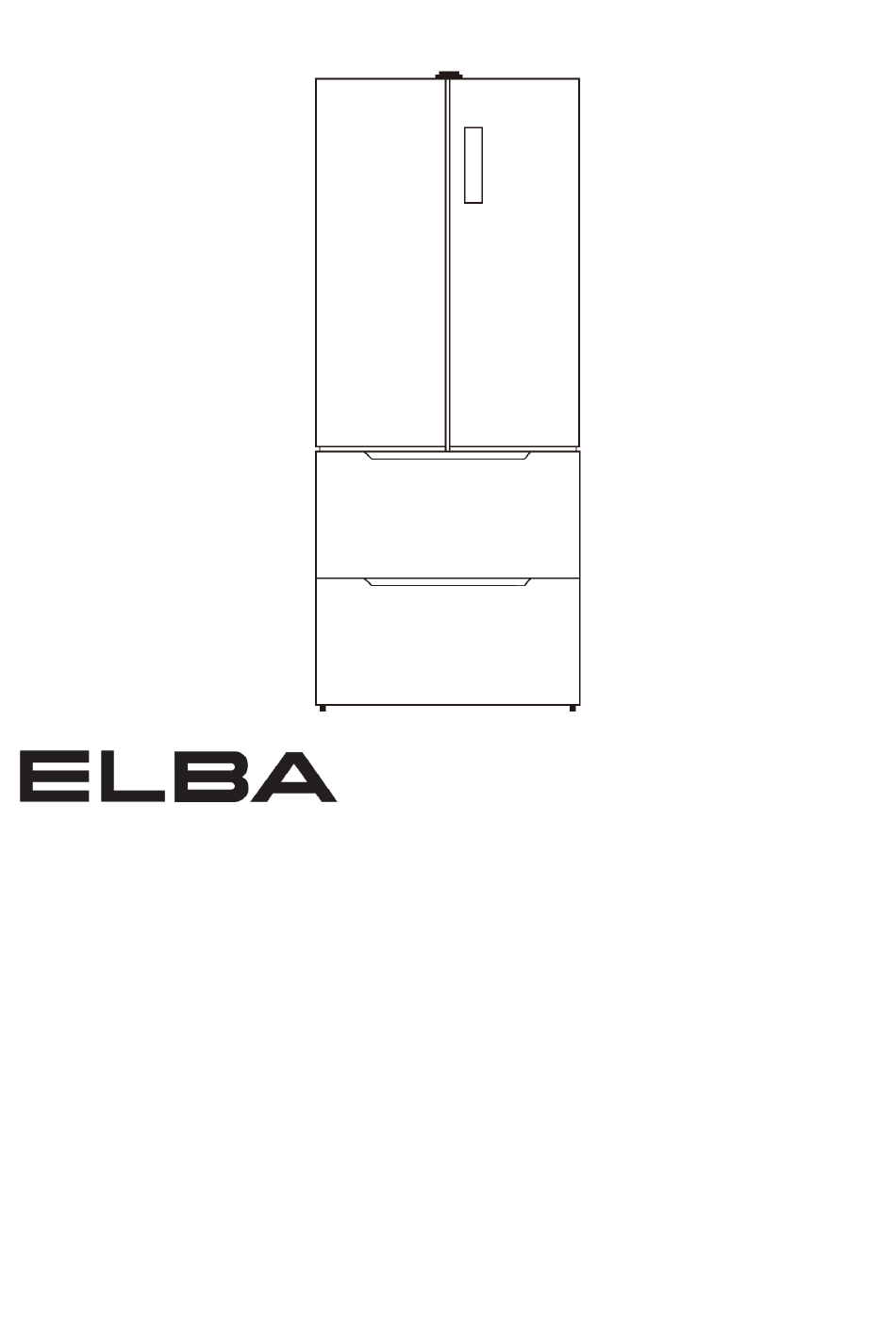

FRENCH DOOR REFRIGERATOR
MODEL: ER-M5342FD(SV)
Owner's Manual
Please read this manual carefully before
operating your set.
Retain it for future reference.
Record model number and serial number
of the set.
See the label attached on the set and
quote this information to your dealer
when you require service.
For The Warranty Terms & Conditions, Please Refer To Warranty Certificate
Advertisement
Table of Contents
Related Manuals for Elba ER-M5342FD
Summary of Contents for Elba ER-M5342FD
- Page 1 FRENCH DOOR REFRIGERATOR MODEL: ER-M5342FD(SV) Owner’s Manual Please read this manual carefully before operating your set. Retain it for future reference. Record model number and serial number of the set. See the label attached on the set and quote this information to your dealer when you require service.
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY PRECAUTIONS………………………………………………………………….……2-3 2. INSTALLATION………………………………………………………………………………….4-5 3. PRODUCT DESCRIPTION…………………………………….….……………………………...6 3.1 OVERVIEW…………………………………………………………………………………...…...6 3.2 CONTROL PANEL………………………………………………………………………...…...7-9 3.2 OPERATING….….………………………………………………………………………...…...7-9 3.4 COMPARTMENT………………………….……………………………………………….….….9 3.5 DOOR ALARM…………………………….……………………………………………….….…10 4. DAILY TIPS………………………………………………………………………………………..10 4.1 FREEZING FRESH FOOD……………………………………………………………………..10 4.2 RECOMMENDATIONS FOR PRESERVATION OF FROZEN FOOD…………………….10 4.3 DEFROSTING…………………………………………………………………………...…...….11 5. CLEANING AND MAINTENANCE……………………………………………………………..11 6. -
Page 3: Safety Precautions
REMOVE ALL PACKING MATERIALS FROM THIS APPLIANCE BEFORE USING IT. THIS APPLIANCE MUST BE INSTALLED ON A FLAT SURFACE. PLEASE ENSURE THE ELECTRICITY SUPPLY TO THIS APPLIANCE IS DISCONNECTED BEFORE INSTALLING. Please read this instruction carefully. It is advisable to keep this instruction manual in a safe place for future reference. - Page 4 Safety Warning Symbols Prohibition Symbol Any in compliance with instructions marked with this symbol may result in damage to the product or endanger the personal safety of the user. Warning Symbol It is required to operate in strict observance of instructions marked with this symbol;...
-
Page 5: Installation
2. INSTALLATION 1. This appliance is heavy. Care should be taken when moving it. 2. When you transport the appliance, the angle between the compartment body and the ground should not be less than 45º. WARNING: Never put the appliance upside down. 3. - Page 6 6. Allow the side of the appliance keep at least 50mm distance when installing and allow the door be open 130º. 7. Please make sure the appliance levelling feet according to the installation condition, please adjust the feet to the suitable level. If the appliance not level, the doors and magnetic seal alignments will not be covered properly.
-
Page 7: Product Description
3. PRODUCT DESCRIPTION 3.1 Overview 1. LED Light 2. Fridge Door 3. Tempered glass shelves 4. Fridge Balcony/Rack 5. Crisper Cover 6. Crisper 7. Electronic Humidity Control & Fresh Room 8. Multi-functional Pallet 9. Metal Drawer Slides 10. Freezer Compartment Drawer 11. -
Page 8: Control Panel
3.2 Control Panel 3.2.1 Button & Display Use your appliance according to the following control regulations, your appliance has the corresponding functions as the control panels showed in the pictures below. 3.3 Operating the Control Panel 3.3.1 Unlock Control Panel Touch and hold “Mode”... - Page 9 3.3.3 Temperature Control of Freezer Compartment The Freezer control panel situated in the appliance regulates the temperature setting. The internal temperature is controlled by a control panel. Temperature setting can choose from - 15°C to -25°C according to each temperature setting by touching the panel. The selected temperature will be set once the display temperature flash for 5 seconds.
-
Page 10: Compartment
3.3.6 Electronic Humidity Control of Fridge Fresh Room FISH & MEAT Touch “Fish & Meat” to select humidity program. When the program is selected, system will automatically turn the fresh room temperature to -4°C. Then you can place various frozen food such as fish, meat, prawn, ice cream and etc. COLD DRINK Touch “COLD DRINK”... -
Page 11: Door Alarm
3.5 Door Open Alarm Detector • When the refrigerator door is open or not closed completely for 120 seconds, the door alarm detector will be arisen with alarm sound and the temperature display panel will flash with “DR” until the door is closed. •... -
Page 12: Defrosting
4.3 Defrosting • The freezer compartment defrosts automatically NOTE: If there is an electricity cut-off, please wait 10 minutes before operating the appliance again to avoid damage to the compressor. 5. CLEANING AND MAINTENANCE 1. Always ensure that the electrical main is turned off and unplugged before cleaning the appliance. -
Page 13: Troubleshooting
6. TROUBLESHOOTING 6.1 Failure & Solution Failure Failure Reason Possible Solution The plug is not plugged or is Plug in and turn on the power. loose. Appliance Does Not Work The fuse on the plug has Change the fuse. blown. Appliance Freezes or Turn the temperature regulator Temperature is set too cold. -
Page 14: Energy Saving Tips
6. Do not set the temperature to any colder than necessary. 7. Store the food logically, do not try to overload or exceed the loading limit. 8. MAIN SPECIFICATION Model No : ER-M5342FD(SV) Gross Capacity : 530L Climatic Type Insulation Class...
