Page 1: Installation Instructions

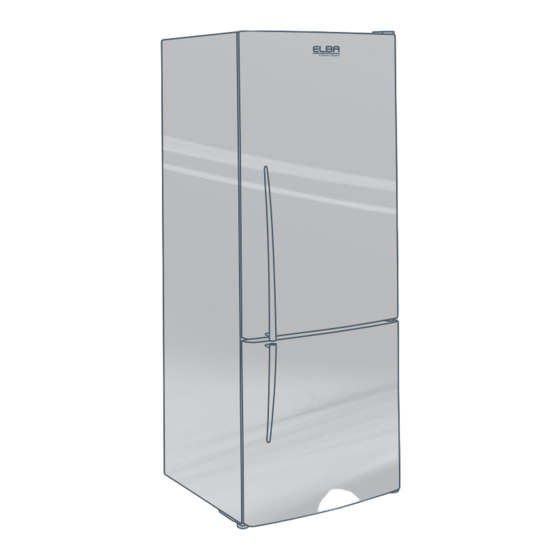

Installation instructions and user guide Refrigerator & Freezer... - Page 2 Active Smart™ models 635mm wide RF331T, RF372B, RF381T, RF402B, RF411T Cyclic and compact models models 525mm wide RF120, RF169T, RF190, RF240B, RF249T, RF270 Vertical freezer models models 525mm wide RF150, RF210 Chest freezer models models Slimline RC215, RC275, RC320 Standard...
-
Page 3: Table Of Contents
Contents General operating instructions – all products Safety and warnings Installation instructions Moving or storing your refrigerator Door conversion Active Smart™ refrigerators Operating instructions Special features Maintenance Cleaning care Cyclic and compact refrigerators Operating instructions Special features and maintenance Cleaning care Vertical freezers Operating instructions Chest freezers... -
Page 4: Safety And Warnings
Safety and warnings To reduce the risk of fire, electric shock, or injury to persons read the IMPORTANT SAFETY INSTRUCTIONS before operating this appliance. Use this appliance only for its intended purpose as described in this User Guide. Important safety precautions Warning When using this appliance always exercise basic safety precautions including the following: Danger... - Page 5 Safety and warnings Storing food and drinks Never store volatile or flammable materials in your refrigerator or freezer as they may explode. Never freeze liquids in glass containers. Liquid expands during freezing, which may cause the container to explode. Never freeze carbonated drinks. They may explode. Do not consume food if it is too cold.
-
Page 6: Installation Instructions
Installation instructions Please follow the steps for installation to ensure your appliance operates correctly. 1. Power The appliance must be installed so the plug is accessible. To ensure that the appliance is not accidentally switched off, connect your refrigerator or freezer to its own power point. - Page 7 Installation instructions 4. Ventilation and installation To ensure adequate ventilation for your refrigerator or vertical freezer, see recommended cabinetry dimensions below. To ensure adequate ventilation for chest freezers, allow a minimum of 20mm of airspace on each side of the cabinet, and 75mm at the rear. The appliance is intended to be placed against a wall with a free distance not exceeding 75mm.
- Page 8 Installation instructions Before placing food in the fresh food or freezer compartments Remove all packaging. Ensure that all transit clips are removed from the refrigerator. These are small rubber stops located at the back of the shelves. Allow the refrigerator and freezer to run empty for 2 – 3 hours to allow each compartment to cool to the appropriate temperature.
-
Page 9: Moving Or Storing Your Refrigerator
Moving or storing your refrigerator If your refrigerator or freezer is turned off for any reason, wait 10 minutes before turning it back on. This will allow the refrigeration system pressures to equalise before restarting. Moving your refrigerator Turn off the appliance and unplug from the power point. Remove all food. Turn the adjustable feet to the right as far as they will turn (see page 4). -
Page 10: Active Smart™ Refrigerators Operating Instructions
Active Smart™ operating instructions Models: 635mm wide RF331T, RF372B, RF381T, RF402B, RF411T Temperature control When the refrigerator is first turned on, the powerful cooling system will automatically cool both refrigerator and freezer compartments to their set temperatures. This will take between 2 – 3 hours depending on the temperature and humidity of the environment. - Page 11 Active Smart™ operating instructions Freezer food compartment To adjust the freezer temperature press the compartment select button until the light flashes on the freezer compartment indicator. The freezer temperature can be altered by pressing the increase or decrease temperature buttons. One press on either of these buttons will produce a dimmer light which indicates a small change in temperature.
-
Page 12: Sabbath Mode
Active Smart™ operating instructions Sabbath mode To activate the Sabbath mode press the compartment select button on the temperature control panel for 10 seconds. When the product is in sabbath mode: The light will not operate when the door is opened. The door alarm will not operate. -
Page 13: Special Features
Active Smart™ special features Fruit and vegetable bins and humidity control cover The fruit and vegetable bins feature a unique cover which provides two functions: The humidity cover seals the bins and provides a humid microclimate to extend storage times of fruits and vegetables. - Page 14 Active Smart™ special features Fault alarms If the electronic controller detects a fault from which it is unable to recover an alarm will sound. When the fresh food compartment door is opened a fault code (specific pattern of lights) will flash red and green on the Control panel to alert you to the fault.
-
Page 15: Maintenance
Active Smart™ maintenance Replacement of the interior light (Halogen light bulb) Turn the power off at the wall socket before replacing the bulb. The light bulb is located on the top roof of the cabinet at the front. Remove the lens cover using a small screwdriver. Insert the screwdriver in the front centre of the lens cover and gently lever down. -
Page 16: Cleaning Care
Active Smart™ cleaning care – interior/exterior Interior It is important to keep the interior of the refrigerator and freezer clean to help prevent food from becoming contaminated during storage. The amount and types of food stored determines how often cleaning should be carried out (ideally once every 1 to 2 weeks) in the refrigerator. - Page 17 Active Smart™ cleaning care – special features Interior Glass shelves Clean with warm water and detergent or a glass cleaner. If cleaning the shelves without removing from the cabinet, use only warm water and detergent as a glass cleaner can damage the plastic components of your refrigerator.
-
Page 18: Cyclic And Compact Refrigerators Operating Instructions
Cyclic and compact operating instructions Models: 525mm wide RF120, RF169T, RF190, RF240B, RF249T, RF270 (Compact Models) Temperature control The control has been factory set for normal operating conditions. Allow the refrigerator to run empty for 2 – 3 hours before placing food inside the fresh food or freezer compartments. -
Page 19: Special Features And Maintenance
Cyclic and compact special features and maintenance Humidity Control lid (where fitted) Important! When cleaning the shelf above the vegetable bins, we recommend that you do not disassemble the Humidity Control lid from the shelf. Humidity control lid In the event that the plastic lid becomes separated from the glass shelf, follow these instructions to reassemble. - Page 20 Cyclic and compact special features and maintenance RF120 Ice box This is designed for short-term storage of frozen foods and ice only. It is recommended that the tray is kept in place under the ice box at all times. Fault alarms If the electronic controller detects a fault from which it is unable to recover, an alarm will sound when the door is opened.
-
Page 21: Cleaning Care
Cyclic and compact cleaning care – interior/exterior Interior It is important to keep the interior of the refrigerator and freezer clean to help prevent food from becoming contaminated during storage. The amount and types of food stored determines how often cleaning should be carried out (ideally once every 1 to 2 weeks) in the refrigerator. - Page 22 Cyclic and compact cleaning care Defrosting models with ice boxes The RF120 is designed for short-term storage of frozen foods and ice only. Remove all frozen food and wrap it in several layers of paper. Place in a cool environment e.g. insulated bin.
-
Page 23: Vertical Freezers Operating Instructions
Vertical freezer operating instructions Models: 525mm wide RF150, RF210 Temperature control The cabinet control is located at the bottom rear of the cabinet. The control has been factory set to position 4 for normal operating conditions. The freezer temperature should be approximately -18°C. Re-adjust the control as necessary to suit your individual preference. -
Page 24: Special Features And Maintenance
Chest freezers special features and maintenance Defrosting your chest freezer It is recommended that your freezer be defrosted when the frost is greater than 6 to 10mm thick using the plastic scraper provided. Remove all frozen food and wrap it in several layers of paper. Place in a refrigerator compartment or a cool environment e.g insulated bin. -
Page 25: Storing Food In Your Refrigerator
Storing food in your refrigerator Storing fresh, perishable foods in your refrigerator helps to extend storage times. The cold temperatures slow down the major causes of food spoilage – namely, the growth of bacteria, moulds and yeasts, and chemical and physical reactions. Fresh food care The quality of food before it is placed in the refrigerator is critical to successful storage. - Page 26 Storing food in your refrigerator Red Meat Place fresh red meat on a plate and loosely cover with waxed paper or plastic wrap or foil. Store cooked and raw meat on separate plates. This will prevent any juices lost from the raw meat from contaminating the cooked product. Delicatessan meats should be used within the recommended storage time.
-
Page 27: Storing Food In Your Freezer
Storing food in your freezer The use of temperatures of -18˚C or colder to store food means that the food can be kept for longer periods than when refrigeration temperatures are used. This is because the growth of bacteria, moulds and yeasts are stopped, and chemical and physical reactions are severely restricted at very low temperatures. - Page 28 Storing food in your freezer Meat, Poultry and Game Do not try to freeze more than 1kg meat per 25L freezer capacity. Meat must be frozen quickly in order to maintain its texture. Do not stuff poultry before freezing. Red meat can be cooked from frozen, or from the partly or completely thawed states.
-
Page 29: Problem Solving Checklist
Problem solving checklist If there is a problem with your appliance, please check the following points before contacting your local Fisher & Paykel Appliances Authorised Service Centre Dealer or Customer Care Centre. Problem Possible causes What to do Appliance does No electricity at power outlet Check that the plug is correctly not operate... - Page 30 Problem solving checklist Problem Possible causes What to do Sides of cabinet This is normal are warm Condensation Not unusual during periods of Wipe dry on outside of high humidity refrigerator/ freezer Condensation Frequent or long door openings Minimise door openings inside fresh food Door gasket leaking Check that gasket is sitting flat and...
-
Page 31: Customer Care Information
Customer care Before you call for service or assistance… Check the things you can do yourself. Refer to your User Guide and check: Your appliance is correctly installed You are familiar with its normal operation You have read the problem solving at the back of the book If after checking these points you still need assistance please refer to the following... - Page 32 Copyright © Fisher & Paykel 2008. All rights reserved. The product specifications in this booklet apply to the specific products and models described at the date of issue. Under our policy of continuous product improvement, these specifications may change at any time.
