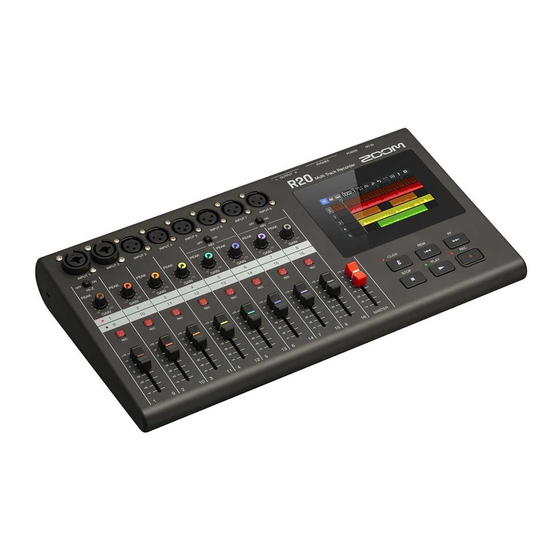

Zoom R20 Manual

Production studio

Hide thumbs Also See for R20:

Download this manual

Recording AUDIO with R20 Multi Track Recorder (ZOOM)

1. Plug the preferred

microphone in the

Multi Track

Recorder:

For the wired

microphones, plug

the XLR end into

the appropriate

input. (If you need

Phantom Power,

make sure to

connect to input 5

through 8 and

switch to 48V)

For the wireless

microphones, plug

the receiver to

input 1 or 2 and

turn on one, or

both microphones.

Need help?

Do you have a question about the R20 and is the answer not in the manual?

Page 1 Recording AUDIO with R20 Multi Track Recorder (ZOOM) 1. Plug the preferred microphone in the Multi Track Recorder: For the wired microphones, plug the XLR end into the appropriate input. (If you need Phantom Power, make sure to connect to input 5...
Page 2 2. Insert your SD card if you wish to save your recording work (It will save it automatically) 3. When you see new project on the touch screen, hit create to get started. 4. Connect headphones to the Multi Track recorder.
Page 3 6. The click setting is automatic but can be turned oﬀ. 7. Press the record button under the touchscreen to start recording and press the stop button to end the recording. 8. To listen to the recording, move the slider to the beginning of the recording, or press the rewind button.
