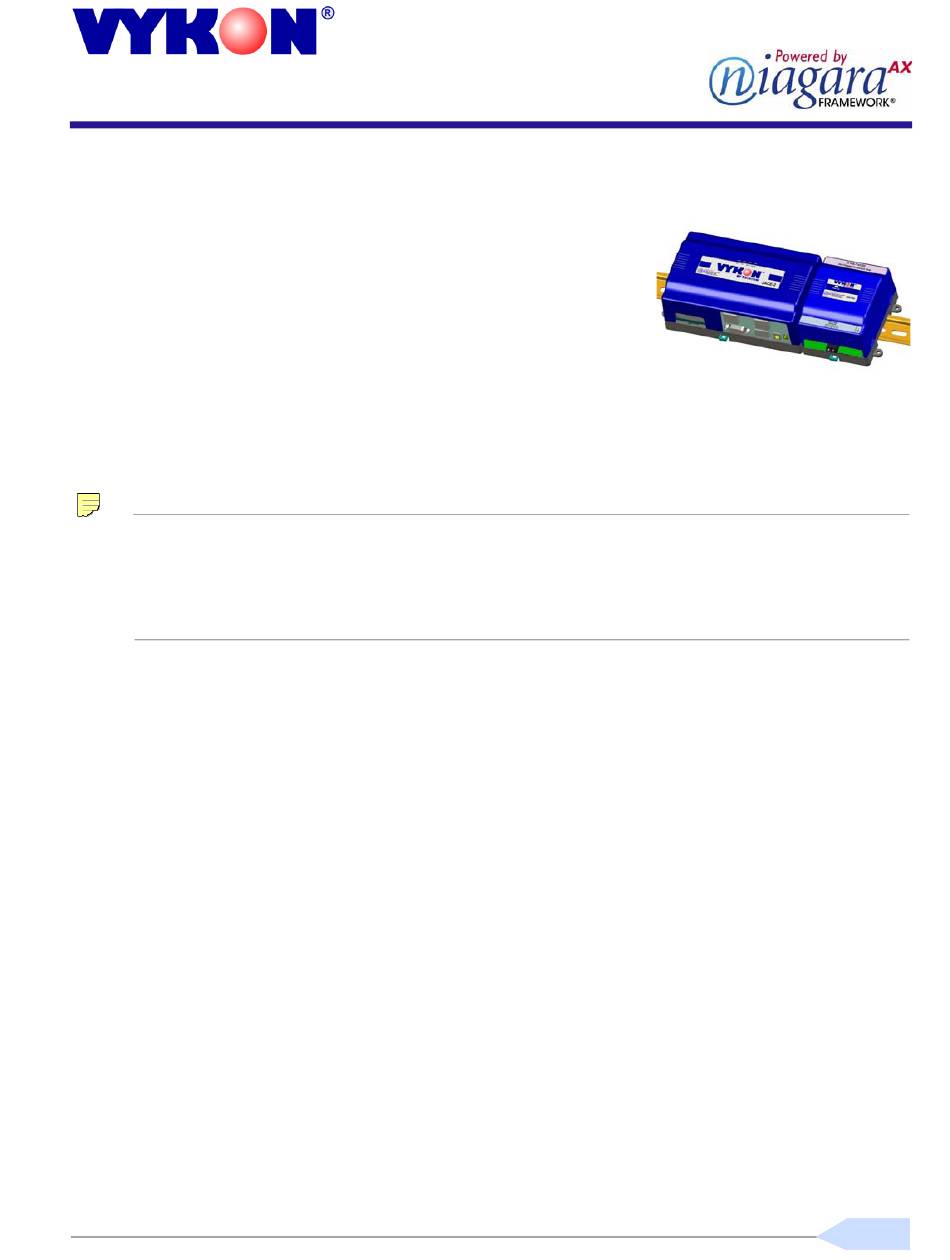

This document covers the mounting and wiring of the VYKON
series (JACE 6) controller. It assumes that you are an engineer, technician,
or service person who is performing control system installation.
Instructions in this document apply to the following products:
Models
Description
JACE-600
JACE-6 base unit controller, powered by (either):
NPB-PWR
24Vac/dc input/15Vdc output power module, DIN mountable
NPB-PWR-UN
90–263Vac universal input/15Vdc output power module, DIN mountable
Wall-mount universal AC power adapter, with different models available,
WPB-XXX
where -XXX is either: -US, -EUR, or -UK (vary by AC wall plug).
Not covered in this document is the Niagara
Note
fully functioning unit. This includes setting host IP address and password, serial port configuration, and
other parameters. Refer to the JACE NiagaraAX Install and Startup Guide for this information.
In addition, the mounting and wiring of JACE
See sections
"Related Documentation,"
These are the main topics included in this document:
Preparation,
page 2
•
Precautions,
page 3
•
Mounting,
page 5
•
Board Layout,
page 7
•
About Expansion Options,
•
Wiring Details,
page 11
•
Grounding,
page 11
–
Power Wiring,
–
Communications Wiring,
–
RS-485 Biasing,
–
Power Up and Initial Checkout,
•
Using Status LEDs,
•
Maintaining the JACE-6,
•
Replacement Parts,
•
Certifications,
page 26
•
Tab Mounting Dimensions,
•
JACE, Niagara Framework, Niagara AX Framework and the Sedona Framework are trademarks of Tridium, Inc.
JACE-6 Mounting and Wiring Guide
Part Number 10821 Rev 2
JACE-6
MOUNTING AND WIRING GUIDE
page 4, and
page 8
page 11
page 14
page 16
page 19
page 20
page 21
page 23
page 28
Updated: July 13, 2011
®
JACE-6
AX
software installation and configuration required for a
®
expansion options are covered in separate documents.
"About Expansion Options,"
page 8.
1
Advertisement
Table of Contents
Related Manuals for Niagara VYKON JACE-6 Series
Summary of Contents for Niagara VYKON JACE-6 Series
- Page 1 • Certifications, page 26 • Tab Mounting Dimensions, page 28 • JACE, Niagara Framework, Niagara AX Framework and the Sedona Framework are trademarks of Tridium, Inc. JACE-6 Mounting and Wiring Guide Part Number 10821 Rev 2 Updated: July 13, 2011...
-
Page 2: Included In This Package
Preparation Included in this Package Preparation Unpack the JACE-6 and power module (NPB-PWR, NPB-PWR-UN, or WPM-XXX) and inspect the package contents for damaged or missing components. If damaged, notify the appropriate carrier at once and return any damaged components for immediate repair or replacement. See “Returning a Defective Unit”... -
Page 3: Safety Precautions
Precautions Safety Precautions Precautions This document uses the following warning and caution conventions: Cautions remind the reader to be careful. They alert readers to situations where there is a chance Caution that the reader might perform an action that cannot be undone, might receive unexpected results, or might lose data. -
Page 4: Battery Precautions
Related Documentation Battery Precautions Battery Precautions The NiMH battery used in this device may present a risk of fire or chemical burn if mistreated. Caution • Do not disassemble, heat above 122ºF (50ºC), or incinerate. Replace battery pack with type NPB-BATT only. -
Page 5: Environmental Requirements
Mounting Environmental Requirements Mounting Mount the JACE-6 controller in a location that allows clearance for wiring, servicing, and module removal. Environmental Requirements Note the following requirements for the controller’s mounting location: This product is intended for indoor use only. Do not expose the unit to ambient conditions outside of the •... -
Page 6: Removing And Replacing The Cover
Mounting Removing and Replacing the Cover Figure 1 JACE-6 controller and accessory mounting details. Mounting on DIN Rail Removing from DIN Rail DIN rail NPB-PWR or End Clip NPB-PWR-UN JACE-6 Install DIN rail End Clip DIN Rail (Stop Clip) at both ends of End Clip final assembly. -
Page 7: Board Layout
Board Layout Removing and Replacing the Cover Figure 2 Press in four tabs on ends of cover to remove cover. Cover Cover Tabs lifted (2 each end) away Press Tabs In If accessory modules are plugged into the controller, you may need to slide them away from the unit to Note get to the cover tabs. -
Page 8: About Expansion Options
About Expansion Options About Option Cards About Expansion Options The JACE-6 controller provides for field-installable expansion with two kinds of options: Option cards—Install on connectors inside the controller base unit. See “About Option Cards”. • Accessory modules—To “chain” on the JACE-6’s 20-pin end connector. See “About Accessory •... - Page 9 About Expansion Options About Option Cards Table 1 JACE-6 option cards. (continued) Model Description Notes NPB-SRAM Provides “battery-less” operation. Requires AX-3.6 or later. Does not use/affect COM port operaton. Card has static RAM (SRAM) and integral backup capacitor for data Note: Use requires removing NiMH battery pack and any external 12V storage during power lost periods.
-
Page 10: About Accessory Modules
About Expansion Options About Accessory Modules About Accessory Modules The JACE-6 controller has a 20-pin, right-angle, Euro-DIN connector that accepts custom-built accessory modules. The connector provides power and signal lines to any connected modules, and is located on the end of the JACE-6 opposite to the option cards. -
Page 11: Wiring Details
Wiring Details Grounding Wiring Details Figure 3 on page 7 to locate connectors and other components on the JACE-6 controller. If biasing is needed for the controller's RS-485 base port, controller disassembly and reassembly is Note needed. See “RS-485 Biasing,” page 16. - Page 12 Wiring Details Power Wiring If desired, you can use the wall mount WPM-XXX in your office (to initially commission the JACE-6), and then install the JACE-6 at the job using either a NPB-PWR or NPB-PWR-UN module. The following sections provide more details: NPB-PWR (24Vac/dc-powered in-line module) •...
- Page 13 Wiring Details Power Wiring NPB-PWR-UN The NPB-PWR-UN module lets you power the JACE-6 (and if installed, IO-16 modules) from AC line power, with a universal input range from 90–263Vac. If installing IO-16 modules, the NPB-PWR-UN installs as the last (end) module in the chain. See Figure 1 on page 6.
-
Page 14: Communications Wiring
Wiring Details Communications Wiring WPM-XXX All models of wall power modules (US, EUR, UK, JA) are self-contained, isolated, switching power supplies designed to plug into a standard building power receptacle of appropriate voltage. To supply power to the JACE-6, you then simply plug the barrel connector plug from the WPM-XXX into the barrel power connector on the JACE-6 base board (see Figure 6 on page 14). - Page 15 Wiring Details Communications Wiring Serial There are two serial ports on the JACE-6 base unit. Each has a UART capable of operation up to 115,200 baud. At the bottom of the board (see Figure 6), the left port is an RS-232 port using a DB-9 plug (male) connector.
- Page 16 Wiring Details RS-485 Biasing RS-485 Biasing The RS-485 port on the controller’s base board has a pair of two-pin jumpers that can be shorted with jumper blocks to provide “biasing”. As shipped from the factory, these pins are not shorted, thus the RS-485 port is unbiased.
- Page 17 Wiring Details RS-485 Biasing If the controller is already installed or mounted, it is recommended that you remove it first. Then work on a flat, stable, and well-lit work surface. Figure 7 Basic stages of controller disassembly. Cover removed, reveals metal shield Philips head screws...
- Page 18 Wiring Details RS-485 Biasing Carefully pry up the NPM-6 board, noting that the two-row, 50-pin connector is on the option card Step 6 side. Keep the board level as you work it loose from this connector. Set the NPM board aside. Note the jumper block on the base board behind the RS-485 port. Step 7 Procedure 5 Installing shorting blocks to add RS-485 biasing.
-
Page 19: Power Up And Initial Checkout
Power Up and Initial Checkout Connect the Backup Battery Power Up and Initial Checkout Ensure power wiring to the JACE-6 controller is ready—see the “Power Wiring” section on page 11. Refer to Figure 3 on page 7 for the locations of the JACE-6 battery connector, status LEDs and barrel power connector (for WPM-XXX only). -
Page 20: Using Status Leds
Using Status LEDs Check the Status LEDs Check the Status LEDs When power is applied, the green LED labeled “STATUS” will light. This indicates that the system is OK and that power is applied. Once the JACE-6 boots, the yellow “BEAT” (heartbeat) LED will begin blinking, with a typical rate of about 1 Hz. -
Page 21: Serial Ports
Maintaining the JACE-6 Heartbeat Heartbeat The “BEAT” LED is located to the right of the Ethernet status LEDs, and is yellow. Under normal operation, this LED should blink about once per second. If the heartbeat LED stays on constantly, does not light, or blinks very fast (more than once per second), contact System Engineering for technical support. -
Page 22: Required Battery Maintenance
Maintaining the JACE-6 Required Battery Maintenance Required Battery Maintenance Battery life expectancy is a function of its discharge cycles (the number of discharges and their depth) and the ambient temperature of the battery during normal operation. In most applications, the battery should see relatively few discharges. -
Page 23: Non-Replaceable Parts
Replacement Parts Non-replaceable Parts Replacement Parts Servicing the JACE-6 controller may call for replacement parts. There are three categories of parts: Non-replaceable Parts • Standard Replacement Parts • New Replacement Units • Non-replaceable Parts Other than the parts listed in the replacement parts sections, there are no serviceable components on the base assembly. -
Page 24: Replacing The Jace-6 Base Assembly
Replacement Parts Replacing the JACE-6 base assembly Replacing the JACE-6 base assembly Before handling circuit boards, discharge any accumulated static by touching the metal surface of Caution the JACE-6. For details, see the “Static Discharge Precautions” section on page 3. To replace the JACE-6 base assembly in the field, proceed as follows: Procedure 9 Replacing a JACE-6 base assembly. -
Page 25: Returning A Defective Unit
Replacement Parts Returning a Defective Unit Reconnect/remount any removed accessory modules, being careful to replace in the same order, using Step 10 the same DIN rail location and/or screws. Secure all accessory modules as done previously. Reconnect earth ground wires to the controller’s grounding lug and any installed accessory modules. Step 11 Reconnect any Ethernet, serial, modem, and I/O connectors to the controller and any installed Step 12... -
Page 26: Federal Communications Commission (Fcc)
Certifications Federal Communications Commission (FCC) Asia/Pacific Phone: +65 6887 5154 Fax: +65 6887 5342 Address: Email for technical support: Tridium Asia Pacific Pte Ltd 17 Changi Business Park Central 1 hclim@tridium.com Honeywell Building Attn: Mr Lim Hoon Chat, Engineering Mgr. Singapore 486073 Attn: Return Department RA# ____________ (Australia/Asia Pacific):... -
Page 27: Ce Declaration Of Conformity
Certifications CE Declaration of Conformity CE Declaration of Conformity Application of Council Directive: 2004-108-EC Manufacturer’s Name: Tridium Inc. Manufacturer’s Address: 3951 Westerre Parkway, Suite 350 Richmond, Virginia 23233 United States of America Manufacturer’s Representative: Steve Fey, President Tridium Inc. Product Model Number: JACE-600, IO-34, NPB-ZWAVE, NPB-SRAM Type of Equipment: Electrical Equipment for Measurement, Control and Laboratory Use... -
Page 28: Tab Mounting Dimensions
Tab Mounting Dimensions 0.170” Dia. 6.719” (170.66mm) (4.32mm) JACE-6 3.75” (95.25mm) Note: Electronic and printed versions of this 2.50” guide may not show the dimensions to scale. 4.00” (63.50mm) (101.6mm) Verify all measurements before drilling. DIN mounting is recommended over tab mounting. Figure 1 on page 6.
