Niagara Edge-10 Installation Manual

Edge-10 Controller (14039)

Description

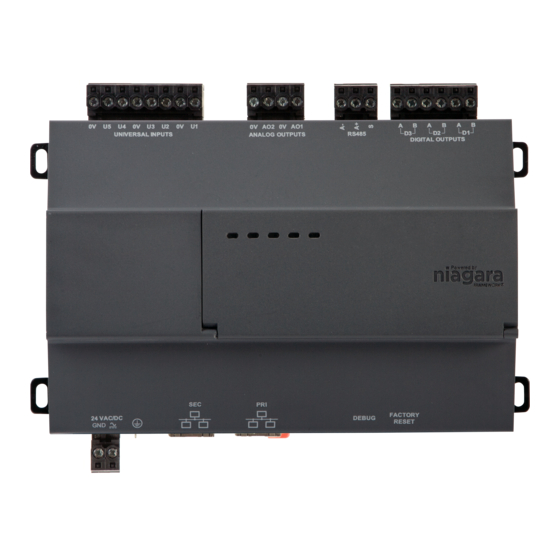

Edge-10 (14039)
DIN-mount, 24Vac/dc (50/60Hz) powered, Niagara®
controller With 10 I/O points including:
• Five Universal Inputs (UIs) compatible with 0-10Vdc,
0-20mA, dry contacts, 0-100K ohm resistive, or Type
3 thermistor temperature sensors.
• Three digital triac outputs for on/off control of 24Vac
loads upto 1/2 Amp
• Two 0-10Vdc Analog Outputs (AOs) for 0-10Vdc
analog control of loads up to 2.5K ohm minimum or
4mA drain maximum.
See the product data sheet and Edge-10 Installation and
Startup Guide for complete specifications and product
details.

Included in this package

• Edge-10 (14039) controller.
• Three-position RS485 connector plug
• Six-position connector for triac output
• Four-position connector for analog outputs
• Eight-position connector for analog inputs
• Two-position power connector, and a grounding wire
• 499 Ohm resistors (Qty. 5) for universal input use
• This Edge-10 Controller Installation Sheet.
Material & Tools Required
• One of the following:
– UL listed, Class 2, 24Vac transformer, rated at min-
imum of 7VA. A dedicated transformer is required
(cannot power additional equipment), or
– User supplied UL Listed Class 2 or LPS AC power
adapter: 24Vdc, capable of supplying at least 7W
(24Vdc at 292mA).
• DIN rail, type NS35/7.5 (35mm x 7.5mm) and
DIN rail end-clips (stop clips), recommended for
installation. Controller is also panel-mountable.
• Suitable tools and fasteners for mounting the unit and
any accessories.
Edge-10 Controller
BETA DRAFT VERSION

Warnings

Disconnect power before installation or servicing to
prevent electrical shock or equipment damage.
To reduce the risk of fire or electrical shock, install in
a controlled environment relatively free of contaminants.
Cautions:
Removal of the controller's cover is not required.
No configurable or user-serviceable items require cover
removal.

Mounting

Mount the controller in a location that allows clearance
for wiring, servicing, and removal.

Environmental Requirements

NOTE: This product is for indoor use only.
Ambient conditions must be within the range of:
• Operating Temperature: -20°C to 60°C (-4°F to 140°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Relative humidity: 5% to 95% non- condensing
• Supply voltage fluctuation and brownout tolerance:
– Allowable voltage fluctuation to +/-10%.
– 0-69% input voltage - 40ms
– 70-79% input voltage - 1 second
– 80 - 89% input voltage - 20 seconds
– 90% - 100% input voltage - indefinitely
NOTE: Horizontal mounting is strongly recommend-
ed, to achieve maximum heat dissipation and meet the
operating temperature upper limit. Any other mounting
orientation reduces this upper limit.
