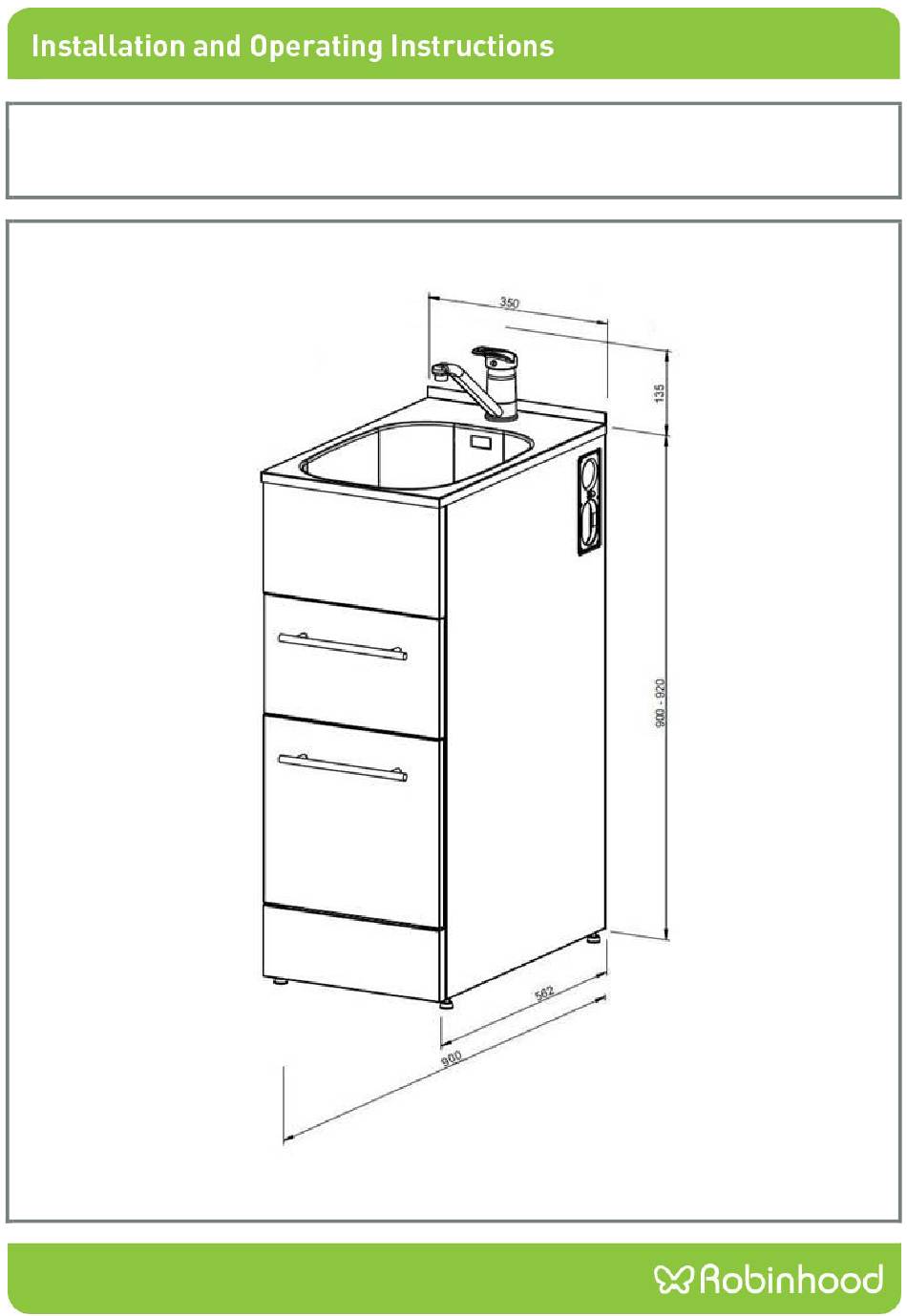

- Page 1 ST7002SLIM Issue: 1 Description: ROBINHOOD SUPERTUB DOUBLE DRAWER SLIM Model Number: ST7002SLIM Model pictured: ST7002SLIM All dimensions in mm Model may vary slightly from images pictured...
-
Page 2: Regulation Compliance
Allow 10mm clearance between the units. Mark the position on the floor as reference. Important safety information This Robinhood Supertub is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the Robinhood Supertub. - Page 3 Installing the Supertub Confirm if the washing machine waste inlet needs to be moved from right to left before securing the unit to the wall. If they do need to be changed see page 6 of these installation instructions. Fit the four adjustable feet supplied to the bottom of the cabinet and adjust to align with worktop or washing machine height.
- Page 4 Installing the washing machine water inlet and waste outlet Cable tie 3 way ball valve 3 way ball valve caps Washing machine hoses Confirm if the washing machine waste inlet needs to be moved from right to left before securing the unit to the wall.
- Page 5 To adjust the height of individual draws (±2.0mm) simply adjust the position of the screw as shown below. The handles are to be connected to all two drawers of the Robinhood laundry tub. To fix handle to the drawer, firstly clear the existing holes from the front using the screws supplied. Insert screw &...
- Page 6 Changing the washing machine inlet from right to left The washing machine outlet waste hose can be connected to either side of the Robinhood Supertub. On the inside of the laundry tub remove the clip from the white plastic washing machine waste inlet and...
- Page 7 Suggested plumbing fittings required for Australian installations Your ST7002SLIMA Supertub is supplied with a standard 40mm waste fitting and this will require either a S or P trap for connection to your household plumbing, using the suggested parts below or as required by your licensed plumber.
- Page 8 The product was not used, cleaned or cared for in accordance with our instructions. The product was used outdoors. All Robinhood rangehoods are suitable for indoor use only, and not suitable over BBQs or charcoal cookers designed for outdoor use.
- Page 9 The product was used outdoors. 2. All Robinhood rangehoods are suitable for indoor use only and not suitable over BBQs or charcoal cookers designed for outdoor use. 3. In addition, this warranty does not extend to damage or defects which in our opinion, directly or indirectly arise from or are due to: exposing the product to acidic or corrosive materials or chemicals such as dyes, solvents, denture cleaner or acetone;...
