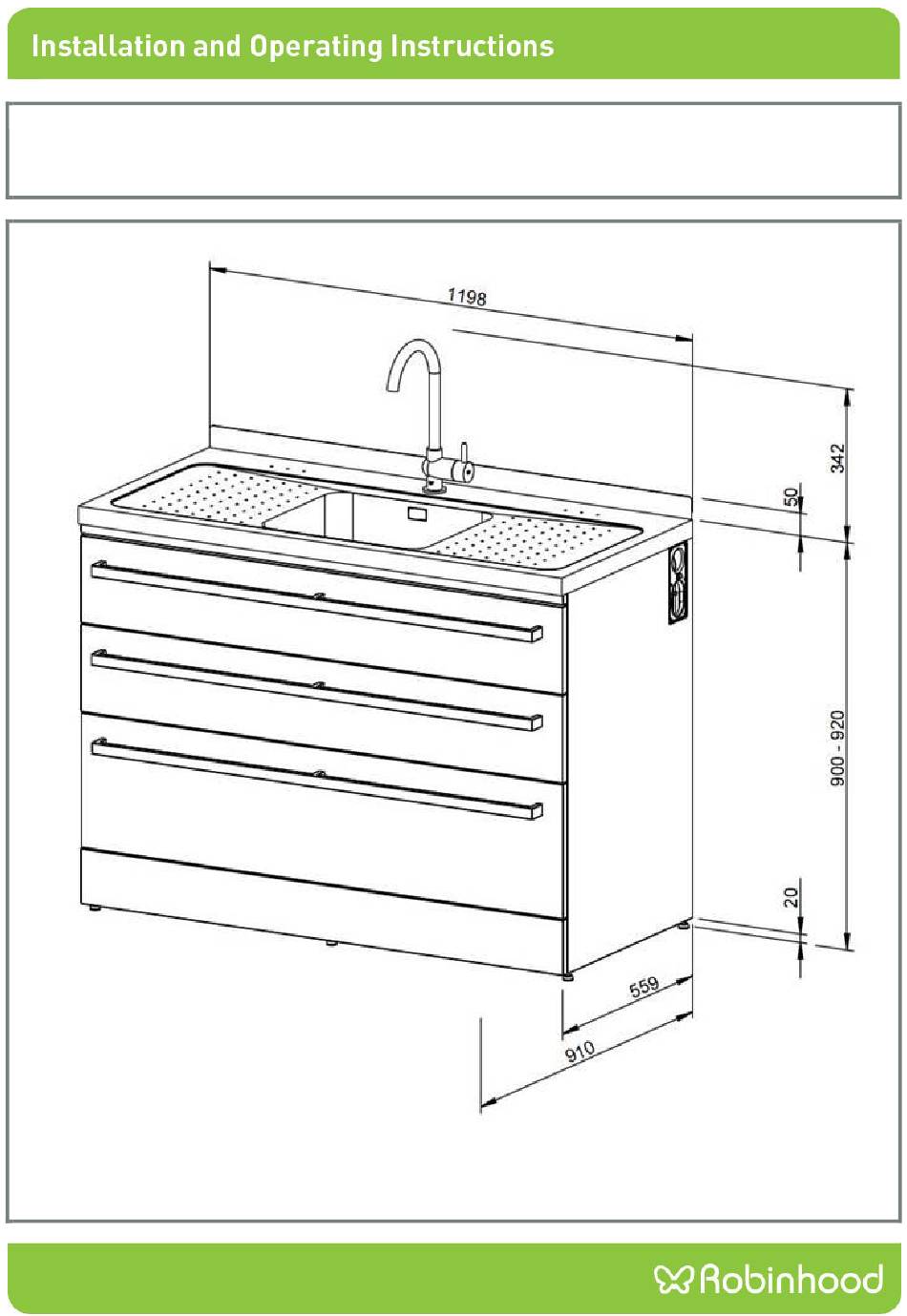

- Page 1 ST9002W Issue: 1 Description: ROBINHOOD SUPERTUB WORKSTATION Model Number: ST9002W Model pictured: ST9002W All dimensions in mm Model may vary slightly from images pictured...
-
Page 2: Contents Of Packaging
Allow 10mm clearance between the units. Mark the position on the floor as reference. Important safety information This Robinhood Supertub is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the Robinhood Supertub. - Page 3 Installing the Supertub Confirm if the washing machine waste inlet needs to be moved from right to left before securing the unit to the wall. If they do need to be changed see page 6 of these installation instructions. To ease installation, remove all three drawers, handles and washing machine hose. To remove a drawer, simply slide the drawer out to its full extent, lift the front and pull to remove.
- Page 4 Installing the Supertub Position the laundry tub and cut the house waste pipe (which should already be installed) to the exact height. The final height will depend on the waste trap dimensions. Fasten the laundry tub to the wall through any of the holes in the rear flanges. Alternative fastening can be achieved through the floor.
- Page 5 Adjusting the Cabinet Drawers * Maximum draw loading 15kg evenly distributed To adjust the height of individual draws (±2.0mm) simply adjust the position of the screw as shown below. The handles are to be connected to all three drawers of the Robinhood laundry tub.
-
Page 6: Cleaning And Maintenance
Changing the washing machine inlet from right to left The washing machine outlet waste hose can be connected to either side of the Robinhood Supertub On the inside of the laundry tub remove the clip from the white plastic washing machine waste inlet and... - Page 7 Suggested plumbing fittings required for Australian installations Your ST9002WA Supertub is supplied with a standard 40mm waste fitting and this will require either a S or P trap for connection to your household plumbing, using the suggested parts below or as required by your licensed plumber.
- Page 8 The following conditions apply in respect of the warranty given in this certificate: Monaco Corporation Limited (Monaco) Limited warrants the following Robinhood products against manufacturing defects and faulty materials, under normal use and subject to the exclusions in this certificate, for a period of: Rangehood, Ovens, Cooktops, Dishwashers - 24 months from date of original purchase for domestic use.
- Page 9 The product was used outdoors. 2. All Robinhood Rangehoods are suitable for indoor use only and not suitable over BBQs or charcoal cookers designed for outdoor use. 3. In addition, this warranty does not extend to damage or defects which in our opinion, directly or indirectly arise from or are due to: exposing the product to acidic or corrosive materials or chemicals such as dyes, solvents, denture cleaner or acetone;...
