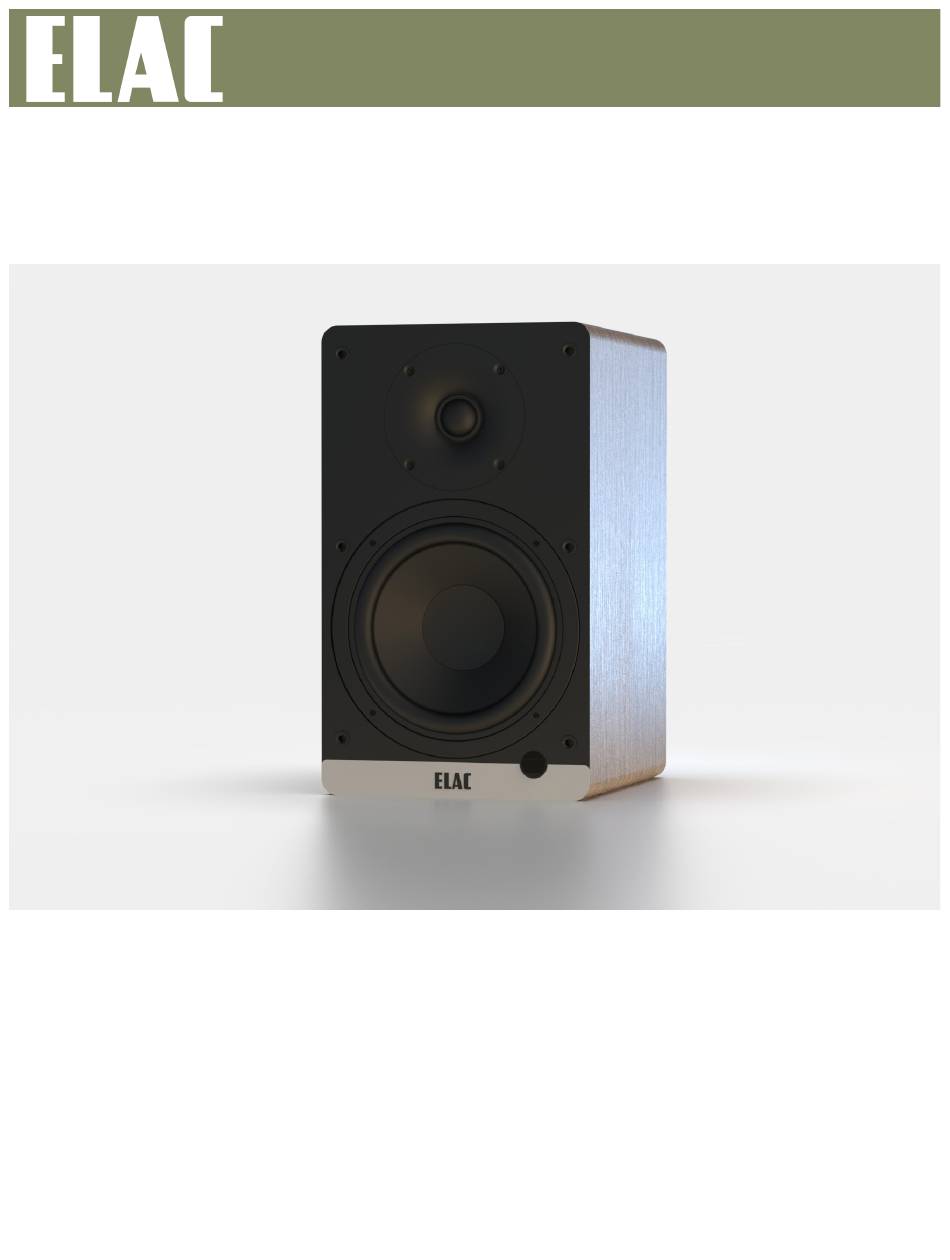

- Page 1 Debut Connex Models : DCB61 Owner’s Manual...
- Page 2 We’re confident that you’ll enjoy the exceptional sound quality and performance they offer. The Debut ConneX DCB61 powered bookshelf speakers define how simple it can be to deliver a premium audio experience for both, movies and music. Featuring a wide variety...
- Page 3 Contents Batteries Rubber Foot Remote Control Power Cord Speaker Cable HDMI Cable ELAC Debut Connex Model DCB61 | www.elac.com Page 3...
- Page 4 Connections 1. Connect speakers together with supplied wire 2. Connect source - TV, Computer, Phono 3. Connect source - Bluetooth 4. Connect AC mains ELAC Debut Connex Model DCB61 | www.elac.com Page 4...
- Page 5 Power/Standby: The unit will standby after 15 minutes of no use. Pressing or rotating the volume knob as well as pressing power button on remote will wake up unit. SERIAL NUMBER ELAC Debut Connex Model DCB61 | www.elac.com Page 5...
-
Page 6: Connections - Turntable
If you choose to use the turntable’s Phono pre-amplifier, then ensure its switch is set to ON postion and DCB61 is set to OFF. The Ground connection is optional. It is recommended to be used as it can lower residual noise. ELAC Debut Connex Model DCB61 | www.elac.com Page 6... - Page 7 LEFT SPEAKER OUT DEBUT Model : DCB61 1938 N. Batavia St. Suite K 24118 Kiel, Deutschland Orange, CA, 92865 SPEAKER HDMI (ARC) HDMI (ARC) PHONO SUB OUT ON/OFF ELAC Debut Connex Model DCB61 | www.elac.com Page 7 CAN ICES-003(B)/NMB-003(B) FCC ID: 2A7OW-DCB61...
-
Page 8: Connections - Computer
ON/OFF CAN ICES-003(B)/NMB-003(B) Connect to your USB devices with USB Type B cable (printer cable). FCC ID: 2A7OW-DCB61 IC: 28740-DCB61 Designed by Elac Made in China CONNECTIONS - Firmware Update SERIAL NUMBER Copy the downloaded file onto a USB drive. - Page 9 CONNECTIONS - BLUETOOTH When initial power up - BT LED will flash if nothing is paired to it. When LED is flashing, “ELAC DCB61” is visible on your device. Pairing can also be initiated as follows: Press and hold BT source on remote until LED flashes.
-
Page 10: Remote Control
REMOTE CONTROL Power ON/OFF BT Source Xbass Previous (BT) Next(BT) Adjust LED Intensity Optical Source Phono Source USB Source Mute Volume Down Volume Up HDMI Source Remote Control Hex Codes ELAC Debut Connex Model DCB61 | www.elac.com Page 10... -
Page 11: General Information
Connect the speaker(s) according to the instructions in the manual. • Many ELAC speakers are equipped with spikes and/or anti-slip feet. They are explicitly provided for leveling the speaker. For leveling on an uneven floor, unscrew the spikes or anti-slip feet by 2-3 turns of thread. - Page 12 ELAC AMERICAS INC. ELAC ELECTROACUSTIC GMBH 1938 N. BATAVIA St. SUITE K FRAUNHOFERSTRAßE 16 D-24118 KIEL, GERMANY ORANGE, CA 92865...
