BMW G 650 XCHALLENGE Technical Data

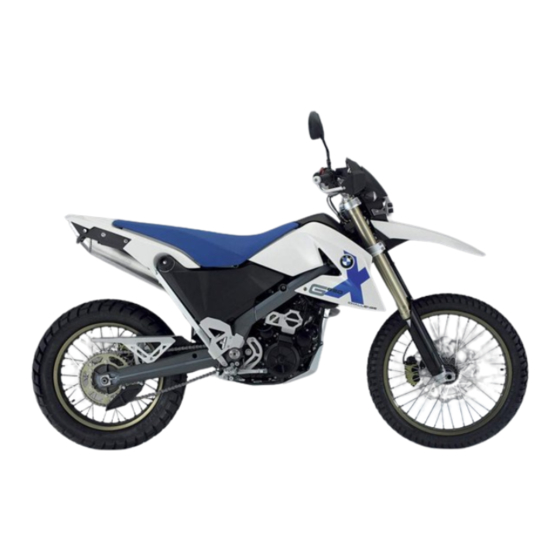

G 650 Xchallenge
The new hard enduro of the new G 650 X series from BMW Motorrad is exactly what off-road fans are looking for. High quality,
generously robust suspension components surround an excellent one cylinder high-performance engine. With its reliability,
power, low fuel consumption and low emissions thanks to its EU-3 catalytic converter and state-of the art engine management,
the Xmoto has what it takes to outclass the larger bikes as well – both on tarmac as well as on loose ground. The suspension
provides optimal control thanks to the unique BMW Motorrad Air Damping System. With this racy enduro, you're sure to be out
in front whenever the going gets tough.
Paintwork: aura white
Seat: blue
Engine
Type . . . . . . . . . . . . . . . . . . . . . . . . Water-cooled, single-cylinder
Bore / stroke . . . . . . . . . . . . . . . . . . 100 mm x 83 mm
Capacity . . . . . . . . . . . . . . . . . . . . . 652 cc
Rated output . . . . . . . . . . . . . . . . . 39 kW (53 hp) at 7,000 rpm
Max. torque . . . . . . . . . . . . . . . . . . 60 Nm at 5,250 rpm
Compression ratio . . . . . . . . . . . . . 11.5 : 1
Fuel / engine management. . . . . . . Electronic intake pipe injection /
Emission control . . . . . . . . . . . . . . Closed-loop 3-way catalytic
Performance / fuel consumption
Maximum speed . . . . . . . . . . . . . . . approx. 165 km/h
Fuel consumption per 100 km
at constant 90 km/h . . . . . . . . . . . . 3.6 l
at constant 120 km/h . . . . . . . . . . . 5.1 l
Fuel type . . . . . . . . . . . . . . . . . . . . Unleaded super, minimum octane rat-
Electrical system
Alternator . . . . . . . . . . . . . . . . . . . . three-phase alternator 280 W
Battery . . . . . . . . . . . . . . . . . . . . . . 12 V / 10 Ah, maintenance-free
Power transmission
Clutch . . . . . . . . . . . . . . . . . . . . . . . Multiple-disc clutch in oil bath,
Gearbox . . . . . . . . . . . . . . . . . . . . . Constant mesh 5-speed gearbox
Drive . . . . . . . . . . . . . . . . . . . . . . . . Endless O-ring chain with shock
1) Unladen as per DIN standard
2) Optional extra
3) In compliance with Directive 93/93/EEC with all fluids, fuelled with at least 90 % of usable tank volume
4) Unladen weight without operating fluids
4-stroke, four valves, two overhead
camshafts, dry sump lubrication
BMW engine management, twin
spark ignition
converter, emission standard EU-3
ing 95 (RON)
mechanically operated
integrated into crankcase
damping in rear wheel hub
BMW Motorrad
G 650 Xchallenge
bmw-motorrad.com
Chassis / brakes
Frame . . . . . . . . . . . . . . . . . . . . . . Bridge-type steel section frame
Front suspension . . . . . . . . . . . . . . Upside-down front fork, ø 45 mm,
Rear suspension . . . . . . . . . . . . . . . Cast aluminium dual swing arm, Air
Travel front / rear . . . . . . . . . . . . . . 270 mm / 270 mm
Wheelbase . . . . . . . . . . . . . . . . . . 1,500 mm
1
Castor . . . . . . . . . . . . . . . . . . . . . . 118 mm
1
Steering head angle . . . . . . . . . . . 62.5°
1
Wheels . . . . . . . . . . . . . . . . . . . . . . Wire spoke
Rim, front . . . . . . . . . . . . . . . . . . . . 1.60 x 21"
Rim, rear . . . . . . . . . . . . . . . . . . . . . 2.50 x 18"
Tyre, front . . . . . . . . . . . . . . . . . . . 90/90 S 21
Tyre, rear. . . . . . . . . . . . . . . . . . . . . 140/80 S 18
Brake, front. . . . . . . . . . . . . . . . . . . Single disc, ø 300 mm, double-
Brake, rear . . . . . . . . . . . . . . . . . . . Single disc, ø 240 mm, single-
ABS . . . . . . . . . . . . . . . . . . . . . . . . BMW Motorrad ABS
2
Dimensions / weights
Seat height . . . . . . . . . . . . . . . . . . . 930 mm (low seat
Inner leg curve . . . . . . . . . . . . . . . . 2,000 mm (low seat
Unladen weight, road ready . . . . . 156 kg
3
Dry weight . . . . . . . . . . . . . . . . . . . 144 kg
4
Permitted total weight . . . . . . . . . . 335 kg
Payload (with standard equipment) 179 kg
Usable tank volume . . . . . . . . . . . . 9.5 l
Reserve . . . . . . . . . . . . . . . . . . . . . approx. 2 l
Length . . . . . . . . . . . . . . . . . . . . . . 2,205 mm
Height (excl. mirrors) . . . . . . . . . . . 1,255 mm
Width (incl. mirrors) . . . . . . . . . . . . 907 mm
The Ultimate
Riding Machine
with bolted-on cast aluminium side
elements, bolted-on aluminium rear
section
rebound and compression damping
adjustable
Damping System, spring pre-load
and damping continuously variable
by air pressure
piston floating caliper
piston floating caliper
(can be switched off)
: 910 mm)
2
: 1,960 mm)
2
