3-WAY VALVE KIT TO COUPLE THE BOILER UNIT VICTRIX PRO

THIS SHEET MUST BE LEFT WITH THE USER ALONG WITH THE BOILER INSTRUCTION BOOKLET

General warnings.

All products are protected with suitable transport packaging. The material must be stored in dry environments and protected

against weathering.

This instruction manual provides technical information for installing the kit. As for the other issues related to kit installation (e.g. safety in

the work site, environment protection, injury prevention), it is necessary to comply with the provisions specified in the regulations in

force and principles of good practice.

Improper installation or assembly of the appliance and/or compo-nents, accessories, kit and devices can cause unexpected problems to

people, animals and objects. Read the instructions provided with the product carefully to ensure a proper installation. Installation and

maintenance must be performed in compliance with the regulations in force, according to the manufacturer's instructions and by authorised

professionally qualified staff, intending staff with specific technical skills in the plant sector, as envisioned by the Law.

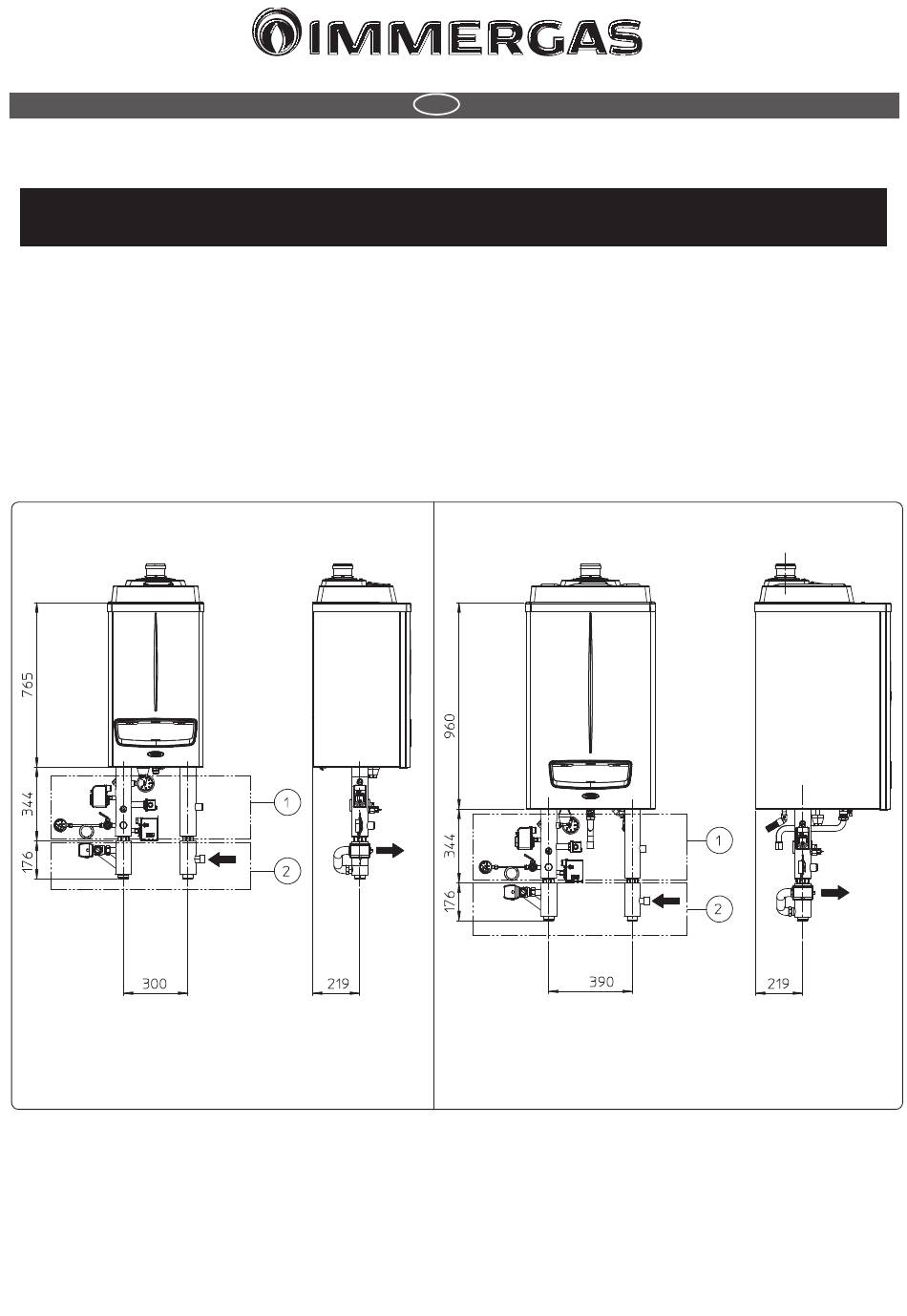

VICTRIX PRO 35 - 55

Legenda:

1 - Kit sicurezze INAIL per caldaia singola

2 - Kit tre vie per abbinamento a Unità bollitore

Cod. 1.035612 - Rev. ST.000317/002

COD. 3.023950

VICTRIX PRO 80 - 100 - 120

Key:

1 - INAIL safety devices kit for individual boiler

2 - 3-way kit for coupling to boiler unit

Fig. 1

Need help?

Do you have a question about the 3.023950 and is the answer not in the manual?

Page 1 Cod. 1.035612 - Rev. ST.000317/002 3-WAY VALVE KIT TO COUPLE THE BOILER UNIT VICTRIX PRO COD. 3.023950 THIS SHEET MUST BE LEFT WITH THE USER ALONG WITH THE BOILER INSTRUCTION BOOKLET General warnings. All products are protected with suitable transport packaging. The material must be stored in dry environments and protected against weathering.
Page 2 Kit Assembly. Assemble the 3-way brass unit (4) with the motor (5) so that the terminal block side is positioned towards side "B" printed on the 3- way brass body (4), however, accessible from the front of the boiler. Mount the pipe (6) to the mixing valve (side A) by inserting the relative gasket (7) without tightening the nut completely. Mount the valve (4) with the pipe (6) to the manifold (3) by insert-ing the relative gaskets (7) without tightening the nuts completely.
Page 3 Electrical connection: N.B.: if the boiler has a pre-assembled probe, remove it and replace it with the one present in the kit. Connect the boiler probe (B2) present in the kit on terminals R and H of the terminal block. Connect the black, orange and red wires from the motor (M30) to the terminal block of the boiler as shown in the wiring diagram below.
