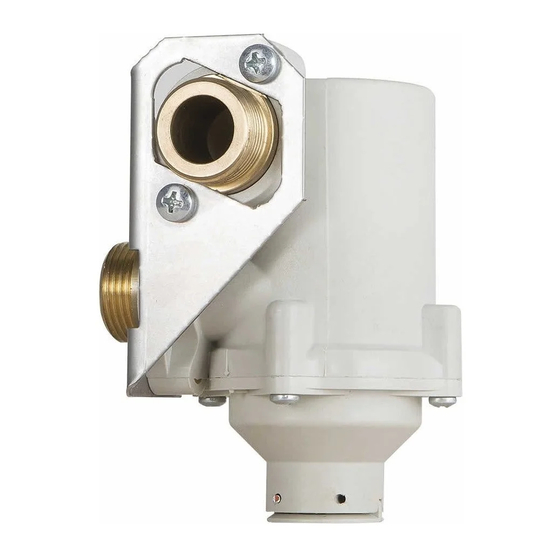

COD. 3.029367 Kit filtro ciclonico magnetico Foglio istruzioni ed avvertenze per caldaie ad incasso Magnetic cyclone filter kit Instruction and warning book for recessed boilers...
AVVERTENZE GENERALI. ISTRUZIONI PER L’INSTALLATORE. Tutti i prodotti Immergas sono protetti con idoneo imballaggio Effettuare l'installazione del filtro ciclonico sull'allacciamento da trasporto. ritorno impianto utilizzando i tubi adatti al proprio modello Il materiale deve essere immagazzinato in ambienti asciutti ed al di caldaia come rappresentato nelle figure seguenti (Fig.
Page 4
VICTRIX SERIE TT - TERA - TERA V2 - HYBRID - EXTRA ALLACCIAMENTO ANTERIORE Legenda: 1 - Filtro ciclonico 2 - Rubinetti intercettazione 3 - Guarnizioni 24x16x2 4 - Dado G 3/4" 5 - Tubo allacciamento caldaia 6 - Tubo allacciamento anteriore in incasso ATTENZIONE: In caso di installazione in Omni Container di Victrix Maior TT, Victrix TT e Victrix Hybrid prevedere impiego del kit portello maggiorato.
Page 5
This instruction manual provides technical information for CLEANING THE FILTER. installing the Immergas kit. As for the other issues related to kit - Disconnect the boiler from the power supply, close the cock installation (e.g. safety at the workplace, environmental protection,...
Page 7
VICTRIX SERIES TT - TERA - TERA V2 - HYBRID - EXTRA FRONT CONNECTION Key: 1 - Cyclone filter 2 - Cut-off cocks 3 - 24x16x2 gaskets 4 - G 3/4" nut 5 - Boiler connection pipe 6 - Recessed front connection pipe ATTENTION: In the event of installation in the Omni Container of Victrix Maior TT, Victrix TT and Victrix Hybrid use the increased door kit.
Page 8
Per richiedere ulteriori approfondimenti specifici, i Professionisti del settore possono anche avvalersi dell’indirizzo e-mail: consulenza@immergas.com To request further specific details, sector Professionals can also use the following e-mail address: consulenza@immergas.com Immergas S.p.A. 42041 Brescello (RE) - Italy Tel. 0522.689011 Fax 0522.680617...
