1. Features
Uses a 433MHz radio remote control, and the remote distance can be up to 100 meters in open area.
Built-in a high quality MP3 audio decoder IC.
Built-in 8MB flash memory and equipped with a micro SD slot and USB connector.
Supports maximum 32GB micro SD card and 32GB USB pen drive.
Built-in high quality mono 10 Watts class D amplifier.
www.flyrontech.com

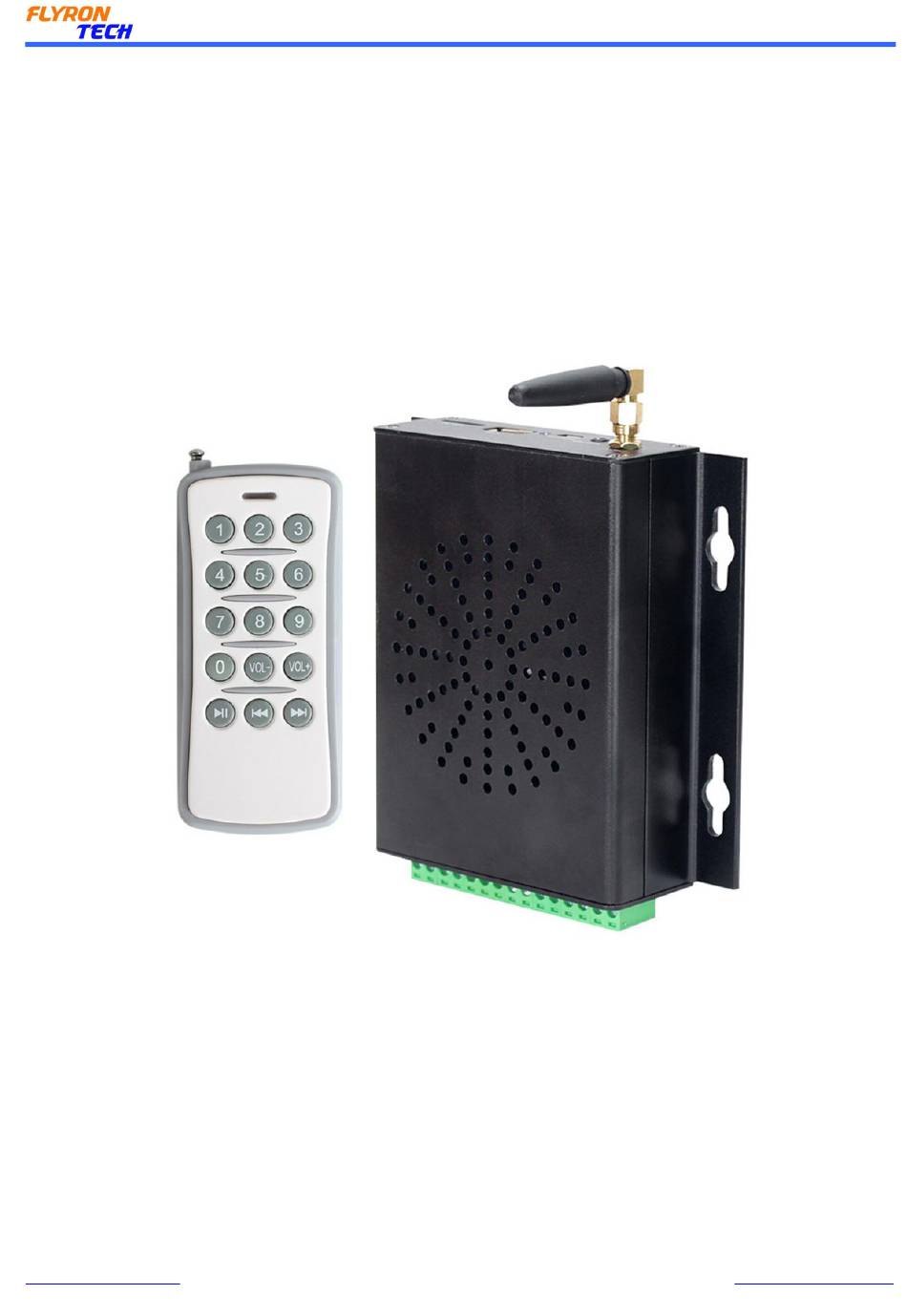

433MHz 15 Key Remote MP3 Audio Player
User's Manual
Model No.: FN-AL7TR1
433MHz 15 Key Remote MP3 Audio Player
Version: V2.0
1
E-mail: info@flyrontech.com
Advertisement
Related Manuals for Flyron Technology FN-AL7TR1
Summary of Contents for Flyron Technology FN-AL7TR1
- Page 1 433MHz 15 Key Remote MP3 Audio Player 433MHz 15 Key Remote MP3 Audio Player User’s Manual Model No.: FN-AL7TR1 Version: V2.0 1. Features Uses a 433MHz radio remote control, and the remote distance can be up to 100 meters in open area.
-
Page 2: Technical Parameters
433MHz 15 Key Remote MP3 Audio Player Equipped with a 3.5mm stereo audio output jack that can be connected to an external amplifier or an active speaker. Supports to direct play 999 audio files through pressing numeric keys on the remote control. ... - Page 3 433MHz 15 Key Remote MP3 Audio Player www.flyrontech.com E-mail: info@flyrontech.com...
- Page 4 433MHz 15 Key Remote MP3 Audio Player Example of Wiring Connection Please just leave these terminals alone. 12-40V They’re designed for other purposes. Note: When the device is powered on, there is about 5 seconds delay time (the LED keeps flashing), which was designed for paring a remote control during such a duration.
- Page 5 433MHz 15 Key Remote MP3 Audio Player Note: When you rename an audio file, you can still keep the original file name and add 3 digits ahead of the original name like 001-Never Say Goodbye.mp3, 002-Season in the Sun.mp3, 003-Angel.mp3, and so on. 6-2.
- Page 6 433MHz 15 Key Remote MP3 Audio Player Short press one key or two/three keys continuously within a second for direct playback of the associated audio file. For example, if you want to play the 1 audio file (001.mp3), just simply short press the numeric key “1”; if you want to play the 19 audio file (019.mp3), just short press the numeric keys “1”...
