Flyron Technology Co., Ltd.
1. Features

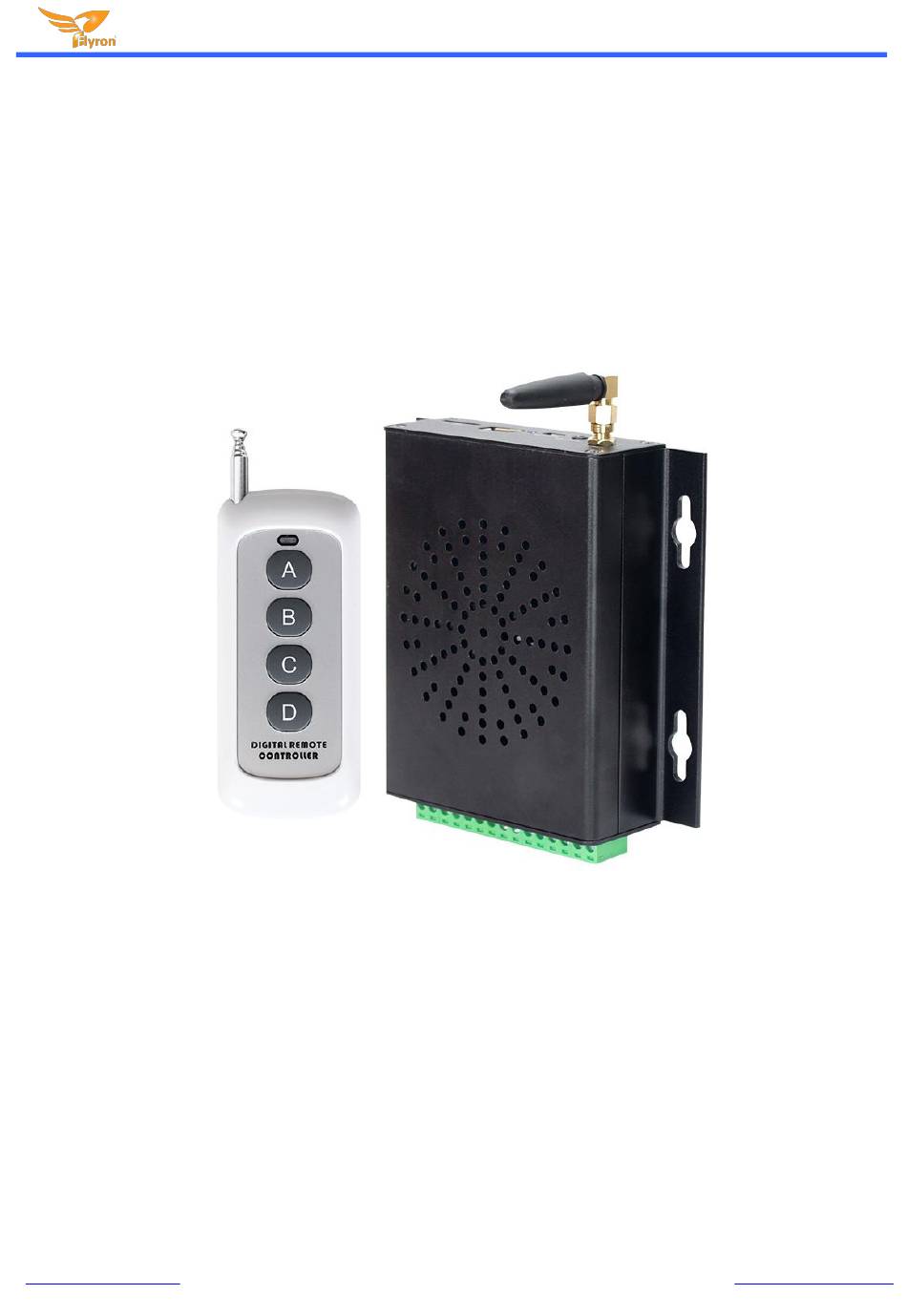

Equipped with a 433MHz 4 key remote control,
Each key (A, B, C, D) from the remote control triggers an associated sound file (001.mp3-004.mp3) respectively.
Built-in a 8MB SPI flash memory and possible to store max. 8 minutes long MP3 files (128Kbps).
Equipped with a micro SD slot and a USB connector.
Supports max. 32GB micro SD card and 32GB USB flash drive.
Update audio files easily by connecting the device to computer.
www.flyrontech.com
433MHz 4 Key Remote MP3 Audio Player
User's Manual
Model No.: FN-AL7TR2
433MHz 4 Key Remote MP3 Audio Player
Version: V1.0
and the remote distance can be up to 100 meters in open area.
1
E-mail: info@flyrontech.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Flyron Technology FN-AL7TR2
Summary of Contents for Flyron Technology FN-AL7TR2
- Page 1 Flyron Technology Co., Ltd. 433MHz 4 Key Remote MP3 Audio Player 433MHz 4 Key Remote MP3 Audio Player User’s Manual Model No.: FN-AL7TR2 Version: V1.0 1. Features Equipped with a 433MHz 4 key remote control, and the remote distance can be up to 100 meters in open area.
-
Page 2: Technical Parameters
Flyron Technology Co., Ltd. 433MHz 4 Key Remote MP3 Audio Player -No need any software/program. It'll be detected as a USB pen drive on computer. Equipped with a class D 10 watts amplifier and a stereo 3.5mm audio output jack. - Page 3 Flyron Technology Co., Ltd. 433MHz 4 Key Remote MP3 Audio Player www.flyrontech.com E-mail: info@flyrontech.com...
- Page 4 Flyron Technology Co., Ltd. 433MHz 4 Key Remote MP3 Audio Player Example of Wiring Connection Please just leave these terminals alone. 12-40V They’re designed for other purposes. Note: When the device is powered on, there is about 5 seconds delay time (LED keeps flashing), which was designed for paring a remote control during such a duration.
- Page 5 Flyron Technology Co., Ltd. 433MHz 4 Key Remote MP3 Audio Player please refer to the following steps. 1). Build a new folder on the computer and put the audio files in this new folder. 2). Rename the sound files 001.mp3, 002.mp3, 003.mp3 and 004.mp3, and make sure they are ranked from 001.mp3 to 004.mp3 in order.
- Page 6 Flyron Technology Co., Ltd. 433MHz 4 Key Remote MP3 Audio Player number “015” in the file. See as below. 3). Save it and change the file name to Config or any other name you like in English characters. See as below.
