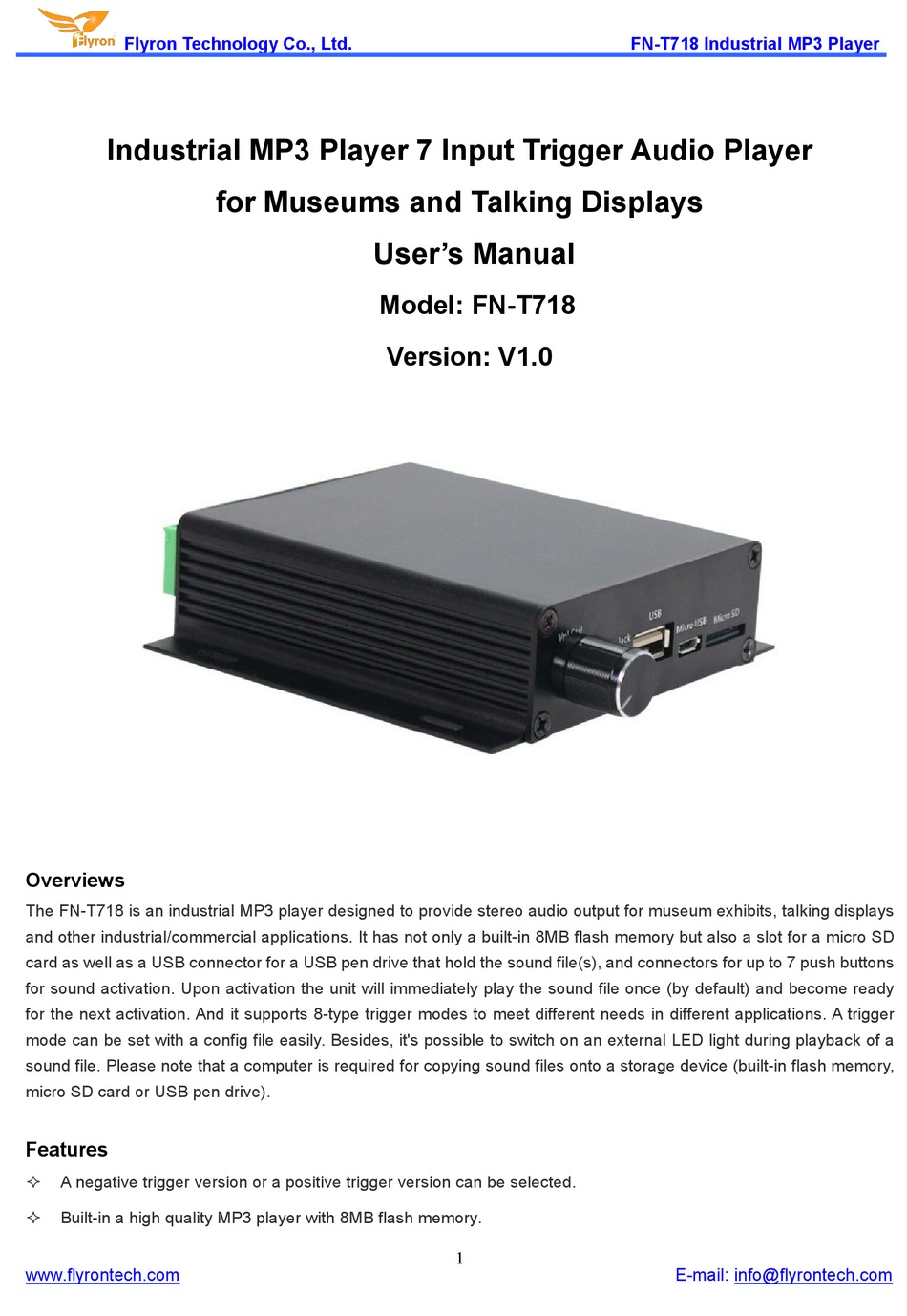

Flyron Technology Co., Ltd.
Industrial MP3 Player 7 Input Trigger Audio Player
Overviews
The FN-T718 is an industrial MP3 player designed to provide stereo audio output for museum exhibits, talking displays
and other industrial/commercial applications. It has not only a built-in 8MB flash memory but also a slot for a micro SD
card as well as a USB connector for a USB pen drive that hold the sound file(s), and connectors for up to 7 push buttons
for sound activation. Upon activation the unit will immediately play the sound file once (by default) and become ready
for the next activation. And it supports 8-type trigger modes to meet different needs in different applications. A trigger
mode can be set with a config file easily. Besides, it's possible to switch on an external LED light during playback of a
sound file. Please note that a computer is required for copying sound files onto a storage device (built-in flash memory,
micro SD card or USB pen drive).
Features
A negative trigger version or a positive trigger version can be selected.
Built-in a high quality MP3 player with 8MB flash memory.
www.flyrontech.com
for Museums and Talking Displays
User's Manual
Model: FN-T718
Version: V1.0
1
FN-T718 Industrial MP3 Player
E-mail: info@flyrontech.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Flyron Technology FN-T718
Summary of Contents for Flyron Technology FN-T718
- Page 1 Overviews The FN-T718 is an industrial MP3 player designed to provide stereo audio output for museum exhibits, talking displays and other industrial/commercial applications. It has not only a built-in 8MB flash memory but also a slot for a micro SD card as well as a USB connector for a USB pen drive that hold the sound file(s), and connectors for up to 7 push buttons for sound activation.
-
Page 2: Technical Parameters
Flyron Technology Co., Ltd. FN-T718 Industrial MP3 Player Supports inserting USB flash drive and micro SD card as the extended storage devices. Supports max. 32GB USB flash drive and max. 32GB micro SD card. 7 trigger inputs available and they can be connected with as many as 7 push buttons/switches/relays, etc. - Page 3 Flyron Technology Co., Ltd. FN-T718 Industrial MP3 Player Examples of Wiring Connection 1. Negative Trigger Version 2. Positive Trigger Version www.flyrontech.com E-mail: info@flyrontech.com...
- Page 4 Flyron Technology Co., Ltd. FN-T718 Industrial MP3 Player Operation Guide 1. Select a Trigger Mode There are 8 trigger modes available for users to choose according to the actual needs. Any of these 8 trigger modes can be set/acquired through a config file, which is a text file (.txt). Users just need to fill in a number that is corresponding to a trigger mode in a new built text file.
- Page 5 Flyron Technology Co., Ltd. FN-T718 Industrial MP3 Player Number in Config Corresponding Trigger Mode File Short press the button to start playing, and during playing, if you press the button again, the playback will be interruptible and it will play from the beginning.
- Page 6 Flyron Technology Co., Ltd. FN-T718 Industrial MP3 Player 2). Open it and enter a number (mode) you need. Suppose you need mode “1”, just enter “1”. See below. 3). Save it and close it. 4). Rename the file “Config” or any other name you like.
- Page 7 Flyron Technology Co., Ltd. FN-T718 Industrial MP3 Player 3). Save it and close it. 4). Rename the file “Config” or any other name you like. 3. Audio Files Loading/Updating Users can use a micro USB data cable to connect the board to computer. The built-in flash memory will be detected as a USB flash drive on computer.
- Page 8 Flyron Technology Co., Ltd. FN-T718 Industrial MP3 Player 9). Safely remove the USB connection from computer. Note: When you use the trigger mode “3”, you can definitely place more than 7 audio files. 3.2. For Trigger Mode 4 Like the first four trigger modes, the audio files need to be placed on the root directory of the storage device (built-in flash memory/micro SD card/USB flash drive).
- Page 9 Flyron Technology Co., Ltd. FN-T718 Industrial MP3 Player 3.3. For Trigger Mode 5-7 At first, users need to create seven folders on the storage device (built-in flash memory/micro SD card/USB flash drive), and rename them 01, 02, 03, till 07, then put the config file together with the folders on the root directory. Of course, if you don’t have to use so many buttons, then you don’t need to create as many as seven folders.
- Page 10 Flyron Technology Co., Ltd. FN-T718 Industrial MP3 Player After that, copy your audio files to each associated folder, and rename them 001.mp3, 002.mp3, and so on. In these three modes, the device recognize the audio files by physical index order, so when you copy audio files to each folder, please note the copy order.
