Flyron Technology FN-RC15K User Manual

Flyron Technology Co., Ltd. 433MHz Radio Remote MP3 Player Sound Board

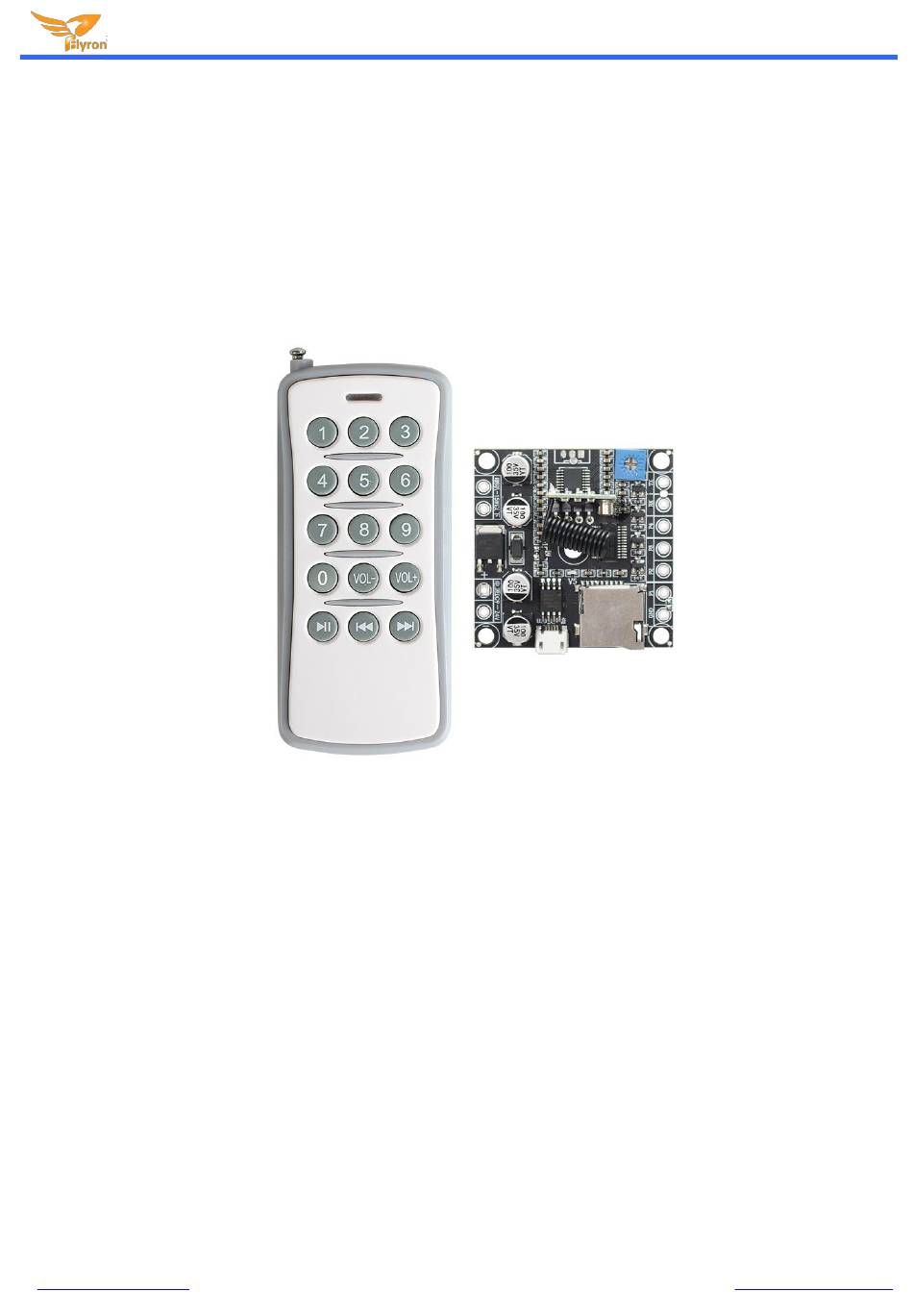

433MHz Radio Remote MP3 Player Sound Board
User's Manual
Model No.: FN-RC15K
V1.0
Features
1. Uses a 433MHz radio remote control, and the remote distance can be up to 100 meters in open area.
2. Built-in a high quality audio decoder IC.
3. Supports to play audio files of MP3 and WAV format.
4. Built-in 4MB flash memory and equipped with a micro SD slot. Supports maximum 32GB SD card.
5. On-board high quality mono 15 Watts class D amplifier to directly connect to a 10-15W speaker.
6. Supports to direct play 999 audio files through press numeric keys on the remote control.
7. Supports four work modes (single playback once on demand, single loop playback on demand, repeat all and
random playback).
8. Possible to update audio files via the micro USB port connected to computer.
9. With the features of play/pause, volume up, volume down, next and previous.
10. Wide range for power input DC (9V - 24V).
11. Industry-grade design and strong anti-jamming capability.
12. PCB size: 45mm x 45mm.
